Isuzu WW
▶
TRUCKS
▶
NPS
▶
50701 - NPS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

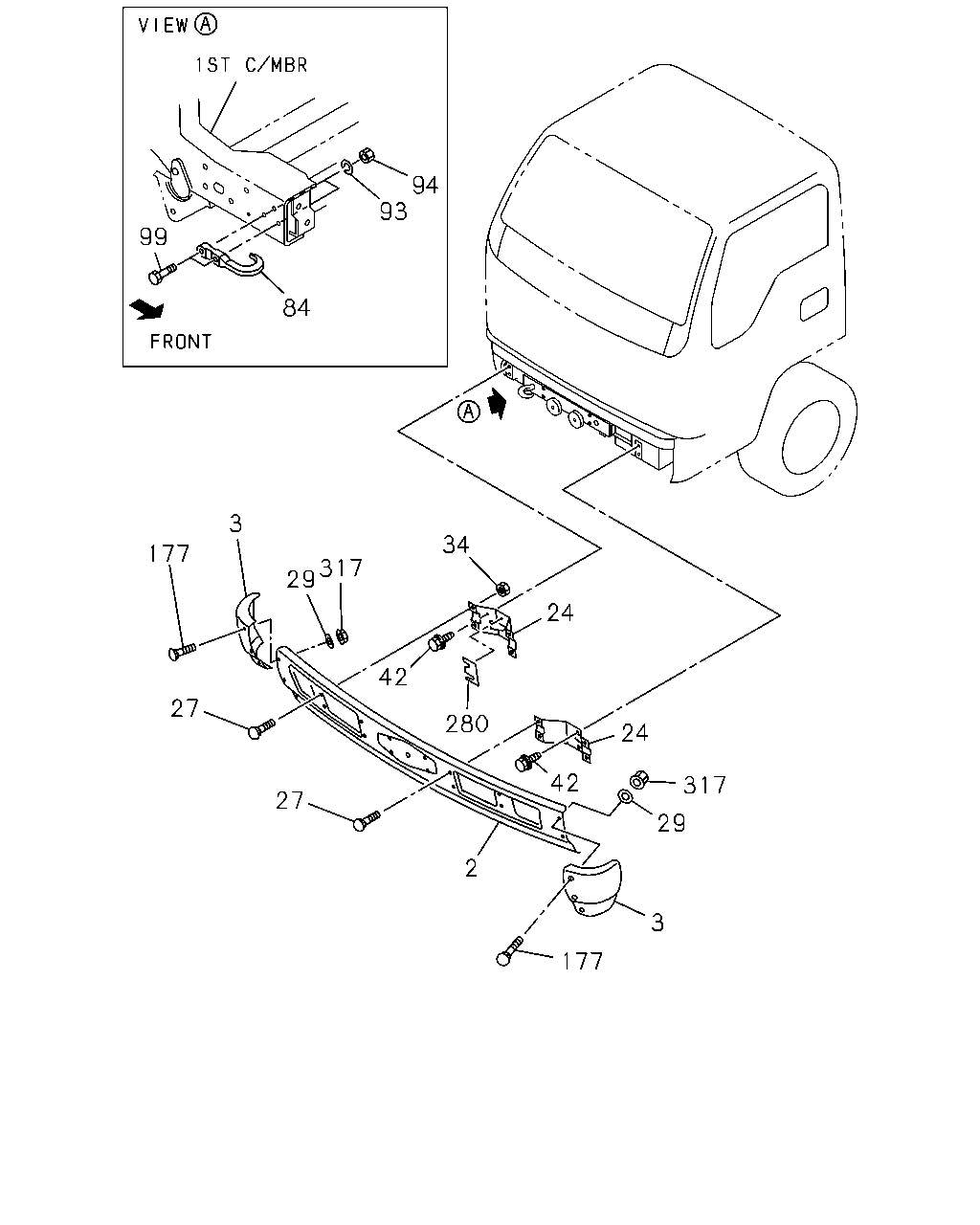

6-01 — FRONT BUMPER
(#35796) — 22 parça
94
93
99
84
3
34
177
317
29
24
42
27
280
24
42
317
27
29
2
3
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.831 BUMPER; FRT,CENTER
PLEASE PAINT TO MATCH BODY COLOR
8-94483-937-4
01
1
9412-
3
07.831 BUMPER; FRT,SIDE
PLEASE PAINT TO MATCH BODY COLOR
8-97116-161-0
01
1
9412-
3
07.831 BUMPER; FRT,SIDE
PLEASE PAINT TO MATCH BODY COLOR
8-97116-160-0
01
1
9412-
24
07.869 BAR; FRT BUMPER
8-94483-941-1
01
1
9412-
24
07.869 BAR; FRT BUMPER
8-94483-940-1
01
1
9412-
27
07.833 BOLT; BUMPER TO BACK BAR
07.874 M10X25 BLACK
8-94365-131-1
08
1
9412-
29
07.833 WASHER; FRT BUMPER
06.760 ID=8.4 OD=22
9-09160-708-0
06
1
9412-0605
29
07.833 WASHER; FRT BUMPER
04.595 ID=8.4 OD=22
0-91610-708-0
06
1
0606-
34
07.874 NUT; BRKT,BUMPER
M10 FLANGE
5-09440-006-0
08
1
9412-
42
07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER
8-97101-865-0
04
1
9412-
84
07.068 HOOK
8-94249-270-2
01
1
9412-
93
07.068 WASHER; LK,HOOK
05.422 ID=14.2
9-09150-814-0
02
1
9412-0603
93
07.068 WASHER; LK,HOOK
06.174 ID=14.2
0-91510-814-0
02
1
0604-
94
07.068 NUT; HOOK
07.529 M14
9-99110-514-0
02
1
9412-0512
94
07.068 NUT; HOOK
07.833 M14
0-91110-514-0
02
1
0601-
99
07.039 BOLT; HOOK
M14X50
0-10806-450-0
02
1
9412-0512
99
07.039 BOLT; HOOK
M14X50
0-10856-450-0
02
1
0601-
177
07.869 BOLT
07.874
1-09060-008-0
06
1
9412-
280
07.865 SHIM; FRT BUMPER
T=1.6
8-94337-257-0
AR
1
9502-
280
07.865 SHIM; FRT BUMPER
T=3.2
8-94337-362-0
AR
1
9502-
317
07.833 NUT; CENTER TO SIDE
07.633 M8 FLANGE
0-91150-108-0
06
1
9412-0602
317
07.833 NUT; CENTER TO SIDE
01.062 M8 FLANGE
0-91180-108-0
06
1
0603-
