◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#35793) — 117 parça

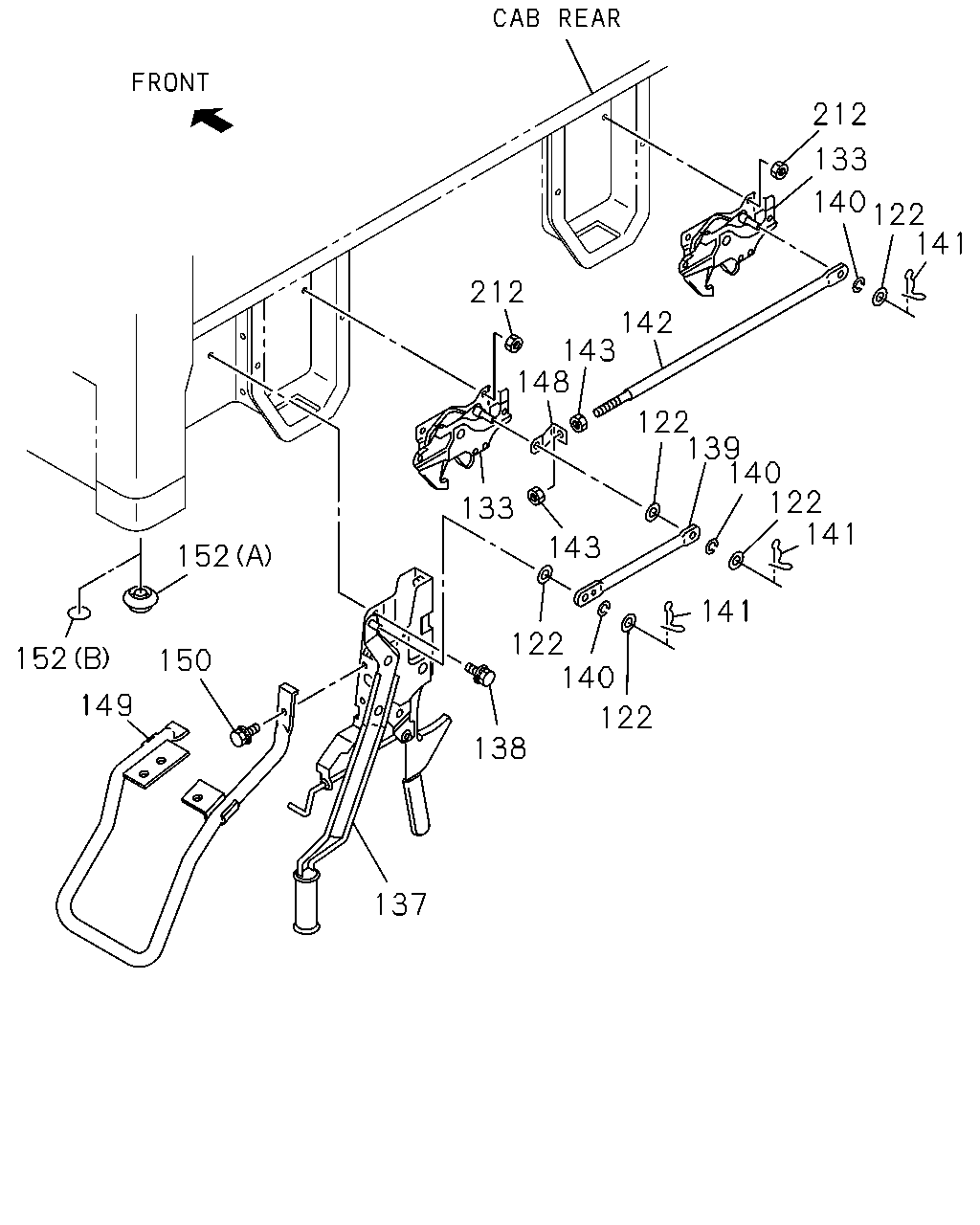

çizim 69506
212 133 140 122 141 212 142 143 148 122 139 140 122 141 133 143 152 141 122 140 152 150 149 122 138 137
BalonParca AdiParca NoAdetTipApplied Date
122 09.005 WASHER; PL,CAB LOCK ROD
09.003 ID=12.5 OD=22 		8-94279-627-0 05 1 9412-9810
122 09.005 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22 		8-94279-627-0 05 1 9811-0707
122 09.005 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 04.439 ID=12.5 OD=22 		0-91610-512-0 05 1 0708-
133 09.005 LOCK ASM; CAB 8-97853-056-5 01 1 9412-9810
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-8 01 1 9811-
133 09.005 LOCK ASM; CAB 8-97853-055-6 01 1 9412-9810
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-9 01 1 9811-
137 09.005 CONTROL UNIT; CAB LOCK 8-97856-293-6 01 1 9412-9810
137 09.005 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97856-293-9 01 1 9811-
138 09.005 BOLT; CAB LOCK CONT UNIT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9412-9810
138 09.005 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9811-
139 09.005 ROD; CAB LOCK,LEVER TO HOOK 8-97853-053-0 01 1 9412-9810
139 09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-1 01 1 9811-0302
139 09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97997-597-0 01 1 0303-
140 09.005 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 		8-94279-629-0 03 1 9412-9810
140 09.005 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 9811-0611
140 09.005 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-98060-839-0 03 1 0612-
141 09.005 PIN; SNAP,CAB LOCK ROD
09.003 		1-09987-158-1 03 1 9412-9810
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 		1-09987-158-1 03 1 9811-
142 09.005 ROD; HOOK TO HOOK 1-79718-581-0 01 1 9412-9810
142 09.005 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		1-79718-581-0 01 1 9811-
143 09.005 NUT; JAW JOINT,HOOK TO HOOK
09.008 M10 		1-09984-142-0 02 1 9412-9810
143 09.005 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 09.008 M10 		1-09984-142-0 02 1 9811-0909
143 09.005 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 00.833 M10 		0-91110-510-0 02 1 0910-
148 09.005 JOINT; JAW,HOOK TO HOOK 8-97856-106-0 01 1 9412-9810
148 09.005 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 9811-
149 16.450 HANDLE; TILT 8-97853-500-5 01 1 9412-9810
149 16.450 HANDLE; TILT
MANUAL TILT CAB<RWZ> 		8-97853-500-5 01 1 9811-
150 16.450 BOLT; TILT HANDLE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9412-9603
150 16.450 BOLT; TILT HANDLE
02.559 M8X25 FLANGE 		0-28680-825-0 03 1 9604-9810
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 9811-0512
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0601-0610
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0611-1103
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1104-
152 09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
(A) OD=19 		8-94279-055-0 02 1 9412-0210
152 09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0211-
212 09.005 NUT; BRKT,CAB LOCK
03.417 M8 FLANGE 		8-94279-517-0 08 1 9412-9611
212 09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 9612-

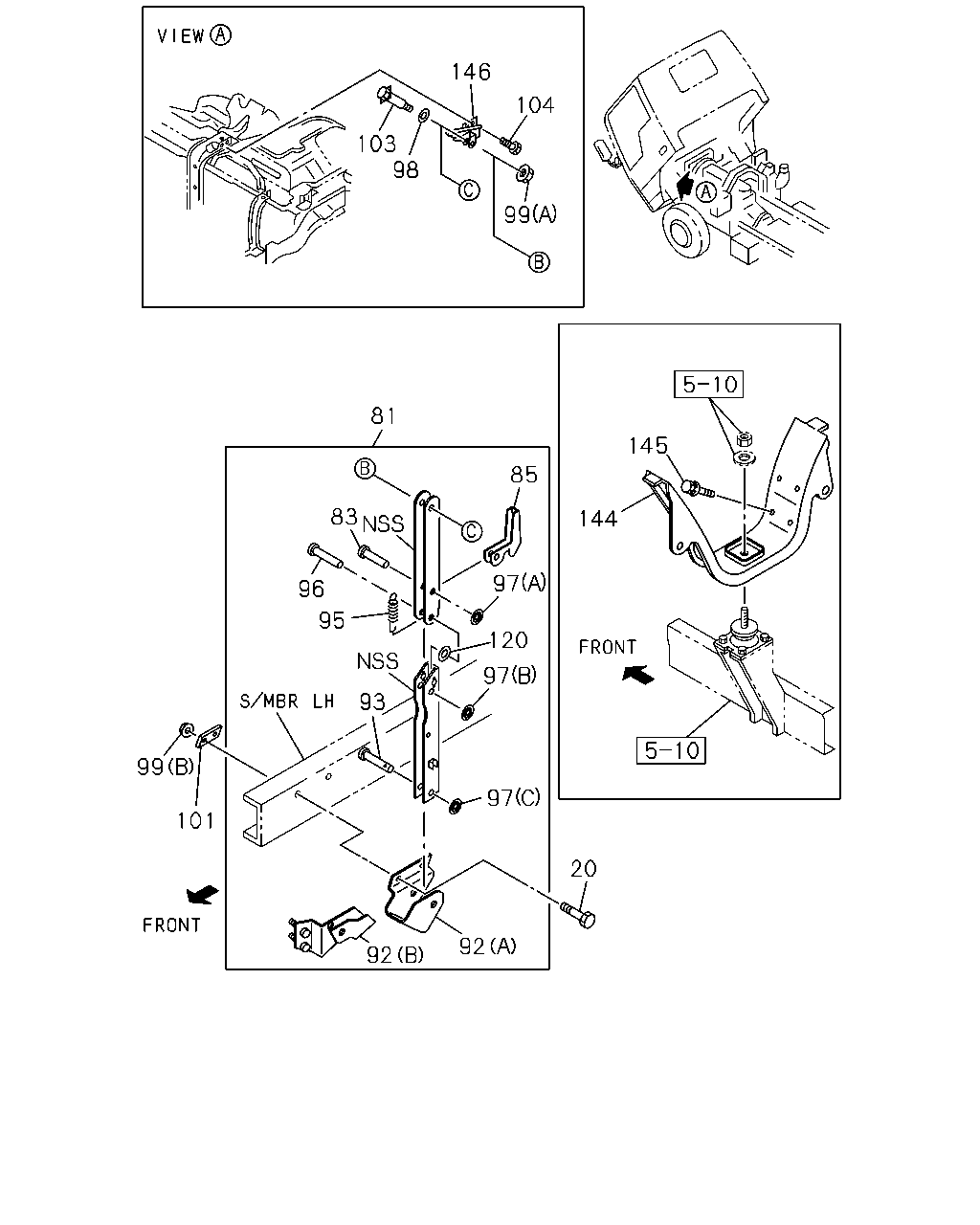

çizim 70070
146 104 103 98 99 81 145 85 83 144 97 96 120 95 97 93 99 97 101 20 92 92
BalonParca AdiParca NoAdetTipApplied Date
20 09.003 BOLT
MANUAL TILT CAB<RWZ> M10X40 W/WASHER 		8-94411-010-0 02 1 9811-9901
81 09.003 STAY ASM; CAB TILT 8-97120-943-0 01 1 9412-9810
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> 		8-97201-793-0 01 1 9811-9901
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> 		8-97120-943-0 01 1 9902-
83 09.003 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 9412-9810
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 9811-
85 09.003 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 9412-9810
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 9811-
92 09.003 BRACKET; CAB STAY TO FRAME
(A) 		8-97096-653-0 01 1 9412-9810
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> (A) 		8-97106-717-0 01 1 9811-9901
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> (B) 		8-97096-653-0 01 1 9902-
93 09.003 PIN; CAB STAY 8-97039-549-0 01 1 9412-9810
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> 		8-97039-549-0 01 1 9811-9901
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> OD=12 L=53 		8-97218-926-0 01 1 9902-
95 09.003 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 9412-9810
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 9811-
96 09.003 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 9412-9810
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 9811-
97 09.011 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9412-9810
97 09.011 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9412-9810
97 09.011 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9412-9810
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9811-
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9811-
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9811-
98 09.003 WASHER; CAB STAY
ID=6.5 OD=28.0 		8-97076-467-0 01 1 9412-9707
98 09.003 WASHER; CAB STAY
ID=10.5 OD=28.0 		8-97184-701-0 01 1 9708-9810
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 9811-
99 09.003 NUT; CAB STAY
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9412-9707
99 09.003 NUT; CAB STAY
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9412-9810
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9811-0602
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0603-
99 09.003 NUT; CAB STAY
07.389 (A) M10 		8-94317-772-0 01 1 9708-9712
99 09.003 NUT; CAB STAY
(A) M10 		8-97185-205-1 01 1 9712-9810
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 9811-
101 09.003 SPACER 8-94121-864-1 01 1 9412-9810
101 09.003 SPACER
MANUAL TILT CAB<RWZ> 		8-94121-864-1 01 1 9811-
103 09.003 PIN; JOINT,CAB STAY
M6X29.5 		8-97076-843-1 01 1 9412-9707
103 09.003 PIN; JOINT,CAB STAY
M10X40 		8-97184-683-0 01 1 9708-9810
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9811-0805
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97359-151-0 01 1 0806-
104 09.003 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28290-820-0 03 1 9412-9611
104 09.003 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28690-820-0 03 1 9612-9810
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9811-0512
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE 		0-28660-820-0 03 1 0601-
120 09.003 WASHER; NYLON
ID=10 OD=20 		8-97103-223-0 01 1 9412-9810
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 		8-97103-223-0 01 1 9811-
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 9811-
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9811-0808
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER 		8-98051-939-0 12 1 0809-
146 09.003 BRACKET ASM; CAB STAY UPR 8-97076-588-2 01 1 9412-9810
146 09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-588-2 01 1 9811-
çizim 72250
15 12 1 38 324 15 3 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 09.003 LEVER; TORSION BAR 8-97114-077-1 01 1 9412-9712
1 09.003 LEVER; TORSION BAR 8-97188-908-1 01 1 9801-9810
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97188-908-2 01 1 9811-0501
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97379-902-1 01 1 0502-
1 09.003 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97114-084-2 01 1 9811-0501
1 09.003 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ> 		8-97379-903-0 01 1 0502-
3 09.003 BOLT; LEVER
M12X50 		8-94401-729-1 06 1 9412-9810
3 09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 9811-0111
3 09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0112-0611
3 09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97359-033-0 06 1 0612-
3 09.003 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 04 1 9811-0111
3 09.003 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97326-378-0 04 1 0112-
12 09.003 BAR; TORSION,UPR 8-97061-818-0 01 1 9412-9802
12 09.003 BAR; TORSION,UPR 8-97180-747-0 01 1 9803-9810
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97180-747-0 01 1 9811-0005
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97261-871-0 01 1 0006-
15 09.003 RING; SNAP,TORSION BAR
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 		8-94258-173-0 01 1 0507-0610
15 09.003 RING; SNAP,TORSION BAR
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 		8-97359-034-0 01 1 0611-
15 09.003 RING; SNAP,TORSION BAR 8-94258-173-0 02 1 9412-9810
15 09.003 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 9811-0501
15 09.003 RING; SNAP,TORSION BAR
4HG1 ENG(RJH) MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 0502-0610
15 09.003 RING; SNAP,TORSION BAR
4HG1 ENG(RJH) MANUAL TILT CAB<RWZ> 		8-97359-034-0 02 1 0611-0611
15 09.003 RING; SNAP,TORSION BAR
4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ> 		8-97359-034-0 02 1 0612-
38 09.005 NUT; LK
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 07.529 M14 		9-99110-514-0 01 1 0507-0512
38 09.005 NUT; LK
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 07.833 M14 		0-91110-514-0 01 1 0601-0611
38 09.005 NUT; LK
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> M14 		8-98039-988-0 01 1 0612-
324 09.003 BOLT; ADJUST
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> M14X55 		8-97190-103-1 01 1 0507-0610
324 09.003 BOLT; ADJUST
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> M14X55 		8-98004-319-1 01 1 0611-
