5-01 — FRAME AND OTHER PARTS (#35791) — 360 parça

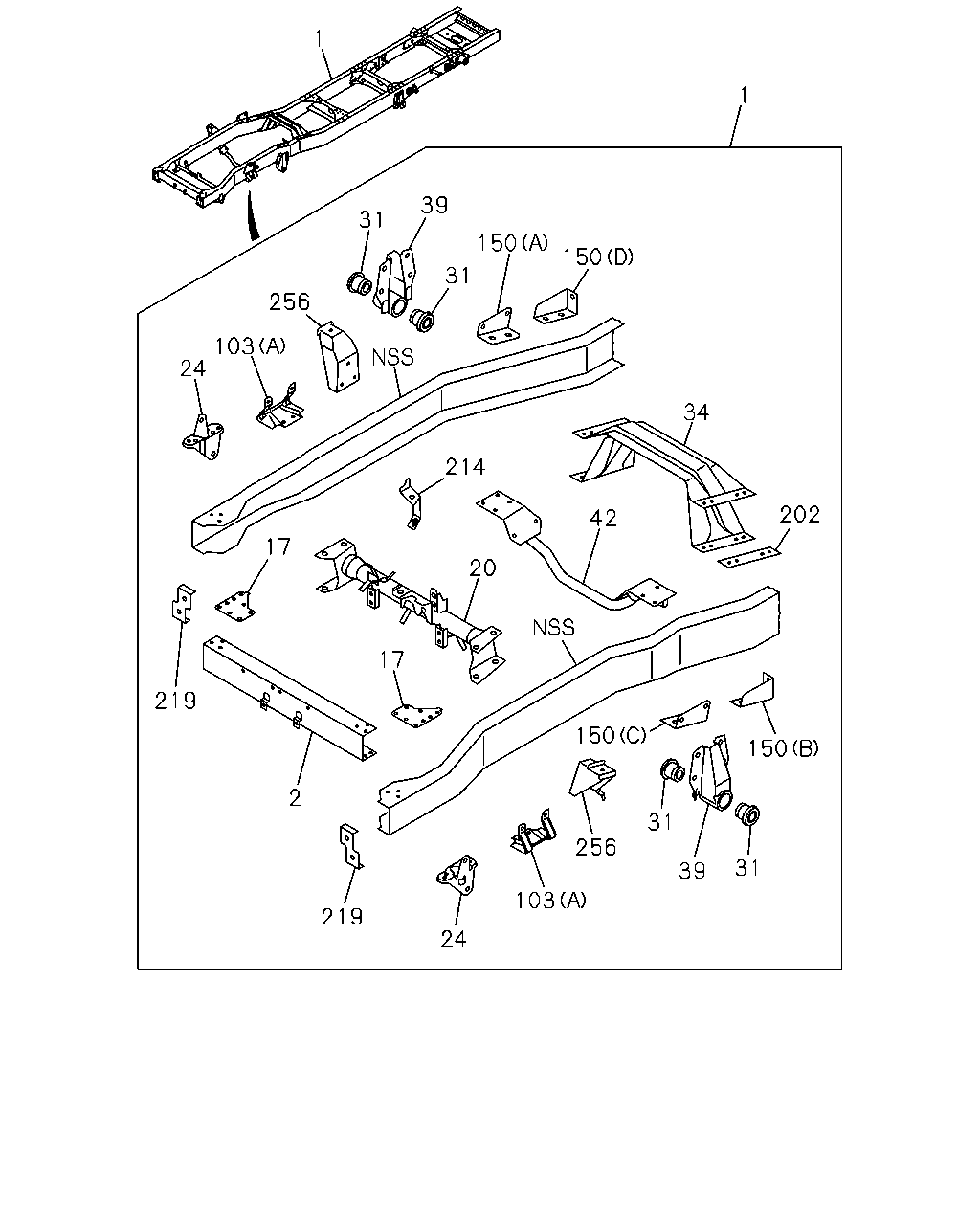

1 1 39 31 150 150 31 256 103 24 34 214 202 42 17 20 17 219 150 150 2 31 256 31 39 103 219 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ)	8-97377-811-3	01	1	0507-
1	07.003 FRAME ASM	8-97092-426-0	01	1	9412-0105
1	07.003 FRAME ASM 4HG1 ENG(RJH)	8-97092-426-2	01	1	0106-0212
1	07.003 FRAME ASM 4HE1 ENG(RLY)	8-97351-017-2	01	1	0301-0501
1	07.003 FRAME ASM 4HG1 ENG(RJH)	8-97373-658-2	01	1	0311-0501
1	07.003 FRAME ASM 4HG1 ENG(RJH)	8-97377-812-1	01	1	0502-0611
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97377-812-1	01	1	0612-
2	07.010 MEMBER; CROSS,1ST	8-97042-532-6	01	1	9412-0105
2	07.010 MEMBER; CROSS,1ST 4HG1 ENG(RJH)	8-97042-532-6	01	1	0106-0212
2	07.010 MEMBER; CROSS,1ST 4HE1 ENG(RLY)	8-97042-532-6	01	1	0301-0310
2	07.010 MEMBER; CROSS,1ST 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97042-532-7	01	1	0311-0501
2	07.010 MEMBER; CROSS,1ST 4HG1 ENG(RJH)	8-97042-532-7	01	1	0502-0506
2	07.010 MEMBER; CROSS,1ST 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97042-532-8	01	1	0507-0611
2	07.010 MEMBER; CROSS,1ST 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97042-532-8	01	1	0612-
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	9412-0105
17	07.039 GUSSET; 1ST C/MBR 4HG1 ENG(RJH)	8-97088-205-1	02	1	0106-0212
17	07.039 GUSSET; 1ST C/MBR 4HE1 ENG(RLY)	8-97088-205-1	02	1	0301-0310
17	07.039 GUSSET; 1ST C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97088-205-1	02	1	0311-0501
17	07.039 GUSSET; 1ST C/MBR 4HG1 ENG(RJH)	8-97088-205-1	02	1	0502-0506
17	07.039 GUSSET; 1ST C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97088-205-1	02	1	0507-0611
17	07.039 GUSSET; 1ST C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97088-205-1	02	1	0612-
20	07.012 MEMBER; CROSS,2ND	8-97011-672-1	01	1	9412-0105
20	07.012 MEMBER; CROSS,2ND 4HG1 ENG(RJH)	8-97011-672-1	01	1	0106-0212
20	07.012 MEMBER; CROSS,2ND 4HE1 ENG(RLY)	8-97011-672-1	01	1	0301-0310
20	07.012 MEMBER; CROSS,2ND 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97011-672-1	01	1	0311-0501
20	07.012 MEMBER; CROSS,2ND 4HG1 ENG(RJH)	8-97377-814-0	01	1	0502-0506
20	07.012 MEMBER; CROSS,2ND 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97377-814-0	01	1	0507-0611
20	07.012 MEMBER; CROSS,2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97377-814-0	01	1	0612-
24	07.105 BRACKET; FRT SPR,FRT	8-97086-593-0	01	1	9412-0105
24	07.105 BRACKET; FRT SPR,FRT 4HG1 ENG(RJH)	8-97086-593-0	01	1	0106-0212
24	07.105 BRACKET; FRT SPR,FRT 4HE1 ENG(RLY)	8-97086-593-0	01	1	0301-0310
24	07.105 BRACKET; FRT SPR,FRT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97086-593-1	01	1	0311-0501
24	07.105 BRACKET; FRT SPR,FRT 4HG1 ENG(RJH)	8-97086-593-1	01	1	0502-0506
24	07.105 BRACKET; FRT SPR,FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97086-593-1	01	1	0507-0611
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97086-593-1	01	1	0612-
24	07.105 BRACKET; FRT SPR,FRT	8-97086-592-0	01	1	9412-0105
24	07.105 BRACKET; FRT SPR,FRT 4HG1 ENG(RJH)	8-97086-592-0	01	1	0106-0212
24	07.105 BRACKET; FRT SPR,FRT 4HE1 ENG(RLY)	8-97086-592-0	01	1	0301-0310
24	07.105 BRACKET; FRT SPR,FRT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97086-592-1	01	1	0311-0501
24	07.105 BRACKET; FRT SPR,FRT 4HG1 ENG(RJH)	8-97086-592-1	01	1	0502-0506
24	07.105 BRACKET; FRT SPR,FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97086-592-1	01	1	0507-0611
24	07.105 BRACKET; FRT SPR,FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97086-592-1	01	1	0612-
31	07.428 BUSHING; FRT SPR,RR 07.524 OD=40 L=43.7	8-94118-588-1	04	1	9412-9712
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	9801-0105
31	07.428 BUSHING; FRT SPR,RR 4HG1 ENG(RJH) 07.524	8-97184-699-1	04	1	0106-0212
31	07.428 BUSHING; FRT SPR,RR 4HE1 ENG(RLY) 07.524	8-97184-699-1	04	1	0301-0310
31	07.428 BUSHING; FRT SPR,RR 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.524	8-97184-699-1	04	1	0311-0501
31	07.428 BUSHING; FRT SPR,RR 4HG1 ENG(RJH) 07.524	8-97184-699-1	04	1	0502-0506
31	07.428 BUSHING; FRT SPR,RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.524	8-97184-699-1	04	1	0507-0611
31	07.428 BUSHING; FRT SPR,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.524	8-97184-699-1	04	1	0612-
34	07.012 MEMBER; CROSS,3RD	8-97091-708-0	01	1	9412-9909
34	07.012 MEMBER; CROSS,3RD	8-97208-566-1	01	1	9910-0105
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH)	8-97208-566-2	01	1	0106-0212
34	07.012 MEMBER; CROSS,3RD 4HE1 ENG(RLY)	8-97208-566-2	01	1	0301-0310
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97208-566-2	01	1	0311-0406
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97353-677-0	01	1	0407-0501
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH)	8-97353-677-0	01	1	0502-0506
34	07.012 MEMBER; CROSS,3RD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97353-677-0	01	1	0507-0611
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97353-677-0	01	1	0612-
39	07.112 BRACKET; FRT SPR,RR	8-97046-283-0	02	1	9412-0105
39	07.112 BRACKET; FRT SPR,RR 4HG1 ENG(RJH)	8-97046-283-1	02	1	0106-0212
39	07.112 BRACKET; FRT SPR,RR 4HE1 ENG(RLY)	8-97046-283-1	02	1	0301-0310
39	07.112 BRACKET; FRT SPR,RR 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97046-283-1	02	1	0311-0501
39	07.112 BRACKET; FRT SPR,RR 4HG1 ENG(RJH)	8-97046-283-1	02	1	0502-0506
39	07.112 BRACKET; FRT SPR,RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97046-283-1	02	1	0507-0611
39	07.112 BRACKET; FRT SPR,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97046-283-1	02	1	0612-
42	07.011 MEMBER; CROSS,ENG MTG	8-97088-742-1	01	1	9412-0105
42	07.011 MEMBER; CROSS,ENG MTG 4HG1 ENG(RJH)	8-97088-742-1	01	1	0106-0212
42	07.011 MEMBER; CROSS,ENG MTG 4HE1 ENG(RLY)	8-97088-742-1	01	1	0301-0310
42	07.011 MEMBER; CROSS,ENG MTG 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97088-742-1	01	1	0311-0501
42	07.011 MEMBER; CROSS,ENG MTG 4HG1 ENG(RJH)	8-97088-742-1	01	1	0502-0506
42	07.011 MEMBER; CROSS,ENG MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97088-742-1	01	1	0507-0611
42	07.011 MEMBER; CROSS,ENG MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97088-742-1	01	1	0612-
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	9412-0105
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH) 07.112 (A)	8-94101-392-0	02	1	0106-0212
103	07.420 STOPPER; SUB SPR 4HE1 ENG(RLY) 07.112 (A)	8-94101-392-0	02	1	0301-0310
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.112 (A)	8-94101-392-0	02	1	0311-0501
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH) 07.112 (A)	8-94101-392-0	02	1	0502-0506
103	07.420 STOPPER; SUB SPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.112 (A)	8-94101-392-0	02	1	0507-0611
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.112 (A)	8-94101-392-0	02	1	0612-
103	07.420 STOPPER; SUB SPR (B)	8-97040-628-0	04	1	9412-9904
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	04	1	9905-0105
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH) (B)	8-97223-748-0	04	1	0106-0212
103	07.420 STOPPER; SUB SPR 4HE1 ENG(RLY) (B)	8-97223-748-0	04	1	0301-0310
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97223-748-0	04	1	0311-0501
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH) (B)	8-97223-748-0	04	1	0502-0506
103	07.420 STOPPER; SUB SPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97223-748-0	04	1	0507-0611
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97223-748-0	04	1	0612-
150	03.616 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (D)	8-98019-590-0	01	1	0507-
150	03.616 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (C)	8-97354-440-0	01	1	0507-
150	03.616 BRACKET; EXH PIPE (A)	8-97107-590-0	01	1	9412-0105
150	03.616 BRACKET; EXH PIPE 4HG1 ENG(RJH) (A)	8-97107-590-0	01	1	0106-0212
150	03.616 BRACKET; EXH PIPE 4HE1 ENG(RLY) (C)	8-97354-440-0	01	1	0301-0501
150	03.616 BRACKET; EXH PIPE (B)	8-97107-591-0	01	1	9412-0105
150	03.616 BRACKET; EXH PIPE 4HG1 ENG(RJH) (B)	8-97107-591-0	01	1	0106-0107
150	03.616 BRACKET; EXH PIPE 4HG1 ENG(RJH) (B)	8-97300-904-0	01	1	0108-0212
150	03.616 BRACKET; EXH PIPE 4HE1 ENG(RLY) (D)	8-97354-441-0	01	1	0301-0501
202	07.105 SPACER; 3RD C/MBR 4HE1 ENG(RLY)	8-97314-627-0	04	1	0301-0310
202	07.105 SPACER; 3RD C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97314-627-1	04	1	0311-0501
202	07.105 SPACER; 3RD C/MBR 4HG1 ENG(RJH)	8-97314-627-1	04	1	0502-0506
202	07.105 SPACER; 3RD C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97314-627-1	04	1	0507-0611
202	07.105 SPACER; 3RD C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97314-627-1	04	1	0612-
214	07.112 BRACKET; GEAR CONT	8-97065-489-5	01	1	9412-0105
214	07.112 BRACKET; GEAR CONT 4HG1 ENG(RJH)	8-97065-489-5	01	1	0106-0212
214	07.112 BRACKET; GEAR CONT 4HE1 ENG(RLY)	8-97065-489-5	01	1	0301-0310
214	07.112 BRACKET; GEAR CONT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97065-489-5	01	1	0311-0501
214	07.112 BRACKET; GEAR CONT 4HG1 ENG(RJH)	8-97065-489-5	01	1	0502-0506
214	07.112 BRACKET; GEAR CONT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97065-489-5	01	1	0507-0611
214	07.112 BRACKET; GEAR CONT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97065-489-5	01	1	0612-
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-97081-350-0	01	1	9412-0105
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HG1 ENG(RJH)	8-97081-350-0	01	1	0106-0212
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HE1 ENG(RLY)	8-97081-350-0	01	1	0301-0310
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97081-350-0	01	1	0311-0501
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HG1 ENG(RJH)	8-97081-350-0	01	1	0502-0506
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97081-350-0	01	1	0507-0611
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97081-350-0	01	1	0612-
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-97081-351-0	01	1	9412-0105
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HG1 ENG(RJH)	8-97081-351-0	01	1	0106-0212
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HE1 ENG(RLY)	8-97081-351-0	01	1	0301-0310
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97081-351-0	01	1	0311-0501
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HG1 ENG(RJH)	8-97081-351-0	01	1	0502-0506
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97081-351-0	01	1	0507-0611
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97081-351-0	01	1	0612-
256	07.395 BRACKET; S/ABS	8-97077-463-3	01	1	9412-0105
256	07.395 BRACKET; S/ABS 4HG1 ENG(RJH)	8-97077-463-3	01	1	0106-0212
256	07.395 BRACKET; S/ABS 4HE1 ENG(RLY)	8-97077-463-3	01	1	0301-0310
256	07.395 BRACKET; S/ABS 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97077-463-3	01	1	0311-0501
256	07.395 BRACKET; S/ABS 4HG1 ENG(RJH)	8-97077-463-3	01	1	0502-0506
256	07.395 BRACKET; S/ABS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97077-463-3	01	1	0507-0611
256	07.395 BRACKET; S/ABS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97077-463-3	01	1	0612-
256	07.395 BRACKET; S/ABS	8-94314-431-3	01	1	9412-0105
256	07.395 BRACKET; S/ABS 4HG1 ENG(RJH)	8-94314-431-3	01	1	0106-0212
256	07.395 BRACKET; S/ABS 4HE1 ENG(RLY)	8-94314-431-3	01	1	0301-0310
256	07.395 BRACKET; S/ABS 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94314-431-3	01	1	0311-0501
256	07.395 BRACKET; S/ABS 4HG1 ENG(RJH)	8-94314-431-3	01	1	0502-0506
256	07.395 BRACKET; S/ABS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94314-431-3	01	1	0507-0611
256	07.395 BRACKET; S/ABS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94314-431-3	01	1	0612-

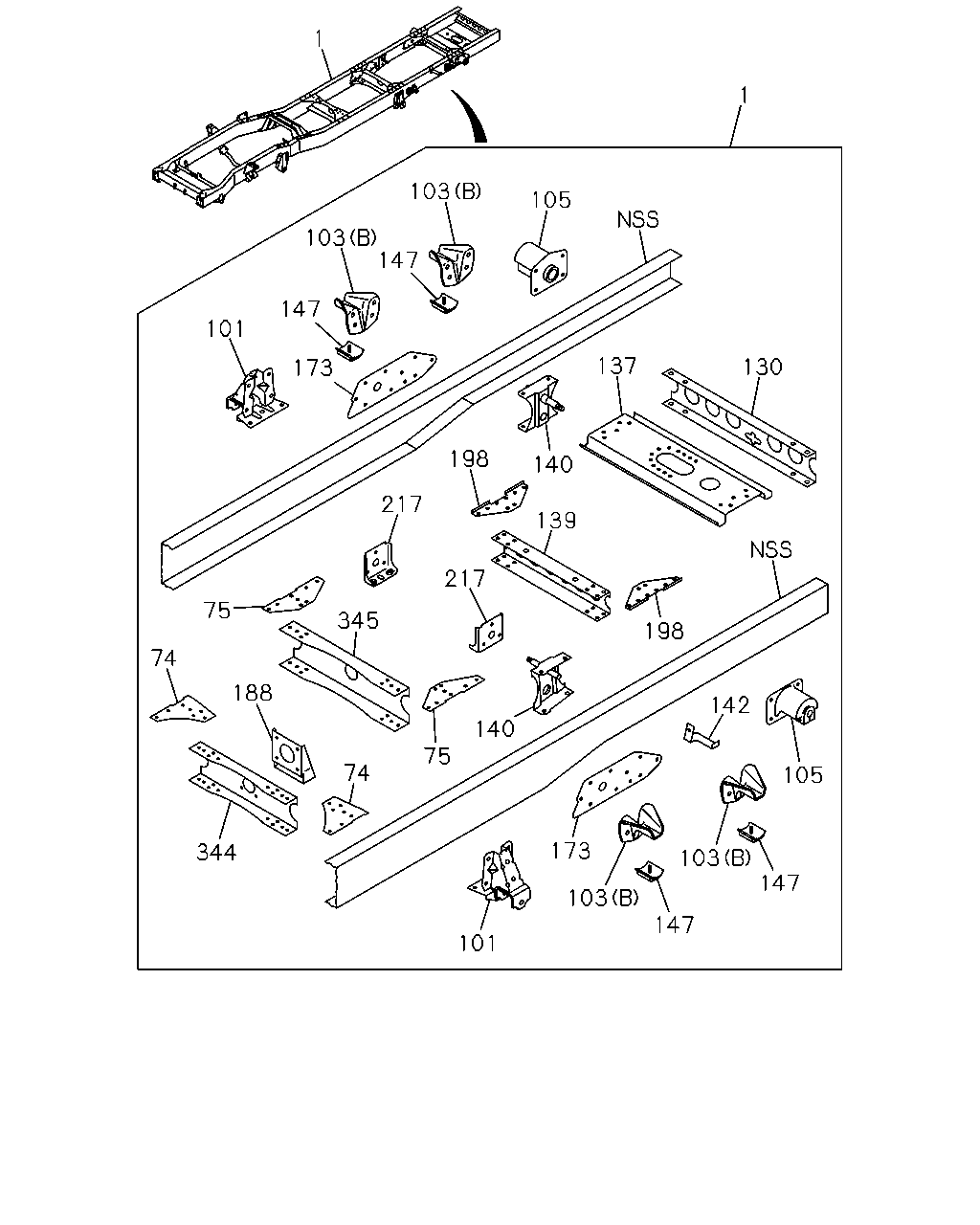

1 1 103 105 103 147 147 101 137 130 173 198 140 217 139 217 75 345 198 74 188 142 140 75 74 105 173 344 103 147 103 147 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ)	8-97377-811-3	01	1	0507-
1	07.003 FRAME ASM	8-97092-426-0	01	1	9412-0105
1	07.003 FRAME ASM 4HG1 ENG(RJH)	8-97092-426-2	01	1	0106-0212
1	07.003 FRAME ASM 4HE1 ENG(RLY)	8-97351-017-2	01	1	0301-0501
1	07.003 FRAME ASM 4HG1 ENG(RJH)	8-97373-658-2	01	1	0311-0501
1	07.003 FRAME ASM 4HG1 ENG(RJH)	8-97377-812-1	01	1	0502-0611
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97377-812-1	01	1	0612-
74	07.039 GUSSET; 4TH C/MBR RH UPPER, LH LOWER	8-97079-406-0	02	1	9412-0105
74	07.039 GUSSET; 4TH C/MBR 4HG1 ENG(RJH) RH UPPER, LH LOWER	8-97079-406-0	02	1	0106-0212
74	07.039 GUSSET; 4TH C/MBR 4HE1 ENG(RLY) RH UPPER, LH LOWER	8-97079-406-0	02	1	0301-0310
74	07.039 GUSSET; 4TH C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY) RH UPPER, LH LOWER	8-97079-406-0	02	1	0311-0501
74	07.039 GUSSET; 4TH C/MBR 4HG1 ENG(RJH) RH UPPER, LH LOWER	8-97079-406-0	02	1	0502-0506
74	07.039 GUSSET; 4TH C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RH UPPER, LH LOWER	8-97079-406-0	02	1	0507-0611
74	07.039 GUSSET; 4TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RH UPPER, LH LOWER	8-97079-406-0	02	1	0612-
74	07.039 GUSSET; 4TH C/MBR LH UPPER, RH LOWER	8-97079-407-0	02	1	9412-0105
74	07.039 GUSSET; 4TH C/MBR 4HG1 ENG(RJH) LH UPPER, RH LOWER	8-97079-407-0	02	1	0106-0212
74	07.039 GUSSET; 4TH C/MBR 4HE1 ENG(RLY) LH UPPER, RH LOWER	8-97079-407-0	02	1	0301-0310
74	07.039 GUSSET; 4TH C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY) LH UPPER, RH LOWER	8-97079-407-0	02	1	0311-0501
74	07.039 GUSSET; 4TH C/MBR 4HG1 ENG(RJH) LH UPPER, RH LOWER	8-97079-407-0	02	1	0502-0506
74	07.039 GUSSET; 4TH C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) LH UPPER, RH LOWER	8-97079-407-0	02	1	0507-0611
74	07.039 GUSSET; 4TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) LH UPPER, RH LOWER	8-97079-407-0	02	1	0612-
75	07.039 GUSSET; 5TH C/MBR RH UPPER, LH LOWER	8-94319-528-0	02	1	9412-0105
75	07.039 GUSSET; 5TH C/MBR 4HG1 ENG(RJH) RH UPPER, LH LOWER	8-94319-528-0	02	1	0106-0212
75	07.039 GUSSET; 5TH C/MBR 4HE1 ENG(RLY) RH UPPER, LH LOWER	8-94319-528-0	02	1	0301-0310
75	07.039 GUSSET; 5TH C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY) RH UPPER, LH LOWER	8-94319-528-0	02	1	0311-0501
75	07.039 GUSSET; 5TH C/MBR 4HG1 ENG(RJH) RH UPPER, LH LOWER	8-94319-528-0	02	1	0502-0506
75	07.039 GUSSET; 5TH C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RH UPPER, LH LOWER	8-94319-528-0	02	1	0507-0611
75	07.039 GUSSET; 5TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RH UPPER, LH LOWER	8-94319-528-0	02	1	0612-
75	07.039 GUSSET; 5TH C/MBR LH UPPER, RH LOWER	8-94319-529-0	02	1	9412-0105
75	07.039 GUSSET; 5TH C/MBR 4HG1 ENG(RJH) LH UPPER, RH LOWER	8-94319-529-0	02	1	0106-0212
75	07.039 GUSSET; 5TH C/MBR 4HE1 ENG(RLY) LH UPPER, RH LOWER	8-94319-529-0	02	1	0301-0310
75	07.039 GUSSET; 5TH C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY) LH UPPER, RH LOWER	8-94319-529-0	02	1	0311-0501
75	07.039 GUSSET; 5TH C/MBR 4HG1 ENG(RJH) LH UPPER, RH LOWER	8-94319-529-0	02	1	0502-0506
75	07.039 GUSSET; 5TH C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) LH UPPER, RH LOWER	8-94319-529-0	02	1	0507-0611
75	07.039 GUSSET; 5TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) LH UPPER, RH LOWER	8-94319-529-0	02	1	0612-
101	07.112 BRACKET; RR SPR,FRT	8-94101-296-3	02	1	9412-0105
101	07.112 BRACKET; RR SPR,FRT 4HG1 ENG(RJH)	8-94101-296-3	02	1	0106-0212
101	07.112 BRACKET; RR SPR,FRT 4HE1 ENG(RLY)	8-94101-296-3	02	1	0301-0310
101	07.112 BRACKET; RR SPR,FRT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94101-296-3	02	1	0311-0501
101	07.112 BRACKET; RR SPR,FRT 4HG1 ENG(RJH)	8-94101-296-3	02	1	0502-0506
101	07.112 BRACKET; RR SPR,FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94101-296-3	02	1	0507-0611
101	07.112 BRACKET; RR SPR,FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94101-296-3	02	1	0612-
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	9412-0105
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH) 07.112 (A)	8-94101-392-0	02	1	0106-0212
103	07.420 STOPPER; SUB SPR 4HE1 ENG(RLY) 07.112 (A)	8-94101-392-0	02	1	0301-0310
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.112 (A)	8-94101-392-0	02	1	0311-0501
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH) 07.112 (A)	8-94101-392-0	02	1	0502-0506
103	07.420 STOPPER; SUB SPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.112 (A)	8-94101-392-0	02	1	0507-0611
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.112 (A)	8-94101-392-0	02	1	0612-
103	07.420 STOPPER; SUB SPR (B)	8-97040-628-0	04	1	9412-9904
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	04	1	9905-0105
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH) (B)	8-97223-748-0	04	1	0106-0212
103	07.420 STOPPER; SUB SPR 4HE1 ENG(RLY) (B)	8-97223-748-0	04	1	0301-0310
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97223-748-0	04	1	0311-0501
103	07.420 STOPPER; SUB SPR 4HG1 ENG(RJH) (B)	8-97223-748-0	04	1	0502-0506
103	07.420 STOPPER; SUB SPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97223-748-0	04	1	0507-0611
103	07.420 STOPPER; SUB SPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97223-748-0	04	1	0612-
105	07.112 BRACKET; RR SPR,RR	9-53353-615-0	02	1	9412-0105
105	07.112 BRACKET; RR SPR,RR 4HG1 ENG(RJH)	9-53353-615-0	02	1	0106-0212
105	07.112 BRACKET; RR SPR,RR 4HE1 ENG(RLY)	9-53353-615-0	02	1	0301-0310
105	07.112 BRACKET; RR SPR,RR 4HG1 ENG(RJH),4HE1 ENG(RLY)	9-53353-615-1	02	1	0311-0501
105	07.112 BRACKET; RR SPR,RR 4HG1 ENG(RJH)	9-53353-615-1	02	1	0502-0506
105	07.112 BRACKET; RR SPR,RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-53353-615-1	02	1	0507-0611
105	07.112 BRACKET; RR SPR,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-53353-615-1	02	1	0612-
130	07.014 MEMBER; CROSS,END	8-94473-386-0	01	1	9412-0105
130	07.014 MEMBER; CROSS,END 4HG1 ENG(RJH)	8-94473-386-0	01	1	0106-0212
130	07.014 MEMBER; CROSS,END 4HE1 ENG(RLY)	8-94473-386-0	01	1	0301-0310
130	07.014 MEMBER; CROSS,END 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94473-386-0	01	1	0311-0501
130	07.014 MEMBER; CROSS,END 4HG1 ENG(RJH)	8-94473-386-0	01	1	0502-0506
130	07.014 MEMBER; CROSS,END 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94473-386-0	01	1	0507-0611
130	07.014 MEMBER; CROSS,END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94473-386-0	01	1	0612-
137	07.629 BRACKET; SPARE TIRE	8-97076-885-1	01	1	9412-0105
137	07.629 BRACKET; SPARE TIRE 4HG1 ENG(RJH)	8-97076-885-1	01	1	0106-0212
137	07.629 BRACKET; SPARE TIRE 4HE1 ENG(RLY)	8-97076-885-1	01	1	0301-0310
137	07.629 BRACKET; SPARE TIRE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97076-885-1	01	1	0311-0501
137	07.629 BRACKET; SPARE TIRE 4HG1 ENG(RJH)	8-97076-885-1	01	1	0502-0506
137	07.629 BRACKET; SPARE TIRE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97076-885-1	01	1	0507-0611
137	07.629 BRACKET; SPARE TIRE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97076-885-1	01	1	0612-
139	07.012 MEMBER; CROSS,6TH	8-94473-385-1	01	1	9412-0105
139	07.012 MEMBER; CROSS,6TH 4HG1 ENG(RJH)	8-94473-385-1	01	1	0106-0212
139	07.012 MEMBER; CROSS,6TH 4HE1 ENG(RLY)	8-94473-385-1	01	1	0301-0310
139	07.012 MEMBER; CROSS,6TH 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94473-385-1	01	1	0311-0501
139	07.012 MEMBER; CROSS,6TH 4HG1 ENG(RJH)	8-94473-385-1	01	1	0502-0506
139	07.012 MEMBER; CROSS,6TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94473-385-1	01	1	0507-0611
139	07.012 MEMBER; CROSS,6TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94473-385-1	01	1	0612-
140	07.112 BRACKET; S/ABS,RR	8-94342-188-0	01	1	9412-0105
140	07.112 BRACKET; S/ABS,RR 4HG1 ENG(RJH)	8-94342-188-0	01	1	0106-0212
140	07.112 BRACKET; S/ABS,RR 4HE1 ENG(RLY)	8-94342-188-0	01	1	0301-0310
140	07.112 BRACKET; S/ABS,RR 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94342-188-0	01	1	0311-0501
140	07.112 BRACKET; S/ABS,RR 4HG1 ENG(RJH)	8-94342-188-0	01	1	0502-0506
140	07.112 BRACKET; S/ABS,RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94342-188-0	01	1	0507-0611
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94342-188-0	01	1	0612-
140	07.112 BRACKET; S/ABS,RR	8-94342-189-0	01	1	9412-0105
140	07.112 BRACKET; S/ABS,RR 4HG1 ENG(RJH)	8-94342-189-0	01	1	0106-0212
140	07.112 BRACKET; S/ABS,RR 4HE1 ENG(RLY)	8-94342-189-0	01	1	0301-0310
140	07.112 BRACKET; S/ABS,RR 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94342-189-0	01	1	0311-0501
140	07.112 BRACKET; S/ABS,RR 4HG1 ENG(RJH)	8-94342-189-0	01	1	0502-0506
140	07.112 BRACKET; S/ABS,RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94342-189-0	01	1	0507-0611
140	07.112 BRACKET; S/ABS,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94342-189-0	01	1	0612-
142	04.845 BRACKET; FLEX HOSE,BRAKE 07.112	8-94162-749-2	01	1	9412-0105
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HG1 ENG(RJH) 07.112	8-94162-749-2	01	1	0106-0212
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HE1 ENG(RLY) 07.112	8-94162-749-2	01	1	0301-0310
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.112	8-94162-749-2	01	1	0311-0501
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HG1 ENG(RJH) 07.112	8-94162-749-2	01	1	0502-0506
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.112	8-94162-749-2	01	1	0507-0611
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.112	8-94162-749-2	01	1	0612-
147	07.535 RUBBER; SUB SPRING	8-94119-958-1	04	1	9412-0003
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0004-0105
147	07.535 RUBBER; SUB SPRING 4HG1 ENG(RJH)	8-97254-387-0	04	1	0106-0212
147	07.535 RUBBER; SUB SPRING 4HE1 ENG(RLY)	8-97254-387-0	04	1	0301-0310
147	07.535 RUBBER; SUB SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97254-387-0	04	1	0311-0501
147	07.535 RUBBER; SUB SPRING 4HG1 ENG(RJH)	8-97254-387-0	04	1	0502-0506
147	07.535 RUBBER; SUB SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-387-0	04	1	0507-0611
147	07.535 RUBBER; SUB SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-387-0	04	1	0612-
173	07.112 STIFFENER; RR SPRING RR SUS FRONT	8-94473-394-0	01	1	9412-0105
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) RR SUS FRONT	8-94473-394-0	01	1	0106-0202
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) RR SUS REAR	8-97208-577-0	02	1	0203-0212
173	07.112 STIFFENER; RR SPRING 4HE1 ENG(RLY) RR SUS REAR	8-97208-577-0	02	1	0301-0310
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) RR SUS REAR	8-97208-577-0	02	1	0311-0501
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) RR SUS REAR	8-97208-577-0	02	1	0502-0506
173	07.112 STIFFENER; RR SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RR SUS REAR	8-97208-577-0	02	1	0507-0611
173	07.112 STIFFENER; RR SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RR SUS REAR	8-97208-577-0	02	1	0612-
173	07.112 STIFFENER; RR SPRING RR SUS REAR	8-94473-396-1	01	1	9412-0105
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) RR SUS REAR	8-94473-396-1	01	1	0106-0202
173	07.112 STIFFENER; RR SPRING RR SUS FRONT	8-94473-393-0	01	1	9412-0105
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) RR SUS FRONT	8-94473-393-0	01	1	0106-0202
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) RR SUS FRONT	8-97208-576-0	02	1	0203-0212
173	07.112 STIFFENER; RR SPRING 4HE1 ENG(RLY) RR SUS FRONT	8-97208-576-0	02	1	0301-0310
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) RR SUS FRONT	8-97208-576-0	02	1	0311-0501
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) RR SUS FRONT	8-97208-576-0	02	1	0502-0506
173	07.112 STIFFENER; RR SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RR SUS FRONT	8-97208-576-0	02	1	0507-0611
173	07.112 STIFFENER; RR SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RR SUS FRONT	8-97208-576-0	02	1	0612-
173	07.112 STIFFENER; RR SPRING RR SUS REAR	8-94473-395-1	01	1	9412-0105
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) RR SUS REAR	8-94473-395-1	01	1	0106-0202
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97043-581-0	01	1	9412-0105
188	07.039 BRACKET; SUPPORT,CTR BRG 4HG1 ENG(RJH)	8-97043-581-0	01	1	0106-0212
188	07.039 BRACKET; SUPPORT,CTR BRG 4HE1 ENG(RLY)	8-97043-581-0	01	1	0301-0310
188	07.039 BRACKET; SUPPORT,CTR BRG 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97043-581-0	01	1	0311-0501
188	07.039 BRACKET; SUPPORT,CTR BRG 4HG1 ENG(RJH)	8-97043-581-0	01	1	0502-0506
188	07.039 BRACKET; SUPPORT,CTR BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97043-581-0	01	1	0507-0611
188	07.039 BRACKET; SUPPORT,CTR BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97043-581-0	01	1	0612-
198	07.039 GUSSET; 6TH C/MBR RH UPPER, LH LOWER	8-94319-528-0	02	1	9412-0105
198	07.039 GUSSET; 6TH C/MBR 4HG1 ENG(RJH) RH UPPER, LH LOWER	8-94319-528-0	02	1	0106-0212
198	07.039 GUSSET; 6TH C/MBR 4HE1 ENG(RLY) RH UPPER, LH LOWER	8-94319-528-0	02	1	0301-0310
198	07.039 GUSSET; 6TH C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY) RH UPPER, LH LOWER	8-94319-528-0	02	1	0311-0501
198	07.039 GUSSET; 6TH C/MBR 4HG1 ENG(RJH) RH UPPER, LH LOWER	8-94319-528-0	02	1	0502-0506
198	07.039 GUSSET; 6TH C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RH UPPER, LH LOWER	8-94319-528-0	02	1	0507-0611
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) RH UPPER, LH LOWER	8-94319-528-0	02	1	0612-
198	07.039 GUSSET; 6TH C/MBR LH UPPER, RH LOWER	8-94319-529-0	02	1	9412-0105
198	07.039 GUSSET; 6TH C/MBR 4HG1 ENG(RJH) LH UPPER, RH LOWER	8-94319-529-0	02	1	0106-0212
198	07.039 GUSSET; 6TH C/MBR 4HE1 ENG(RLY) LH UPPER, RH LOWER	8-94319-529-0	02	1	0301-0310
198	07.039 GUSSET; 6TH C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY) LH UPPER, RH LOWER	8-94319-529-0	02	1	0311-0501
198	07.039 GUSSET; 6TH C/MBR 4HG1 ENG(RJH) LH UPPER, RH LOWER	8-94319-529-0	02	1	0502-0506
198	07.039 GUSSET; 6TH C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) LH UPPER, RH LOWER	8-94319-529-0	02	1	0507-0611
198	07.039 GUSSET; 6TH C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) LH UPPER, RH LOWER	8-94319-529-0	02	1	0612-
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-94258-963-0	02	1	9703-0105
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HG1 ENG(RJH)	8-94258-963-0	02	1	0106-0212
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HE1 ENG(RLY)	8-94258-963-0	02	1	0301-0310
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94258-963-0	02	1	0311-0501
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HG1 ENG(RJH)	8-94258-963-0	02	1	0502-0506
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94258-963-0	02	1	0507-0611
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94258-963-0	02	1	0612-
344	07.012 MEMBER; CROSS,4TH 4HK1-TCN ENG(RDQ)	8-98024-625-0	01	1	0507-
344	07.012 MEMBER; CROSS,4TH	8-97079-405-2	01	1	9412-0105
344	07.012 MEMBER; CROSS,4TH 4HG1 ENG(RJH)	8-97079-405-2	01	1	0106-0212
344	07.012 MEMBER; CROSS,4TH 4HE1 ENG(RLY)	8-97079-405-3	01	1	0301-0310
344	07.012 MEMBER; CROSS,4TH 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97079-405-4	01	1	0311-0501
344	07.012 MEMBER; CROSS,4TH 4HG1 ENG(RJH)	8-97079-405-4	01	1	0502-0506
344	07.012 MEMBER; CROSS,4TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97079-405-4	01	1	0507-0507
344	07.012 MEMBER; CROSS,4TH 4HG1 ENG(RJH)	8-97079-405-4	01	1	0507-0611
344	07.012 MEMBER; CROSS,4TH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97079-405-4	01	1	0612-
345	07.012 MEMBER; CROSS,5TH	8-97093-606-3	01	1	9412-0105
345	07.012 MEMBER; CROSS,5TH 4HG1 ENG(RJH)	8-97093-606-3	01	1	0106-0212
345	07.012 MEMBER; CROSS,5TH 4HE1 ENG(RLY)	8-97093-606-3	01	1	0301-0307
345	07.012 MEMBER; CROSS,5TH 4HE1 ENG(RLY)	8-97180-545-5	01	1	0308-0310
345	07.012 MEMBER; CROSS,5TH 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97180-545-5	01	1	0311-0501
345	07.012 MEMBER; CROSS,5TH 4HG1 ENG(RJH)	8-97180-545-5	01	1	0502-0506
345	07.012 MEMBER; CROSS,5TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97180-545-5	01	1	0507-0611
345	07.012 MEMBER; CROSS,5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97180-545-5	01	1	0612-

376 376 376 376 376 376 376 376 376 376 376 376 376 16 526 176 118 4 67 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	07.039 NUT; 1ST C/MBR TO S/MBR 07.243 M12 FLANGE	0-91150-212-0	01	1	9412-0105
4	07.039 NUT; 1ST C/MBR TO S/MBR 4HG1 ENG(RJH) 07.243 M12 FLANGE	0-91150-212-0	01	1	0106-0202
16	07.039 BOLT; 1ST C/MBR TO S/MBR 07.395 M12X25 FLANGE	0-28081-225-0	01	1	9412-0105
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4HG1 ENG(RJH) 07.395 M12X25 FLANGE	0-28081-225-0	01	1	0106-0202
67	07.011 NUT; C/MBR 07.243 M12 FLANGE	0-91150-212-0	08	1	9412-9506
67	07.011 NUT; C/MBR 06.509 M12 FLANGE	8-94436-194-0	08	1	9507-0105
67	07.011 NUT; C/MBR 4HG1 ENG(RJH) 06.509 M12 FLANGE	8-94436-194-0	08	1	0106-0212
67	07.011 NUT; C/MBR 4HE1 ENG(RLY) 06.509 M12 FLANGE	8-94436-194-0	08	1	0301-0310
67	07.011 NUT; C/MBR 4HG1 ENG(RJH),4HE1 ENG(RLY) 06.509 M12 FLANGE	8-94436-194-0	08	1	0311-0501
67	07.011 NUT; C/MBR 4HG1 ENG(RJH) 06.509 M12 FLANGE	8-94436-194-0	08	1	0502-0506
67	07.011 NUT; C/MBR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.509 M12 FLANGE	8-94436-194-0	08	1	0507-0611
67	07.011 NUT; C/MBR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.509 M12 FLANGE	8-94436-194-0	08	1	0612-
118	07.529 NUT; STOPPER 07.633 M8 FLANGE	0-91150-108-0	04	1	9412-0105
118	07.529 NUT; STOPPER 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	04	1	0106-0109
118	07.529 NUT; STOPPER 4HG1 ENG(RJH) 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0110-0212
118	07.529 NUT; STOPPER 4HE1 ENG(RLY) 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0301-0310
118	07.529 NUT; STOPPER 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0311-0501
118	07.529 NUT; STOPPER 4HG1 ENG(RJH) 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0502-0506
118	07.529 NUT; STOPPER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0507-0603
118	07.529 NUT; STOPPER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8 LOCK NUT	0-91370-008-0	04	1	0604-0611
118	07.529 NUT; STOPPER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8 LOCK NUT	0-91370-008-0	04	1	0612-
176	04.085 BOLT; C/MBR,ENG MTG 00.002 M12X35 FLANGE	0-28091-235-0	08	1	9412-0105
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) 00.002 M12X35 FLANGE	0-28091-235-0	08	1	0106-0212
176	04.085 BOLT; C/MBR,ENG MTG 4HE1 ENG(RLY) 00.002 M12X35 FLANGE	0-28091-235-0	08	1	0301-0310
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH),4HE1 ENG(RLY) 00.002 M12X35 FLANGE	0-28091-235-0	08	1	0311-0501
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) 00.002 M12X35 FLANGE	0-28091-235-0	08	1	0502-0506
176	04.085 BOLT; C/MBR,ENG MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.002 M12X35 FLANGE	0-28091-235-0	08	1	0507-0512
176	04.085 BOLT; C/MBR,ENG MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M12X35 FLANGE	0-28061-235-0	08	1	0601-0611
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M12X35 FLANGE	0-28061-235-0	08	1	0612-
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	9412-
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	9412-
376	07.039 RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	9412-
376	07.039 RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	9412-
376	07.039 RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	9412-
376	07.039 RIVET; FRAME (F) D10X30 TAPER END	9-06751-030-0	AR	1	9412-
376	07.039 RIVET; FRAME (G) D10X32 TAPER END	9-06751-032-0	AR	1	9412-
376	07.039 RIVET; FRAME (H) D10X36 TAPER END	9-06751-036-0	AR	1	9412-
376	07.039 RIVET; FRAME 07.105 (I) D12X30 TAPER END	9-06751-230-0	AR	1	9412-
376	07.039 RIVET; FRAME 07.535 (J) D12X34 TAPER END	9-06751-234-0	AR	1	9412-
376	07.039 RIVET; FRAME 07.428 (K) D12X36 TAPER END	9-06751-236-0	AR	1	9412-
376	07.039 RIVET; FRAME (L) D13X40 TAPER END	9-06751-340-0	AR	1	9412-
376	07.039 RIVET; FRAME (M) D13X42 TAPER END	9-06751-342-0	AR	1	9412-
526	07.039 BOLT; BRKT TO S/MBR 4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.003 M12X30 FLANGE	0-28051-230-0	02	1	0706-
527	07.039 NUT; BRKT TO S/MBR 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.509 M12 FLANGE	8-94436-194-0	02	1	0706-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
