◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#35790) — 126 parça
çizim 17937
31 2 2
BalonParca AdiParca NoAdetTipApplied Date
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0507-0508
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0509-0608
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-1010
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011-
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0507-0508
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0509-0608
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-1010
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011-
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) FRONT,REAR,SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 07 1 9412-9507
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 01 1 9508-9603
2 05.803 WHEEL; DISC
(A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 9604-0212
2 05.803 WHEEL; DISC
(B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0301-0310
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0311-0501
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 06 1 9508-9603
2 05.803 WHEEL; DISC
(A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 9604-0212
2 05.803 WHEEL; DISC
(B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0301-0310
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0311-0501
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0311-0501
2 05.803 WHEEL; DISC
(A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0506
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0507-
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0311-0501
2 05.803 WHEEL; DISC
(A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0506
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0507-
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) FRONT,REAR,SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 07 1 9412-9507
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9508-9603
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9604-9904
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0203
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204-0212
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9508-9603
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9604-9904
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0203
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204-0212
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0311-0501
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0506
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0507-
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0311-0501
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0506
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0507-
çizim 18753
3 31 2 2 3
BalonParca AdiParca NoAdetTipApplied Date
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0507-0508
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0509-0608
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-1010
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011-
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0507-0508
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0509-0608
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-1010
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011-
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) FRONT,REAR,SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 07 1 9412-9507
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 01 1 9508-9603
2 05.803 WHEEL; DISC
(A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 9604-0212
2 05.803 WHEEL; DISC
(B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0301-0310
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0311-0501
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 06 1 9508-9603
2 05.803 WHEEL; DISC
(A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 9604-0212
2 05.803 WHEEL; DISC
(B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0301-0310
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0311-0501
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0311-0501
2 05.803 WHEEL; DISC
(A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0506
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0507-
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0311-0501
2 05.803 WHEEL; DISC
(A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0506
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0507-
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 9412-0610
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 0611-
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 9412-0610
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 0611-
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) FRONT,REAR,SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 07 1 9412-9507
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9508-9603
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9604-9904
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0203
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204-0212
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9508-9603
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9604-9904
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0203
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204-0212
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0311-0501
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0506
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0507-
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0311-0501
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0506
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0507-

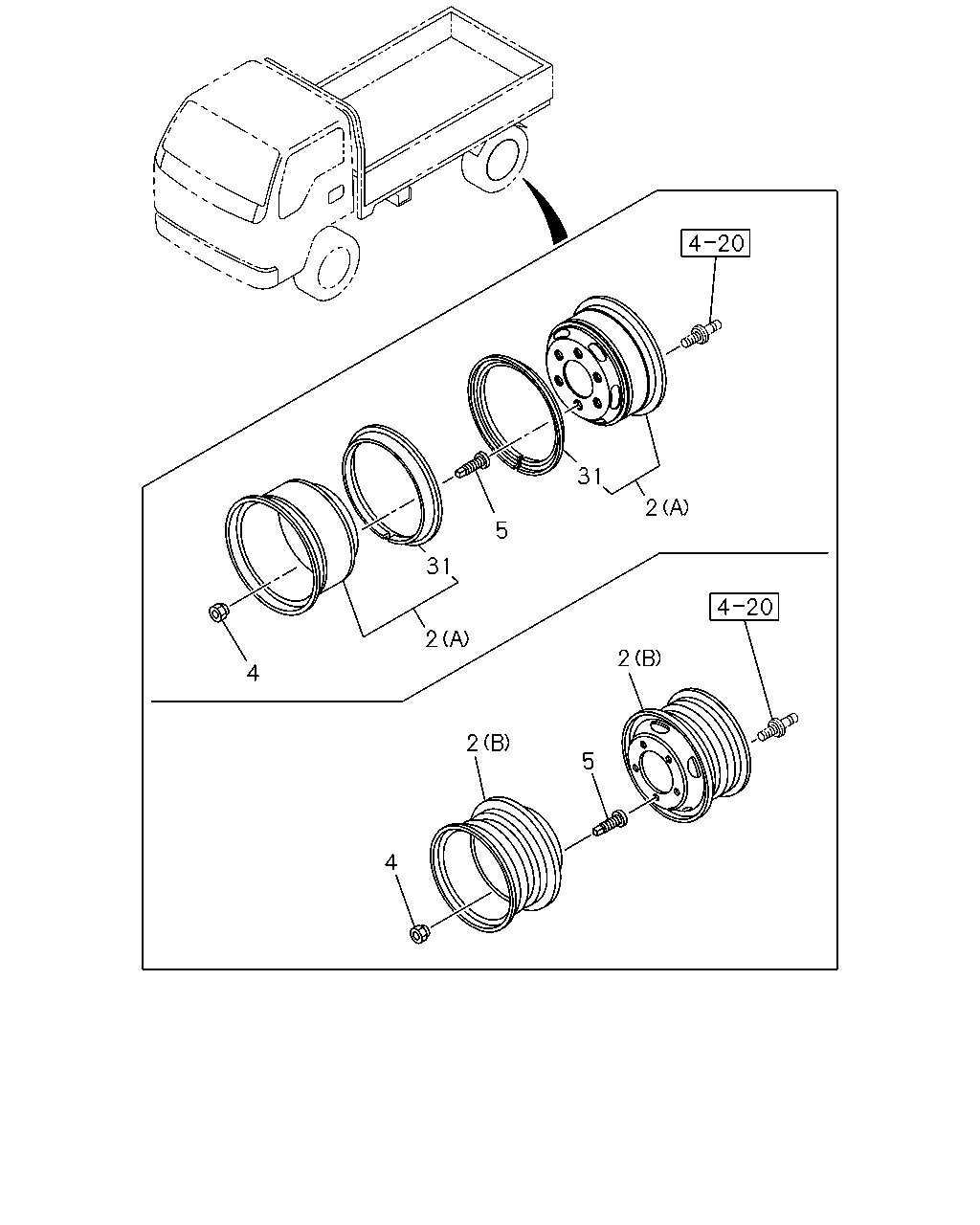

çizim 69989
31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0507-0508
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0509-0608
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-1010
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011-
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0507-0508
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0509-0608
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-1010
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011-
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) FRONT,REAR,SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 07 1 9412-9507
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 01 1 9508-9603
2 05.803 WHEEL; DISC
(A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 9604-0212
2 05.803 WHEEL; DISC
(B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0301-0310
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0311-0501
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-2 06 1 9508-9603
2 05.803 WHEEL; DISC
(A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 9604-0212
2 05.803 WHEEL; DISC
(B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0301-0310
2 05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0311-0501
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0311-0501
2 05.803 WHEEL; DISC
(A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0506
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0507-
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0311-0501
2 05.803 WHEEL; DISC
(A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0506
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0507-
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 06 1 9412-0610
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0611-
4 05.813 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 06 1 9412-0610
4 05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0611-
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 9412-0610
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0611-
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 9412-0610
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0611-
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) FRONT,REAR,SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 07 1 9412-9507
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9508-9603
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9604-9904
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0203
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204-0212
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9508-9603
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9604-9904
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0203
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204-0212
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0311-0501
31 05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0506
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0507-
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0311-0501
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0506
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
