Isuzu WW
▶
TRUCKS
▶
NPS
▶
50701 - NPS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

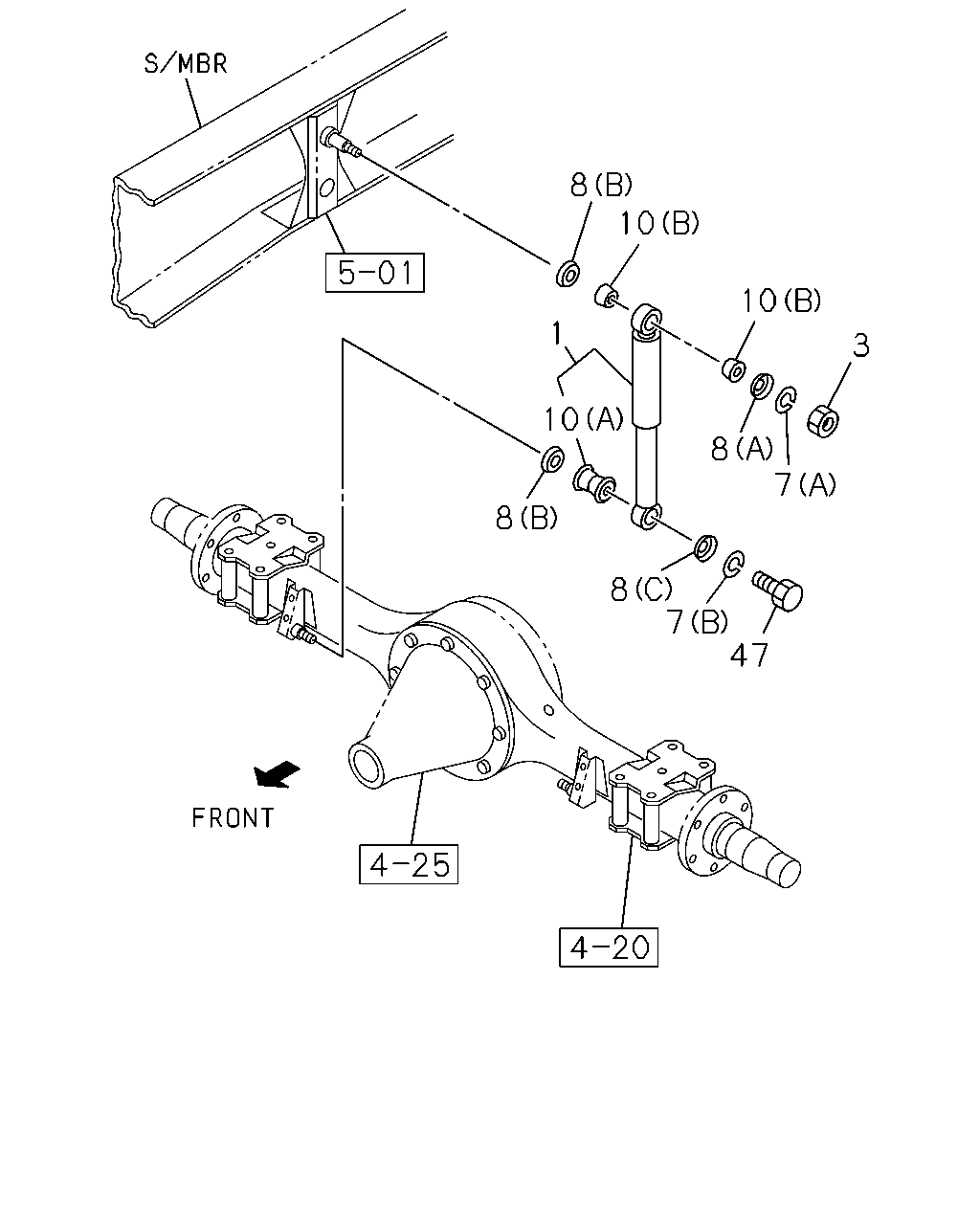

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#35788) — 18 parça
8
10
10
1
3
10
8
7
8
8
7
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.395 ABSORBER ASM; SHOCK,RR
8-97035-993-5
02
1
9412-9604
1
07.395 ABSORBER ASM; SHOCK,RR
8-97160-094-0
02
1
9605-0003
1
07.395 ABSORBER ASM; SHOCK,RR
8-97253-651-2
02
1
0004-
3
07.347 NUT; S/ABS
06.172 M14
9-99111-414-0
02
1
9412-0512
3
07.347 NUT; S/ABS
06.515 M14
0-91111-514-0
02
1
0601-0612
3
07.347 NUT; S/ABS
07.833 M14
0-91110-514-0
02
1
0701-
7
07.347 WASHER; LK,S/ABS
00.796 (A) ID=14.2
9-09150-514-0
02
1
9412-9505
7
07.347 WASHER; LK,S/ABS
00.002 (B) ID=10.2
9-09150-510-0
02
1
9512-9807
8
07.347 WASHER; S/ABS
(A) ID=15.0
9-51679-012-0
02
1
9412-0611
8
07.347 WASHER; S/ABS
(A) ID=15
8-97360-056-0
02
1
0612-
8
07.347 WASHER; S/ABS
(B) ID=20.0
9-51679-013-0
04
1
9412-0611
8
07.347 WASHER; S/ABS
(B) ID=20.0
8-97360-057-0
04
1
0612-
8
07.347 WASHER; S/ABS
(C) ID=10.5
9-51679-603-0
02
1
9412-0611
8
07.347 WASHER; S/ABS
(C) ID=10.5
8-97360-058-0
02
1
0612-
10
07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO
8-94382-149-0
02
1
9412-
10
07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO
9-51631-014-0
04
1
9412-
47
07.347 PIN; S/ABS SETTING
02.559 M10X16 FLANGE
0-28081-016-0
02
1
9412-0512
47
07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE
0-28051-016-0
02
1
0601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
