Sayfa 4-31 - Isuzu EPC

4-31 — STEERING COLUMN AND SHAFT (#35779) — 356 parça

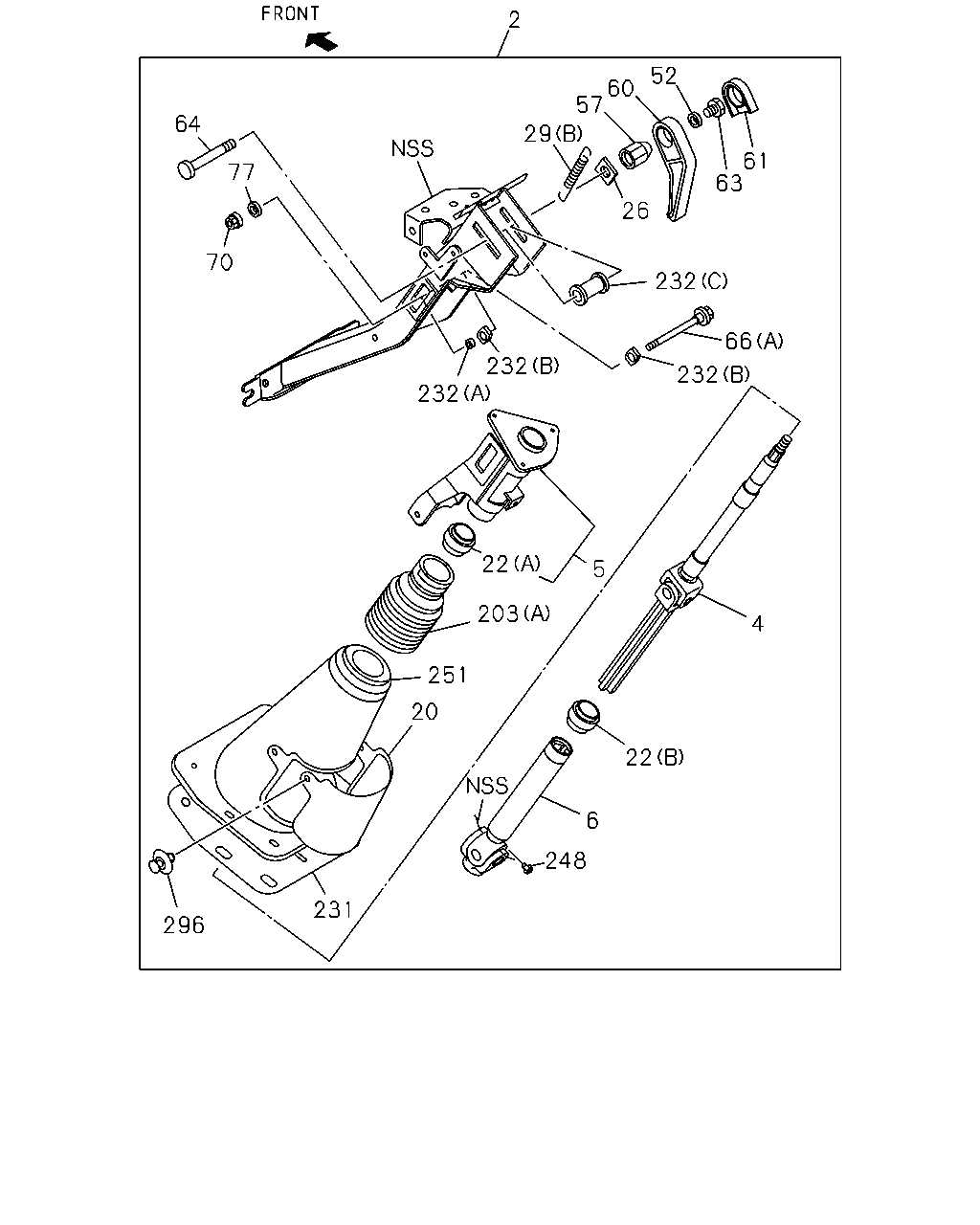

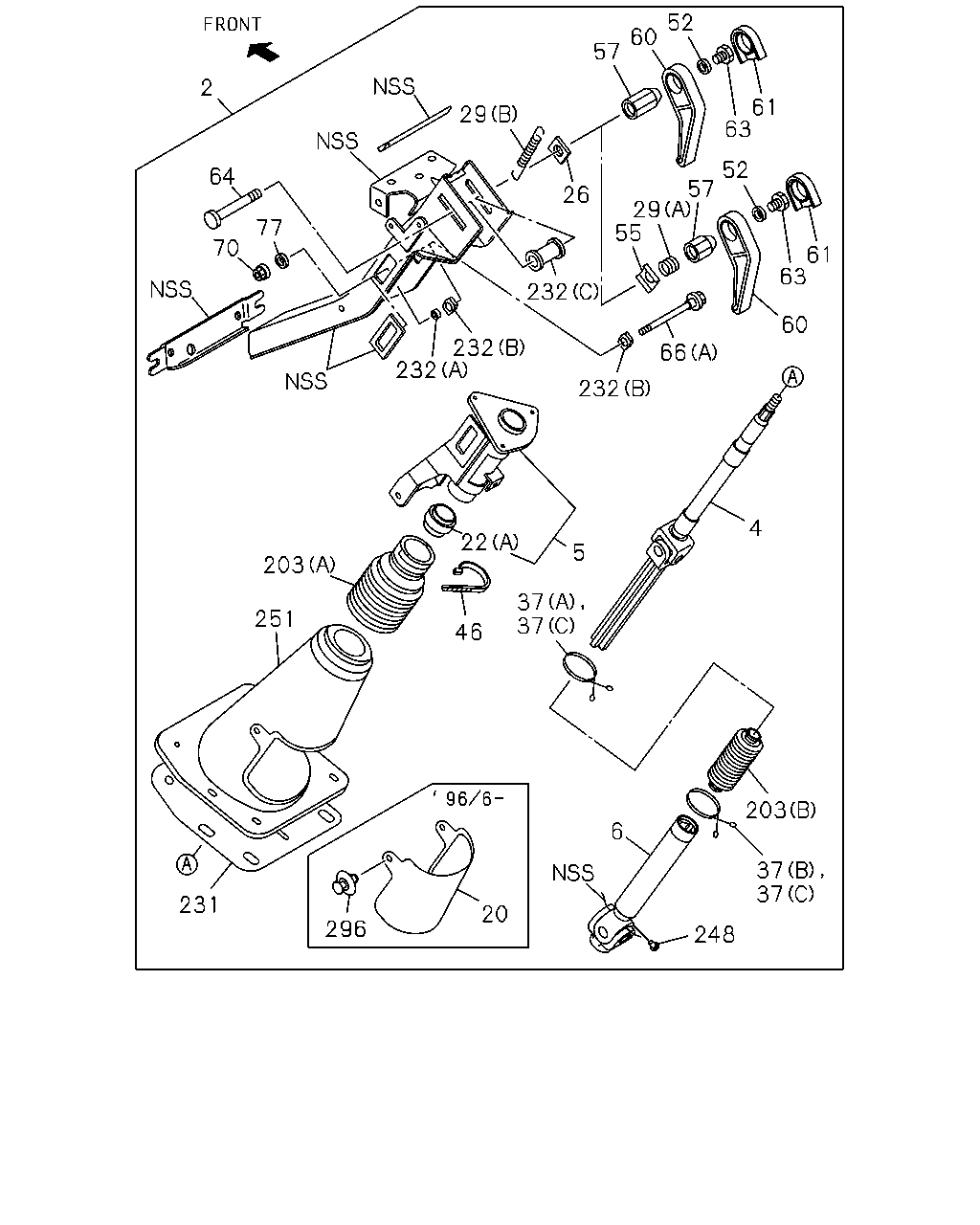

52 60 57 2 61 63 29 52 57 64 26 29 55 77 70 61 63 232 60 232 232 66 232 4 22 5 203 37 37 251 46 6 203 6 37 37 231 20 296 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-1	01	1	0507-
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97097-215-6	01	1	9412-9605
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97157-805-0	01	1	9606-9711
2	06.518 SHAFT ASM; STRG BLACK	8-97159-173-1	01	1	9712-9812
2	06.518 SHAFT ASM; STRG BLACK	8-97291-631-0	01	1	9901-0310
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97291-631-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97399-408-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG BLACK	8-97400-063-1	01	1	0502-0506
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-1	01	1	0507-
4	06.524 SHAFT; STRG	8-97096-755-0	01	1	9412-9712
4	06.524 SHAFT; STRG	8-97201-111-1	01	1	9801-0404
4	06.524 SHAFT; STRG	8-97378-638-0	01	1	0405-
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97093-792-2	01	1	0507-
5	06.518 COLUMN; STRG	8-97093-792-2	01	1	9412-0310
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97093-792-2	01	1	0311-0501
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0311-0501
5	06.518 COLUMN; STRG	8-97146-719-0	01	1	0502-0506
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0507-
6	06.524 SHAFT; STRG LWR	8-97094-625-1	01	1	9412-9712
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	9801-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
20	06.525 COVER; STRG SHAFT DARK BEIGE	8-97097-005-1	01	1	9412-9704
20	06.525 COVER; STRG SHAFT DARK BEIGE	8-97158-892-0	01	1	9705-9711
20	06.525 COVER; STRG SHAFT 06.578 BLACK	8-97159-169-0	01	1	9712-9903
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	9904-0212
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0301-0311
20	06.525 COVER; STRG SHAFT EXC. MANUAL TILT CAB<RWZ> 06.518 BLACK	8-97291-634-1	01	1	0312-0402
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0403-0611
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0612-
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	9412-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0507-
26	06.514 PLATE; ADJ	8-97076-827-0	01	1	9412-9812
26	06.514 PLATE; ADJ	8-97222-989-0	01	1	9901-0310
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0311-0501
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97076-811-0	01	1	0507-
29	06.514 SPRING; COLUMN (B)	8-97076-811-0	01	1	9412-0310
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97076-811-0	01	1	0311-0501
29	06.514 SPRING; COLUMN (A)	8-97076-829-0	01	1	9412-9812
37	06.525 CLAMP; BOOT TO SHAFT (B)	8-94165-569-0	01	1	9412-9812
37	06.525 CLAMP; BOOT TO SHAFT (A)	8-94165-570-0	01	1	9412-9812
37	06.525 CLAMP; BOOT TO SHAFT (C)	8-97173-630-0	02	1	9901-0404
46	06.521 CLIP; BOOT	8-97076-809-0	01	1	9412-9604
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0507-
52	06.514 WASHER; PL,ADJ LEVER	8-97076-813-0	01	1	9412-0310
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0311-0501
55	06.514 PLATE; GUIDE	8-97076-828-0	01	1	9412-9812
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0507-
57	06.518 NUT; ADJ BOLT	8-97076-826-0	01	1	9412-9812
57	06.518 NUT; ADJ BOLT	8-97222-988-0	01	1	9901-0310
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0311-0501
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0507-
60	06.518 LEVER; ADJ,STRG COLUMN	8-97076-830-0	01	1	9412-0310
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0311-0501
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0507-
61	06.514 CAP; ADJ LEVER,TILT STRG	8-97076-814-0	01	1	9412-0310
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0311-0501
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0507-
63	06.514 BOLT; ADJ LEVER,TILT STRG	8-97076-824-0	01	1	9412-9812
63	06.514 BOLT; ADJ LEVER,TILT STRG	8-97222-986-0	01	1	9901-0310
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0311-0501
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0507-
64	06.518 BOLT; ADJ,PROTECTOR	8-97076-825-0	01	1	9412-9812
64	06.518 BOLT; ADJ,PROTECTOR	8-97222-987-0	01	1	9901-0310
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0311-0501
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0507-
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9412-0611
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-
66	06.514 BOLT; STRG COLUMN (A)	8-97076-831-0	01	1	9412-0310
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0311-0501
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0507-
70	06.514 NUT; STRG COLUMN	8-97076-807-0	01	1	9412-0310
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0311-0501
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0507-
77	06.760 WASHER; PL,COLUMN	8-97076-804-0	01	1	9412-0310
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0311-0501
203	06.525 BOOT; STRG COLUMN LWR 06.518 (B)	8-94127-878-0	01	1	9412-9712
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	9801-0404
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	9412-
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9412-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0507-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0507-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0507-
232	06.514 SPACER; STRG SHAFT (B)	8-97076-805-0	02	1	9412-0310
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0311-0501
232	06.514 SPACER; STRG SHAFT (A)	8-97076-806-0	01	1	9412-0310
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0311-0501
232	06.514 SPACER; STRG SHAFT (C)	8-97148-277-0	01	1	9605-0310
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0311-0501
248	06.518 SCREW; YOKE	8-97076-819-0	01	1	9412-9712
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	9901-
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97097-466-1	01	1	9412-9605
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97157-808-0	01	1	9606-9711
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	9712-
296	06.525 CLIP; COVER 06.521 DARK BEIGE	8-97856-011-0	01	1	9412-9711
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	9712-0506
296	06.525 CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0507-
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0507-

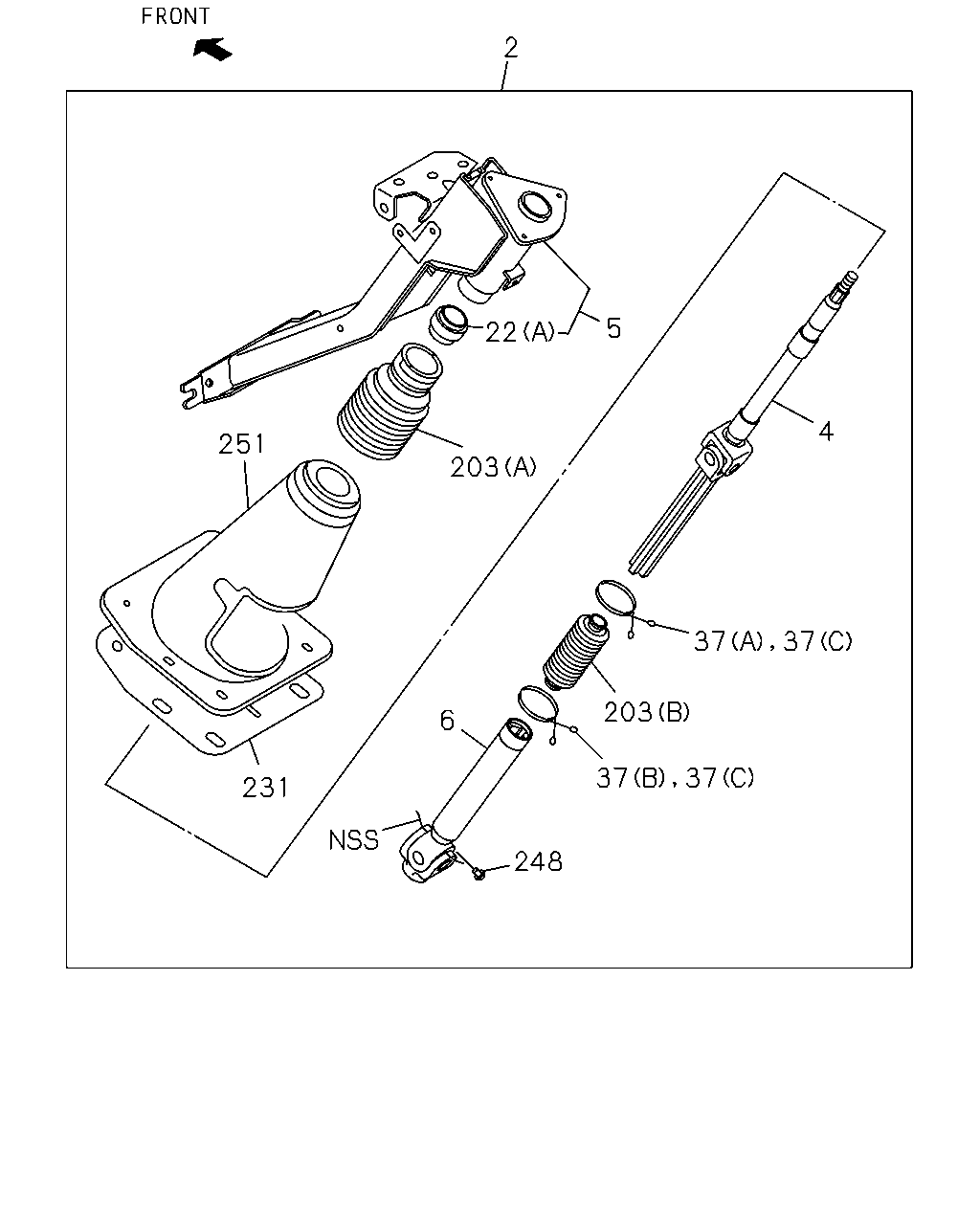

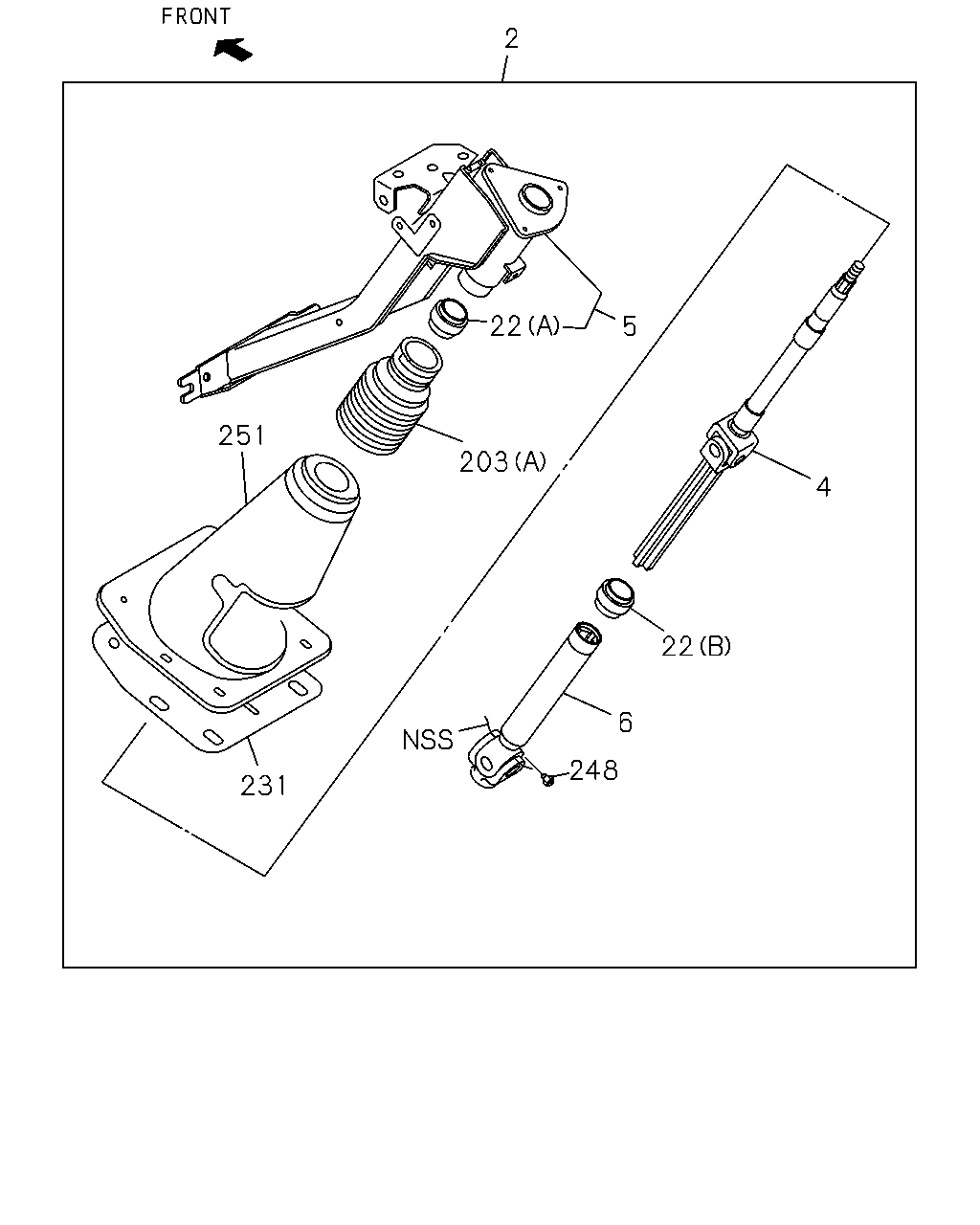

2 22 5 251 203 4 22 6 248 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-1	01	1	0507-
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97097-215-6	01	1	9412-9605
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97157-805-0	01	1	9606-9711
2	06.518 SHAFT ASM; STRG BLACK	8-97159-173-1	01	1	9712-9812
2	06.518 SHAFT ASM; STRG BLACK	8-97291-631-0	01	1	9901-0310
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97291-631-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97399-408-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG BLACK	8-97400-063-1	01	1	0502-0506
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-1	01	1	0507-
4	06.524 SHAFT; STRG	8-97096-755-0	01	1	9412-9712
4	06.524 SHAFT; STRG	8-97201-111-1	01	1	9801-0404
4	06.524 SHAFT; STRG	8-97378-638-0	01	1	0405-
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97093-792-2	01	1	0507-
5	06.518 COLUMN; STRG	8-97093-792-2	01	1	9412-0310
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97093-792-2	01	1	0311-0501
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0311-0501
5	06.518 COLUMN; STRG	8-97146-719-0	01	1	0502-0506
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0507-
6	06.524 SHAFT; STRG LWR	8-97094-625-1	01	1	9412-9712
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	9801-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	9412-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-
203	06.525 BOOT; STRG COLUMN LWR 06.518 (B)	8-94127-878-0	01	1	9412-9712
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	9801-0404
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	9412-
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9412-
248	06.518 SCREW; YOKE	8-97076-819-0	01	1	9412-9712
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	9901-
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97097-466-1	01	1	9412-9605
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97157-808-0	01	1	9606-9711
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	9712-

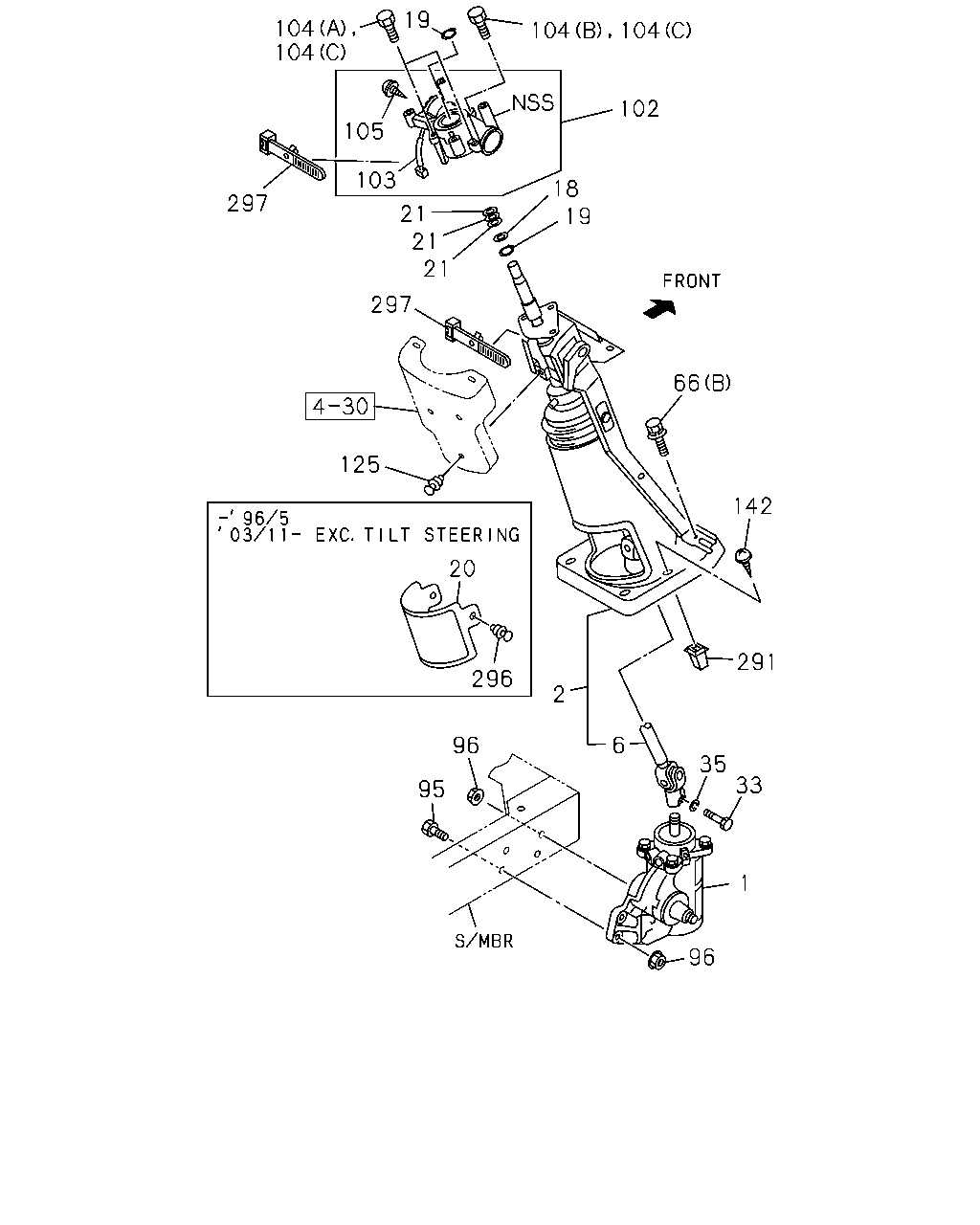

19 104 104 104 104 102 105 103 18 19 297 21 21 21 297 66 125 142 20 291 296 2 96 6 35 33 95 1 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97039-458-1	01	1	9412-9511
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97086-602-1	01	1	9512-9603
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97145-741-0	01	1	9604-9807
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97117-491-1	01	1	9808-9811
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97218-594-3	01	1	9812-0008
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97251-840-0	01	1	0009-0105
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97287-197-8	01	1	0106-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-1	01	1	0507-
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97097-215-6	01	1	9412-9605
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97157-805-0	01	1	9606-9711
2	06.518 SHAFT ASM; STRG BLACK	8-97159-173-1	01	1	9712-9812
2	06.518 SHAFT ASM; STRG BLACK	8-97291-631-0	01	1	9901-0310
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97291-631-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97399-408-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG BLACK	8-97400-063-1	01	1	0502-0506
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-1	01	1	0507-
6	06.524 SHAFT; STRG LWR	8-97094-625-1	01	1	9412-9712
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	9801-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
18	06.525 WASHER; STEERING SHAFT 06.500 ID=19	8-94146-919-0	01	1	9412-
19	06.515 RING; SNAP,STRG SHAFT 00.349 ID=17.5	9-09180-019-0	02	1	9412-
20	06.525 COVER; STRG SHAFT DARK BEIGE	8-97097-005-1	01	1	9412-9704
20	06.525 COVER; STRG SHAFT DARK BEIGE	8-97158-892-0	01	1	9705-9711
20	06.525 COVER; STRG SHAFT 06.578 BLACK	8-97159-169-0	01	1	9712-9903
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	9904-0212
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0301-0311
20	06.525 COVER; STRG SHAFT EXC. MANUAL TILT CAB<RWZ> 06.518 BLACK	8-97291-634-1	01	1	0312-0402
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0403-0611
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0612-
21	06.500 WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	9412-
33	06.525 BOLT; STRG SHAFT TO UNIT M10X33	8-94249-011-1	01	1	9412-9801
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	9802-0310
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> M8X30	8-94247-692-0	01	1	0311-0311
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	0312-0610
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	0611-
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. TILT STEERING<N33> M10X33	8-94249-011-1	01	1	0311-0311
35	06.525 WASHER; LK,STRG SHAFT 08.929 ID=10.2	9-09150-810-0	01	1	9412-9801
35	06.525 WASHER; LK,STRG SHAFT 00.002 ID=8.2	9-09150-508-0	01	1	9802-0310
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> 00.002 ID=8.2	9-09150-508-0	01	1	0311-0311
35	06.525 WASHER; LK,STRG SHAFT 00.002 ID=8.2	9-09150-508-0	01	1	0312-0603
35	06.525 WASHER; LK,STRG SHAFT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0610
35	06.525 WASHER; LK,STRG SHAFT 02.559 ID=8.2	0-91510-808-0	01	1	0611-
35	06.525 WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> 08.929 ID=10.2	9-09150-810-0	01	1	0311-0311
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0507-
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9412-0611
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-
66	06.514 BOLT; STRG COLUMN (A)	8-97076-831-0	01	1	9412-0310
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0311-0501
95	06.509 BOLT; STRG UNIT M12X39	8-97029-320-0	03	1	9412-9809
95	06.509 BOLT; STRG UNIT M12X45	8-97212-810-1	03	1	9810-
96	06.509 NUT; STRG UNIT M12 FLANGE	8-94436-194-0	04	1	9412-0610
96	06.509 NUT; STRG UNIT M12 FLANGE	8-97359-618-0	04	1	0611-
102	06.500 LOCK ASM; STRG EXC. FLOOR REMOTE SHIFT<M11>	8-97170-363-0	01	1	0507-0611
102	06.500 LOCK ASM; STRG	8-97088-277-0	01	1	9412-9612
102	06.500 LOCK ASM; STRG	8-97170-364-0	01	1	9701-0105
102	06.500 LOCK ASM; STRG 4HG1 ENG(RJH)	8-97170-364-0	01	1	0106-0212
102	06.500 LOCK ASM; STRG 4HE1 ENG(RLY)	8-97170-364-0	01	1	0301-0310
102	06.500 LOCK ASM; STRG 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97170-364-0	01	1	0311-0501
102	06.500 LOCK ASM; STRG	8-97170-364-0	01	1	0502-
103	02.188 SWITCH; IGNITION	8-97088-268-0	01	1	9412-0105
103	02.188 SWITCH; IGNITION 4HG1 ENG(RJH)	8-97088-268-0	01	1	0106-0212
103	02.188 SWITCH; IGNITION 4HE1 ENG(RLY)	8-97088-268-0	01	1	0301-0310
103	02.188 SWITCH; IGNITION 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97088-268-0	01	1	0311-0501
103	02.188 SWITCH; IGNITION	8-97088-268-0	01	1	0502-
104	06.500 BOLT; STRG LOCK TO COLUMN (A) M6X25	8-94279-204-0	02	1	9412-9501
104	06.500 BOLT; STRG LOCK TO COLUMN (B) M6X21 TORQUE BOLT	8-94331-124-0	01	1	9412-9501
104	06.500 BOLT; STRG LOCK TO COLUMN (C) M6X25 W/LK&PL WASHER	8-97122-790-0	03	1	9502-9806
104	06.500 BOLT; STRG LOCK TO COLUMN (C) M6X30 W/LK&PL WASHER	8-97189-885-0	03	1	9807-0212
104	06.500 BOLT; STRG LOCK TO COLUMN (B) M6X30 W/LK&PL WASHER	8-97189-885-0	01	1	0301-
104	06.500 BOLT; STRG LOCK TO COLUMN (A) M6X30 W/LK&PL WASHER	8-97189-885-0	02	1	0301-
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	9412-0105
105	06.500 SCREW; IGN SW 4HG1 ENG(RJH) M4X12 W/LK WASHER	9-03910-412-0	01	1	0106-0212
105	06.500 SCREW; IGN SW 4HE1 ENG(RLY) M4X12 W/LK WASHER	9-03910-412-0	01	1	0301-0310
105	06.500 SCREW; IGN SW 4HG1 ENG(RJH),4HE1 ENG(RLY) M4X12 W/LK WASHER	9-03910-412-0	01	1	0311-0501
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	0502-
125	06.521 CLIP; STRG SHAFT DARK BEIGE	8-97856-011-0	01	1	9412-9711
125	06.521 CLIP; STRG SHAFT DARK GRAY	8-97857-542-0	01	1	9712-0212
125	06.521 CLIP; STRG SHAFT 06.525 BLACK	8-97868-409-0	01	1	0301-0501
125	06.521 CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	0502-
142	06.518 SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74305-520-0	06	1	9412-0604
142	06.518 SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74365-520-0	06	1	0605-0612
142	06.518 SCREW; BRKT COWL 06.514 M5X18 TAPPING	0-72180-518-0	06	1	0701-
291	06.518 GROMMET; STRG SHAFT COVER 04.931 H=15	8-94463-268-1	06	1	9412-
296	06.525 CLIP; COVER 06.521 DARK BEIGE	8-97856-011-0	01	1	9412-9711
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	9712-0506
296	06.525 CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0507-
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0507-
297	06.525 CLIP; BAND 02.559 L=145	8-94257-575-1	03	1	9412-

2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 22 5 203 4 251 20 22 6 248 231 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-1	01	1	0507-
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97097-215-6	01	1	9412-9605
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97157-805-0	01	1	9606-9711
2	06.518 SHAFT ASM; STRG BLACK	8-97159-173-1	01	1	9712-9812
2	06.518 SHAFT ASM; STRG BLACK	8-97291-631-0	01	1	9901-0310
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97291-631-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97399-408-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG BLACK	8-97400-063-1	01	1	0502-0506
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-1	01	1	0507-
4	06.524 SHAFT; STRG	8-97096-755-0	01	1	9412-9712
4	06.524 SHAFT; STRG	8-97201-111-1	01	1	9801-0404
4	06.524 SHAFT; STRG	8-97378-638-0	01	1	0405-
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97093-792-2	01	1	0507-
5	06.518 COLUMN; STRG	8-97093-792-2	01	1	9412-0310
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97093-792-2	01	1	0311-0501
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0311-0501
5	06.518 COLUMN; STRG	8-97146-719-0	01	1	0502-0506
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0507-
6	06.524 SHAFT; STRG LWR	8-97094-625-1	01	1	9412-9712
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	9801-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
20	06.525 COVER; STRG SHAFT DARK BEIGE	8-97097-005-1	01	1	9412-9704
20	06.525 COVER; STRG SHAFT DARK BEIGE	8-97158-892-0	01	1	9705-9711
20	06.525 COVER; STRG SHAFT 06.578 BLACK	8-97159-169-0	01	1	9712-9903
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	9904-0212
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0301-0311
20	06.525 COVER; STRG SHAFT EXC. MANUAL TILT CAB<RWZ> 06.518 BLACK	8-97291-634-1	01	1	0312-0402
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0403-0611
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0612-
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	9412-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0507-
26	06.514 PLATE; ADJ	8-97076-827-0	01	1	9412-9812
26	06.514 PLATE; ADJ	8-97222-989-0	01	1	9901-0310
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0311-0501
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97076-811-0	01	1	0507-
29	06.514 SPRING; COLUMN (B)	8-97076-811-0	01	1	9412-0310
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97076-811-0	01	1	0311-0501
29	06.514 SPRING; COLUMN (A)	8-97076-829-0	01	1	9412-9812
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0507-
52	06.514 WASHER; PL,ADJ LEVER	8-97076-813-0	01	1	9412-0310
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0311-0501
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0507-
57	06.518 NUT; ADJ BOLT	8-97076-826-0	01	1	9412-9812
57	06.518 NUT; ADJ BOLT	8-97222-988-0	01	1	9901-0310
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0311-0501
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0507-
60	06.518 LEVER; ADJ,STRG COLUMN	8-97076-830-0	01	1	9412-0310
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0311-0501
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0507-
61	06.514 CAP; ADJ LEVER,TILT STRG	8-97076-814-0	01	1	9412-0310
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0311-0501
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0507-
63	06.514 BOLT; ADJ LEVER,TILT STRG	8-97076-824-0	01	1	9412-9812
63	06.514 BOLT; ADJ LEVER,TILT STRG	8-97222-986-0	01	1	9901-0310
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0311-0501
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0507-
64	06.518 BOLT; ADJ,PROTECTOR	8-97076-825-0	01	1	9412-9812
64	06.518 BOLT; ADJ,PROTECTOR	8-97222-987-0	01	1	9901-0310
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0311-0501
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0507-
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9412-0611
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-
66	06.514 BOLT; STRG COLUMN (A)	8-97076-831-0	01	1	9412-0310
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0311-0501
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0507-
70	06.514 NUT; STRG COLUMN	8-97076-807-0	01	1	9412-0310
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0311-0501
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0507-
77	06.760 WASHER; PL,COLUMN	8-97076-804-0	01	1	9412-0310
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0311-0501
203	06.525 BOOT; STRG COLUMN LWR 06.518 (B)	8-94127-878-0	01	1	9412-9712
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	9801-0404
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	9412-
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9412-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0507-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0507-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0507-
232	06.514 SPACER; STRG SHAFT (B)	8-97076-805-0	02	1	9412-0310
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0311-0501
232	06.514 SPACER; STRG SHAFT (A)	8-97076-806-0	01	1	9412-0310
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0311-0501
232	06.514 SPACER; STRG SHAFT (C)	8-97148-277-0	01	1	9605-0310
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0311-0501
248	06.518 SCREW; YOKE	8-97076-819-0	01	1	9412-9712
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	9901-
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97097-466-1	01	1	9412-9605
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97157-808-0	01	1	9606-9711
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	9712-
296	06.525 CLIP; COVER 06.521 DARK BEIGE	8-97856-011-0	01	1	9412-9711
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	9712-0506
296	06.525 CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0507-
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0507-

2 5 22 4 251 203 37 37 203 6 231 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-1	01	1	0507-
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97097-215-6	01	1	9412-9605
2	06.518 SHAFT ASM; STRG DARK BEIGE	8-97157-805-0	01	1	9606-9711
2	06.518 SHAFT ASM; STRG BLACK	8-97159-173-1	01	1	9712-9812
2	06.518 SHAFT ASM; STRG BLACK	8-97291-631-0	01	1	9901-0310
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97291-631-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> BLACK	8-97400-057-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97399-408-0	01	1	0311-0404
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-0	01	1	0405-0501
2	06.518 SHAFT ASM; STRG BLACK	8-97400-063-1	01	1	0502-0506
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-063-1	01	1	0507-
4	06.524 SHAFT; STRG	8-97096-755-0	01	1	9412-9712
4	06.524 SHAFT; STRG	8-97201-111-1	01	1	9801-0404
4	06.524 SHAFT; STRG	8-97378-638-0	01	1	0405-
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97093-792-2	01	1	0507-
5	06.518 COLUMN; STRG	8-97093-792-2	01	1	9412-0310
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97093-792-2	01	1	0311-0501
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0311-0501
5	06.518 COLUMN; STRG	8-97146-719-0	01	1	0502-0506
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0507-
6	06.524 SHAFT; STRG LWR	8-97094-625-1	01	1	9412-9712
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	9801-0404
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	9412-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-
37	06.525 CLAMP; BOOT TO SHAFT (B)	8-94165-569-0	01	1	9412-9812
37	06.525 CLAMP; BOOT TO SHAFT (A)	8-94165-570-0	01	1	9412-9812
37	06.525 CLAMP; BOOT TO SHAFT (C)	8-97173-630-0	02	1	9901-0404
203	06.525 BOOT; STRG COLUMN LWR 06.518 (B)	8-94127-878-0	01	1	9412-9712
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	9801-0404
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	9412-
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	9412-
248	06.518 SCREW; YOKE	8-97076-819-0	01	1	9412-9712
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	9901-
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97097-466-1	01	1	9412-9605
251	06.518 COVER; LWR 06.578 DARK BEIGE	8-97157-808-0	01	1	9606-9711
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	9712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
