Sayfa 4-25 - Isuzu EPC

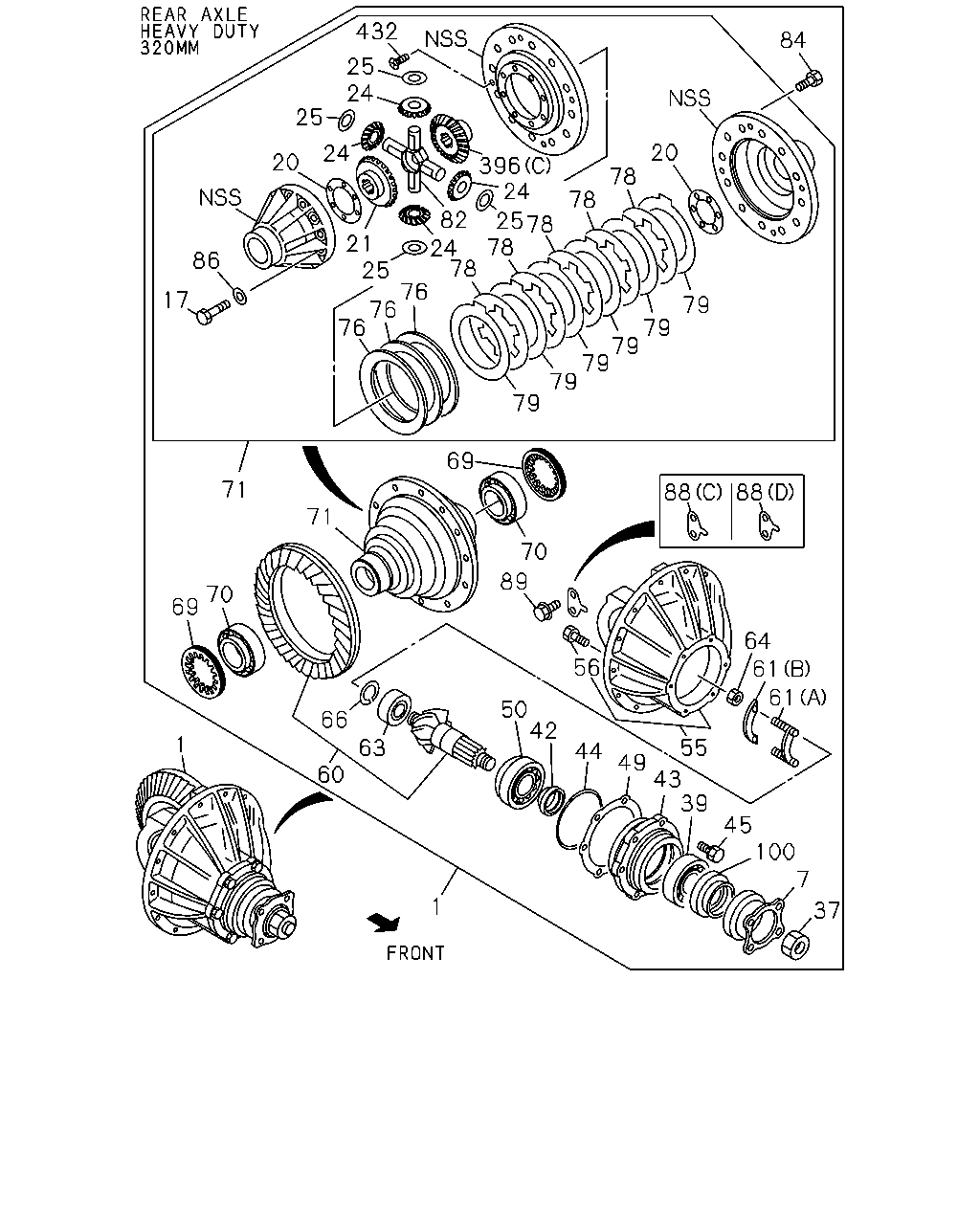

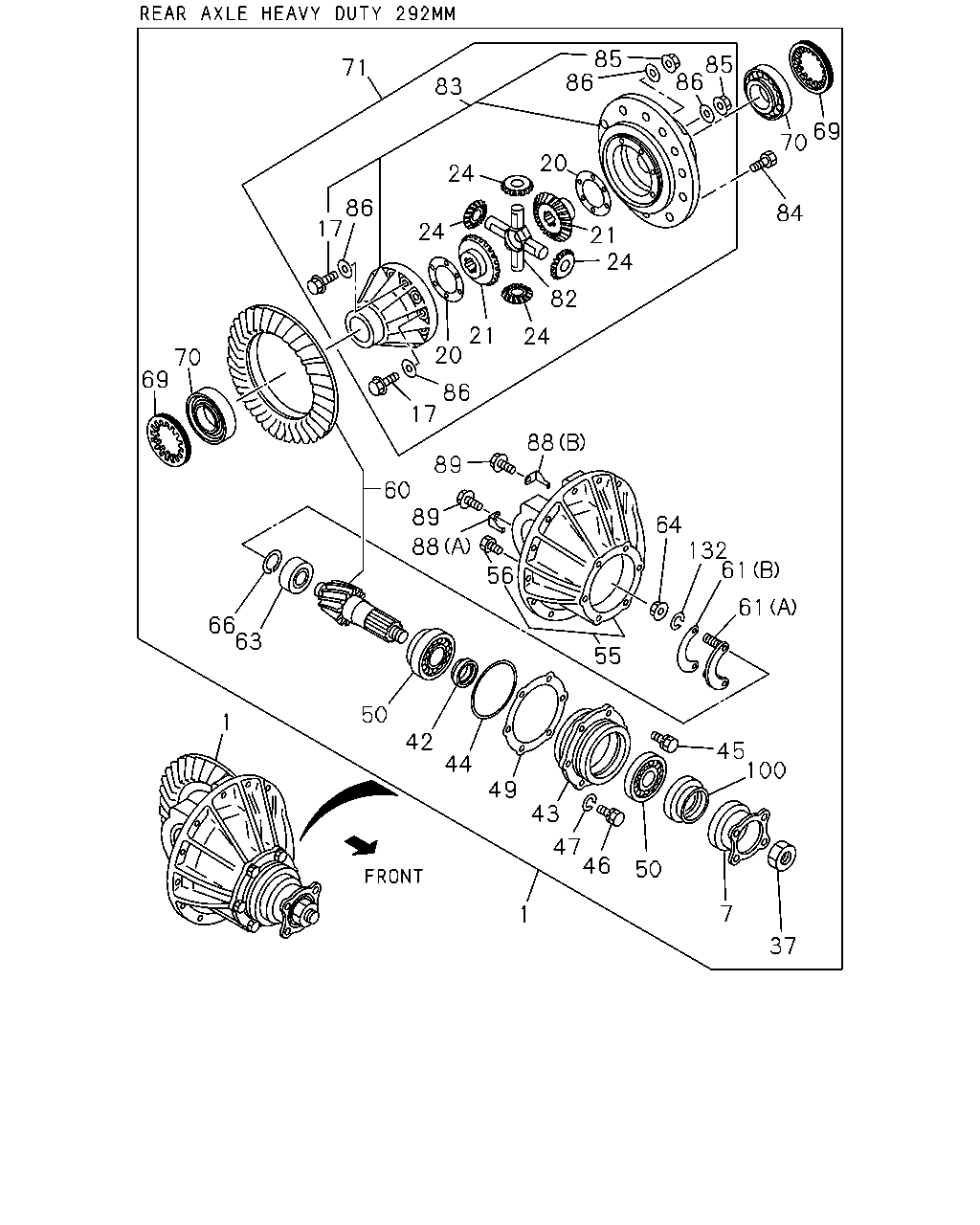

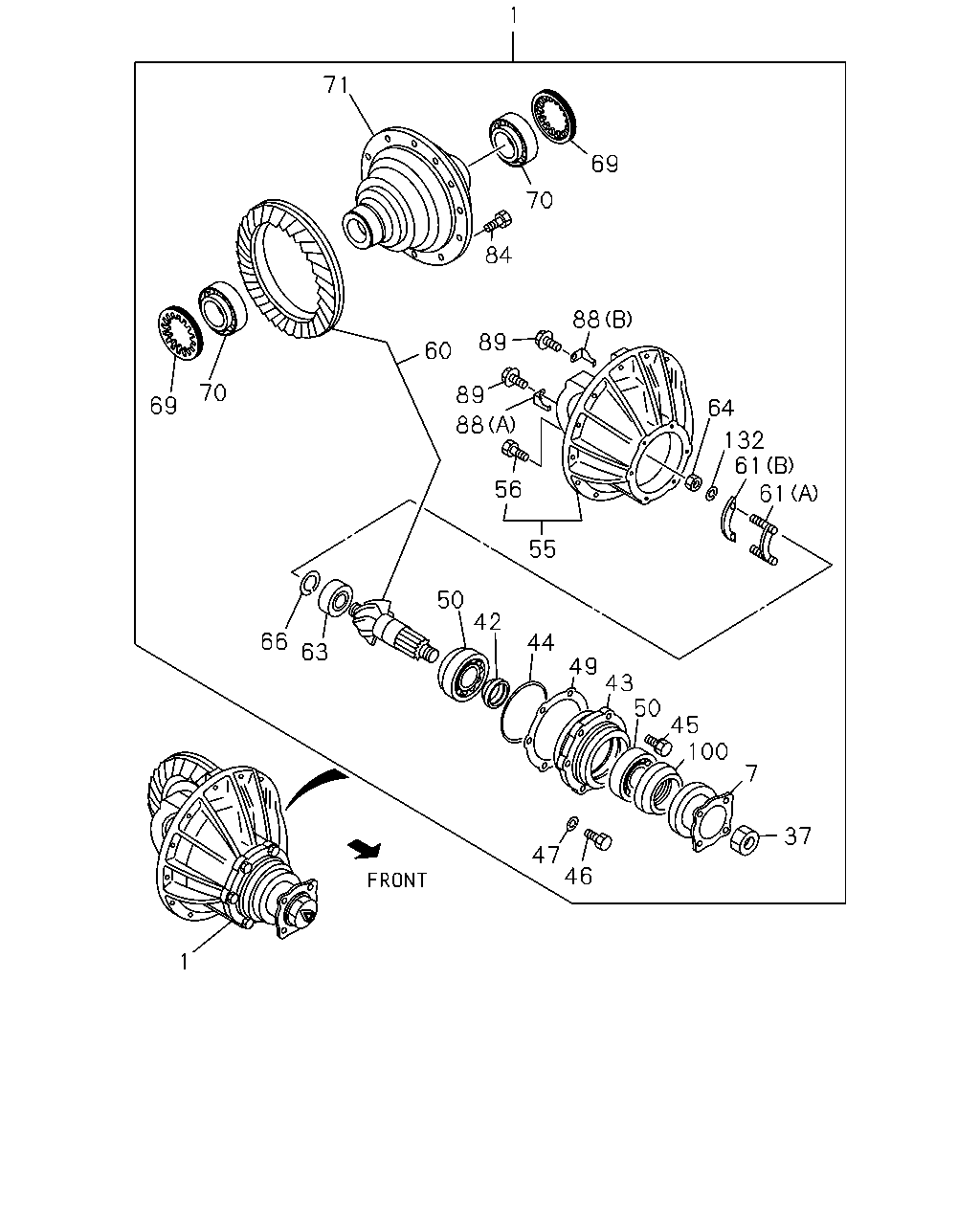

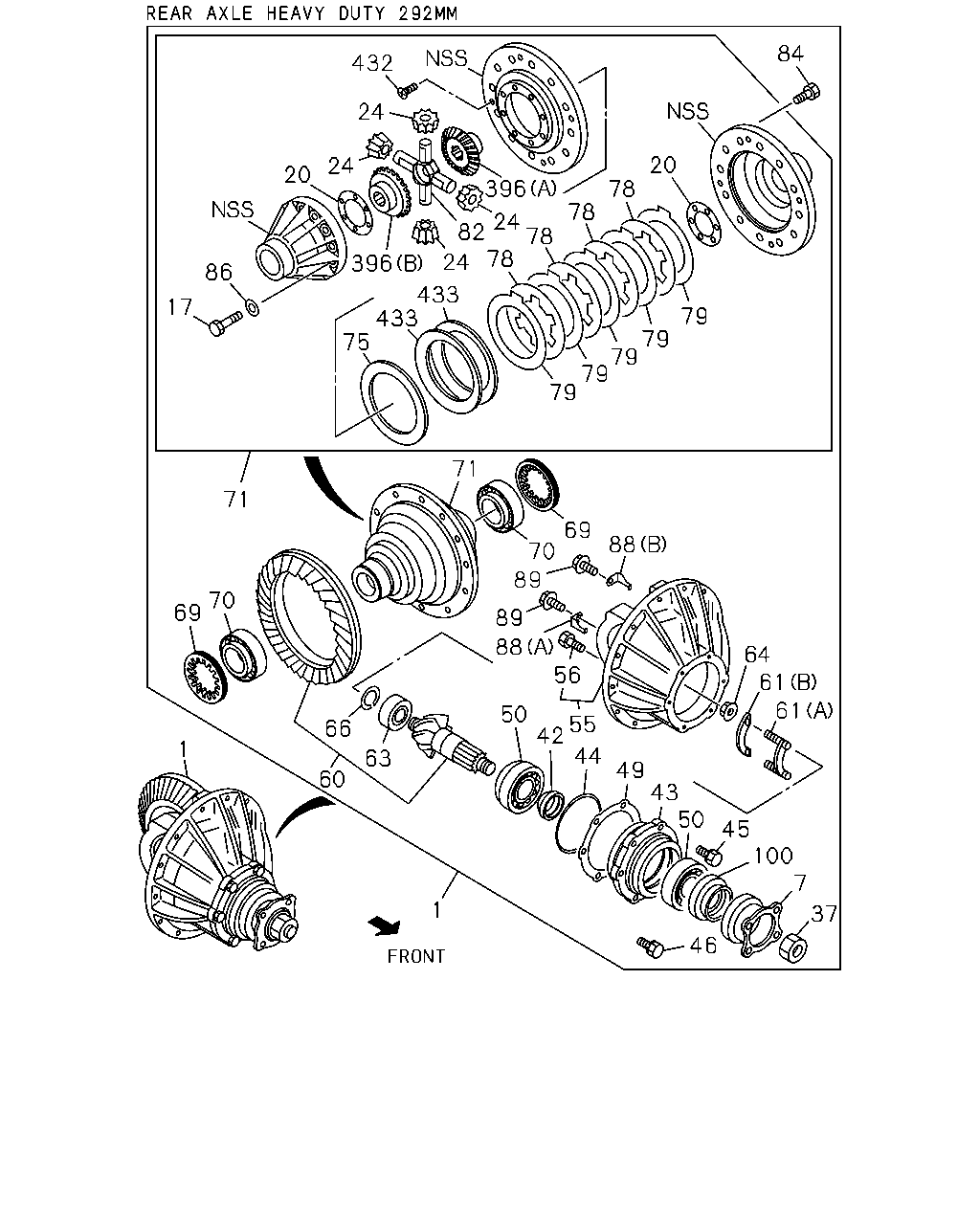

4-25 — REAR FINAL DRIVE (#35777) — 1442 parça

85 86 85 86 71 83 69 70 20 24 86 17 84 24 21 24 82 21 20 24 70 69 86 17 88 89 60 89 64 132 61 88 56 61 66 63 55 50 1 42 45 100 44 49 43 47 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97048-176-0	01	1	9412-0205
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97354-149-0	01	1	0206-0212
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) 39/7	8-97363-134-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97035-417-0	01	1	9412-0203
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97319-246-0	01	1	0204-0212
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1)	8-97047-095-2	01	1	0507-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	9412-0506
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0507-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0507-0805
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0507-0805
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0301-0309
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0310-0310
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0311-0506
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0507-0801
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0802-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75	5-09000-213-0	12	1	9412-0203
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0204-0212
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0301-0309
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0310-0310
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0311-0506
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0507-0611
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<6LV> T=1.40	9-41562-601-0	02	1	9412-0212
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0301-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0507-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0507-0805
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0507-0805
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-94461-233-0	02	1	9412-0009
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0010-0212
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0301-0303
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0304-0309
21	05.528 GEAR; SIDE,DIFF 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0310-0310
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0311-0506
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0507-0611
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0612-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0507-1004
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=10	8-97041-972-0	04	1	9412-0009
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=10	8-97300-265-0	04	1	0010-0212
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0301-0303
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0506
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-97356-349-0	04	1	0507-0510
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0511-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0507-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9412-0506
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0507-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0507-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9412-0506
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0507-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0507-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	9412-0506
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0507-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0507-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	9412-0506
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0507-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	9412-0506
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-
46	05.453 BOLT M14X38	0-23801-438-0	01	1	9412-9504
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	9505-0506
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0507-0909
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-
47	05.453 WASHER; LK 05.387 ID=14.2	9-09150-614-0	01	1	9412-9504
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0507-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	9412-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	9512-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0507-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0507-
55	05.505 CARRIER; DIFF	8-94365-264-0	01	1	9412-0202
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0203-0506
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0507-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0507-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	9412-0506
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97035-455-0	01	1	9412-0203
60	05.529 GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF<6LV> 43/7	8-97035-455-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0206-0212
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0310
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) 39/7	8-97319-160-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97320-103-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0502-0506
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0507-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0507-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0507-
64	05.476 NUT; RET 16.176 M6	9-09110-406-0	02	1	9412-9502
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	9503-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0507-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	9412-0506
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	9412-0506
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9412-0506
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0507-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-94362-393-0	01	1	9412-0205
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97354-016-0	01	1	0206-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-94461-234-1	01	1	9412-0203
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0204-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0611
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0507-1004
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0301-0309
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0310-0310
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0311-0506
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0507-0801
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0802-
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	9412-0212
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0301-0309
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0310-0310
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0311-0506
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0507-0611
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0612-
83	05.510 CAGE ASM; DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0507-0805
83	05.510 CAGE ASM; DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0806-
83	05.510 CAGE ASM; DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0806-
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-94159-027-0	01	1	9412-0203
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-0	01	1	0204-0212
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0301-0309
83	05.510 CAGE ASM; DIFF 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0310-0310
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0311-0506
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0507-0611
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0507-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X30 FLANGE	8-94334-990-0	12	1	9412-0110
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X28.5	8-97316-673-0	12	1	0111-0205
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0206-0212
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0507-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	9412-0203
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-0212
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0507-0611
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
85	05.510 NUT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0507-0805
85	05.510 NUT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0806-
85	05.510 NUT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0806-
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 05.586 M10	8-94159-009-1	12	1	9412-0203
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0204-0212
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0301-0309
85	05.510 NUT; DIFF CAGE SETTING 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0310-0310
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0311-0506
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0507-0602
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0603-0611
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0612-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0801-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0507-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0301-0309
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0310-0310
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0311-0506
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0507-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0801
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0802-
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	24	1	9412-0203
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98025-555-0	12	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0507-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9412-0506
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0507-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9412-0506
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0507-
132	05.476 WASHER; LK,RET 00.206 ID=6.1	9-09150-506-0	02	1	9412-9502

85 85 86 71 86 83 69 70 25 20 24 25 84 86 17 24 21 24 82 25 21 20 24 25 70 69 86 17 88 88 89 60 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97048-176-0	01	1	9412-0205
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97354-149-0	01	1	0206-0212
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) 39/7	8-97363-134-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97035-417-0	01	1	9412-0203
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97319-246-0	01	1	0204-0212
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1)	8-97047-095-2	01	1	0507-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	9412-0506
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0507-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0507-0805
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0507-0805
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0301-0309
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0310-0310
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0311-0506
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0507-0801
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0802-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75	5-09000-213-0	12	1	9412-0203
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0204-0212
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0301-0309
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0310-0310
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0311-0506
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0507-0611
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<6LV> T=1.40	9-41562-601-0	02	1	9412-0212
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0301-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0507-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0507-0805
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0507-0805
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-94461-233-0	02	1	9412-0009
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0010-0212
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0301-0303
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0304-0309
21	05.528 GEAR; SIDE,DIFF 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0310-0310
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0311-0506
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0507-0611
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0612-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0507-1004
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=10	8-97041-972-0	04	1	9412-0009
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=10	8-97300-265-0	04	1	0010-0212
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0301-0303
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0506
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-97356-349-0	04	1	0507-0510
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0511-
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	0507-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0507-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9412-0506
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0507-
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> NSK	1-09812-026-0	01	1	0806-1002
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	0507-0805
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> JTEKT	5-09812-062-1	01	1	0806-1001
39	05.484 BEARING; FINAL PINION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) JTEKT	5-09812-062-1	01	1	0806-1001
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	1002-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	0507-0805
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> NSK	5-09812-063-0	01	1	0806-1002
39	05.484 BEARING; FINAL PINION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) NSK	5-09812-063-0	01	1	0806-1002
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	1003-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0507-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9412-0506
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0507-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0507-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	9412-0506
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0507-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0507-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	9412-0506
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0507-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	9412-0506
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0507-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	9412-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	9512-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0507-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0507-
55	05.505 CARRIER; DIFF	8-94365-264-0	01	1	9412-0202
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0203-0506
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0507-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0507-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	9412-0506
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97035-455-0	01	1	9412-0203
60	05.529 GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF<6LV> 43/7	8-97035-455-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0206-0212
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0310
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) 39/7	8-97319-160-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97320-103-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0502-0506
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0507-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0507-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0507-
64	05.476 NUT; RET 16.176 M6	9-09110-406-0	02	1	9412-9502
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	9503-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0507-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	9412-0506
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	9412-0506
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9412-0506
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0507-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-94362-393-0	01	1	9412-0205
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97354-016-0	01	1	0206-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-94461-234-1	01	1	9412-0203
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0204-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0611
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0507-1004
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0301-0309
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0310-0310
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0311-0506
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0507-0801
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0802-
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	9412-0212
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0301-0309
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0310-0310
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0311-0506
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0507-0611
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0612-
83	05.510 CAGE ASM; DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0507-0805
83	05.510 CAGE ASM; DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0806-
83	05.510 CAGE ASM; DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0806-
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-94159-027-0	01	1	9412-0203
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-0	01	1	0204-0212
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0301-0309
83	05.510 CAGE ASM; DIFF 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0310-0310
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0311-0506
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0507-0611
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0507-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X30 FLANGE	8-94334-990-0	12	1	9412-0110
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X28.5	8-97316-673-0	12	1	0111-0205
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0206-0212
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0507-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	9412-0203
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-0212
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0507-0611
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
85	05.510 NUT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0507-0805
85	05.510 NUT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0806-
85	05.510 NUT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0806-
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 05.586 M10	8-94159-009-1	12	1	9412-0203
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0204-0212
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0301-0309
85	05.510 NUT; DIFF CAGE SETTING 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0310-0310
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0311-0506
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0507-0602
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0603-0611
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0612-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0801-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0507-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0301-0309
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0310-0310
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0311-0506
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0507-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0801
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0802-
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	24	1	9412-0203
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98025-555-0	12	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0507-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9412-0506
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0507-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9412-0506
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0507-

432 84 25 24 396 24 25 20 24 20 78 78 25 78 78 82 24 78 21 25 86 76 76 76 17 79 79 79 79 79 79 69 71 88 88 71 70 89 70 69 64 61 56 61 50 42 66 1 55 63 44 49 43 39 60 45 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97048-176-0	01	1	9412-0205
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97354-149-0	01	1	0206-0212
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) 39/7	8-97363-134-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97035-417-0	01	1	9412-0203
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97319-246-0	01	1	0204-0212
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1)	8-97047-095-2	01	1	0507-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	9412-0506
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0507-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0507-0805
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0507-0805
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0301-0309
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0310-0310
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0311-0506
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0507-0801
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0802-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75	5-09000-213-0	12	1	9412-0203
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0204-0212
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0301-0309
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0310-0310
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0311-0506
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0507-0611
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<6LV> T=1.40	9-41562-601-0	02	1	9412-0212
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0301-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0507-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0507-0805
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0507-0805
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-1004
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
21	05.528 GEAR; SIDE,DIFF 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-94461-233-0	02	1	9412-0009
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0010-0212
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0301-0303
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0304-0309
21	05.528 GEAR; SIDE,DIFF 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0310-0310
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0311-0506
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0507-0611
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0612-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0507-1004
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=10	8-97041-972-0	04	1	9412-0009
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=10	8-97300-265-0	04	1	0010-0212
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0301-0303
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0506
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-97356-349-0	04	1	0507-0510
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0511-
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	0507-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0507-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9412-0506
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0507-
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> NSK	1-09812-026-0	01	1	0806-1002
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	0507-0805
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> JTEKT	5-09812-062-1	01	1	0806-1001
39	05.484 BEARING; FINAL PINION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) JTEKT	5-09812-062-1	01	1	0806-1001
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	1002-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	0507-0805
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> NSK	5-09812-063-0	01	1	0806-1002
39	05.484 BEARING; FINAL PINION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) NSK	5-09812-063-0	01	1	0806-1002
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	1003-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0507-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9412-0506
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0507-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0507-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	9412-0506
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0507-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0507-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	9412-0506
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0507-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	9412-0506
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0507-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	9412-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	9512-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0507-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0507-
55	05.505 CARRIER; DIFF	8-94365-264-0	01	1	9412-0202
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0203-0506
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0507-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0507-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	9412-0506
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97035-455-0	01	1	9412-0203
60	05.529 GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF<6LV> 43/7	8-97035-455-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0206-0212
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0310
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) 39/7	8-97319-160-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97320-103-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0502-0506
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0507-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0507-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0507-
64	05.476 NUT; RET 16.176 M6	9-09110-406-0	02	1	9412-9502
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	9503-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0507-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	9412-0506
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	9412-0506
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9412-0506
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0507-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-94362-393-0	01	1	9412-0205
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97354-016-0	01	1	0206-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-94461-234-1	01	1	9412-0203
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0204-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0611
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
76	05.511 DISC; BEVEL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0507-0805
76	05.511 DISC; BEVEL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0806-
76	05.511 DISC; BEVEL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0806-
78	05.511 DISC; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0507-0805
78	05.511 DISC; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0806-
78	05.511 DISC; FRICTION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0806-
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0301-0309
78	05.511 DISC; FRICTION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0310-0310
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0311-0506
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0507-0801
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0802-
79	05.511 PLATE; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0507-0805
79	05.511 PLATE; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0806-
79	05.511 PLATE; FRICTION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0806-
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0301-0309
79	05.511 PLATE; FRICTION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0310-0310
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0311-0506
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0507-0801
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0802-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0507-1004
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0301-0309
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0310-0310
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0311-0506
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0507-0801
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0802-
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	9412-0212
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0301-0309
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0310-0310
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0311-0506
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0507-0611
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0507-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X30 FLANGE	8-94334-990-0	12	1	9412-0110
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X28.5	8-97316-673-0	12	1	0111-0205
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0206-0212
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0507-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	9412-0203
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-0212
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0507-0611
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0801-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0507-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0301-0309
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0310-0310
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0311-0506
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0507-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0801
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0802-
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	24	1	9412-0203
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98025-555-0	12	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0507-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9412-0506
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0507-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9412-0506
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0507-
396	05.515 GEAR; DIFF,LSD 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0507-0805
396	05.515 GEAR; DIFF,LSD 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0806-1004
396	05.515 GEAR; DIFF,LSD 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0806-1004
396	05.515 GEAR; DIFF,LSD 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> (C)	8-98169-195-0	01	1	1005-
396	05.515 GEAR; DIFF,LSD 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (C)	8-98169-195-0	01	1	1005-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97300-266-0	01	1	0301-0303
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0304-0309
396	05.515 GEAR; DIFF,LSD 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0310-0310
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0311-0506
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0507-0801
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0802-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97300-267-0	01	1	0301-0303
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0304-0309
396	05.515 GEAR; DIFF,LSD 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0310-0310
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0311-0506
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0507-0801
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0802-
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0301-0309
432	05.650 SCREW 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0310-0310
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0311-0506
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0507-0707
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0708-0801
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0802-
432	05.650 SCREW 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98025-556-0	04	1	0507-

84 432 24 20 24 20 396 78 78 24 82 78 78 24 396 86 433 433 75 17 79 79 79 79 79 71 71 69 70 88 89 70 69 89 88 64 61 56 61 50 55 42 66 1 44 63 49 43 50 60 45 100 7 1 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97048-176-0	01	1	9412-0205
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97354-149-0	01	1	0206-0212
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) 39/7	8-97363-134-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97035-417-0	01	1	9412-0203
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97319-246-0	01	1	0204-0212
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1)	8-97047-095-2	01	1	0507-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	9412-0506
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0507-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0507-0805
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0507-0805
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0301-0309
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0310-0310
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0311-0506
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0507-0801
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0802-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75	5-09000-213-0	12	1	9412-0203
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0204-0212
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0301-0309
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0310-0310
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0311-0506
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0507-0611
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0507-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0301-0309
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0310-0310
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0311-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0507-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<6LV> T=1.40	9-41562-601-0	02	1	9412-0212
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0301-0506
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0507-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0507-1004
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=10	8-97041-972-0	04	1	9412-0009
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=10	8-97300-265-0	04	1	0010-0212
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0301-0303
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0506
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-97356-349-0	04	1	0507-0510
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0511-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0507-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9412-0506
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0507-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0507-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9412-0506
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0507-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0507-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	9412-0506
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0507-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0507-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	9412-0506
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0507-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	9412-0506
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-
46	05.453 BOLT M14X38	0-23801-438-0	01	1	9412-9504
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	9505-0506
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0507-0909
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0507-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	9412-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	9512-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0507-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0507-
55	05.505 CARRIER; DIFF	8-94365-264-0	01	1	9412-0202
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0203-0506
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0507-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0507-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	9412-0506
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97035-455-0	01	1	9412-0203
60	05.529 GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF<6LV> 43/7	8-97035-455-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0206-0212
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0310
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) 39/7	8-97319-160-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97320-103-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0502-0506
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0507-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0507-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0507-
64	05.476 NUT; RET 16.176 M6	9-09110-406-0	02	1	9412-9502
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	9503-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0507-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	9412-0506
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	9412-0506
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9412-0506
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0507-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-94362-393-0	01	1	9412-0205
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97354-016-0	01	1	0206-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-94461-234-1	01	1	9412-0203
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0204-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0611
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0301-0309
75	05.511 PLATE; BEVEL 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0310-0310
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0311-0506
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0507-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0802-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0301-0309
75	05.511 PLATE; BEVEL 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0310-0310
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0311-0506
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0507-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0802-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0301-0309
75	05.511 PLATE; BEVEL 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0310-0310
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0311-0506
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0507-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0802-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0301-0309
75	05.511 PLATE; BEVEL 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0310-0310
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0311-0506
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0507-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0802-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0301-0309
75	05.511 PLATE; BEVEL 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0310-0310
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0311-0506
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0507-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0802-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0301-0309
75	05.511 PLATE; BEVEL 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0310-0310
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0311-0506
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0507-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0802-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0301-0309
75	05.511 PLATE; BEVEL 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0310-0310
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0311-0506
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0507-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0802-
78	05.511 DISC; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0507-0805
78	05.511 DISC; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0806-
78	05.511 DISC; FRICTION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0806-
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0301-0309
78	05.511 DISC; FRICTION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0310-0310
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0311-0506
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0507-0801
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0802-
79	05.511 PLATE; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0507-0805
79	05.511 PLATE; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0806-
79	05.511 PLATE; FRICTION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0806-
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0301-0309
79	05.511 PLATE; FRICTION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0310-0310
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0311-0506
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0507-0801
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0802-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0507-1004
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0301-0309
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0310-0310
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0311-0506
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0507-0801
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0802-
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	9412-0212
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0301-0309
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0310-0310
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0311-0506
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0507-0611
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0507-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X30 FLANGE	8-94334-990-0	12	1	9412-0110
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X28.5	8-97316-673-0	12	1	0111-0205
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0206-0212
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0507-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	9412-0203
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-0212
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0507-0611
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0801-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0507-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0301-0309
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0310-0310
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0311-0506
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0507-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0801
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0802-
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	24	1	9412-0203
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98025-555-0	12	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0507-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9412-0506
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0507-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9412-0506
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0507-
396	05.515 GEAR; DIFF,LSD 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0507-0805
396	05.515 GEAR; DIFF,LSD 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0806-1004
396	05.515 GEAR; DIFF,LSD 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0806-1004
396	05.515 GEAR; DIFF,LSD 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> (C)	8-98169-195-0	01	1	1005-
396	05.515 GEAR; DIFF,LSD 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (C)	8-98169-195-0	01	1	1005-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97300-266-0	01	1	0301-0303
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0304-0309
396	05.515 GEAR; DIFF,LSD 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0310-0310
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0311-0506
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0507-0801
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0802-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97300-267-0	01	1	0301-0303
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0304-0309
396	05.515 GEAR; DIFF,LSD 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0310-0310
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0311-0506
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0507-0801
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0802-
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0301-0309
432	05.650 SCREW 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0310-0310
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0311-0506
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0507-0707
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0708-0801
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0802-
432	05.650 SCREW 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98025-556-0	04	1	0507-
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0301-0309
433	05.511 PLATE; FRICTION 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0310-0310
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0311-0506
433	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0507-0801
433	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0802-

1 71 69 70 84 88 89 60 70 89 69 64 88 132 61 61 56 55 50 42 66 44 63 49 43 50 45 100 7 37 47 46 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0507-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97048-176-0	01	1	9412-0205
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97354-149-0	01	1	0206-0212
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) 39/7	8-97363-134-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97035-417-0	01	1	9412-0203
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97319-246-0	01	1	0204-0212
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0309
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0310-0310
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0311-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0502-0506
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0507-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1)	8-97047-095-2	01	1	0507-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	9412-0506
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0507-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0507-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	9412-0506
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0507-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0507-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	9412-0506
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0507-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0507-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	9412-0506
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0507-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0507-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	9412-0506
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0507-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	9412-0506
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0507-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-
46	05.453 BOLT M14X38	0-23801-438-0	01	1	9412-9504
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	9505-0506
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0507-0909
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-
47	05.453 WASHER; LK 05.387 ID=14.2	9-09150-614-0	01	1	9412-9504
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0507-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	9412-0506
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0507-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	9412-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0507-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	9512-0506
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0507-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0507-
55	05.505 CARRIER; DIFF	8-94365-264-0	01	1	9412-0202
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0203-0506
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0507-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0507-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	9412-0506
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0507-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97035-455-0	01	1	9412-0203
60	05.529 GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF<6LV> 43/7	8-97035-455-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0206-0212
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0310
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) ENGINE POWER N-SPEC(7QV) 39/7	8-97319-160-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97320-103-0	01	1	0204-0205
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0311-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0502-0506
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0507-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	9412-0506
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0507-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0507-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0507-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	9412-0506
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0507-
64	05.476 NUT; RET 16.176 M6	9-09110-406-0	02	1	9412-9502
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	9503-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0507-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	9412-0506
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0507-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	9412-0506
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0507-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	9412-0506
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0507-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0507-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-94362-393-0	01	1	9412-0205
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97354-016-0	01	1	0206-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-94461-234-1	01	1	9412-0203
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0204-0212
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0309
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0310-0310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0311-0506
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0507-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0611
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0507-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X30 FLANGE	8-94334-990-0	12	1	9412-0110
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M12X28.5	8-97316-673-0	12	1	0111-0205
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0206-0212
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0507-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	9412-0203
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-0212
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0309
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0310-0310
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0311-0506
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0507-0611
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0507-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	9412-0506
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0507-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9412-0506
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0507-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	9412-0506
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0507-
132	05.476 WASHER; LK,RET 00.206 ID=6.1	9-09150-506-0	02	1	9412-9502

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
