Isuzu WW
▶
TRUCKS
▶
NPS
▶
50701 - NPS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-16 - FREE WHEEL HUB
▶

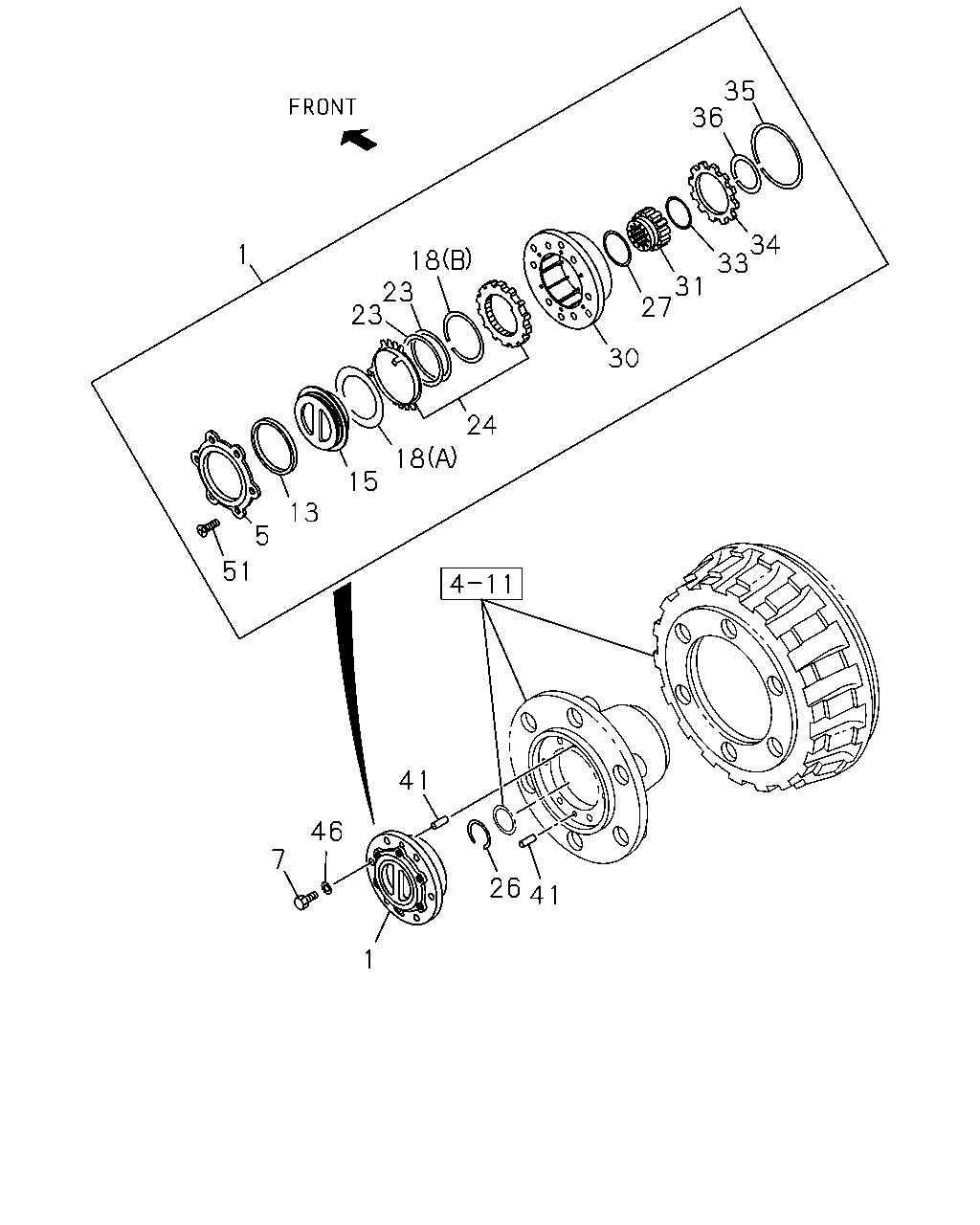

4-16 — FREE WHEEL HUB
(#35775) — 22 parça
35
36
34
33
1
18
23
23
31
27
30
24
18
15
13
5
51
41
46
7
26
41
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.308 HUB ASM; FREE WHEEL
8-97032-905-0
02
1
9412-
5
06.308 COVER; HUB LOCK
8-97032-907-0
02
1
9412-
7
06.308 BOLT; FREE WHEEL HUB
M12X38
8-94333-467-0
12
1
9412-
13
06.308 RING; HUB LOCK
8-97032-909-0
02
1
9412-
15
06.308 HANDLE; HUB LOCK
8-97032-908-0
02
1
9412-
18
06.308 RING; SNAP,INNER
(A)
8-94321-500-0
02
1
9412-
18
06.308 RING; SNAP,INNER
(B)
8-94321-504-0
02
1
9412-
23
06.308 SPRING; TENSION,HUB LOCK
8-94321-499-0
04
1
9412-
24
06.308 CLUTCH; HUB LOCK
8-94321-498-0
02
1
9412-
26
06.323 RING; SNAP,HUB
8-94478-198-0
02
1
9412-
27
06.308 SHIM; AXLE SHAFT
T=0.3
8-94441-489-0
AR
1
9412-
27
06.308 SHIM; AXLE SHAFT
T=0.5
8-94441-490-0
AR
1
9412-
27
06.308 SHIM; AXLE SHAFT
T=1.0
8-94441-491-0
AR
1
9412-
30
06.308 HOUSING; FREE WHEEL HUB
8-94321-492-0
02
1
9412-
31
06.308 INNER; HUB LOCK
8-94321-495-0
02
1
9412-
33
06.308 SPACER; HUB LOCK
8-94321-497-0
02
1
9412-
34
06.308 RING; HUB LOCK
8-94321-493-0
02
1
9412-
35
06.308 RING; SNAP,HUB LOCK,INNER
8-94321-494-0
02
1
9412-
36
06.308 RING; SNAP,HUB LOCK,OUTER
8-94321-496-0
02
1
9412-
41
05.520 PIN; KNOCK,FRT AXLE KNUCKLE
08.939 OD=10 L=20
9-08161-020-0
04
1
9412-
46
06.308 WASHER; LK,DRIVEN TO HSG
D=12
8-94333-466-0
12
1
9412-
51
06.308 SCREW; FREE WHEEL HUB
M6X14 OVAL-HEAD
9-03294-614-0
12
1
9412-
