Sayfa 4-01 - Isuzu EPC

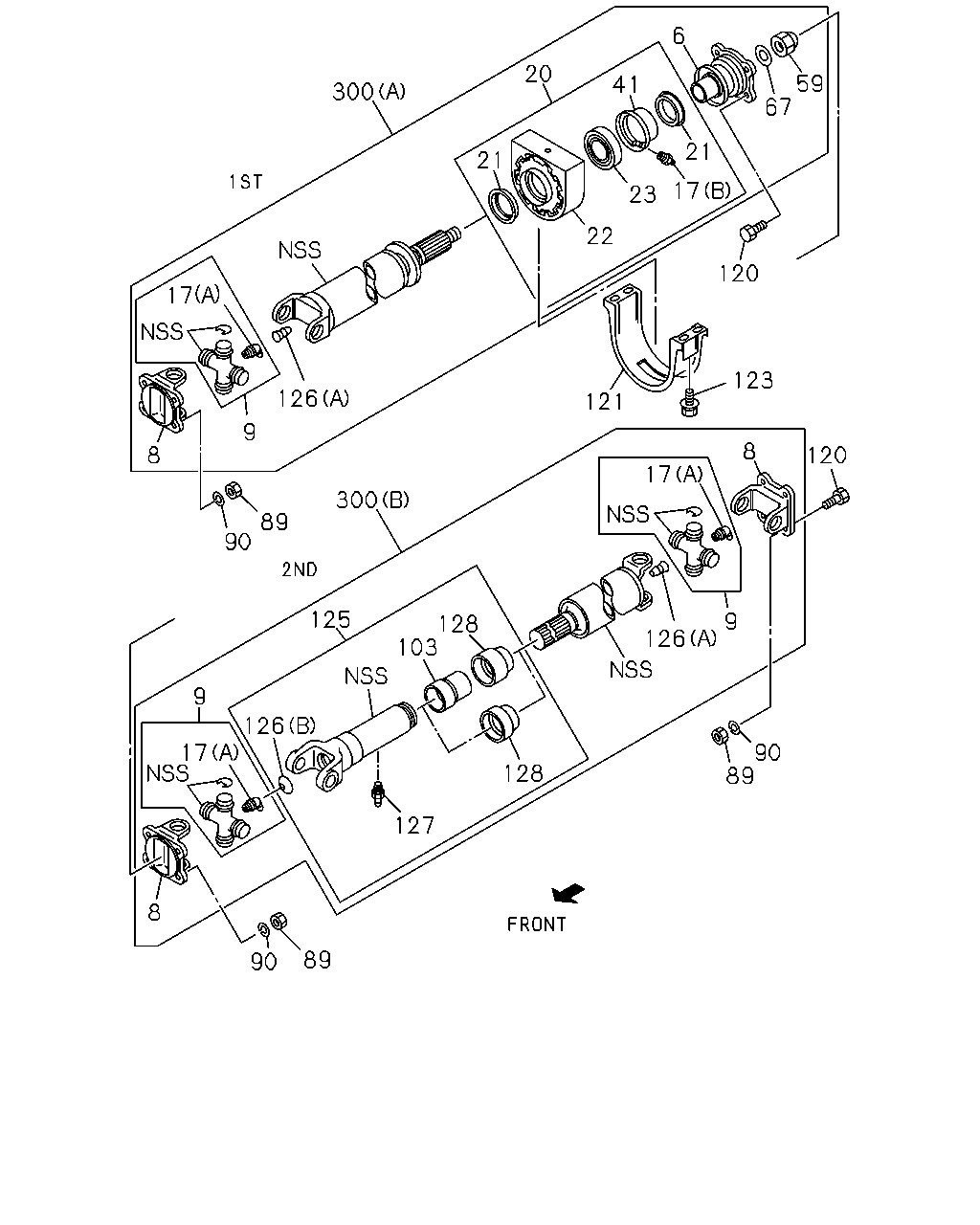

4-01 — PROPELLER SHAFT (#35769) — 330 parça

6 20 59 67 41 300 21 21 17 23 22 120 17 123 126 121 9 8 8 120 17 300 89 90 125 9 128 103 126 9 126 17 90 89 128 127 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) 05.556	1-37245-115-1	01	1	0507-
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-97036-123-0	01	1	9412-0212
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97036-123-0	01	1	0301-0310
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97036-123-0	01	1	0311-0501
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97036-123-0	01	1	0502-0611
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97036-123-0	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR D=80	1-37211-037-4	01	1	0507-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR D=80	1-37211-037-4	02	1	0507-
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT,REAR	8-97035-619-1	04	1	9412-9904
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT,REAR	8-97225-254-0	04	1	9905-0212
8	05.544 YOKE; FLANGE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0301-0310
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0311-0501
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0502-0506
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0507-0611
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0301-0501
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0502-0611
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0612-0805
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	8-97322-663-0	02	1	0806-0806
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0806-0806
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0807-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) REAR	8-97322-663-0	01	1	0301-0310
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) REAR	8-97322-663-0	01	1	0311-0501
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	01	1	0502-0611
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	01	1	0612-
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR	1-37300-103-0	01	1	0507-1106
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR	8-98020-789-1	01	1	1107-
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	1-37300-103-0	02	1	0507-1106
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	8-98020-789-1	02	1	1107-
9	05.548 JOURNAL ASM; PROP SHAFT FRONT,REAR	8-97080-505-0	04	1	9412-0212
9	05.548 JOURNAL ASM; PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) REAR	8-97322-749-0	01	1	0301-0310
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) REAR	8-97322-749-0	01	1	0311-0501
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-749-0	01	1	0502-0611
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-749-0	01	1	0612-0612
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-98033-605-0	01	1	0701-
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) REAR	8-97322-749-0	02	1	0301-0501
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-749-0	02	1	0502-0611
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-749-0	02	1	0612-0612
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-98033-605-0	02	1	0701-0805
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	8-98033-605-0	02	1	0806-0806
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-98033-605-0	02	1	0806-0806
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-98033-605-0	02	1	0807-
9	05.548 JOURNAL ASM; PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0301-0310
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0311-0501
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0502-0506
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0507-0611
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0507-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	9412-0212
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0301-0310
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0311-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0502-0506
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0502-0506
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0507-0607
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0507-0607
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	04	1	9412-0212
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0301-0310
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0311-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0502-0506
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0507-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0301-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0502-0506
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0507-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0507-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0612-0805
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0612-0805
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0806-0806
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0806-0806
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0807-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0807-
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97131-143-1	01	1	0507-
20	05.600 BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	9412-0212
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0301-0310
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0311-0501
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0502-0611
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0612-0702
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-98020-880-0	01	1	0703-
21	05.590 SEAL; OIL,CENTER BRG 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) ID=54	1-09625-161-0	02	1	0507-
21	05.590 SEAL; OIL,CENTER BRG 05.601 ID=49	5-09625-067-1	02	1	9412-0212
21	05.590 SEAL; OIL,CENTER BRG 4HE1 ENG(RLY) M/T MYY5T(RSM) 05.601 ID=49	5-09625-067-1	02	1	0301-0310
21	05.590 SEAL; OIL,CENTER BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 05.601 ID=49	5-09625-067-1	02	1	0311-0501
21	05.590 SEAL; OIL,CENTER BRG 4HG1 ENG(RJH) M/T MYY5T(RSM) 05.601 ID=49	5-09625-067-1	02	1	0502-0611
21	05.590 SEAL; OIL,CENTER BRG 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.601 ID=49	5-09625-067-1	02	1	0612-
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97131-125-0	01	1	0507-
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	5-37516-005-1	01	1	9412-0212
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HE1 ENG(RLY) M/T MYY5T(RSM)	5-37516-005-1	01	1	0301-0310
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	5-37516-005-1	01	1	0311-0501
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG(RJH) M/T MYY5T(RSM)	5-37516-005-2	01	1	0502-0611
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	5-37516-005-2	01	1	0612-0612
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-98020-875-0	01	1	0701-
23	05.600 BEARING; CENTER,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	9-00090-071-0	01	1	0507-
23	05.600 BEARING; CENTER,PROP SHAFT OD=80	5-09800-068-0	01	1	9412-0212
23	05.600 BEARING; CENTER,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0301-0310
23	05.600 BEARING; CENTER,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0311-0501
23	05.600 BEARING; CENTER,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0502-0611
23	05.600 BEARING; CENTER,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) OD=80	5-09800-068-0	01	1	0612-
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) 05.600	1-37529-068-0	01	1	0507-1106
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98020-882-0	01	1	1107-
41	05.601 COVER; CENTER BRG,PROP SHAFT	5-37512-004-0	01	1	9412-0212
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM)	5-37512-004-0	01	1	0301-0310
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	5-37512-004-0	01	1	0311-0501
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM)	5-37512-004-0	01	1	0502-0611
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	5-37512-004-0	01	1	0612-0612
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-98020-795-0	01	1	0701-
59	05.586 NUT; RET TO SUPPORT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) M30	8-97160-857-0	01	1	0507-
59	05.586 NUT; RET TO SUPPORT 05.595 M30 H=23	1-09449-068-0	01	1	9412-0212
59	05.586 NUT; RET TO SUPPORT 4HE1 ENG(RLY) M/T MYY5T(RSM) M30	8-97160-857-0	01	1	0301-0303
59	05.586 NUT; RET TO SUPPORT 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0304-0310
59	05.586 NUT; RET TO SUPPORT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0311-0501
59	05.586 NUT; RET TO SUPPORT 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0502-0611
59	05.586 NUT; RET TO SUPPORT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0612-0612
59	05.586 NUT; RET TO SUPPORT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.525 M27 H=25	8-97360-410-0	01	1	0701-
67	05.586 WASHER; PROP SHAFT TO COUPLING D 05.595 ID=30.5	1-09503-025-0	01	1	9412-0212
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	9412-0105
89	05.586 NUT; YOKE TO RR AXLE 4HG1 ENG(RJH) M12	8-94477-841-0	12	1	0106-0212
89	05.586 NUT; YOKE TO RR AXLE 4HE1 ENG(RLY) M12	8-94477-841-0	12	1	0301-0310
89	05.586 NUT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HE1 ENG(RLY) M12	8-94477-841-0	12	1	0311-0501
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0502-0610
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0611-
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	9412-0105
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH) 00.002 ID=12.2	9-09150-812-0	12	1	0106-0212
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HE1 ENG(RLY) 00.002 ID=12.2	9-09150-812-0	12	1	0301-0310
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4HE1 ENG(RLY) 00.002 ID=12.2	9-09150-812-0	12	1	0311-0501
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0502-0603
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0604-
103	05.544 BOOT; PROP SHAFT 05.545	8-97145-747-0	01	1	9712-0212
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	9412-0105
120	05.586 BOLT; YOKE TO RR AXLE 4HG1 ENG(RJH) M12X35	8-94477-842-0	08	1	0106-0212
120	05.586 BOLT; YOKE TO RR AXLE 4HE1 ENG(RLY) M12X35	8-94477-842-0	08	1	0301-0310
120	05.586 BOLT; YOKE TO RR AXLE 4HG1 ENG(RJH),4HE1 ENG(RLY) M12X35	8-94477-842-0	08	1	0311-0501
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0502-0610
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0611-
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-0	01	1	9412-0105
121	05.598 RETAINER; CUSHION RUBBER 4HG1 ENG(RJH)	8-97035-623-1	01	1	0106-0212
121	05.598 RETAINER; CUSHION RUBBER 4HE1 ENG(RLY)	8-97035-623-1	01	1	0301-0310
121	05.598 RETAINER; CUSHION RUBBER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97035-623-1	01	1	0311-0501
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0502-
123	05.601 BOLT; RET 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9412-0105
123	05.601 BOLT; RET 4HG1 ENG(RJH) 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0106-0212
123	05.601 BOLT; RET 4HE1 ENG(RLY) 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0301-0310
123	05.601 BOLT; RET 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0311-0501
123	05.601 BOLT; RET 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0502-0512
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) L=183	8-98040-513-0	01	1	0609-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=191	8-97036-126-1	01	1	9412-0212
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0301-0501
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0502-0611
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0612-0805
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) L=183	8-97327-979-1	01	1	0806-0806
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0806-0806
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) L=183	8-97327-979-1	01	1	0807-
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (B)	1-09600-014-0	01	1	0507-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	9412-0212
126	05.556 PLUG; SPLINED YOKE 4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0301-0310
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0301-0310
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0311-0501
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0311-0501
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0502-0506
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0502-0506
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) (A)	1-09600-023-0	01	1	0507-0611
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0507-0611
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (A)	1-09600-023-0	01	1	0507-0611
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) (A)	1-09600-023-0	01	1	0612-0805
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0612-0805
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (A)	1-09600-023-0	01	1	0612-0805
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0806-0806
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (A)	1-09600-023-0	01	1	0806-0806
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0806-0806
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) (A)	1-09600-023-0	01	1	0807-
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	1-09600-023-0	01	1	0807-
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (A)	1-09600-023-0	01	1	0807-
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	9412-0212
126	05.556 PLUG; SPLINED YOKE M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0301-0501
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0502-0611
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0612-0805
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-94366-900-0	01	1	0806-0806
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0806-0806
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-94366-900-0	01	1	0807-
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 PT1/8 STRAIGHT	9-09031-010-0	01	1	0507-0512
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9412-0212
127	05.586 NIPPLE; GREASE,SPLINED YOKE M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0301-0501
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0502-0607
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HG1 ENG(RJH) M/T MYY5T(RSM) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-0611
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0612-0805
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0806-0806
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0806-0806
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0807-
128	05.586 SEAL; SLEEVE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 05.560	1-37247-001-1	01	1	0507-
128	05.586 SEAL; SLEEVE	8-97036-163-1	01	1	9412-9512
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	9601-0212
128	05.586 SEAL; SLEEVE M/T MYY5T(RSM)	8-97145-746-0	01	1	0301-0501
128	05.586 SEAL; SLEEVE 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97145-746-0	01	1	0502-0611
128	05.586 SEAL; SLEEVE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97145-746-0	01	1	0612-0805
128	05.586 SEAL; SLEEVE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP)	8-97145-746-0	01	1	0806-0806
128	05.586 SEAL; SLEEVE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97145-746-0	01	1	0806-0806
128	05.586 SEAL; SLEEVE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97145-746-0	01	1	0807-
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (A) L=428	8-97376-940-1	01	1	0507-
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (B) L=1080	8-97214-108-1	01	1	0507-
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (B) L=1062	8-97350-388-2	01	1	0507-0611
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (B) L=1062	8-97350-388-2	01	1	0612-0806
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) (B) L=1059	8-97308-060-2	01	1	0807-
300	05.544 SHAFT ASM; PROP,RR (B) L=1068	8-97042-401-2	01	1	9412-0212
300	05.544 SHAFT ASM; PROP,RR M/T MYY5T(RSM) (B) L=1074	8-97308-061-2	01	1	0301-0501
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH) M/T MYY5T(RSM) (B) L=1074	8-97308-061-2	01	1	0502-0506
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) (B) L=1074	8-97308-061-2	01	1	0507-0611
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) (B) L=1074	8-97308-061-2	01	1	0612-
300	05.544 SHAFT ASM; PROP,RR (A) L=488	8-97042-417-1	01	1	9412-0212
300	05.544 SHAFT ASM; PROP,RR 4HE1 ENG(RLY) M/T MYY5T(RSM) (A) L=452	8-97314-842-3	01	1	0301-0310
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (A) L=452	8-97314-842-3	01	1	0311-0501
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH) M/T MYY5T(RSM) (A) L=452	8-97314-842-3	01	1	0502-0611
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (A) L=452	8-97314-842-3	01	1	0612-

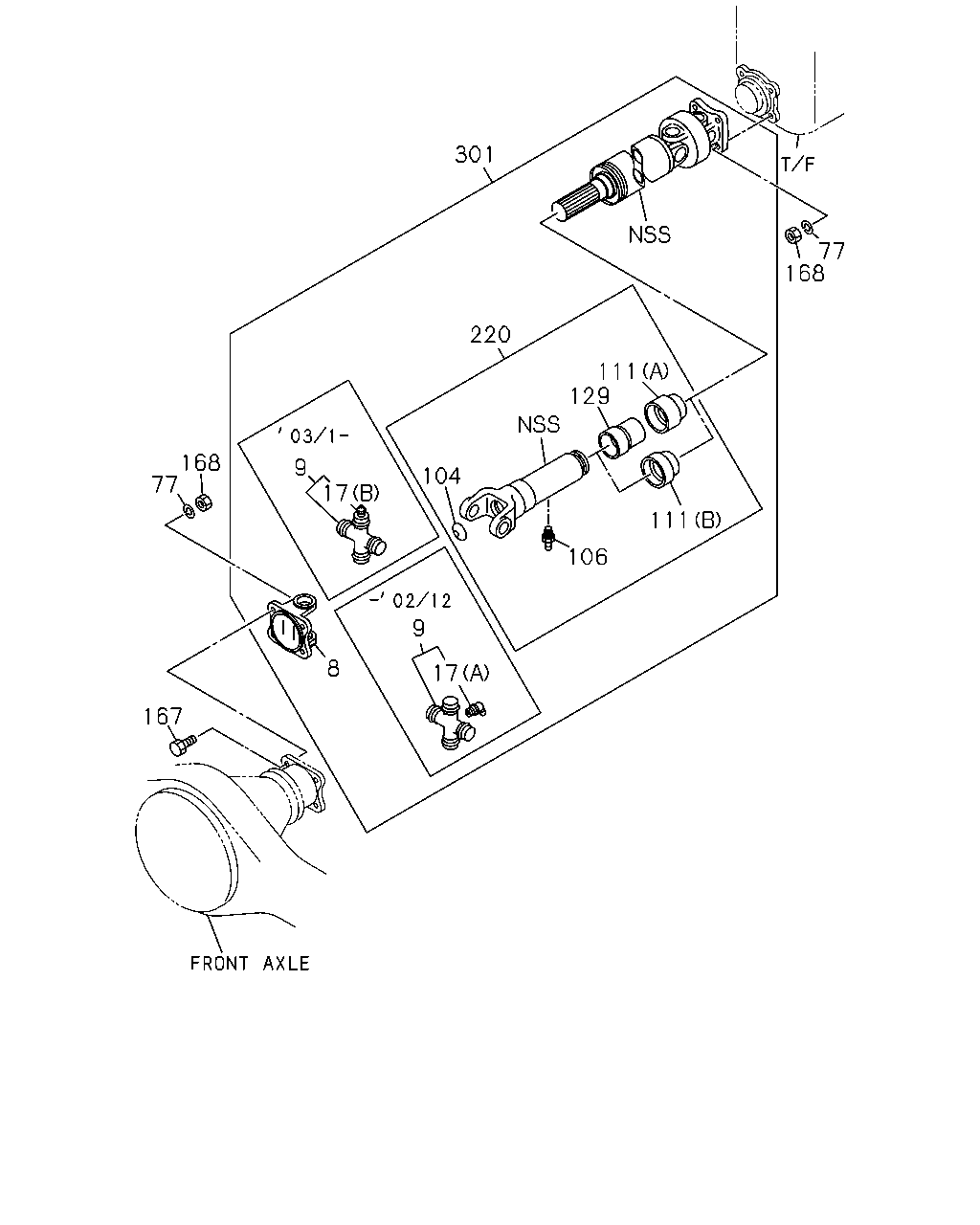

301 77 168 220 111 129 168 77 9 104 17 111 106 9 8 17 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR D=80	1-37211-037-4	01	1	0507-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR D=80	1-37211-037-4	02	1	0507-
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT,REAR	8-97035-619-1	04	1	9412-9904
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT,REAR	8-97225-254-0	04	1	9905-0212
8	05.544 YOKE; FLANGE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0301-0310
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0311-0501
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0502-0506
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0507-0611
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97178-365-0	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0301-0501
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0502-0611
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0612-0805
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	8-97322-663-0	02	1	0806-0806
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0806-0806
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	02	1	0807-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) REAR	8-97322-663-0	01	1	0301-0310
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) REAR	8-97322-663-0	01	1	0311-0501
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	01	1	0502-0611
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-663-0	01	1	0612-
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR	1-37300-103-0	01	1	0507-1106
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR	8-98020-789-1	01	1	1107-
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	1-37300-103-0	02	1	0507-1106
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	8-98020-789-1	02	1	1107-
9	05.548 JOURNAL ASM; PROP SHAFT FRONT,REAR	8-97080-505-0	04	1	9412-0212
9	05.548 JOURNAL ASM; PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) REAR	8-97322-749-0	01	1	0301-0310
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) REAR	8-97322-749-0	01	1	0311-0501
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-749-0	01	1	0502-0611
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-749-0	01	1	0612-0612
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-98033-605-0	01	1	0701-
9	05.548 JOURNAL ASM; PROP SHAFT M/T MYY5T(RSM) REAR	8-97322-749-0	02	1	0301-0501
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-749-0	02	1	0502-0611
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-97322-749-0	02	1	0612-0612
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-98033-605-0	02	1	0701-0805
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	8-98033-605-0	02	1	0806-0806
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-98033-605-0	02	1	0806-0806
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR	8-98033-605-0	02	1	0807-
9	05.548 JOURNAL ASM; PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0301-0310
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0311-0501
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0502-0506
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0507-0611
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) FRONT	8-97167-317-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (B) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0507-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	9412-0212
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0301-0310
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0311-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0502-0506
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0502-0506
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0507-0607
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0507-0607
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	04	1	9412-0212
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0301-0310
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0311-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0502-0506
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0507-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0301-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0502-0506
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0507-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0507-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-0611
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0612-0805
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0612-0805
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0806-0806
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0806-0806
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0807-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0807-
77	05.586 WASHER; LK,YOKE TO FLANGE,PROP S 00.002 ID=12.2	9-09150-812-0	08	1	9412-0212
77	05.586 WASHER; LK,YOKE TO FLANGE,PROP S 00.002 ID=10.2	9-09150-610-0	08	1	0301-0603
77	05.586 WASHER; LK,YOKE TO FLANGE,PROP S 00.002 ID=10.2	0-91510-610-0	08	1	0604-
104	05.556 PLUG; SLEEVE YOKE	8-94366-900-0	01	1	9412-0212
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9412-0212
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0301-0310
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0311-0501
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0502-0506
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0507-0607
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-0611
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0612-
111	05.545 RING; SLEEVE 05.586 (A)	8-97036-163-1	01	1	9412-9512
111	05.545 RING; SLEEVE 05.586 (A)	8-97145-746-0	01	1	9601-0212
111	05.545 RING; SLEEVE 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97020-597-1	01	1	0301-0310
111	05.545 RING; SLEEVE 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97020-597-1	01	1	0311-0501
111	05.545 RING; SLEEVE 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97020-597-1	01	1	0502-0506
111	05.545 RING; SLEEVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97020-597-1	01	1	0507-0611
111	05.545 RING; SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97020-597-1	01	1	0612-
129	05.560 COVER; SPLINED YOKE 05.545	8-97078-299-0	01	1	9412-9512
129	05.560 COVER; SPLINED YOKE 05.545	8-97145-747-0	01	1	9601-0212
167	05.586 BOLT; YOKE TO FLANGE,PROP SHAFT M12X35	8-94477-842-0	04	1	9412-0212
167	05.586 BOLT; YOKE TO FLANGE,PROP SHAFT M10X29	8-97168-458-1	04	1	0301-0610
167	05.586 BOLT; YOKE TO FLANGE,PROP SHAFT M10X29	8-98056-948-0	04	1	0611-
168	05.586 NUT; YOKE TO FLANGE,PROP SHAFT M12	8-94477-841-0	08	1	9412-0212
168	05.586 NUT; YOKE TO FLANGE,PROP SHAFT M10	8-94159-009-1	08	1	0301-0610
168	05.586 NUT; YOKE TO FLANGE,PROP SHAFT M10	8-98056-949-0	08	1	0611-
220	05.544 YOKE; SPLINED	8-97078-298-1	01	1	9412-0212
220	05.544 YOKE; SPLINED 4HE1 ENG(RLY) M/T MYY5T(RSM) 05.545	8-97167-316-0	01	1	0301-0310
220	05.544 YOKE; SPLINED 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 05.545	8-97167-316-0	01	1	0311-0501
220	05.544 YOKE; SPLINED 4HG1 ENG(RJH) M/T MYY5T(RSM) 05.545	8-97167-316-0	01	1	0502-0506
220	05.544 YOKE; SPLINED 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.545	8-97167-316-0	01	1	0507-0611
220	05.544 YOKE; SPLINED 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 05.545	8-97167-316-0	01	1	0612-
301	05.544 SHAFT ASM; PROP,FRT L=759	8-97079-347-2	01	1	9412-0212
301	05.544 SHAFT ASM; PROP,FRT 4HE1 ENG(RLY) M/T MYY5T(RSM) L=794	8-97300-127-0	01	1	0301-0310
301	05.544 SHAFT ASM; PROP,FRT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) L=794	8-97300-127-0	01	1	0311-0501
301	05.544 SHAFT ASM; PROP,FRT 4HG1 ENG(RJH) M/T MYY5T(RSM) L=794	8-97300-127-0	01	1	0502-0506
301	05.544 SHAFT ASM; PROP,FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) L=794	8-97300-127-0	01	1	0507-0611
301	05.544 SHAFT ASM; PROP,FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) L=794	8-97300-127-0	01	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
