Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#35768) — 313 parça

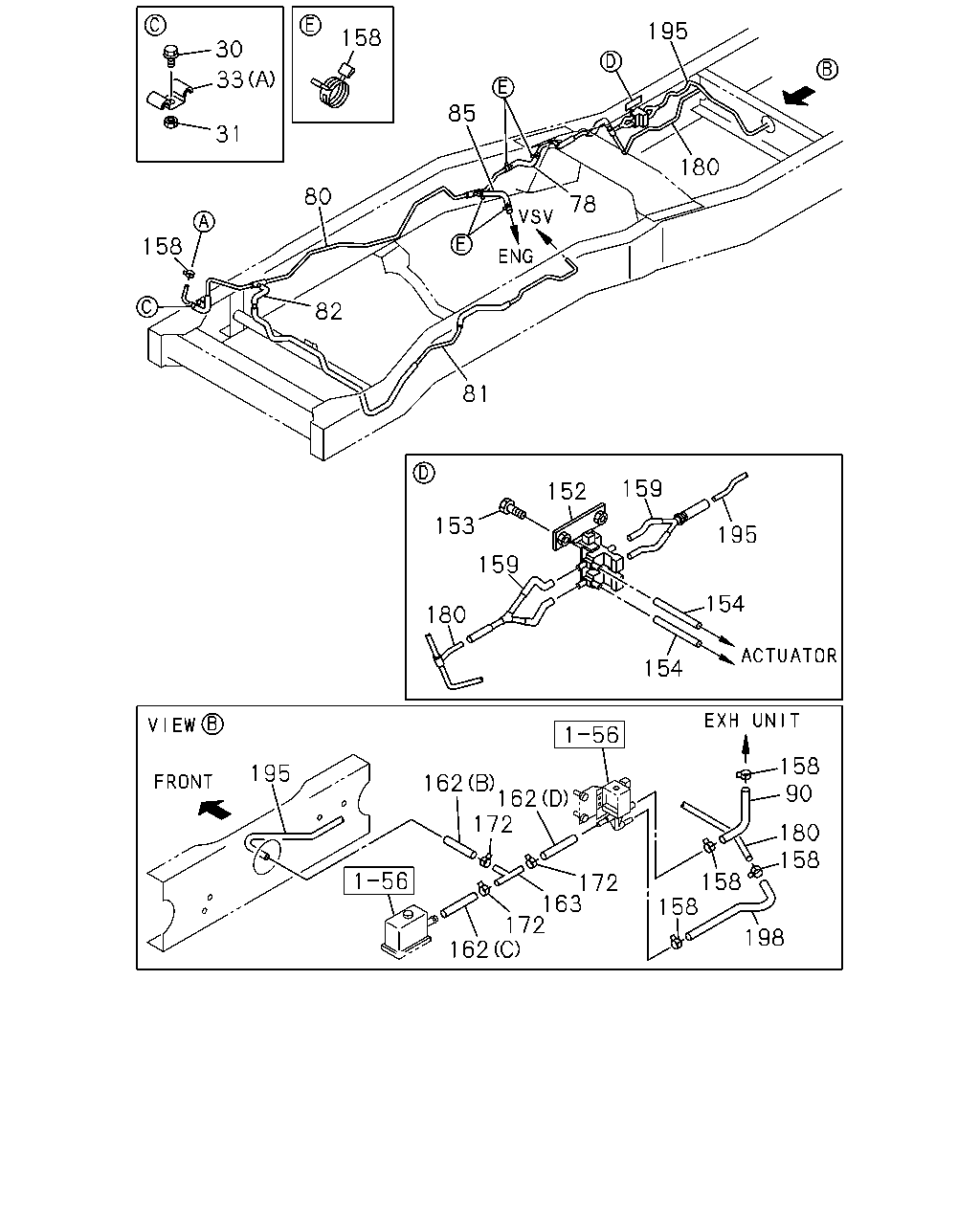

195 158 30 33 85 31 180 80 78 158 82 81 159 152 153 195 159 154 180 154 158 90 195 162 162 172 180 158 158 158 172 163 172 162 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	04.686 BOLT; CLIP,VAC PIPE 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9412-9511
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9512-0512
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9412-0602
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
33	04.930 CLIP; VAC PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9412-0212
33	04.930 CLIP; VAC PIPE (D) ID=10 H=40	8-94462-219-0	02	1	0301-
33	04.930 CLIP; VAC PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0301-
33	04.930 CLIP; VAC PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0301-
33	04.930 CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0301-
78	04.931 HOSE; VAC,PIPE TO PIPE L=130 SERVICED BY L=3000	0-08358-300-0	01	1	9412-0212
78	04.931 HOSE; VAC,PIPE TO PIPE L=140 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0310
78	04.931 HOSE; VAC,PIPE TO PIPE AUSTRALIA EQUIPMENT(RR3) L=140 SERVICED BY L=3000	0-08358-300-0	01	1	0311-0501
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0311-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ)	8-97325-798-2	01	1	0507-
80	04.930 PIPE; VAC,ENG SIDE	8-97047-037-2	01	1	9412-0212
80	04.930 PIPE; VAC,ENG SIDE 4HE1 ENG(RLY)	8-97325-798-2	01	1	0301-0310
80	04.930 PIPE; VAC,ENG SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97325-798-2	01	1	0311-0501
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH)	8-97373-725-0	01	1	0311-0611
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97373-725-0	01	1	0612-
81	04.930 PIPE; VAC,VSV	8-97100-622-1	01	1	9412-0105
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH)	8-97100-622-1	01	1	0106-0212
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY)	8-97325-813-4	01	1	0301-0310
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97325-813-4	01	1	0311-0501
81	04.930 PIPE; VAC,VSV	8-97374-192-0	01	1	0502-0502
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH)	8-97374-192-0	01	1	0502-0611
81	04.930 PIPE; VAC,VSV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-192-0	01	1	0612-
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH)	8-97373-723-0	01	1	0311-0501
82	04.931 HOSE; VAC,VSV 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9412-0105
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0106-0212
82	04.931 HOSE; VAC,VSV 4HE1 ENG(RLY) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0301-0310
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH),4HE1 ENG(RLY) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0311-0501
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0502-0611
82	04.931 HOSE; VAC,VSV 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0612-
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP)	8-97109-066-0	01	1	0612-
85	04.931 HOSE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ)	8-97239-327-0	01	1	0507-
85	04.931 HOSE; VAC,ENG SIDE L=260	8-97091-967-0	01	1	9412-0212
85	04.931 HOSE; VAC,ENG SIDE 4HE1 ENG(RLY)	8-97239-327-0	01	1	0301-0501
85	04.931 HOSE; VAC,ENG SIDE 4HG1 ENG(RJH) L=260	8-97091-967-0	01	1	0311-
90	04.931 HOSE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	01	1	0507-
90	04.931 HOSE; VAC,MAG VLV L=500 SERVICED BY L=3000	0-08358-300-0	01	1	9412-0212
90	04.931 HOSE; VAC,MAG VLV L=350 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0309
90	04.931 HOSE; VAC,MAG VLV 4HE1 ENG(RLY) L=350 SERVICED BY L=3000	0-08358-300-0	01	1	0310-0310
90	04.931 HOSE; VAC,MAG VLV 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) L=350 SERVICED BY L=3000	0-08358-300-0	01	1	0311-0501
90	04.931 HOSE; VAC,MAG VLV 4HG1 ENG(RJH) EXC. AUSTRALIA EQUIPMENT(RR3)	8-97374-081-0	01	1	0311-0501
90	04.931 HOSE; VAC,MAG VLV 4HG1 ENG(RJH)	8-97374-081-0	01	1	0502-0611
90	04.931 HOSE; VAC,MAG VLV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-081-0	01	1	0612-
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	01	1	9412-
153	04.686 BOLT; VSV 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9412-9501
153	04.686 BOLT; VSV 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9502-0512
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0601-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=250 SERVICED BY L=3000	0-04840-300-0	02	1	9412-0212
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=250 SERVICED BY L=3000	0-04840-300-0	01	1	0301-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=150 SERVICED BY L=3000	0-04840-300-0	01	1	0301-
158	04.681 CLIP; HOSE 04.930 ID=16	8-94238-568-0	10	1	9412-0212
159	04.931 HOSE ASM; VAC	8-94481-279-1	02	1	9412-
162	04.931 HOSE; VAC 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC 03.630 (C) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (C) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC EXC. AUSTRALIA EQUIPMENT(RR3),POWER ASSISTCLUTCH(S2T) (A)	8-97040-991-2	01	1	0311-0501
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0502-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	9412-0310
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	0311-0501
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	0502-0502
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0502-0506
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0507-0611
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0612-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97091-963-0	01	1	9412-0310
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97091-963-0	01	1	0311-0501
163	04.681 JOINT; VAC HOSE 04.931 3WAY	8-94167-478-0	01	1	9412-0105
163	04.681 JOINT; VAC HOSE 4HG1 ENG(RJH) 04.931 3WAY	8-94167-478-0	01	1	0106-0212
172	04.930 CLIP; VAC HOSE ID=14.5	8-94167-480-0	03	1	9412-0105
172	04.930 CLIP; VAC HOSE 4HG1 ENG(RJH) ID=14.5	8-94167-480-0	03	1	0106-0212
180	04.685 PIPE; VAC,RUBBER HOSE TO UNION	8-97120-524-1	01	1	9412-9511
180	04.685 PIPE; VAC,RUBBER HOSE TO UNION	8-97080-953-2	01	1	9512-9602
180	04.685 PIPE; VAC,RUBBER HOSE TO UNION	8-97120-524-1	01	1	9603-0212
195	04.685 PIPE; VAC,UNION TO VSV	8-97120-857-0	01	1	9412-9511
195	04.685 PIPE; VAC,UNION TO VSV	8-97080-954-2	01	1	9512-9601
195	04.685 PIPE; VAC,UNION TO VSV	8-97120-857-0	01	1	9602-0212
195	04.685 PIPE; VAC,UNION TO VSV	8-97325-809-2	01	1	0301-
198	04.931 HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=3000	0-08358-300-0	01	1	9412-9511
198	04.931 HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=1000	0-08358-100-0	01	1	9512-0212
198	04.931 HOSE; VAC,PIPE TO MAG VLV L=300 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0310
198	04.931 HOSE; VAC,PIPE TO MAG VLV AUSTRALIA EQUIPMENT(RR3) L=300 SERVICED BY L=3000	0-08358-300-0	01	1	0311-0501
198	04.931 HOSE; VAC,PIPE TO MAG VLV EXC. AUSTRALIA EQUIPMENT(RR3) 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0311-0501
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-

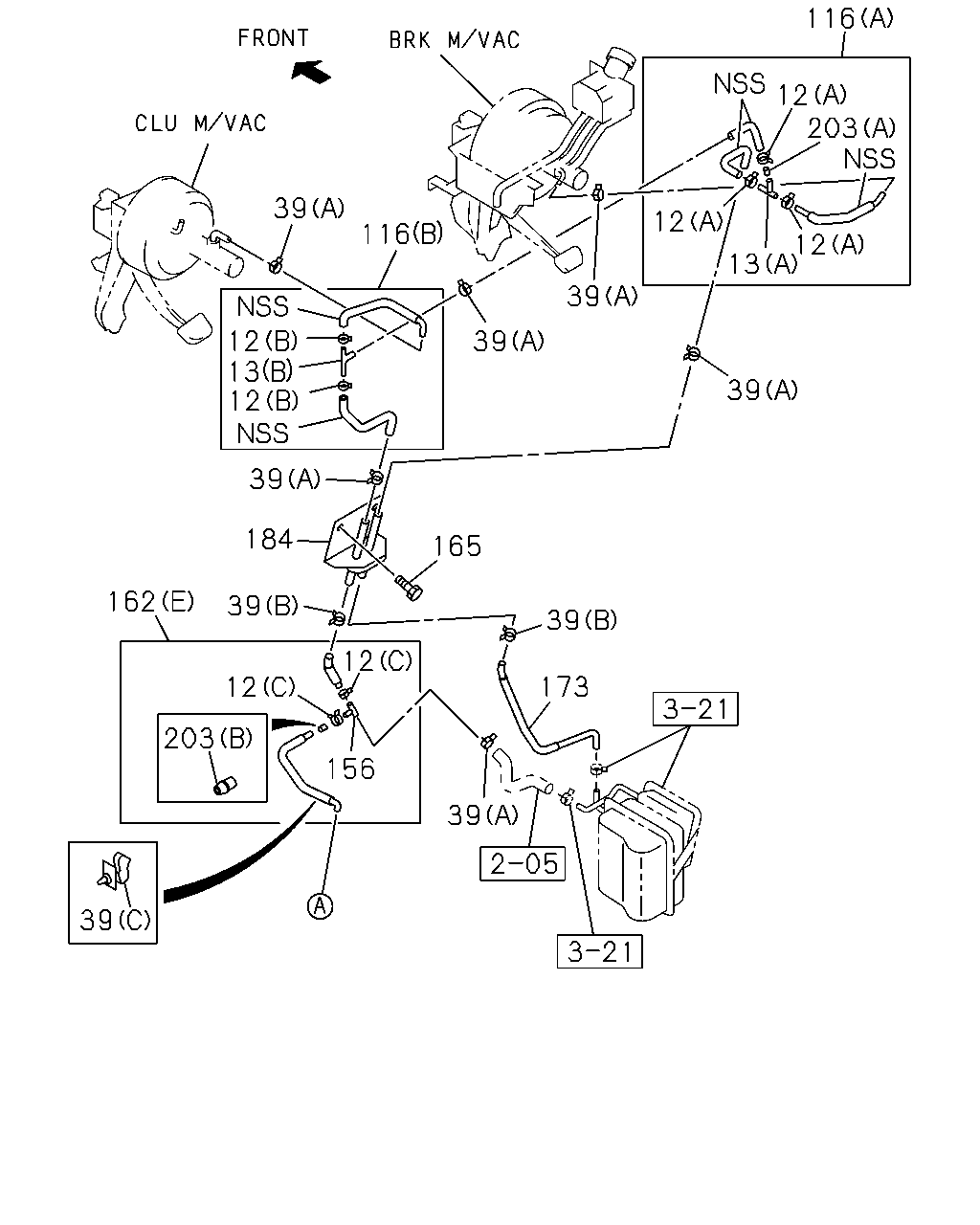

12 116 203 12 12 13 39 39 184 39 165 39 173 39 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	9412-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	9412-0310
12	04.681 CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0311-0501
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0502-0506
12	04.681 CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0507-0611
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0612-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	9712-0310
12	04.681 CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0311-0501
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0502-0506
12	04.681 CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0507-0611
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0612-
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	9412-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	9412-0310
13	04.681 JOINT; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0311-0501
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0502-0506
13	04.681 JOINT; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0507-0611
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	9412-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	9412-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	9412-0310
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0311-0501
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0502-0506
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0507-0611
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	9412-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	9412-0310
116	04.931 HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	0311-0403
116	04.931 HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-0501
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0502-0506
116	04.931 HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0507-0611
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0612-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97035-972-0	01	1	9412-0109
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0110-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97048-909-0	01	1	9412-0109
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0110-
162	04.931 HOSE; VAC 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC 03.630 (C) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (C) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC EXC. AUSTRALIA EQUIPMENT(RR3),POWER ASSISTCLUTCH(S2T) (A)	8-97040-991-2	01	1	0311-0501
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0502-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	9412-0310
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	0311-0501
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	0502-0502
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0502-0506
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0507-0611
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0612-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97091-963-0	01	1	9412-0310
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97091-963-0	01	1	0311-0501
165	04.686 BOLT; BRKT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9412-9605
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9606-0512
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97108-637-0	01	1	9412-9503
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	9504-
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	9412-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.592 OD=20 T=0.4 BLACK	1-76798-020-0	01	1	9610-9810
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9811-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	9412-0310
203	04.690 VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0311-0501
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0502-0506
203	04.690 VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0507-0611
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0612-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	9412-

33 103 106 33 33 103 106 103 84 103 106 106 128 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9412-0212
33	04.930 CLIP; VAC PIPE (D) ID=10 H=40	8-94462-219-0	02	1	0301-
33	04.930 CLIP; VAC PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0301-
33	04.930 CLIP; VAC PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0301-
33	04.930 CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0301-
84	04.931 PROTECTOR; EDGE,VAC HOSE 03.008 L=80	5-22439-006-0	01	1	9502-0212
84	04.931 PROTECTOR; EDGE,VAC HOSE 03.008 L=80	5-22439-006-0	01	1	0310-
103	04.930 CLIP; VAC PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	01	1	9412-0212
103	04.930 CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	03	1	9412-9511
103	04.930 CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	04	1	9512-9601
103	04.930 CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	03	1	9602-0212
103	04.930 CLIP; VAC PIPE 06.672 (C) ID=10 & 4.8X3	8-97038-938-0	01	1	9412-0212
103	04.930 CLIP; VAC PIPE (D) ID=10X2 H=37.5	8-97018-546-0	02	1	9602-9605
103	04.930 CLIP; VAC PIPE (D) ID=10X2 H=37.5	8-97018-546-0	01	1	9606-0212
106	04.930 CLIP; PIPE 04.686 (A) ID=4.8 H=26	8-94249-685-0	01	1	9412-0212
106	04.930 CLIP; PIPE 03.485 (A) ID=10 H=36	8-94249-686-1	02	1	9412-0212
106	04.930 CLIP; PIPE 04.686 (B) ID=4.8X2	8-94316-410-0	02	1	9412-0212
106	04.930 CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9412-9511
106	04.930 CLIP; PIPE (D) ID=10 H=40	8-94462-219-0	01	1	9512-0212
128	04.930 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0212
128	04.930 NUT; CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602
128	04.930 NUT; CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611
128	04.930 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
136	04.681 CLIP; VAC HOSE 03.162 (A) L=140	5-09707-031-1	01	1	9412-
136	04.681 CLIP; VAC HOSE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9412-

116 12 203 39 12 116 12 13 39 12 13 12 39 39 39 184 165 162 39 39 12 173 12 203 156 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	9412-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	9412-0310
12	04.681 CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0311-0501
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0502-0506
12	04.681 CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0507-0611
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0612-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	9712-0310
12	04.681 CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0311-0501
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0502-0506
12	04.681 CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0507-0611
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0612-
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	9412-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	9412-0310
13	04.681 JOINT; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0311-0501
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0502-0506
13	04.681 JOINT; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0507-0611
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	9412-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	9412-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	9412-0310
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0311-0501
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0502-0506
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0507-0611
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	9412-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	9412-0310
116	04.931 HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	0311-0403
116	04.931 HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-0501
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0502-0506
116	04.931 HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0507-0611
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0612-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97035-972-0	01	1	9412-0109
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0110-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97048-909-0	01	1	9412-0109
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0110-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	9712-0310
156	04.931 JOINT; 3 WAY FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0311-0501
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0502-0506
156	04.931 JOINT; 3 WAY FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0507-0611
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0612-
162	04.931 HOSE; VAC 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC 03.630 (C) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	9412-0105
162	04.931 HOSE; VAC 4HG1 ENG(RJH) 03.630 (C) L=160 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0212
162	04.931 HOSE; VAC EXC. AUSTRALIA EQUIPMENT(RR3),POWER ASSISTCLUTCH(S2T) (A)	8-97040-991-2	01	1	0311-0501
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0502-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	9412-0310
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	0311-0501
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-97178-658-0	01	1	0502-0502
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0502-0506
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0507-0611
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (E)	8-98000-392-0	01	1	0612-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97091-963-0	01	1	9412-0310
162	04.931 HOSE; VAC FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97091-963-0	01	1	0311-0501
165	04.686 BOLT; BRKT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9412-9605
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9606-0512
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97108-637-0	01	1	9412-9503
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	9504-
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	9412-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	9412-0310
203	04.690 VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0311-0501
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0502-0506
203	04.690 VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0507-0611
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0612-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	9412-

195 66 30 87 80 31 85 80 78 66 82 81 195 80 210 159 66 90 66 152 153 195 159 87 154 87 66 198 66 154 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	04.686 BOLT; CLIP,VAC PIPE 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9412-9511
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9512-0512
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9412-0602
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	11	1	0301-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	11	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE L=130 SERVICED BY L=3000	0-08358-300-0	01	1	9412-0212
78	04.931 HOSE; VAC,PIPE TO PIPE L=140 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0310
78	04.931 HOSE; VAC,PIPE TO PIPE AUSTRALIA EQUIPMENT(RR3) L=140 SERVICED BY L=3000	0-08358-300-0	01	1	0311-0501
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0311-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ)	8-97325-798-2	01	1	0507-
80	04.930 PIPE; VAC,ENG SIDE	8-97047-037-2	01	1	9412-0212
80	04.930 PIPE; VAC,ENG SIDE 4HE1 ENG(RLY)	8-97325-798-2	01	1	0301-0310
80	04.930 PIPE; VAC,ENG SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97325-798-2	01	1	0311-0501
80	04.930 PIPE; VAC,ENG SIDE 4HG1 ENG(RJH)	8-97373-725-0	01	1	0311-0611
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97373-725-0	01	1	0612-
81	04.930 PIPE; VAC,VSV	8-97100-622-1	01	1	9412-0105
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH)	8-97100-622-1	01	1	0106-0212
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY)	8-97325-813-4	01	1	0301-0310
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97325-813-4	01	1	0311-0501
81	04.930 PIPE; VAC,VSV	8-97374-192-0	01	1	0502-0502
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH)	8-97374-192-0	01	1	0502-0611
81	04.930 PIPE; VAC,VSV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-192-0	01	1	0612-
81	04.930 PIPE; VAC,VSV 4HG1 ENG(RJH)	8-97373-723-0	01	1	0311-0501
82	04.931 HOSE; VAC,VSV 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9412-0105
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0106-0212
82	04.931 HOSE; VAC,VSV 4HE1 ENG(RLY) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0301-0310
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH),4HE1 ENG(RLY) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0311-0501
82	04.931 HOSE; VAC,VSV 4HG1 ENG(RJH) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0502-0611
82	04.931 HOSE; VAC,VSV 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0612-
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP)	8-97109-066-0	01	1	0612-
85	04.931 HOSE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ)	8-97239-327-0	01	1	0507-
85	04.931 HOSE; VAC,ENG SIDE L=260	8-97091-967-0	01	1	9412-0212
85	04.931 HOSE; VAC,ENG SIDE 4HE1 ENG(RLY)	8-97239-327-0	01	1	0301-0501
85	04.931 HOSE; VAC,ENG SIDE 4HG1 ENG(RJH) L=260	8-97091-967-0	01	1	0311-
87	04.930 PIPE; VAC,ENG TO MAG VLV	8-97325-805-2	01	1	0301-
90	04.931 HOSE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	01	1	0507-
90	04.931 HOSE; VAC,MAG VLV L=500 SERVICED BY L=3000	0-08358-300-0	01	1	9412-0212
90	04.931 HOSE; VAC,MAG VLV L=350 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0309
90	04.931 HOSE; VAC,MAG VLV 4HE1 ENG(RLY) L=350 SERVICED BY L=3000	0-08358-300-0	01	1	0310-0310
90	04.931 HOSE; VAC,MAG VLV 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) L=350 SERVICED BY L=3000	0-08358-300-0	01	1	0311-0501
90	04.931 HOSE; VAC,MAG VLV 4HG1 ENG(RJH) EXC. AUSTRALIA EQUIPMENT(RR3)	8-97374-081-0	01	1	0311-0501
90	04.931 HOSE; VAC,MAG VLV 4HG1 ENG(RJH)	8-97374-081-0	01	1	0502-0611
90	04.931 HOSE; VAC,MAG VLV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-081-0	01	1	0612-
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	01	1	9412-
153	04.686 BOLT; VSV 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9412-9501
153	04.686 BOLT; VSV 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9502-0512
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0601-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=250 SERVICED BY L=3000	0-04840-300-0	02	1	9412-0212
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=250 SERVICED BY L=3000	0-04840-300-0	01	1	0301-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=150 SERVICED BY L=3000	0-04840-300-0	01	1	0301-
159	04.931 HOSE ASM; VAC	8-94481-279-1	02	1	9412-
195	04.685 PIPE; VAC,UNION TO VSV	8-97120-857-0	01	1	9412-9511
195	04.685 PIPE; VAC,UNION TO VSV	8-97080-954-2	01	1	9512-9601
195	04.685 PIPE; VAC,UNION TO VSV	8-97120-857-0	01	1	9602-0212
195	04.685 PIPE; VAC,UNION TO VSV	8-97325-809-2	01	1	0301-
198	04.931 HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=3000	0-08358-300-0	01	1	9412-9511
198	04.931 HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=1000	0-08358-100-0	01	1	9512-0212
198	04.931 HOSE; VAC,PIPE TO MAG VLV L=300 SERVICED BY L=3000	0-08358-300-0	01	1	0301-0310
198	04.931 HOSE; VAC,PIPE TO MAG VLV AUSTRALIA EQUIPMENT(RR3) L=300 SERVICED BY L=3000	0-08358-300-0	01	1	0311-0501
198	04.931 HOSE; VAC,PIPE TO MAG VLV EXC. AUSTRALIA EQUIPMENT(RR3) 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0311-0501
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
210	04.931 RUBBER; CAP 4HK1-TCN ENG(RDQ)	8-97108-680-0	01	1	0507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
