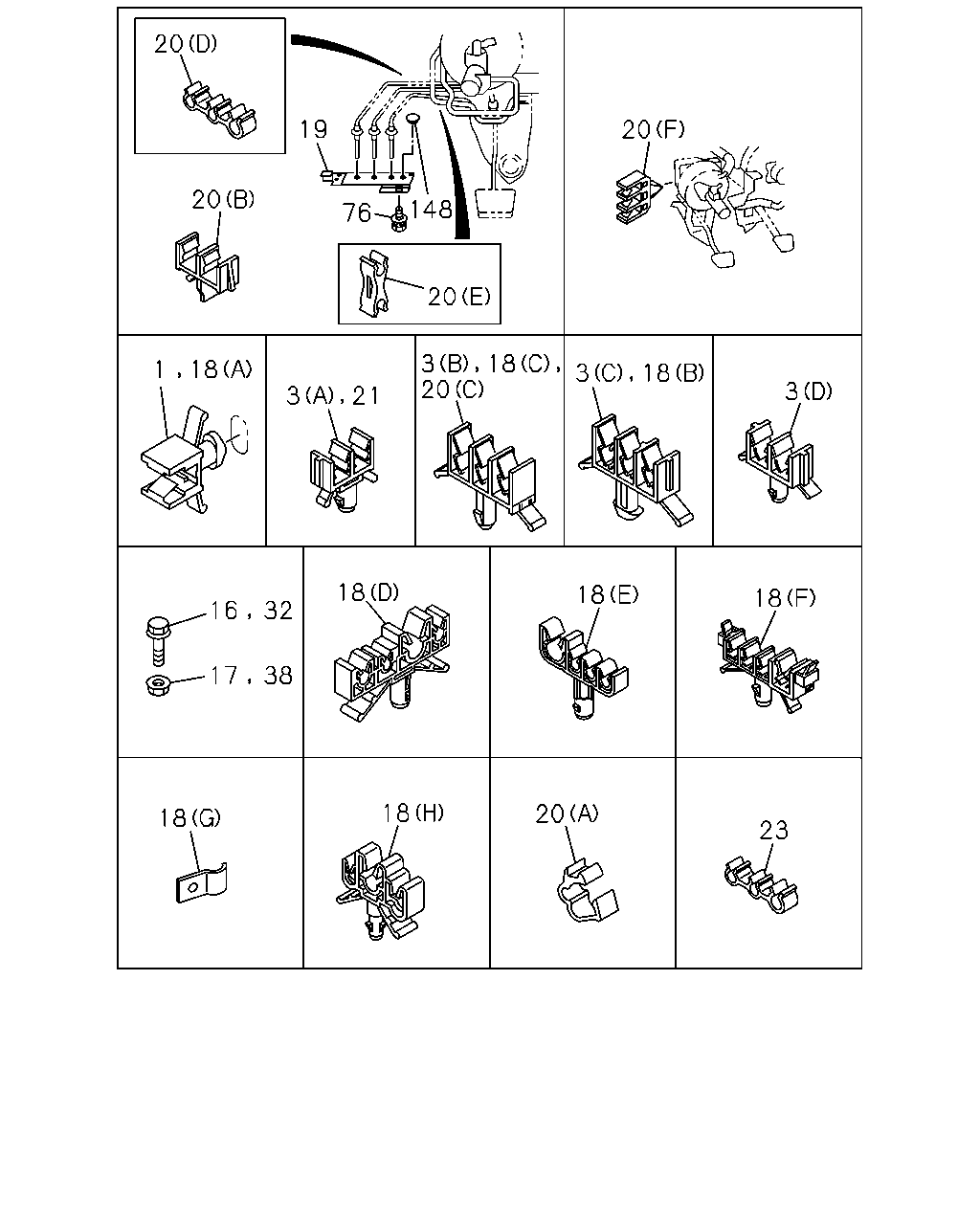

3-58 — FIXING PARTS; OIL PIPING (#35767) — 74 parça

20 19 20 20 148 76 20 3 18 20 18 1 3 18 3 3 21 18 18 18 16 32 17 38 18 20 18 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.686 CLIP; OIL PIPE TO BODY ID=4.8 H=26	8-94249-685-0	02	1	9412-0212
3	04.685 CLIP; BRK PIPE 04.686 (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9412-0212
3	04.685 CLIP; BRK PIPE 04.686 (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9412-0212
3	04.685 CLIP; BRK PIPE 04.686 (A) ID=4.8X2	8-94316-410-0	04	1	9412-0212
3	04.685 CLIP; BRK PIPE 04.686 (D) ID=4.8X2	8-94455-816-0	01	1	9412-0212
16	04.686 BOLT; BRKT TO FRAME 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9412-9509
17	04.686 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-9509
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) 03.162 (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	05	1	0507-
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (F) ID=10 & 4.76X3	8-97326-158-1	03	1	0507-
18	04.686 CLIP; BRK PIPE (A) ID=4.8 H=26	8-94249-685-0	02	1	9412-0212
18	04.686 CLIP; BRK PIPE (G) B=18 L=20	1-09700-372-0	02	1	0301-
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9412-0212
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0301-
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0301-0310
18	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0311-0501
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0301-0310
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0311-0611
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0311-0611
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0612-
18	04.686 CLIP; BRK PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0612-
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	09	1	0301-0309
18	04.686 CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	06	1	0310-
18	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) 03.162 (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0301-0310
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0301-0310
18	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0311-0501
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0311-0501
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) 03.162 (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0502-0611
18	04.686 CLIP; BRK PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0612-
18	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) (F) ID=10 & 4.76X3	8-97326-158-1	03	1	0310-0501
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (H) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0311-0611
18	04.686 CLIP; BRK PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (H) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0612-
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0311-0611
18	04.686 CLIP; BRK PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0612-
18	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (F) ID=10 & 4.76X3	8-97326-158-1	02	1	0311-0611
18	04.686 CLIP; BRK PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (F) ID=10 & 4.76X3	8-97326-158-1	02	1	0612-
19	04.686 BRACKET; OIL PIPE	8-97042-258-4	01	1	9412-9708
19	04.686 BRACKET; OIL PIPE	8-97177-302-0	01	1	9709-9711
19	04.686 BRACKET; OIL PIPE	8-97149-718-2	01	1	9712-
20	04.686 CLIP; BRK PIPE (A) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9412-0501
20	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) (A) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0502-0506
20	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> (A) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0507-0611
20	04.686 CLIP; BRK PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0612-
20	04.686 CLIP; BRK PIPE (B) ID=4.8X2	8-94113-470-0	01	1	9412-0310
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> (B) ID=4.8X2	8-94113-470-0	01	1	0311-0501
20	04.686 CLIP; BRK PIPE (B) ID=4.8X2	8-94113-470-0	01	1	0502-0506
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> (B) ID=4.8X2	8-94113-470-0	01	1	0507-0611
20	04.686 CLIP; BRK PIPE (B) ID=4.8X2	8-94113-470-0	01	1	0612-
20	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	04	1	9412-0212
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9412-
20	04.686 CLIP; BRK PIPE 04.868 (E) ID=4.6X2	8-94241-454-0	01	1	9412-0310
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> 04.868 (E) ID=4.6X2	8-94241-454-0	01	1	0311-0501
20	04.686 CLIP; BRK PIPE 04.868 (E) ID=4.6X2	8-94241-454-0	01	1	0502-0506
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> 04.868 (E) ID=4.6X2	8-94241-454-0	01	1	0507-0611
20	04.686 CLIP; BRK PIPE 04.868 (E) ID=4.6X2	8-94241-454-0	01	1	0612-
20	04.686 CLIP; BRK PIPE (F) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9412-
21	04.686 CLIP; BRK PIPE ID=4.8X2	8-94316-410-0	03	1	9412-0212
23	04.686 CLAMP; PIPE 4HE1 ENG(RLY) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0301-0310
23	04.686 CLAMP; PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0311-0501
23	04.686 CLAMP; PIPE ID=6.4 & 4.8X2	8-94146-043-0	02	1	0502-
32	04.686 BOLT; CLIP,OIL PIPE 4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0301-0309
32	04.686 BOLT; CLIP,OIL PIPE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0310-0512
32	04.686 BOLT; CLIP,OIL PIPE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0612
32	04.686 BOLT; CLIP,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0701-
38	04.686 NUT; CLIP FIX 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
38	04.686 NUT; CLIP FIX 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
76	04.686 BOLT; BRKT,OIL PIPE 16.714 M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9412-9605
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9606-0512
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
148	04.686 GROMMET 03.483	8-94294-358-0	01	1	9712-0310
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> 03.483	8-94294-358-0	01	1	0311-0501
148	04.686 GROMMET 03.483	8-94294-358-0	01	1	0502-0506
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> 03.483	8-94294-358-0	01	1	0507-0611
148	04.686 GROMMET 03.483	8-94294-358-0	01	1	0612-
