3-52 — BRAKE PIPING; OIL,FRONT (#35765) — 90 parça

50 98 54 95 26 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A) REAR	8-97119-355-0	01	1	9412-9511
26	05.476 PIPE; BRK,JOINT TO 2 WAY 04.685 (B)	8-97122-370-1	01	1	9512-0105
50	04.685 PIPE; BRK,UNION TO VLV 4HK1-TCN ENG(RDQ) FRONT	8-97325-783-2	01	1	0507-
50	04.685 PIPE; BRK,UNION TO VLV FRONT	8-97100-494-0	01	1	9412-0212
50	04.685 PIPE; BRK,UNION TO VLV FRONT	8-97325-783-2	01	1	0301-0309
50	04.685 PIPE; BRK,UNION TO VLV 4HE1 ENG(RLY) FRONT	8-97325-783-2	01	1	0310-0310
50	04.685 PIPE; BRK,UNION TO VLV 4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRONT	8-97325-783-2	01	1	0311-0501
50	04.685 PIPE; BRK,UNION TO VLV 4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> FRONT	8-97373-731-0	01	1	0311-0501
50	04.685 PIPE; BRK,UNION TO VLV 4HG1 ENG(RJH) FRONT	8-97373-731-0	01	1	0502-0611
50	04.685 PIPE; BRK,UNION TO VLV 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRONT	8-97373-731-0	01	1	0612-
54	04.685 PIPE; BRK,UNION TO UNION FRONT	8-97119-354-0	01	1	9412-9511
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY (A) FRONT	8-97122-371-1	01	1	9512-0105
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY (B) REAR	8-97122-372-0	01	1	9512-0105
98	04.686 PIPE ASM; 4/6 WAY FRONT	8-97122-371-1	01	1	0106-0212
98	04.686 PIPE ASM; 4/6 WAY FRONT	8-97325-774-3	01	1	0301-0310
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> FRONT	8-97325-774-3	01	1	0311-0501
98	04.686 PIPE ASM; 4/6 WAY FRONT	8-97325-774-3	01	1	0502-
99	04.686 PIPE ASM; 4/5/6 WAY REAR	8-97122-372-0	01	1	0106-0212
99	04.686 PIPE ASM; 4/5/6 WAY REAR	8-97325-775-3	01	1	0301-

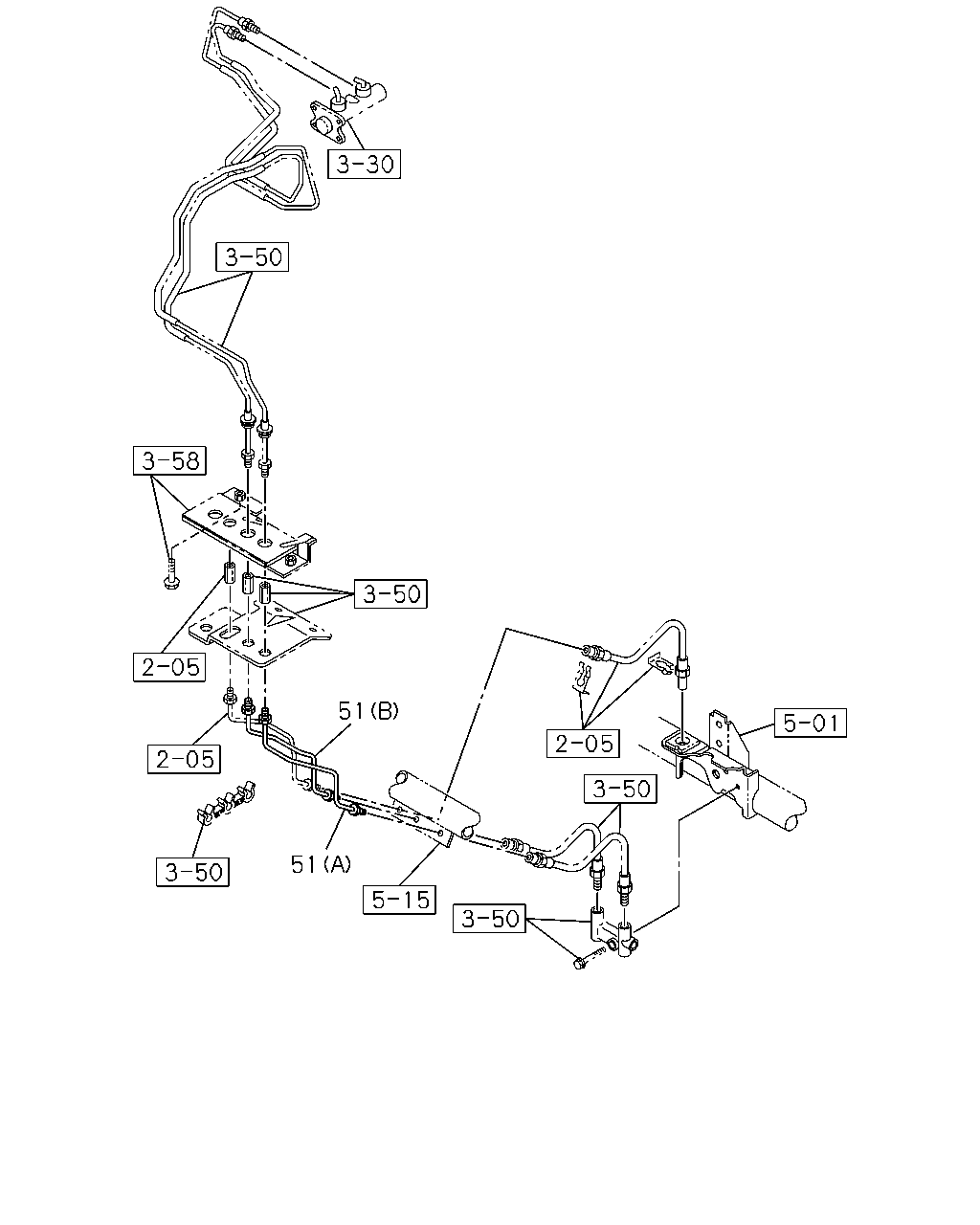

51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	04.685 PIPE; BRK (A) FRONT	8-97040-986-0	01	1	9412-9711
51	04.685 PIPE; BRK (A) FRONT	8-97177-306-0	01	1	9712-9907
51	04.685 PIPE; BRK (A) FRONT	8-97209-514-0	01	1	9908-
51	04.685 PIPE; BRK (B) REAR	8-97040-988-0	01	1	9412-9711
51	04.685 PIPE; BRK (B) REAR	8-97177-307-0	01	1	9712-9907
51	04.685 PIPE; BRK (B) REAR	8-97209-515-0	01	1	9908-

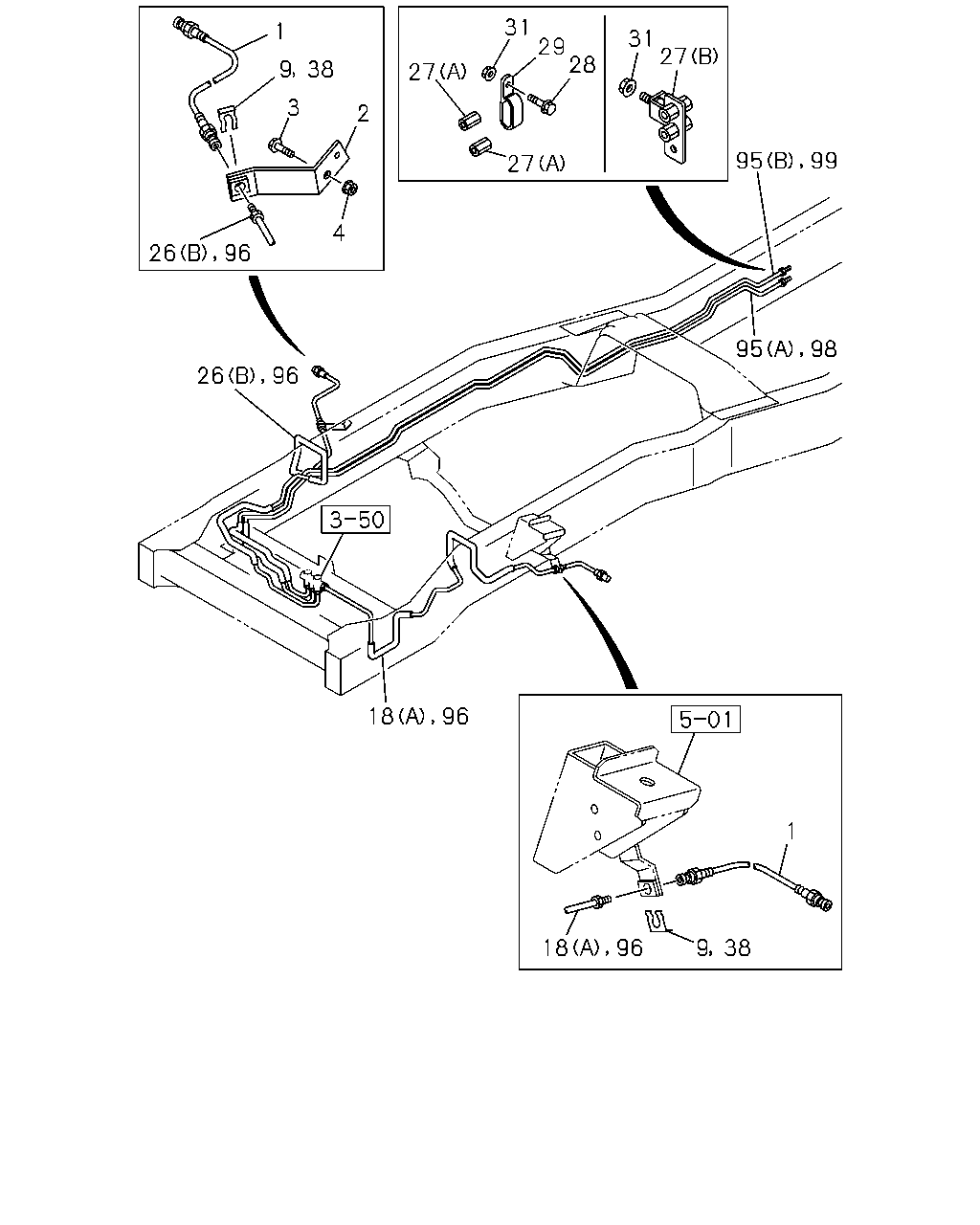

1 31 29 28 9 38 27 3 2 27 4 18 54 26 18 18 44 43 54 1 19 9 38 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	9412-
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-94310-121-2	01	1	9412-
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9412-9511
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9512-0512
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 04.785 M10 FLANGE	0-91150-110-0	01	1	9412-0602
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9412-0610
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (A)	8-97077-615-1	01	1	9412-0105
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (B)	8-97100-637-2	01	1	9412-9511
19	04.686 UNION; OIL PIPE 08.963 M10 3WAY	9-09227-325-0	01	1	9412-9511
26	05.476 PIPE; BRK,JOINT TO 2 WAY (A) REAR	8-97119-355-0	01	1	9412-9511
26	05.476 PIPE; BRK,JOINT TO 2 WAY 04.685 (B)	8-97122-370-1	01	1	9512-0105
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9412-0105
27	04.686 UNION; BRK PIPE 4HG1 ENG(RJH) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-0212
27	04.686 UNION; BRK PIPE (B)	8-97352-980-0	01	1	0301-0310
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> (B)	8-97352-980-0	01	1	0311-0501
27	04.686 UNION; BRK PIPE (B)	8-97352-980-1	01	1	0502-
28	04.686 BOLT; UNION CLIP M6X25 FLANGE	0-28080-625-0	01	1	9412-9610
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9611-0105
28	04.686 BOLT; UNION CLIP 4HG1 ENG(RJH) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-0212
29	04.686 CLIP; UNION ID=16X2 L=20	9-09535-533-0	01	1	9412-0212
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9412-0602
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
38	04.686 CLIP 04.681	8-94137-662-0	02	1	9412-0610
38	04.686 CLIP	8-97360-054-0	02	1	0611-
43	04.686 BRACKET; JOINT	8-94412-523-0	01	1	9412-9511
44	04.686 BOLT; JOINT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9412-9511
54	04.685 PIPE; BRK,UNION TO UNION FRONT	8-97119-354-0	01	1	9412-9511

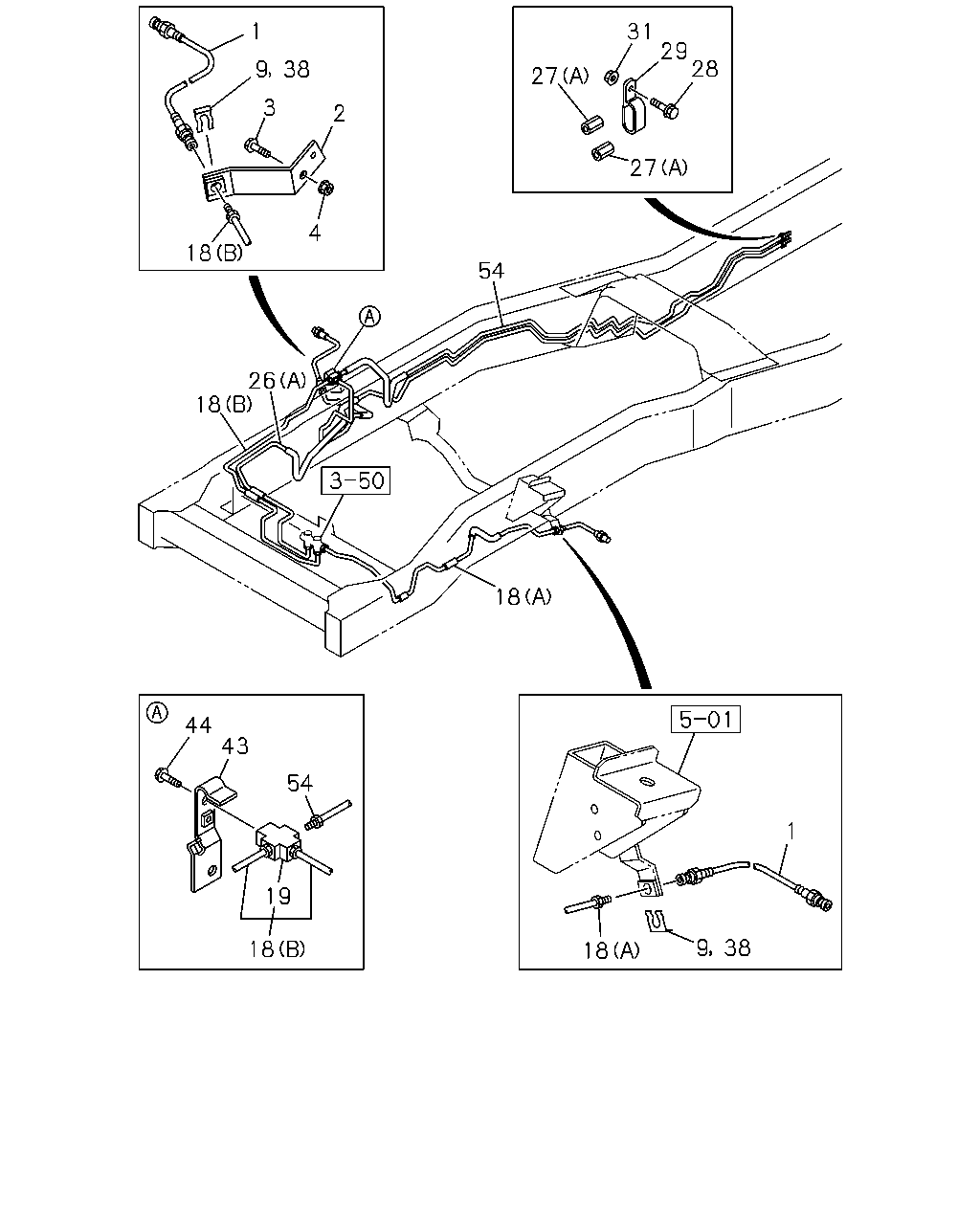

31 1 31 27 29 28 9 38 27 3 2 27 4 95 98 18 96 1 18 96 9 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	9412-
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-94310-121-2	01	1	9412-
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9412-9511
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9512-0512
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 04.785 M10 FLANGE	0-91150-110-0	01	1	9412-0602
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9412-0610
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (A)	8-97077-615-1	01	1	9412-0105
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE (B)	8-97100-637-2	01	1	9412-9511
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9412-0105
27	04.686 UNION; BRK PIPE 4HG1 ENG(RJH) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-0212
27	04.686 UNION; BRK PIPE (B)	8-97352-980-0	01	1	0301-0310
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> (B)	8-97352-980-0	01	1	0311-0501
27	04.686 UNION; BRK PIPE (B)	8-97352-980-1	01	1	0502-
28	04.686 BOLT; UNION CLIP M6X25 FLANGE	0-28080-625-0	01	1	9412-9610
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9611-0105
28	04.686 BOLT; UNION CLIP 4HG1 ENG(RJH) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-0212
29	04.686 CLIP; UNION ID=16X2 L=20	9-09535-533-0	01	1	9412-0212
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9412-0602
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
38	04.686 CLIP 04.681	8-94137-662-0	02	1	9412-0610
38	04.686 CLIP	8-97360-054-0	02	1	0611-
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY (A) FRONT	8-97122-371-1	01	1	9512-0105
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY (B) REAR	8-97122-372-0	01	1	9512-0105
96	04.686 PIPE ASM; 6 WAY 04.685	8-97122-370-1	01	1	0106-0212
96	04.686 PIPE ASM; 6 WAY	8-97325-763-2	01	1	0301-
96	04.686 PIPE ASM; 6 WAY 04.685	8-97077-615-1	01	1	0106-0212
96	04.686 PIPE ASM; 6 WAY	8-97325-768-3	01	1	0301-0501
96	04.686 PIPE ASM; 6 WAY	8-97374-189-0	01	1	0502-
98	04.686 PIPE ASM; 4/6 WAY FRONT	8-97122-371-1	01	1	0106-0212
98	04.686 PIPE ASM; 4/6 WAY FRONT	8-97325-774-3	01	1	0301-0310
98	04.686 PIPE ASM; 4/6 WAY BRK WHL LK CONT LSPV<6PH> FRONT	8-97325-774-3	01	1	0311-0501
98	04.686 PIPE ASM; 4/6 WAY FRONT	8-97325-774-3	01	1	0502-
