Sayfa 3-11 - Isuzu EPC

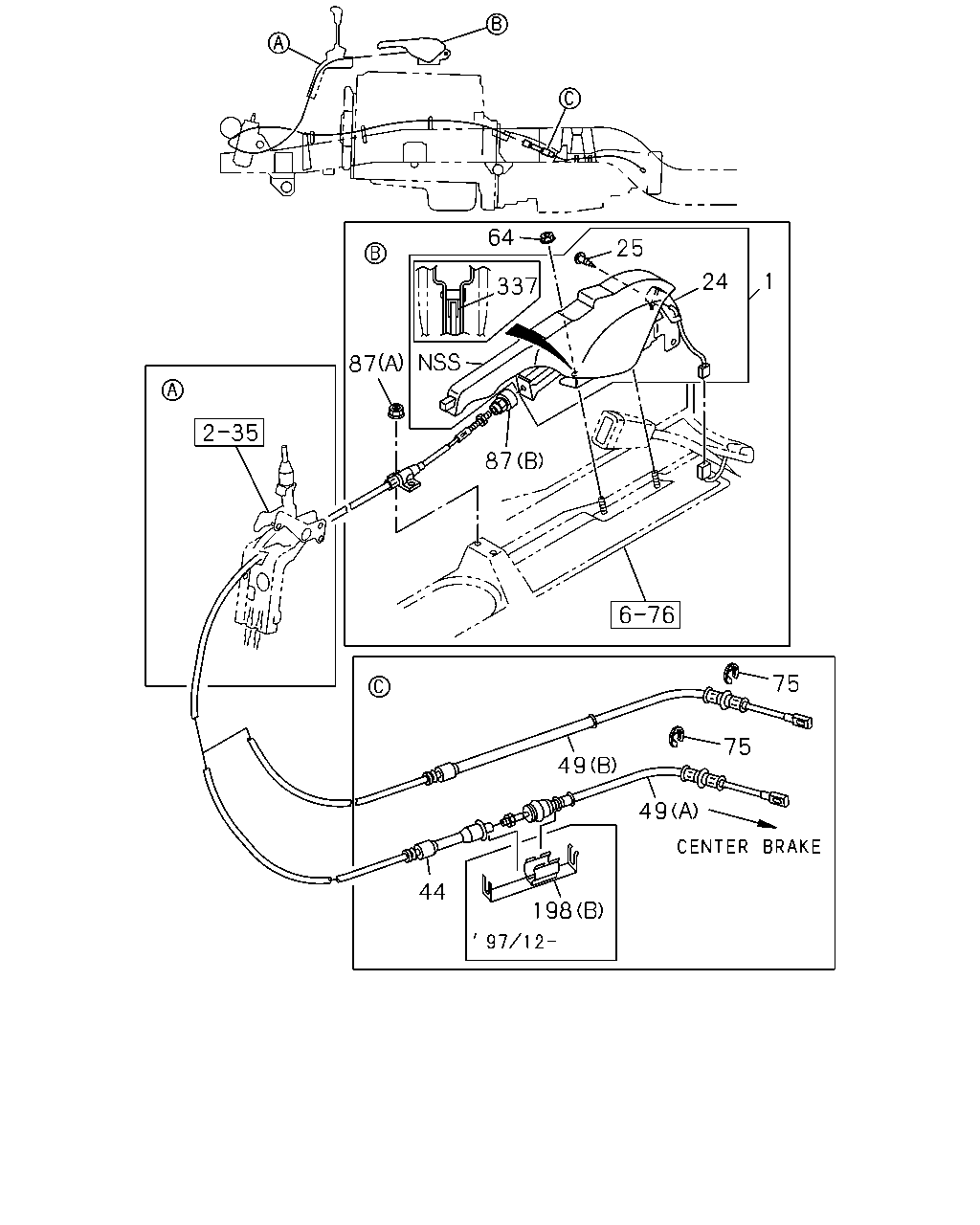

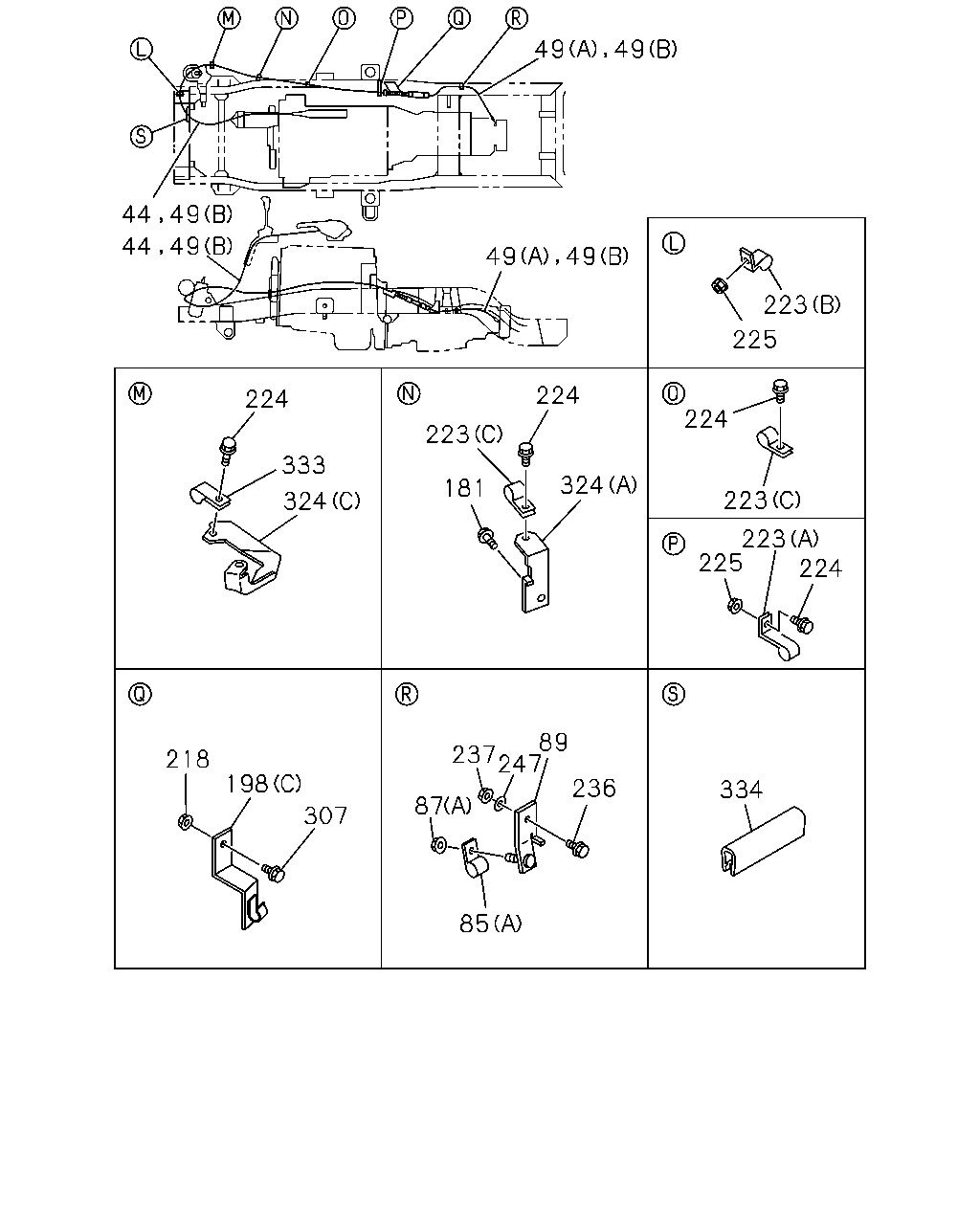

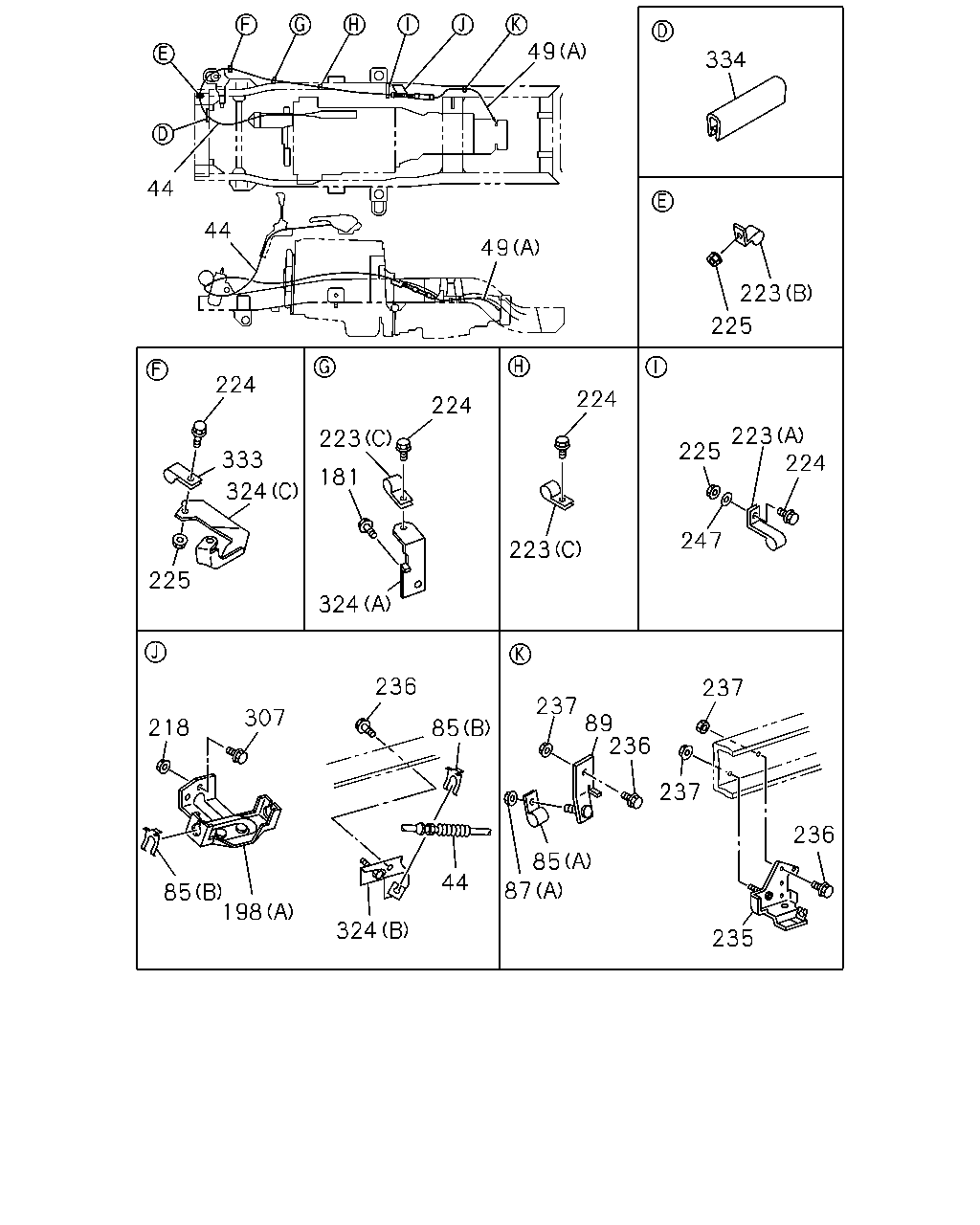

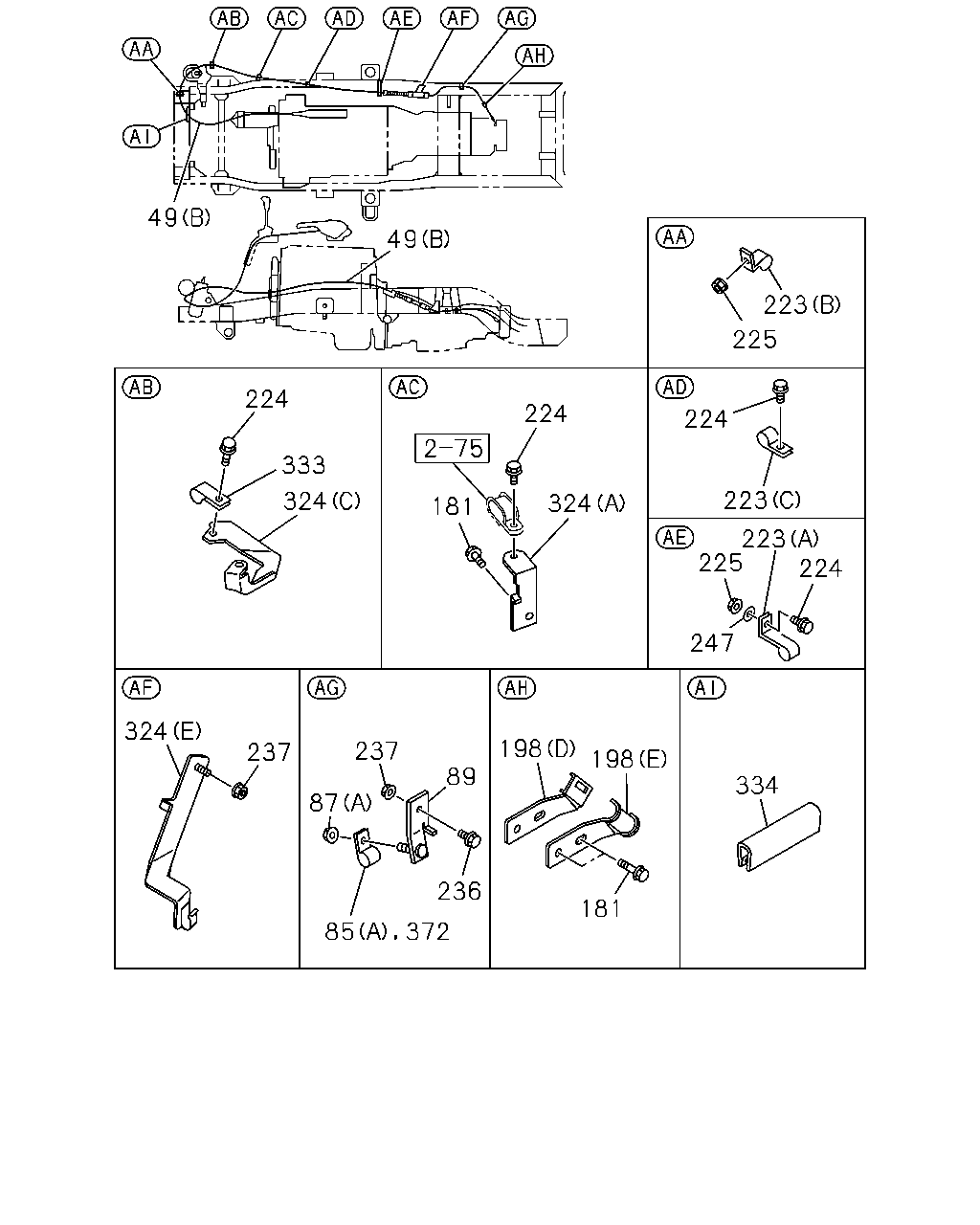

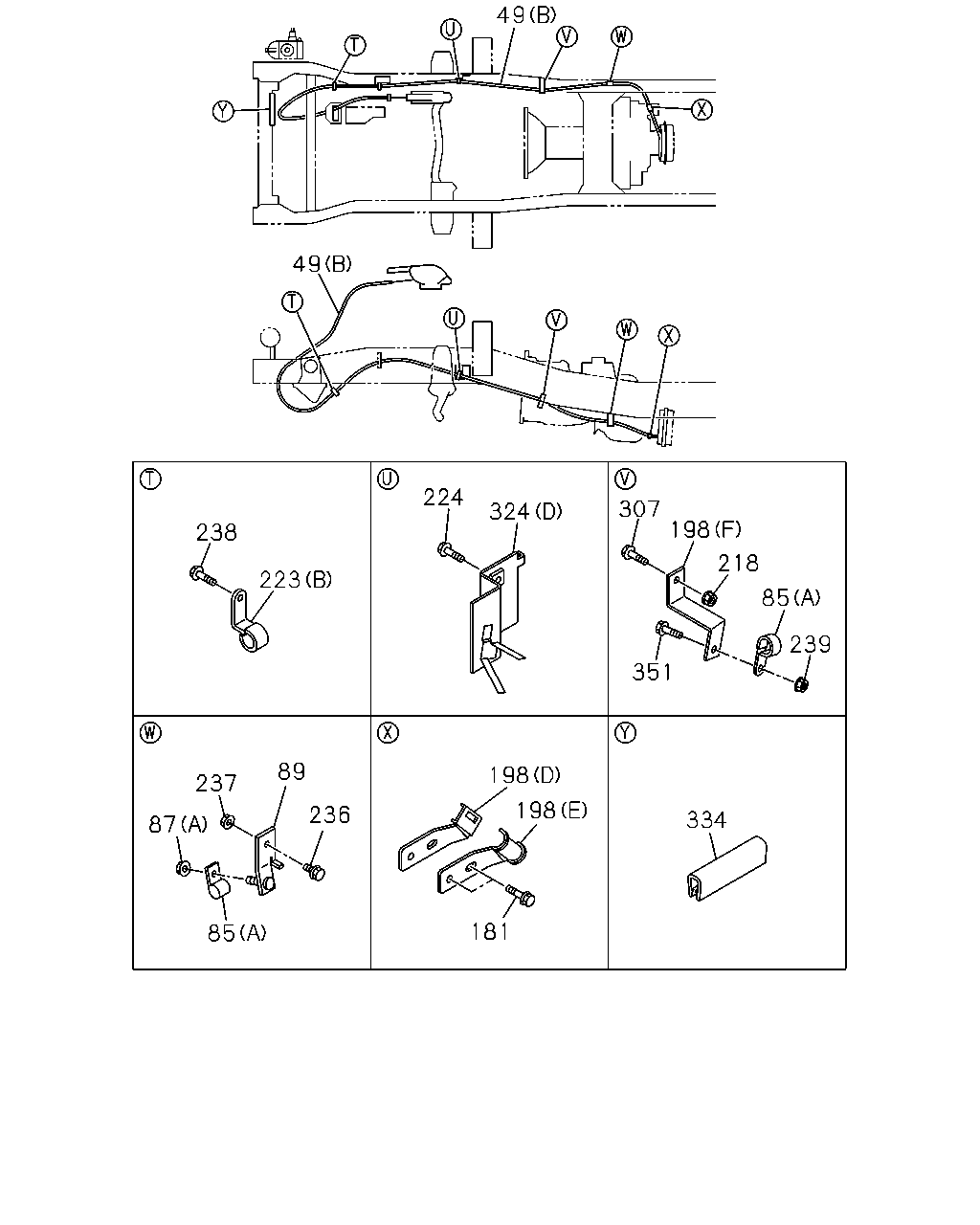

3-11 — PARKING BRAKE CONTROL (#35759) — 577 parça

49 334 44 44 49 223 225 224 224 224 223 224 223 225 333 181 324 247 223 225 324 236 237 237 89 236 307 218 85 237 236 85 44 87 85 198 324 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.779 CABLE; PARKING BRK,FRT	8-97063-129-8	01	1	9412-9504
44	04.779 CABLE; PARKING BRK,FRT	8-97118-375-0	01	1	9505-9711
44	04.779 CABLE; PARKING BRK,FRT	8-97140-866-2	01	1	9712-9810
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) (B)	8-97350-541-1	01	1	0507-
49	04.779 CABLE; PARKING BRK (A)	8-97063-120-6	01	1	9412-9711
49	04.779 CABLE; PARKING BRK (A)	8-97140-882-0	01	1	9712-9810
49	04.779 CABLE; PARKING BRK (B)	8-97215-429-0	01	1	9811-0212
49	04.779 CABLE; PARKING BRK (B)	8-97350-541-1	01	1	0301-0309
49	04.779 CABLE; PARKING BRK 4HE1 ENG(RLY) (B)	8-97350-541-1	01	1	0310-0501
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0311-0611
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0612-
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0507-0606
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 06.672 (A) ID=16 L=28	0-95235-556-0	01	1	0607-
85	04.785 CLIP; BRKT (B)	8-97084-216-0	02	1	9412-9711
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	9412-0212
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	02	1	0301-0309
85	04.785 CLIP; BRKT 4HE1 ENG(RLY) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0310-0501
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0310-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9412-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9412-0602
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-
87	04.785 NUT (B) M6	8-97088-730-1	01	1	9412-0310
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0611
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-
89	04.785 BRACKET; CLIP	8-97100-738-1	01	1	9412-
181	04.785 BOLT; BRKT 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-0105
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0212
181	04.785 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0301-0512
181	04.785 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0311-0512
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
181	04.785 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
198	04.785 BRACKET; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97350-543-0	01	1	0507-
198	04.785 BRACKET; CABLE (A)	8-97046-978-2	01	1	9412-9711
198	04.785 BRACKET; CABLE (C)	8-97144-763-3	01	1	9712-0212
198	04.785 BRACKET; CABLE (D)	8-97303-973-0	01	1	0301-
198	04.785 BRACKET; CABLE (B)	8-97161-538-1	01	1	9712-9810
198	04.785 BRACKET; CABLE (E)	8-97303-974-0	01	1	0301-
198	04.785 BRACKET; CABLE (F)	8-97350-543-0	01	1	0301-0309
198	04.785 BRACKET; CABLE 4HE1 ENG(RLY) (F)	8-97350-543-0	01	1	0310-0501
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) M10 FLANGE	0-91150-110-0	01	1	0507-0602
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
218	04.785 NUT; BRKT,PARKING BRK CABLE M10 FLANGE	0-91150-110-0	01	1	9412-0309
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HE1 ENG(RLY) M10 FLANGE	0-91150-110-0	01	1	0310-0501
223	04.785 CLIP; PARKING BRK CABLE 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	9412-0212
223	04.785 CLIP; PARKING BRK CABLE (B) ID=19 L=39 H=21	1-09700-972-1	01	1	9412-
223	04.785 CLIP; PARKING BRK CABLE (C) ID=16 L=50	9-09525-586-0	01	1	9412-9504
223	04.785 CLIP; PARKING BRK CABLE 02.559 (C) ID=11 L=50	9-09525-085-0	01	1	9505-0212
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	0311-0611
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) 02.559 (C) ID=11 L=50	9-09525-085-0	01	1	0311-0504
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) (C) ID=13 L=50	9-09525-286-0	01	1	0505-0606
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0607-0611
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9504-0212
224	04.785 BOLT; CABLE CLIP 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0301-0301
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-9810
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-9810
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0212
224	04.785 BOLT; CABLE CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0212
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	03	1	0311-0501
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0611
225	04.785 NUT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611
225	04.785 NUT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
235	04.785 BRACKET; CONT CABLE TO FRAME	8-97102-417-3	01	1	9512-9711
236	04.785 BOLT; BRKT TO FRAME M10X25	0-20801-025-0	01	1	9412-9711
236	04.785 BOLT; BRKT TO FRAME 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9712-0309
236	04.785 BOLT; BRKT TO FRAME 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0310-0512
236	04.785 BOLT; BRKT TO FRAME 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
236	04.785 BOLT; BRKT TO FRAME 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9512-9711
237	04.785 NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	01	1	9412-0310
237	04.785 NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	01	1	0311-0602
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) M10 FLANGE	0-91150-110-0	01	1	0311-0602
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0611
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0611
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
237	04.785 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
247	04.595 WASHER; PL 4HG1 ENG(RJH) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0502-0605
247	04.595 WASHER; PL 4HG1 ENG(RJH) ID=8.4 OD=22	0-91610-708-0	01	1	0606-0611
247	04.595 WASHER; PL 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=8.4 OD=22	0-91610-708-0	01	1	0612-
247	04.595 WASHER; PL 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9412-0212
247	04.595 WASHER; PL 4HG1 ENG(RJH) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0311-0501
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0507-0512
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
307	04.651 BOLT; BRKT,PARKING BRK CABLE 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9412-9711
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9712-9810
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9811-0212
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0301-0309
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HE1 ENG(RLY) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0310-0501
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-97350-542-1	01	1	0507-
324	04.785 BRACKET (A)	8-97042-771-0	01	1	9412-0105
324	04.785 BRACKET 4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0106-0212
324	04.785 BRACKET (C)	8-97065-098-1	01	1	9412-0008
324	04.785 BRACKET 00.854 (C)	8-97288-446-0	01	1	0009-0212
324	04.785 BRACKET (D)	8-97350-542-1	01	1	0301-0309
324	04.785 BRACKET 4HE1 ENG(RLY) (D)	8-97350-542-1	01	1	0310-0501
324	04.785 BRACKET (B)	8-97101-829-1	01	1	9512-9711
324	04.785 BRACKET 4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0612-
324	04.785 BRACKET 4HG1 ENG(RJH) (E)	8-97210-934-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (E)	8-97210-934-0	01	1	0612-
324	04.785 BRACKET 4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0612-
333	04.785 CLIP; CABLE 02.559 ID=19 L=24 H=21	1-09700-109-1	01	1	9412-9504
333	04.785 CLIP; CABLE ID=11 L=28	9-09525-055-0	01	1	9505-0212
333	04.785 CLIP; CABLE 4HG1 ENG(RJH) ID=11 L=28	9-09525-055-0	01	1	0311-0606
333	04.785 CLIP; CABLE 4HG1 ENG(RJH) 02.559 ID=11 L=28	0-95235-055-0	01	1	0607-0611
333	04.785 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 ID=11 L=28	0-95235-055-0	01	1	0612-
334	04.785 PROTECTOR; EDGE 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9412-0105
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0106-

64 25 24 1 337 87 87 75 75 49 49 44 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.592 STEM ASM; PARKING BRK DARK BEIGE	8-97856-804-5	01	1	9412-9710
1	04.592 STEM ASM; PARKING BRK DARK BEIGE	8-97890-436-0	01	1	9711-9711
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97890-438-1	01	1	9712-0108
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97995-846-0	01	1	0109-0110
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-1	01	1	0111-0212
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-2	01	1	0301-0501
1	04.592 STEM ASM; PARKING BRK GRAY	8-97582-333-2	01	1	0502-0610
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0611-
24	04.589 SWITCH ASM; PARK BRK	8-97857-198-1	01	1	9412-9710
24	04.589 SWITCH ASM; PARK BRK	8-97890-859-0	01	1	9711-0108
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0109-
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0111-
44	04.779 CABLE; PARKING BRK,FRT	8-97063-129-8	01	1	9412-9504
44	04.779 CABLE; PARKING BRK,FRT	8-97118-375-0	01	1	9505-9711
44	04.779 CABLE; PARKING BRK,FRT	8-97140-866-2	01	1	9712-9810
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) (B)	8-97350-541-1	01	1	0507-
49	04.779 CABLE; PARKING BRK (A)	8-97063-120-6	01	1	9412-9711
49	04.779 CABLE; PARKING BRK (A)	8-97140-882-0	01	1	9712-9810
49	04.779 CABLE; PARKING BRK (B)	8-97215-429-0	01	1	9811-0212
49	04.779 CABLE; PARKING BRK (B)	8-97350-541-1	01	1	0301-0309
49	04.779 CABLE; PARKING BRK 4HE1 ENG(RLY) (B)	8-97350-541-1	01	1	0310-0501
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0311-0611
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0612-
64	04.595 NUT; PARKING BRK 08.857 M8 FLANGE	8-94279-060-0	02	1	9412-9507
64	04.595 NUT; PARKING BRK 03.417 M8 FLANGE	8-94279-517-0	02	1	9508-9605
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9606-0610
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0611-
75	04.790 RING; SNAP,HAND BRK CABLE 04.681 ID=12	9-09185-412-0	01	1	9412-0105
75	04.790 RING; SNAP,HAND BRK CABLE 4HG1 ENG(RJH) 04.681 ID=12	9-09185-412-0	01	1	0106-0212
75	04.790 RING; SNAP,HAND BRK CABLE 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.681 ID=12	9-09185-412-0	01	1	0301-0310
75	04.790 RING; SNAP,HAND BRK CABLE 4HG1 ENG(RJH) 04.681 ID=12	9-09185-412-0	01	1	0311-0501
75	04.790 RING; SNAP,HAND BRK CABLE 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.681 ID=12	9-09185-412-0	01	1	0311-0501
75	04.790 RING; SNAP,HAND BRK CABLE 4HG1 ENG(RJH) 04.681 ID=12	9-09185-412-0	01	1	0502-0506
75	04.790 RING; SNAP,HAND BRK CABLE 4HG1 ENG(RJH) 04.681 ID=12	9-09185-412-0	01	1	0507-0604
75	04.790 RING; SNAP,HAND BRK CABLE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) 04.681 ID=12	9-09185-412-0	01	1	0507-0604
75	04.790 RING; SNAP,HAND BRK CABLE 4HG1 ENG(RJH) ID=12	0-91805-512-0	01	1	0605-0611
75	04.790 RING; SNAP,HAND BRK CABLE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) ID=12	0-91805-512-0	01	1	0605-0611
75	04.790 RING; SNAP,HAND BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=12	0-91805-512-0	01	1	0612-
75	04.790 RING; SNAP,HAND BRK CABLE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) ID=12	0-91805-512-0	01	1	0612-
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9412-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9412-0602
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-
87	04.785 NUT (B) M6	8-97088-730-1	01	1	9412-0310
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0611
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-
198	04.785 BRACKET; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97350-543-0	01	1	0507-
198	04.785 BRACKET; CABLE (A)	8-97046-978-2	01	1	9412-9711
198	04.785 BRACKET; CABLE (C)	8-97144-763-3	01	1	9712-0212
198	04.785 BRACKET; CABLE (D)	8-97303-973-0	01	1	0301-
198	04.785 BRACKET; CABLE (B)	8-97161-538-1	01	1	9712-9810
198	04.785 BRACKET; CABLE (E)	8-97303-974-0	01	1	0301-
198	04.785 BRACKET; CABLE (F)	8-97350-543-0	01	1	0301-0309
198	04.785 BRACKET; CABLE 4HE1 ENG(RLY) (F)	8-97350-543-0	01	1	0310-0501
337	04.592 SILENCER; PARKING BRK	8-97857-230-0	01	1	9412-9510

49 49 224 307 324 198 238 218 223 85 239 351 89 198 237 198 236 334 87 181 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) (B)	8-97350-541-1	01	1	0507-
49	04.779 CABLE; PARKING BRK (A)	8-97063-120-6	01	1	9412-9711
49	04.779 CABLE; PARKING BRK (A)	8-97140-882-0	01	1	9712-9810
49	04.779 CABLE; PARKING BRK (B)	8-97215-429-0	01	1	9811-0212
49	04.779 CABLE; PARKING BRK (B)	8-97350-541-1	01	1	0301-0309
49	04.779 CABLE; PARKING BRK 4HE1 ENG(RLY) (B)	8-97350-541-1	01	1	0310-0501
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0311-0611
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0612-
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0507-0606
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 06.672 (A) ID=16 L=28	0-95235-556-0	01	1	0607-
85	04.785 CLIP; BRKT (B)	8-97084-216-0	02	1	9412-9711
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	9412-0212
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	02	1	0301-0309
85	04.785 CLIP; BRKT 4HE1 ENG(RLY) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0310-0501
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0310-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9412-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9412-0602
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-
87	04.785 NUT (B) M6	8-97088-730-1	01	1	9412-0310
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0611
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-
89	04.785 BRACKET; CLIP	8-97100-738-1	01	1	9412-
181	04.785 BOLT; BRKT 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-0105
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0212
181	04.785 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0301-0512
181	04.785 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0311-0512
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
181	04.785 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
198	04.785 BRACKET; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97350-543-0	01	1	0507-
198	04.785 BRACKET; CABLE (A)	8-97046-978-2	01	1	9412-9711
198	04.785 BRACKET; CABLE (C)	8-97144-763-3	01	1	9712-0212
198	04.785 BRACKET; CABLE (D)	8-97303-973-0	01	1	0301-
198	04.785 BRACKET; CABLE (B)	8-97161-538-1	01	1	9712-9810
198	04.785 BRACKET; CABLE (E)	8-97303-974-0	01	1	0301-
198	04.785 BRACKET; CABLE (F)	8-97350-543-0	01	1	0301-0309
198	04.785 BRACKET; CABLE 4HE1 ENG(RLY) (F)	8-97350-543-0	01	1	0310-0501
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) M10 FLANGE	0-91150-110-0	01	1	0507-0602
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
218	04.785 NUT; BRKT,PARKING BRK CABLE M10 FLANGE	0-91150-110-0	01	1	9412-0309
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HE1 ENG(RLY) M10 FLANGE	0-91150-110-0	01	1	0310-0501
223	04.785 CLIP; PARKING BRK CABLE 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	9412-0212
223	04.785 CLIP; PARKING BRK CABLE (B) ID=19 L=39 H=21	1-09700-972-1	01	1	9412-
223	04.785 CLIP; PARKING BRK CABLE (C) ID=16 L=50	9-09525-586-0	01	1	9412-9504
223	04.785 CLIP; PARKING BRK CABLE 02.559 (C) ID=11 L=50	9-09525-085-0	01	1	9505-0212
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	0311-0611
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) 02.559 (C) ID=11 L=50	9-09525-085-0	01	1	0311-0504
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) (C) ID=13 L=50	9-09525-286-0	01	1	0505-0606
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0607-0611
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9504-0212
224	04.785 BOLT; CABLE CLIP 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0301-0301
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-9810
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-9810
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0212
224	04.785 BOLT; CABLE CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0212
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
236	04.785 BOLT; BRKT TO FRAME M10X25	0-20801-025-0	01	1	9412-9711
236	04.785 BOLT; BRKT TO FRAME 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9712-0309
236	04.785 BOLT; BRKT TO FRAME 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0310-0512
236	04.785 BOLT; BRKT TO FRAME 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
236	04.785 BOLT; BRKT TO FRAME 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9512-9711
237	04.785 NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	01	1	9412-0310
237	04.785 NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	01	1	0311-0602
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) M10 FLANGE	0-91150-110-0	01	1	0311-0602
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0611
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0611
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
237	04.785 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
238	04.785 BOLT; CLIP TO BRKT 4HK1-TCN ENG(RDQ) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
238	04.785 BOLT; CLIP TO BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
238	04.785 BOLT; CLIP TO BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0309
238	04.785 BOLT; CLIP TO BRKT 4HE1 ENG(RLY) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0310-0501
239	04.785 NUT; CLIP TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0309
239	04.785 NUT; CLIP TO BRKT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0310-0501
239	04.785 NUT; CLIP TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506
239	04.785 NUT; CLIP TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
239	04.785 NUT; CLIP TO BRKT 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
239	04.785 NUT; CLIP TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
239	04.785 NUT; CLIP TO BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0507-0512
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
307	04.651 BOLT; BRKT,PARKING BRK CABLE 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9412-9711
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9712-9810
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9811-0212
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0301-0309
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HE1 ENG(RLY) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0310-0501
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-97350-542-1	01	1	0507-
324	04.785 BRACKET (A)	8-97042-771-0	01	1	9412-0105
324	04.785 BRACKET 4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0106-0212
324	04.785 BRACKET (C)	8-97065-098-1	01	1	9412-0008
324	04.785 BRACKET 00.854 (C)	8-97288-446-0	01	1	0009-0212
324	04.785 BRACKET (D)	8-97350-542-1	01	1	0301-0309
324	04.785 BRACKET 4HE1 ENG(RLY) (D)	8-97350-542-1	01	1	0310-0501
324	04.785 BRACKET (B)	8-97101-829-1	01	1	9512-9711
324	04.785 BRACKET 4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0612-
324	04.785 BRACKET 4HG1 ENG(RJH) (E)	8-97210-934-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (E)	8-97210-934-0	01	1	0612-
324	04.785 BRACKET 4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0612-
334	04.785 PROTECTOR; EDGE 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9412-0105
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0106-
351	04.785 BOLT; CLIP 4HK1-TCN ENG(RDQ) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
351	04.785 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
351	04.785 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0309
351	04.785 BOLT; CLIP 4HE1 ENG(RLY) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0310-0501

49 49 223 225 224 224 224 333 223 324 324 181 223 225 224 247 324 198 237 237 198 89 334 87 236 181 85 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) (B)	8-97350-541-1	01	1	0507-
49	04.779 CABLE; PARKING BRK (A)	8-97063-120-6	01	1	9412-9711
49	04.779 CABLE; PARKING BRK (A)	8-97140-882-0	01	1	9712-9810
49	04.779 CABLE; PARKING BRK (B)	8-97215-429-0	01	1	9811-0212
49	04.779 CABLE; PARKING BRK (B)	8-97350-541-1	01	1	0301-0309
49	04.779 CABLE; PARKING BRK 4HE1 ENG(RLY) (B)	8-97350-541-1	01	1	0310-0501
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0311-0611
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0612-
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0507-0606
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 06.672 (A) ID=16 L=28	0-95235-556-0	01	1	0607-
85	04.785 CLIP; BRKT (B)	8-97084-216-0	02	1	9412-9711
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	9412-0212
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	02	1	0301-0309
85	04.785 CLIP; BRKT 4HE1 ENG(RLY) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0310-0501
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0310-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9412-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9412-0602
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-
87	04.785 NUT (B) M6	8-97088-730-1	01	1	9412-0310
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0611
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-
89	04.785 BRACKET; CLIP	8-97100-738-1	01	1	9412-
181	04.785 BOLT; BRKT 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-0105
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0212
181	04.785 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0301-0512
181	04.785 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0311-0512
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
181	04.785 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
198	04.785 BRACKET; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97350-543-0	01	1	0507-
198	04.785 BRACKET; CABLE (A)	8-97046-978-2	01	1	9412-9711
198	04.785 BRACKET; CABLE (C)	8-97144-763-3	01	1	9712-0212
198	04.785 BRACKET; CABLE (D)	8-97303-973-0	01	1	0301-
198	04.785 BRACKET; CABLE (B)	8-97161-538-1	01	1	9712-9810
198	04.785 BRACKET; CABLE (E)	8-97303-974-0	01	1	0301-
198	04.785 BRACKET; CABLE (F)	8-97350-543-0	01	1	0301-0309
198	04.785 BRACKET; CABLE 4HE1 ENG(RLY) (F)	8-97350-543-0	01	1	0310-0501
223	04.785 CLIP; PARKING BRK CABLE 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	9412-0212
223	04.785 CLIP; PARKING BRK CABLE (B) ID=19 L=39 H=21	1-09700-972-1	01	1	9412-
223	04.785 CLIP; PARKING BRK CABLE (C) ID=16 L=50	9-09525-586-0	01	1	9412-9504
223	04.785 CLIP; PARKING BRK CABLE 02.559 (C) ID=11 L=50	9-09525-085-0	01	1	9505-0212
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	0311-0611
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) 02.559 (C) ID=11 L=50	9-09525-085-0	01	1	0311-0504
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) (C) ID=13 L=50	9-09525-286-0	01	1	0505-0606
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0607-0611
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9504-0212
224	04.785 BOLT; CABLE CLIP 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0301-0301
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-9810
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-9810
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0212
224	04.785 BOLT; CABLE CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0212
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	03	1	0311-0501
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0611
225	04.785 NUT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611
225	04.785 NUT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
236	04.785 BOLT; BRKT TO FRAME M10X25	0-20801-025-0	01	1	9412-9711
236	04.785 BOLT; BRKT TO FRAME 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9712-0309
236	04.785 BOLT; BRKT TO FRAME 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0310-0512
236	04.785 BOLT; BRKT TO FRAME 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
236	04.785 BOLT; BRKT TO FRAME 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9512-9711
237	04.785 NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	01	1	9412-0310
237	04.785 NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	01	1	0311-0602
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) M10 FLANGE	0-91150-110-0	01	1	0311-0602
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0611
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0611
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
237	04.785 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
247	04.595 WASHER; PL 4HG1 ENG(RJH) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0502-0605
247	04.595 WASHER; PL 4HG1 ENG(RJH) ID=8.4 OD=22	0-91610-708-0	01	1	0606-0611
247	04.595 WASHER; PL 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=8.4 OD=22	0-91610-708-0	01	1	0612-
247	04.595 WASHER; PL 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9412-0212
247	04.595 WASHER; PL 4HG1 ENG(RJH) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0311-0501
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-97350-542-1	01	1	0507-
324	04.785 BRACKET (A)	8-97042-771-0	01	1	9412-0105
324	04.785 BRACKET 4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0106-0212
324	04.785 BRACKET (C)	8-97065-098-1	01	1	9412-0008
324	04.785 BRACKET 00.854 (C)	8-97288-446-0	01	1	0009-0212
324	04.785 BRACKET (D)	8-97350-542-1	01	1	0301-0309
324	04.785 BRACKET 4HE1 ENG(RLY) (D)	8-97350-542-1	01	1	0310-0501
324	04.785 BRACKET (B)	8-97101-829-1	01	1	9512-9711
324	04.785 BRACKET 4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0612-
324	04.785 BRACKET 4HG1 ENG(RJH) (E)	8-97210-934-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (E)	8-97210-934-0	01	1	0612-
324	04.785 BRACKET 4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0612-
333	04.785 CLIP; CABLE 02.559 ID=19 L=24 H=21	1-09700-109-1	01	1	9412-9504
333	04.785 CLIP; CABLE ID=11 L=28	9-09525-055-0	01	1	9505-0212
333	04.785 CLIP; CABLE 4HG1 ENG(RJH) ID=11 L=28	9-09525-055-0	01	1	0311-0606
333	04.785 CLIP; CABLE 4HG1 ENG(RJH) 02.559 ID=11 L=28	0-95235-055-0	01	1	0607-0611
333	04.785 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 ID=11 L=28	0-95235-055-0	01	1	0612-
334	04.785 PROTECTOR; EDGE 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9412-0105
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0106-
372	04.785 CLIP; CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	0502-0606
372	04.785 CLIP; CABLE 06.672 ID=16 L=28	0-95235-556-0	01	1	0607-

49 49 49 49 223 225 224 224 224 223 333 324 181 223 324 223 225 224 89 237 247 218 198 236 334 87 307 85 44 44 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.779 CABLE; PARKING BRK,FRT	8-97063-129-8	01	1	9412-9504
44	04.779 CABLE; PARKING BRK,FRT	8-97118-375-0	01	1	9505-9711
44	04.779 CABLE; PARKING BRK,FRT	8-97140-866-2	01	1	9712-9810
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ) (B)	8-97350-541-1	01	1	0507-
49	04.779 CABLE; PARKING BRK (A)	8-97063-120-6	01	1	9412-9711
49	04.779 CABLE; PARKING BRK (A)	8-97140-882-0	01	1	9712-9810
49	04.779 CABLE; PARKING BRK (B)	8-97215-429-0	01	1	9811-0212
49	04.779 CABLE; PARKING BRK (B)	8-97350-541-1	01	1	0301-0309
49	04.779 CABLE; PARKING BRK 4HE1 ENG(RLY) (B)	8-97350-541-1	01	1	0310-0501
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0311-0611
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97373-721-0	01	1	0612-
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0507-0606
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 06.672 (A) ID=16 L=28	0-95235-556-0	01	1	0607-
85	04.785 CLIP; BRKT (B)	8-97084-216-0	02	1	9412-9711
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	9412-0212
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	02	1	0301-0309
85	04.785 CLIP; BRKT 4HE1 ENG(RLY) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0310-0501
85	04.785 CLIP; BRKT 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0310-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9412-0501
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9412-0602
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-
87	04.785 NUT (B) M6	8-97088-730-1	01	1	9412-0310
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0611
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-
89	04.785 BRACKET; CLIP	8-97100-738-1	01	1	9412-
181	04.785 BOLT; BRKT 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-0105
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0212
181	04.785 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0301-0512
181	04.785 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0311-0512
181	04.785 BOLT; BRKT 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
181	04.785 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
198	04.785 BRACKET; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97350-543-0	01	1	0507-
198	04.785 BRACKET; CABLE (A)	8-97046-978-2	01	1	9412-9711
198	04.785 BRACKET; CABLE (C)	8-97144-763-3	01	1	9712-0212
198	04.785 BRACKET; CABLE (D)	8-97303-973-0	01	1	0301-
198	04.785 BRACKET; CABLE (B)	8-97161-538-1	01	1	9712-9810
198	04.785 BRACKET; CABLE (E)	8-97303-974-0	01	1	0301-
198	04.785 BRACKET; CABLE (F)	8-97350-543-0	01	1	0301-0309
198	04.785 BRACKET; CABLE 4HE1 ENG(RLY) (F)	8-97350-543-0	01	1	0310-0501
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) M10 FLANGE	0-91150-110-0	01	1	0507-0602
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
218	04.785 NUT; BRKT,PARKING BRK CABLE M10 FLANGE	0-91150-110-0	01	1	9412-0309
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HE1 ENG(RLY) M10 FLANGE	0-91150-110-0	01	1	0310-0501
223	04.785 CLIP; PARKING BRK CABLE 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	9412-0212
223	04.785 CLIP; PARKING BRK CABLE (B) ID=19 L=39 H=21	1-09700-972-1	01	1	9412-
223	04.785 CLIP; PARKING BRK CABLE (C) ID=16 L=50	9-09525-586-0	01	1	9412-9504
223	04.785 CLIP; PARKING BRK CABLE 02.559 (C) ID=11 L=50	9-09525-085-0	01	1	9505-0212
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	0311-0611
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 (A) ID=19 H=70 L=25	1-09700-773-0	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) 02.559 (C) ID=11 L=50	9-09525-085-0	01	1	0311-0504
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) (C) ID=13 L=50	9-09525-286-0	01	1	0505-0606
223	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0607-0611
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9412-9503
224	04.785 BOLT; CABLE CLIP 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9504-0212
224	04.785 BOLT; CABLE CLIP 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0301-0301
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-9810
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9504-9810
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0212
224	04.785 BOLT; CABLE CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0212
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	03	1	9412-9511
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	03	1	0311-0501
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0611
225	04.785 NUT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611
225	04.785 NUT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
236	04.785 BOLT; BRKT TO FRAME M10X25	0-20801-025-0	01	1	9412-9711
236	04.785 BOLT; BRKT TO FRAME 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9712-0309
236	04.785 BOLT; BRKT TO FRAME 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0310-0512
236	04.785 BOLT; BRKT TO FRAME 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
236	04.785 BOLT; BRKT TO FRAME 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9512-9711
237	04.785 NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	01	1	9412-0310
237	04.785 NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	01	1	0311-0602
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) M10 FLANGE	0-91150-110-0	01	1	0311-0602
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0611
237	04.785 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0611
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
237	04.785 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
247	04.595 WASHER; PL 4HG1 ENG(RJH) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0502-0605
247	04.595 WASHER; PL 4HG1 ENG(RJH) ID=8.4 OD=22	0-91610-708-0	01	1	0606-0611
247	04.595 WASHER; PL 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=8.4 OD=22	0-91610-708-0	01	1	0612-
247	04.595 WASHER; PL 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9412-0212
247	04.595 WASHER; PL 4HG1 ENG(RJH) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0311-0501
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0507-0512
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
307	04.651 BOLT; BRKT,PARKING BRK CABLE 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9412-9711
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9712-9810
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9811-0212
307	04.651 BOLT; BRKT,PARKING BRK CABLE 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0301-0309
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HE1 ENG(RLY) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0310-0501
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-97350-542-1	01	1	0507-
324	04.785 BRACKET (A)	8-97042-771-0	01	1	9412-0105
324	04.785 BRACKET 4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0106-0212
324	04.785 BRACKET (C)	8-97065-098-1	01	1	9412-0008
324	04.785 BRACKET 00.854 (C)	8-97288-446-0	01	1	0009-0212
324	04.785 BRACKET (D)	8-97350-542-1	01	1	0301-0309
324	04.785 BRACKET 4HE1 ENG(RLY) (D)	8-97350-542-1	01	1	0310-0501
324	04.785 BRACKET (B)	8-97101-829-1	01	1	9512-9711
324	04.785 BRACKET 4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0612-
324	04.785 BRACKET 4HG1 ENG(RJH) (E)	8-97210-934-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (E)	8-97210-934-0	01	1	0612-
324	04.785 BRACKET 4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0311-0611
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0612-
333	04.785 CLIP; CABLE 02.559 ID=19 L=24 H=21	1-09700-109-1	01	1	9412-9504
333	04.785 CLIP; CABLE ID=11 L=28	9-09525-055-0	01	1	9505-0212
333	04.785 CLIP; CABLE 4HG1 ENG(RJH) ID=11 L=28	9-09525-055-0	01	1	0311-0606
333	04.785 CLIP; CABLE 4HG1 ENG(RJH) 02.559 ID=11 L=28	0-95235-055-0	01	1	0607-0611
333	04.785 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 ID=11 L=28	0-95235-055-0	01	1	0612-
334	04.785 PROTECTOR; EDGE 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9412-0105
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
