Sayfa 2-66 - Isuzu EPC

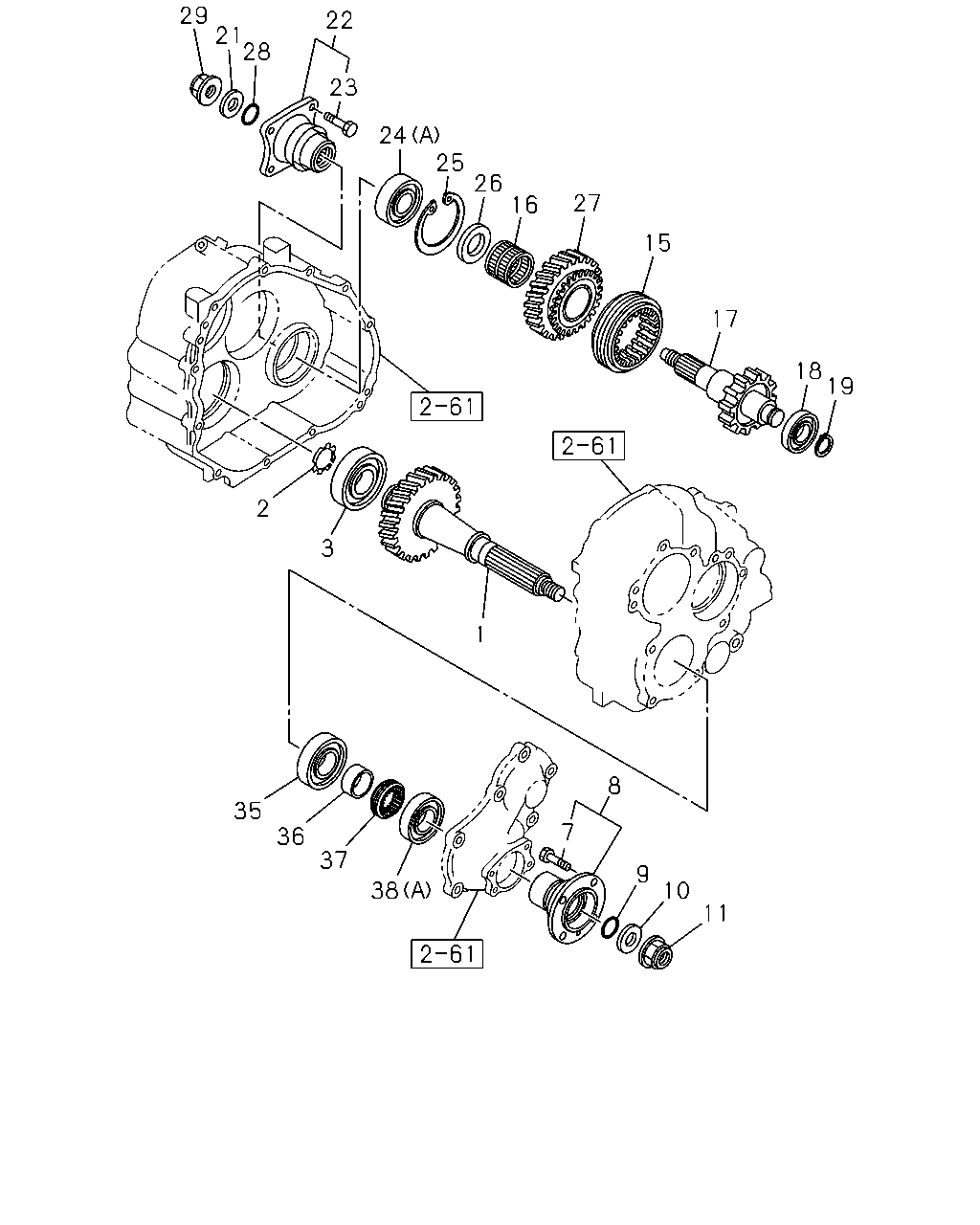

2-66 — MANUAL TRANSFER GEAR; OUTPUT (#35753) — 298 parça

29 21 28 22 23 24 25 26 27 16 15 17 18 19 2 3 1 8 35 7 36 37 9 38 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.555 SHAFT; GEAR,OUTPUT,RR	8-97087-761-0	01	1	9412-0105
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97087-761-0	01	1	0106-0212
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-911-1	01	1	0301-0310
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-911-1	01	1	0311-0501
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-911-1	01	1	0502-0506
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-911-1	01	1	0507-0611
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-911-1	01	1	0612-
2	04.545 RING; SNAP,RR DRIVE SHAFT 04.353 ID=41.5	5-09589-009-0	01	1	9412-0105
2	04.545 RING; SNAP,RR DRIVE SHAFT 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.353 ID=41.5	5-09589-009-0	01	1	0106-0212
3	04.520 BEARING; RR DRIVE SHAFT,FRT,TRAN	8-94481-419-0	01	1	9412-0105
3	04.520 BEARING; RR DRIVE SHAFT,FRT,TRAN 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-419-0	01	1	0106-0212
7	04.525 BOLT; COUPLING DRIVER 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98031-764-0	04	1	0702-
7	04.525 BOLT; COUPLING DRIVER 05.605	8-97109-697-1	04	1	9412-0105
7	04.525 BOLT; COUPLING DRIVER 4HG1 ENG(RJH) M/T MXA5R(RMT) 05.605	8-97109-697-1	04	1	0106-0212
7	04.525 BOLT; COUPLING DRIVER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97319-458-0	04	1	0301-0310
7	04.525 BOLT; COUPLING DRIVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97319-458-0	04	1	0311-0501
7	04.525 BOLT; COUPLING DRIVER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0502-0506
7	04.525 BOLT; COUPLING DRIVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0507-0611
7	04.525 BOLT; COUPLING DRIVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0612-0701
7	04.525 BOLT; COUPLING DRIVER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0702-0801
7	04.525 BOLT; COUPLING DRIVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0802-
8	04.535 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98000-408-0	01	1	0507-0701
8	04.535 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98079-515-0	01	1	0702-
8	04.535 FLANGE; OUTPUT	8-94481-315-2	01	1	9412-0105
8	04.535 FLANGE; OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-315-2	01	1	0106-0212
8	04.535 FLANGE; OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97318-444-1	01	1	0301-0310
8	04.535 FLANGE; OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97318-444-1	01	1	0311-0501
8	04.535 FLANGE; OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97318-444-1	01	1	0502-0801
8	04.535 FLANGE; OUTPUT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97318-444-1	01	1	0802-
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-94481-411-0	01	1	9412-0105
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) M/T MXA5R(RMT) ID=30.6 T=5.7	8-94481-411-0	01	1	0106-0212
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) M/T MYY5T(RSM) ID=30.6 T=5.7	8-94481-411-0	01	1	0301-0310
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) ID=30.6 T=5.7	8-94481-411-0	01	1	0311-0501
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) M/T MYY5T(RSM) ID=30.6 T=5.7	8-94481-411-0	01	1	0502-0506
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) ID=30.6 T=5.7	8-94481-411-0	01	1	0507-0507
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 ID=30.6 T=5.7	8-98028-226-0	01	1	0508-0611
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 ID=30.6 T=5.7	8-98028-226-0	01	1	0612-
10	04.520 WASHER; CONICAL,COUPLING DRIVER 05.595	8-94249-240-0	01	1	9412-0105
10	04.520 WASHER; CONICAL,COUPLING DRIVER 4HG1 ENG(RJH) M/T MXA5R(RMT) 05.595	8-94249-240-0	01	1	0106-0212
11	04.535 NUT; FLANGE,TRANSFER,OUTPUT,RR 04.162 M24 FLANGE	8-97087-750-0	01	1	9412-0105
11	04.535 NUT; FLANGE,TRANSFER,OUTPUT,RR 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.162 M24 FLANGE	8-97087-750-0	01	1	0106-0212
15	04.540 SLEEVE; NEUTRAL & FRT	8-94317-684-2	01	1	9412-0105
15	04.540 SLEEVE; NEUTRAL & FRT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94317-684-2	01	1	0106-0212
15	04.540 SLEEVE; NEUTRAL & FRT 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0301-0310
15	04.540 SLEEVE; NEUTRAL & FRT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0311-0501
15	04.540 SLEEVE; NEUTRAL & FRT 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0502-0506
15	04.540 SLEEVE; NEUTRAL & FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0507-0611
15	04.540 SLEEVE; NEUTRAL & FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0612-
16	04.520 BEARING; OUTPUT GEAR JTEKT	8-94329-642-0	01	1	9412-0105
16	04.520 BEARING; OUTPUT GEAR 4HG1 ENG(RJH) M/T MXA5R(RMT) JTEKT	8-94329-642-0	01	1	0106-0212
16	04.520 BEARING; OUTPUT GEAR 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-898-0	02	1	0301-0310
16	04.520 BEARING; OUTPUT GEAR 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-898-0	02	1	0311-0501
16	04.520 BEARING; OUTPUT GEAR 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-898-0	02	1	0502-0506
16	04.520 BEARING; OUTPUT GEAR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-898-0	02	1	0507-0611
16	04.520 BEARING; OUTPUT GEAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-898-0	02	1	0612-
16	04.520 BEARING; OUTPUT GEAR NTN	8-94481-412-0	01	1	9412-0105
16	04.520 BEARING; OUTPUT GEAR 4HG1 ENG(RJH) M/T MXA5R(RMT) NTN	8-94481-412-0	01	1	0106-0212
17	04.555 SHAFT; OUTPUT	8-97016-713-0	01	1	9412-0105
17	04.555 SHAFT; OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97016-713-0	01	1	0106-0212
17	04.555 SHAFT; OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-900-0	01	1	0301-0310
17	04.555 SHAFT; OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-900-0	01	1	0311-0501
17	04.555 SHAFT; OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-900-0	01	1	0502-0506
17	04.555 SHAFT; OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-900-0	01	1	0507-0611
17	04.555 SHAFT; OUTPUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-900-0	01	1	0612-
18	04.520 BEARING; BALL,OUTPUT,FRT 04.439	9-00006-207-0	01	1	9412-0105
18	04.520 BEARING; BALL,OUTPUT,FRT 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.439	9-00006-207-0	01	1	0106-0212
19	04.545 RING; SNAP,FRT DRIVE SHAFT 08.934 ID=32.2	9-09180-035-0	01	1	9412-0105
19	04.545 RING; SNAP,FRT DRIVE SHAFT 4HG1 ENG(RJH) M/T MXA5R(RMT) 08.934 ID=32.2	9-09180-035-0	01	1	0106-0212
21	04.533 WASHER; CONICAL,COUPLING DRIVER 05.595	8-94249-240-0	01	1	9412-0105
21	04.533 WASHER; CONICAL,COUPLING DRIVER 4HG1 ENG(RJH) M/T MXA5R(RMT) 05.595	8-94249-240-0	01	1	0106-0212
22	04.535 FLANGE; OUTPUT,FRT	8-94481-318-0	01	1	9412-0105
22	04.535 FLANGE; OUTPUT,FRT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-318-0	01	1	0106-0212
22	04.535 FLANGE; OUTPUT,FRT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-676-0	01	1	0301-0310
22	04.535 FLANGE; OUTPUT,FRT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-676-0	01	1	0311-0501
22	04.535 FLANGE; OUTPUT,FRT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-676-0	01	1	0502-0506
22	04.535 FLANGE; OUTPUT,FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-676-0	01	1	0507-0611
22	04.535 FLANGE; OUTPUT,FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-676-0	01	1	0612-
23	04.552 BOLT; COUPLING DRIVER M12X35	8-94481-410-0	04	1	9412-0105
23	04.552 BOLT; COUPLING DRIVER 4HG1 ENG(RJH) M/T MXA5R(RMT) M12X35	8-94481-410-0	04	1	0106-0212
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA (A) JTEKT	8-94422-055-1	01	1	9412-0105
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH) M/T MXA5R(RMT) (A) JTEKT	8-94422-055-1	01	1	0106-0212
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0301-0310
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0311-0501
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0502-0506
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0507-0611
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0612-
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0301-0310
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0311-0501
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0502-0506
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0507-0611
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0612-
25	04.545 RING; SNAP,BRG TO CASE,FRT DRIVE OD=95.5	9-09180-190-0	01	1	9412-0105
25	04.545 RING; SNAP,BRG TO CASE,FRT DRIVE 4HG1 ENG(RJH) M/T MXA5R(RMT) OD=95.5	9-09180-190-0	01	1	0106-0212
26	04.533 WASHER; THRUST	8-94481-417-0	01	1	9412-0105
26	04.533 WASHER; THRUST 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-417-0	01	1	0106-0212
26	04.533 WASHER; THRUST 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-896-0	01	1	0301-0310
26	04.533 WASHER; THRUST 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-896-0	01	1	0311-0501
26	04.533 WASHER; THRUST 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-896-0	01	1	0502-0506
26	04.533 WASHER; THRUST 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-896-0	01	1	0507-0611
26	04.533 WASHER; THRUST 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-896-0	01	1	0612-
27	04.532 GEAR; OUTPUT,FRT	8-94474-896-0	01	1	9412-0105
27	04.532 GEAR; OUTPUT,FRT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94474-896-0	01	1	0106-0212
27	04.532 GEAR; OUTPUT,FRT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-899-0	01	1	0301-0310
27	04.532 GEAR; OUTPUT,FRT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-899-0	01	1	0311-0501
27	04.532 GEAR; OUTPUT,FRT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-899-0	01	1	0502-0506
27	04.532 GEAR; OUTPUT,FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-899-0	01	1	0507-0611
27	04.532 GEAR; OUTPUT,FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-899-0	01	1	0612-
28	04.573 GASKET; SHAFT 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	9412-0105
28	04.573 GASKET; SHAFT 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0106-0212
28	04.573 GASKET; SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-890-0	01	1	0301-0310
28	04.573 GASKET; SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-890-0	01	1	0311-0501
28	04.573 GASKET; SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-890-0	01	1	0502-0506
28	04.573 GASKET; SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-890-0	01	1	0507-0611
28	04.573 GASKET; SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-890-0	01	1	0612-
29	04.533 NUT; FLANGE 04.162 M24 FLANGE	8-97087-750-0	01	1	9412-0105
29	04.533 NUT; FLANGE 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.162 M24 FLANGE	8-97087-750-0	01	1	0106-0212
35	04.520 BEARING; RR DRIVE SHAFT,CTR,TRAN	8-94317-771-0	01	1	9412-0105
35	04.520 BEARING; RR DRIVE SHAFT,CTR,TRAN 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94317-771-0	01	1	0106-0212
36	04.540 SPACER; RR DRIVE SHAFT	8-94481-415-0	01	1	9412-0105
36	04.540 SPACER; RR DRIVE SHAFT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-415-0	01	1	0106-0212
37	04.532 GEAR; DRIVE,SPD,TRANSFER	8-94481-314-0	01	1	9412-0105
37	04.532 GEAR; DRIVE,SPD,TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-314-0	01	1	0106-0212
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS (A)	8-94481-420-0	01	1	9412-0105
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH) M/T MXA5R(RMT) (A)	8-94481-420-0	01	1	0106-0212
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0301-0310
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0311-0501
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0502-0506
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0507-0611
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0612-
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0301-0310
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0311-0501
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0502-0506
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0507-0611
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0612-

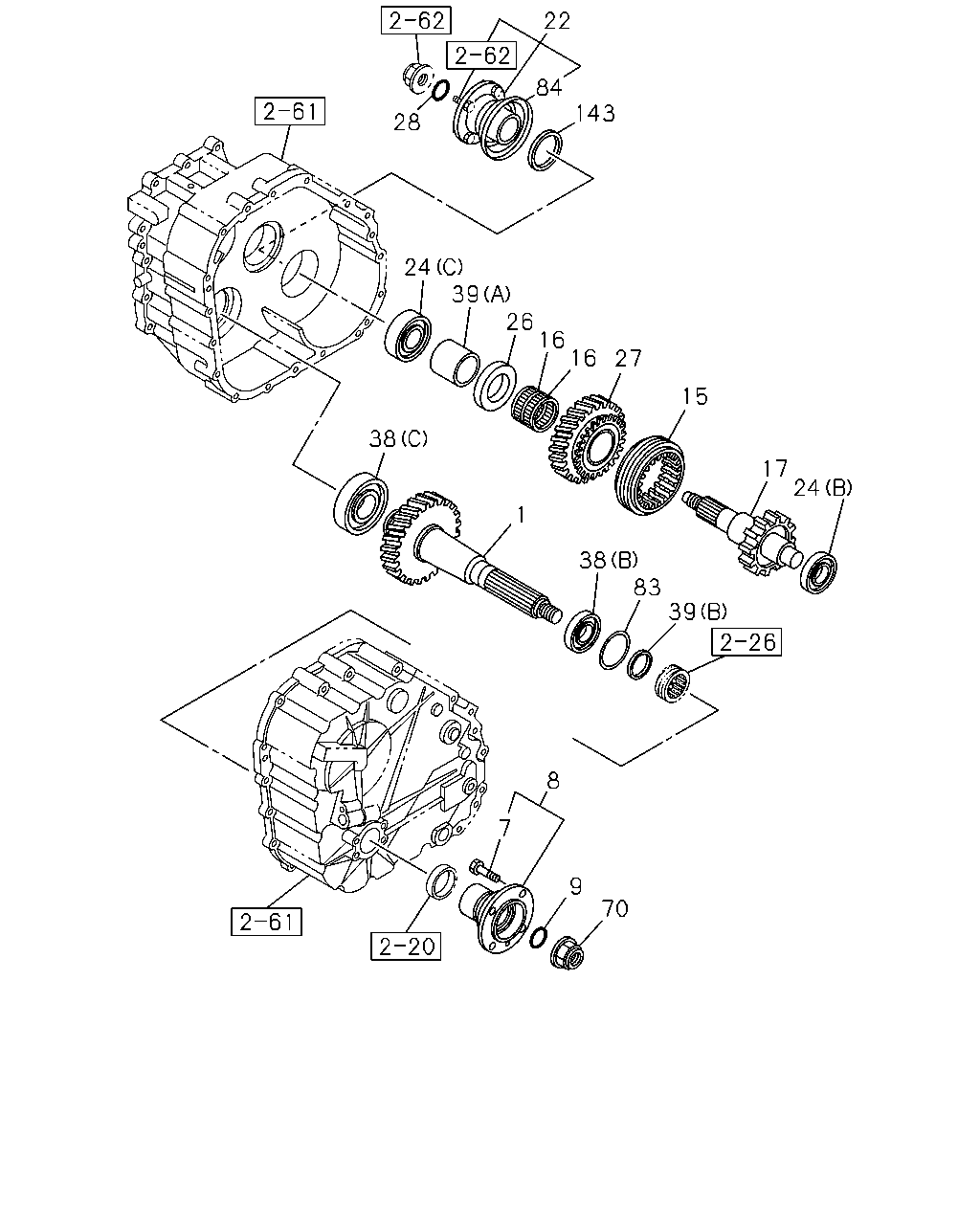

22 84 143 28 24 39 26 16 16 27 15 38 17 24 1 38 83 39 8 7 9 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.555 SHAFT; GEAR,OUTPUT,RR	8-97087-761-0	01	1	9412-0105
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97087-761-0	01	1	0106-0212
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-911-1	01	1	0301-0310
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-911-1	01	1	0311-0501
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-911-1	01	1	0502-0506
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-911-1	01	1	0507-0611
1	04.555 SHAFT; GEAR,OUTPUT,RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-911-1	01	1	0612-
7	04.525 BOLT; COUPLING DRIVER 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98031-764-0	04	1	0702-
7	04.525 BOLT; COUPLING DRIVER 05.605	8-97109-697-1	04	1	9412-0105
7	04.525 BOLT; COUPLING DRIVER 4HG1 ENG(RJH) M/T MXA5R(RMT) 05.605	8-97109-697-1	04	1	0106-0212
7	04.525 BOLT; COUPLING DRIVER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97319-458-0	04	1	0301-0310
7	04.525 BOLT; COUPLING DRIVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97319-458-0	04	1	0311-0501
7	04.525 BOLT; COUPLING DRIVER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0502-0506
7	04.525 BOLT; COUPLING DRIVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0507-0611
7	04.525 BOLT; COUPLING DRIVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0612-0701
7	04.525 BOLT; COUPLING DRIVER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0702-0801
7	04.525 BOLT; COUPLING DRIVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97319-458-0	04	1	0802-
8	04.535 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98000-408-0	01	1	0507-0701
8	04.535 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98079-515-0	01	1	0702-
8	04.535 FLANGE; OUTPUT	8-94481-315-2	01	1	9412-0105
8	04.535 FLANGE; OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-315-2	01	1	0106-0212
8	04.535 FLANGE; OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97318-444-1	01	1	0301-0310
8	04.535 FLANGE; OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97318-444-1	01	1	0311-0501
8	04.535 FLANGE; OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97318-444-1	01	1	0502-0801
8	04.535 FLANGE; OUTPUT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97318-444-1	01	1	0802-
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-94481-411-0	01	1	9412-0105
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) M/T MXA5R(RMT) ID=30.6 T=5.7	8-94481-411-0	01	1	0106-0212
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) M/T MYY5T(RSM) ID=30.6 T=5.7	8-94481-411-0	01	1	0301-0310
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) ID=30.6 T=5.7	8-94481-411-0	01	1	0311-0501
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) M/T MYY5T(RSM) ID=30.6 T=5.7	8-94481-411-0	01	1	0502-0506
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) ID=30.6 T=5.7	8-94481-411-0	01	1	0507-0507
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 ID=30.6 T=5.7	8-98028-226-0	01	1	0508-0611
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 ID=30.6 T=5.7	8-98028-226-0	01	1	0612-
15	04.540 SLEEVE; NEUTRAL & FRT	8-94317-684-2	01	1	9412-0105
15	04.540 SLEEVE; NEUTRAL & FRT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94317-684-2	01	1	0106-0212
15	04.540 SLEEVE; NEUTRAL & FRT 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0301-0310
15	04.540 SLEEVE; NEUTRAL & FRT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0311-0501
15	04.540 SLEEVE; NEUTRAL & FRT 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0502-0506
15	04.540 SLEEVE; NEUTRAL & FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0507-0611
15	04.540 SLEEVE; NEUTRAL & FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.419	1-33262-175-1	01	1	0612-
16	04.520 BEARING; OUTPUT GEAR JTEKT	8-94329-642-0	01	1	9412-0105
16	04.520 BEARING; OUTPUT GEAR 4HG1 ENG(RJH) M/T MXA5R(RMT) JTEKT	8-94329-642-0	01	1	0106-0212
16	04.520 BEARING; OUTPUT GEAR 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-898-0	02	1	0301-0310
16	04.520 BEARING; OUTPUT GEAR 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-898-0	02	1	0311-0501
16	04.520 BEARING; OUTPUT GEAR 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-898-0	02	1	0502-0506
16	04.520 BEARING; OUTPUT GEAR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-898-0	02	1	0507-0611
16	04.520 BEARING; OUTPUT GEAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-898-0	02	1	0612-
16	04.520 BEARING; OUTPUT GEAR NTN	8-94481-412-0	01	1	9412-0105
16	04.520 BEARING; OUTPUT GEAR 4HG1 ENG(RJH) M/T MXA5R(RMT) NTN	8-94481-412-0	01	1	0106-0212
17	04.555 SHAFT; OUTPUT	8-97016-713-0	01	1	9412-0105
17	04.555 SHAFT; OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97016-713-0	01	1	0106-0212
17	04.555 SHAFT; OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-900-0	01	1	0301-0310
17	04.555 SHAFT; OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-900-0	01	1	0311-0501
17	04.555 SHAFT; OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-900-0	01	1	0502-0506
17	04.555 SHAFT; OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-900-0	01	1	0507-0611
17	04.555 SHAFT; OUTPUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-900-0	01	1	0612-
22	04.535 FLANGE; OUTPUT,FRT	8-94481-318-0	01	1	9412-0105
22	04.535 FLANGE; OUTPUT,FRT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-318-0	01	1	0106-0212
22	04.535 FLANGE; OUTPUT,FRT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-676-0	01	1	0301-0310
22	04.535 FLANGE; OUTPUT,FRT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-676-0	01	1	0311-0501
22	04.535 FLANGE; OUTPUT,FRT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-676-0	01	1	0502-0506
22	04.535 FLANGE; OUTPUT,FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-676-0	01	1	0507-0611
22	04.535 FLANGE; OUTPUT,FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-676-0	01	1	0612-
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA (A) JTEKT	8-94422-055-1	01	1	9412-0105
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH) M/T MXA5R(RMT) (A) JTEKT	8-94422-055-1	01	1	0106-0212
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0301-0310
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0311-0501
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0502-0506
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0507-0611
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-893-0	01	1	0612-
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0301-0310
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0311-0501
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0502-0506
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0507-0611
24	04.520 BEARING; FRT DRIVE SHAFT,FRT,TRA 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-894-0	01	1	0612-
26	04.533 WASHER; THRUST	8-94481-417-0	01	1	9412-0105
26	04.533 WASHER; THRUST 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-417-0	01	1	0106-0212
26	04.533 WASHER; THRUST 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-896-0	01	1	0301-0310
26	04.533 WASHER; THRUST 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-896-0	01	1	0311-0501
26	04.533 WASHER; THRUST 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-896-0	01	1	0502-0506
26	04.533 WASHER; THRUST 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-896-0	01	1	0507-0611
26	04.533 WASHER; THRUST 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-896-0	01	1	0612-
27	04.532 GEAR; OUTPUT,FRT	8-94474-896-0	01	1	9412-0105
27	04.532 GEAR; OUTPUT,FRT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94474-896-0	01	1	0106-0212
27	04.532 GEAR; OUTPUT,FRT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-899-0	01	1	0301-0310
27	04.532 GEAR; OUTPUT,FRT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-899-0	01	1	0311-0501
27	04.532 GEAR; OUTPUT,FRT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-899-0	01	1	0502-0506
27	04.532 GEAR; OUTPUT,FRT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-899-0	01	1	0507-0611
27	04.532 GEAR; OUTPUT,FRT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-899-0	01	1	0612-
28	04.573 GASKET; SHAFT 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	9412-0105
28	04.573 GASKET; SHAFT 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0106-0212
28	04.573 GASKET; SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-890-0	01	1	0301-0310
28	04.573 GASKET; SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-890-0	01	1	0311-0501
28	04.573 GASKET; SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-890-0	01	1	0502-0506
28	04.573 GASKET; SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-890-0	01	1	0507-0611
28	04.573 GASKET; SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-890-0	01	1	0612-
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS (A)	8-94481-420-0	01	1	9412-0105
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH) M/T MXA5R(RMT) (A)	8-94481-420-0	01	1	0106-0212
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0301-0310
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0311-0501
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0502-0506
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0507-0611
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-909-0	01	1	0612-
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0301-0310
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0311-0501
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0502-0506
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0507-0611
38	04.520 BEARING; RR DRIVE SHAFT,RR,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-910-0	01	1	0612-
39	04.520 COLLAR; DIST,OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97326-895-0	01	1	0301-0310
39	04.520 COLLAR; DIST,OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97326-895-0	01	1	0311-0501
39	04.520 COLLAR; DIST,OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97326-895-0	01	1	0502-0506
39	04.520 COLLAR; DIST,OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97326-895-0	01	1	0507-0611
39	04.520 COLLAR; DIST,OUTPUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97326-895-0	01	1	0612-
39	04.520 COLLAR; DIST,OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-901-0	01	1	0301-0310
39	04.520 COLLAR; DIST,OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-901-0	01	1	0311-0501
39	04.520 COLLAR; DIST,OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-901-0	01	1	0502-0506
39	04.520 COLLAR; DIST,OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-901-0	01	1	0507-0611
39	04.520 COLLAR; DIST,OUTPUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-901-0	01	1	0612-
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0301-0310
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0311-0501
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0502-0506
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 M27 H=25	8-97253-126-0	01	1	0507-0604
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.525 M27 H=25	8-97360-410-0	01	1	0605-0611
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.525 M27 H=25	8-97360-410-0	01	1	0612-
83	04.520 SHIM; OUTPUT SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.18	8-97326-902-0	01	1	0301-0310
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.18	8-97326-902-0	01	1	0311-0501
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.18	8-97326-902-0	01	1	0502-0506
83	04.520 SHIM; OUTPUT SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.18	8-97326-902-0	01	1	0507-0611
83	04.520 SHIM; OUTPUT SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.18	8-97326-902-0	01	1	0612-
83	04.520 SHIM; OUTPUT SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.50	8-97326-903-0	02	1	0301-0310
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.50	8-97326-903-0	02	1	0311-0501
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.50	8-97326-903-0	02	1	0502-0506
83	04.520 SHIM; OUTPUT SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.50	8-97326-903-0	02	1	0507-0611
83	04.520 SHIM; OUTPUT SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.50	8-97326-903-0	02	1	0612-
83	04.520 SHIM; OUTPUT SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.40	8-97326-904-0	01	1	0301-0310
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.40	8-97326-904-0	01	1	0311-0501
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.40	8-97326-904-0	01	1	0502-0506
83	04.520 SHIM; OUTPUT SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.40	8-97326-904-0	01	1	0507-0611
83	04.520 SHIM; OUTPUT SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.40	8-97326-904-0	01	1	0612-
83	04.520 SHIM; OUTPUT SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.35	8-97326-905-0	01	1	0301-0310
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.35	8-97326-905-0	01	1	0311-0501
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.35	8-97326-905-0	01	1	0502-0506
83	04.520 SHIM; OUTPUT SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.35	8-97326-905-0	01	1	0507-0611
83	04.520 SHIM; OUTPUT SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.35	8-97326-905-0	01	1	0612-
83	04.520 SHIM; OUTPUT SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.30	8-97326-906-0	01	1	0301-0310
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.30	8-97326-906-0	01	1	0311-0501
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.30	8-97326-906-0	01	1	0502-0506
83	04.520 SHIM; OUTPUT SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.30	8-97326-906-0	01	1	0507-0611
83	04.520 SHIM; OUTPUT SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.30	8-97326-906-0	01	1	0612-
83	04.520 SHIM; OUTPUT SHAFT 4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.25	8-97326-907-0	01	1	0301-0310
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.25	8-97326-907-0	01	1	0311-0501
83	04.520 SHIM; OUTPUT SHAFT 4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.25	8-97326-907-0	01	1	0502-0506
83	04.520 SHIM; OUTPUT SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.25	8-97326-907-0	01	1	0507-0611
83	04.520 SHIM; OUTPUT SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.25	8-97326-907-0	01	1	0612-
84	04.520 COVER; DUST 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-891-0	01	1	0301-0310
84	04.520 COVER; DUST 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-891-0	01	1	0311-0501
84	04.520 COVER; DUST 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-891-0	01	1	0502-0506
84	04.520 COVER; DUST 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-891-0	01	1	0507-0611
84	04.520 COVER; DUST 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-891-0	01	1	0612-
143	04.520 SEAL; OIL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-889-0	01	1	0301-0310
143	04.520 SEAL; OIL 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-889-0	01	1	0311-0501
143	04.520 SEAL; OIL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-889-0	01	1	0502-0506
143	04.520 SEAL; OIL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-889-0	01	1	0507-0611
143	04.520 SEAL; OIL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-889-0	01	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
