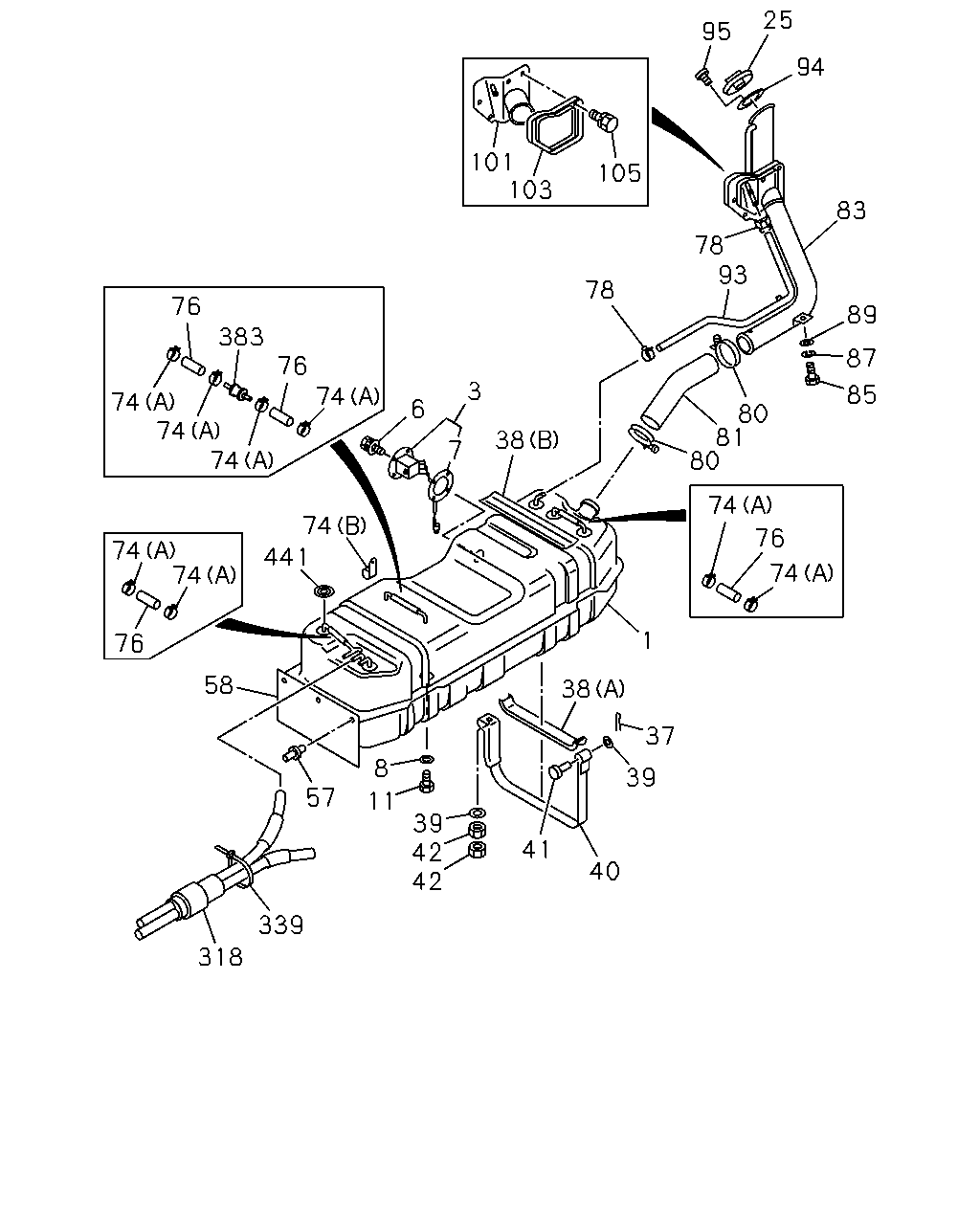

1-40 — FUEL TANK (#35752) — 115 parça

25 95 94 101 103 105 83 78 93 78 76 89 383 76 74 87 85 3 74 74 74 6 80 81 80 38 7 74 76 74 74 441 74 74 1 76 38 58 37 8 11 39 57 39 42 42 41 40 339 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 61L L=900 B=315 H=272 W/EVAPO	8-97075-420-0	01	1	9307-	●
1	TANK; FUEL EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 61L L=900 B=315 H=272	8-97075-422-0	01	1	9307-	●
1	TANK; FUEL 61L L=900 B=315 H=272	8-97075-422-0	01	1	9307-		●
3	UNIT; FUEL TANK,SUB	8-94437-108-1	01	1	9307-	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	9307-	●	●
7	GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9307-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9307-	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9307-	●	●
25	CAP; FILLER,FUEL TANK	8-94124-322-1	01	1	9307-	●	●
37	PIN; SPLIT,SUPPORT BELT OD=2.8 L=18	9-08113-018-0	02	1	9307-	●	●
38	INSULATION; SUPPORT BELT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) L=335	8-94171-394-0	02	1	9307-	●
38	INSULATION; SUPPORT BELT (A) L=470	8-94372-633-0	02	1	9307-	●	●
39	WASHER; PL,SUPPORT BELT ID=10.5 OD=18	9-09160-510-0	04	1	9307-	●	●
40	BELT; SUPPORT,FUEL TANK	8-94171-392-2	02	1	9307-	●	●
41	PIN; SUPPORT BELT	9-08224-048-0	02	1	9307-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	02	1	9307-9406	●	●
42	NUT; SUPPORT BELT M10	9-09110-410-0	02	1	9407-	●	●
42	NUT; SUPPORT BELT M10	9-09111-510-0	02	1	9307-9406	●	●
42	NUT; SUPPORT BELT M10	9-09111-410-0	02	1	9407-	●	●
57	FASTENER; FUEL TANK PROTECTOR	5-09989-002-0	03	1	9307-	●	●
58	PROTECTOR; HEAT,FUEL TANK	8-94432-093-0	01	1	9307-	●	●
74	CLIP; FUEL TANK HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) ID=8.5	8-94166-071-0	10	1	9307-	●
74	CLIP; FUEL TANK HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) T=0.8	8-97096-666-0	02	1	9307-	●
76	HOSE; FUEL TANK HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=90 SERVICED BY L=3000	8-94128-826-0	04	1	9307-	●
76	HOSE; FUEL TANK HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9307-	●
78	CLIP; BREATHER HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ID=11	8-94238-570-0	03	1	9307-	●
78	CLIP; BREATHER HOSE ID=11	8-94238-570-0	03	1	9307-		●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9307-	●	●
80	CLIP; FILLER HOSE ID=60	9-09915-265-1	02	1	9307-	●	●
81	HOSE; FUEL FILLER	8-94424-265-1	01	1	9307-	●	●
83	NECK; FUEL FILLER HONG KONG EQUIPMENT(PQ1)	8-94428-388-3	01	1	9307-	●
83	NECK; FUEL FILLER EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-97073-526-0	01	1	9307-	●
83	NECK; FUEL FILLER	8-97073-526-0	01	1	9307-		●
83	NECK; FUEL FILLER LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y)	8-94400-079-6	01	1	9307-	●
85	BOLT; FILLER NECK M8X35	0-20800-835-0	01	1	9307-	●	●
87	WASHER; LK,FILLER NECK ID=8.2	9-09150-508-0	01	1	9307-	●	●
89	WASHER; PL,FILLER NECK ID=8.4 OD=18	9-09160-608-0	01	1	9307-	●	●
93	HOSE; BREATHER,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=500	0-04250-500-0	01	1	9307-9406	●
93	HOSE; BREATHER,FUEL TANK L=500	0-04250-500-0	01	1	9307-9406		●
93	HOSE; BREATHER,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
93	HOSE; BREATHER,FUEL TANK L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
93	HOSE; BREATHER,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=540	0-04250-540-0	01	1	9307-9406	●
93	HOSE; BREATHER,FUEL TANK L=540	0-04250-540-0	01	1	9307-9406		●
93	HOSE; BREATHER,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=540 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
93	HOSE; BREATHER,FUEL TANK L=540 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
93	HOSE; BREATHER,FUEL TANK L=960 SERVICED BY L=1400	8-94152-003-0	01	1	9307-	●	●
94	GASKET; FILLER NECK	8-94227-110-0	01	1	9307-	●	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	9307-	●	●
101	SEAL; FILLER NECK	8-94227-111-1	01	1	9307-	●	●
103	RETAINER; FILLER NECK	8-94227-112-1	01	1	9307-	●	●
105	BOLT; RET M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
318	HOSE ASM; FUEL,DELIVERY,RETURN	8-97026-264-0	01	1	9307-	●
339	CLIP; BAND,FUEL HOSE HONG KONG EQUIPMENT(PQ1) L=140	5-09707-031-0	01	1	9307-	●
383	VALVE; 2 WAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94246-339-0	01	1	9307-	●
441	SEAT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94246-336-1	02	1	9307-	●

114 115 113 112 108 113 113 114 49 115 115 115 375 113 112 376 372 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	NUT; BRKT LONG(WFB5VF) M8	9-09111-508-0	02	1	9307-9406	●	●
49	NUT; BRKT LONG(WFB5VF) M8	9-09111-408-0	02	1	9407-	●	●
108	PROTECTOR; FUEL TANK LONG(WFB5VF)	8-94443-390-0	01	1	9307-	●	●
112	BOLT; PROTECTOR TO BRKT M8X18 W/LK&PL WASHER	0-50140-818-0	06	1	9307-	●	●
113	BRACKET; PROTECTOR,FUEL TANK (B)	8-94443-250-0	01	1	9307-	●	●
113	BRACKET; PROTECTOR,FUEL TANK (A)	8-94443-251-0	01	1	9307-	●	●
113	BRACKET; PROTECTOR,FUEL TANK LONG(WFB5VF) (D)	8-94287-047-2	01	1	9307-	●	●
113	BRACKET; PROTECTOR,FUEL TANK LONG(WFB5VF) (C)	8-94443-396-0	01	1	9307-	●	●
114	PATCH; PROTECTOR,FUEL TANK LONG(WFB5VF)	8-94436-887-0	03	1	9307-	●	●
115	BOLT; BRKT LONG(WFB5VF) M8X25 W/LK&PL WASHER	0-50140-825-0	06	1	9307-	●	●
372	CLIP; CONT VALVE LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) L=250	5-09707-030-0	01	1	9307-	●	●
375	BOLT; CONT VALVE LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9307-	●	●
376	GROMMET; CONT VALVE LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y)	8-94222-046-1	01	1	9307-	●	●

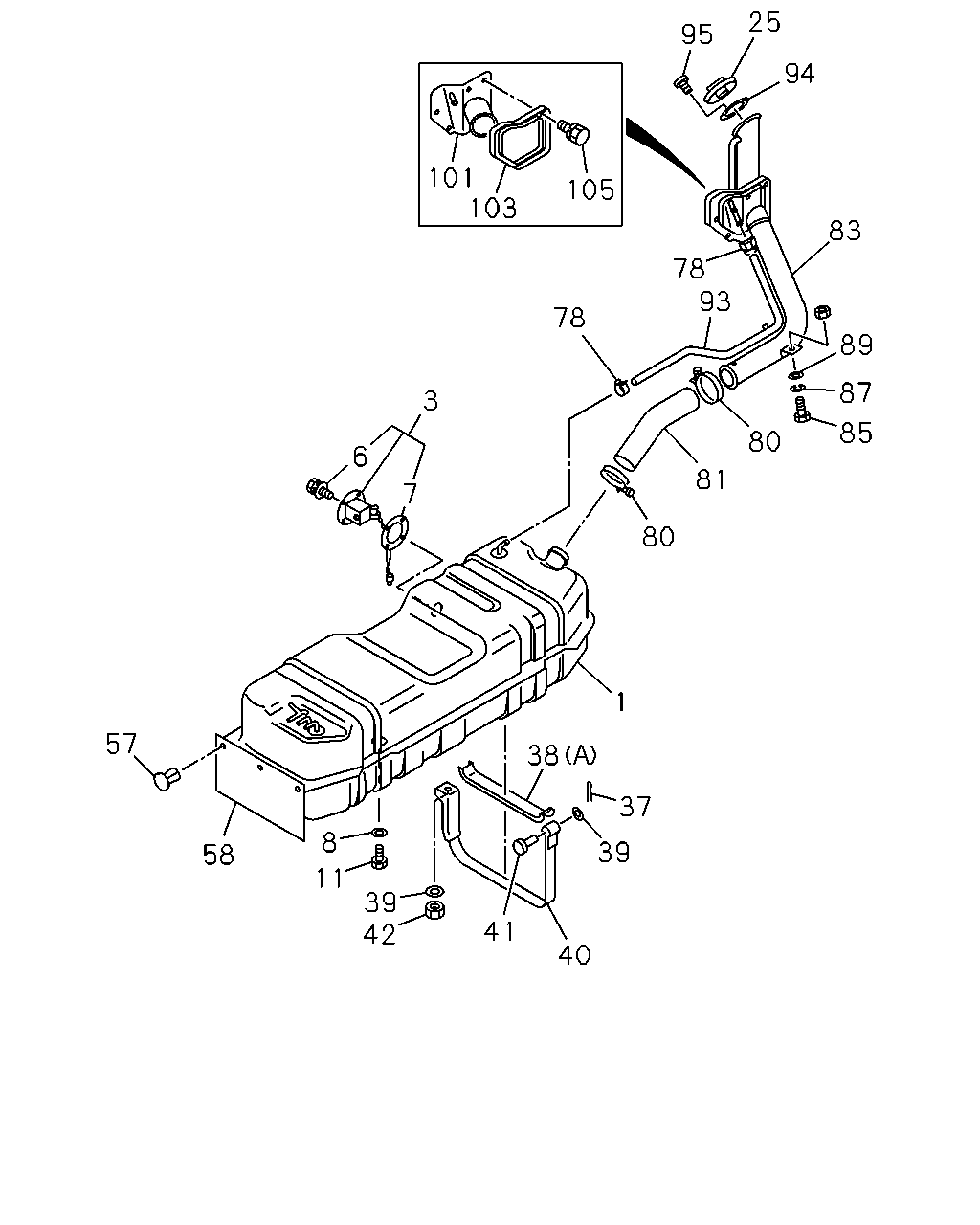

25 95 94 101 103 105 83 78 93 89 78 87 85 3 80 6 81 7 80 38 57 37 8 11 39 58 39 42 41 40 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 61L L=900 B=315 H=272 W/EVAPO	8-97075-420-0	01	1	9307-	●
1	TANK; FUEL EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 61L L=900 B=315 H=272	8-97075-422-0	01	1	9307-	●
1	TANK; FUEL 61L L=900 B=315 H=272	8-97075-422-0	01	1	9307-		●
3	UNIT; FUEL TANK,SUB	8-94437-108-1	01	1	9307-	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	9307-	●	●
7	GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9307-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK	9-09920-624-0	01	1	9307-	●	●
11	PLUG; DRAIN,FUEL TANK M14X14	8-94152-613-0	01	1	9307-	●	●
25	CAP; FILLER,FUEL TANK	8-94124-322-1	01	1	9307-	●	●
37	PIN; SPLIT,SUPPORT BELT OD=2.8 L=18	9-08113-018-0	02	1	9307-	●	●
38	INSULATION; SUPPORT BELT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) L=335	8-94171-394-0	02	1	9307-	●
38	INSULATION; SUPPORT BELT (A) L=470	8-94372-633-0	02	1	9307-	●	●
39	WASHER; PL,SUPPORT BELT ID=10.5 OD=18	9-09160-510-0	04	1	9307-	●	●
40	BELT; SUPPORT,FUEL TANK	8-94171-392-2	02	1	9307-	●	●
41	PIN; SUPPORT BELT	9-08224-048-0	02	1	9307-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	02	1	9307-9406	●	●
42	NUT; SUPPORT BELT M10	9-09110-410-0	02	1	9407-	●	●
42	NUT; SUPPORT BELT M10	9-09111-510-0	02	1	9307-9406	●	●
42	NUT; SUPPORT BELT M10	9-09111-410-0	02	1	9407-	●	●
57	FASTENER; FUEL TANK PROTECTOR	5-09989-002-0	03	1	9307-	●	●
58	PROTECTOR; HEAT,FUEL TANK	8-94432-093-0	01	1	9307-	●	●
78	CLIP; BREATHER HOSE EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ID=11	8-94238-570-0	03	1	9307-	●
78	CLIP; BREATHER HOSE ID=11	8-94238-570-0	03	1	9307-		●
78	CLIP; BREATHER HOSE ID=21	8-94242-034-0	02	1	9307-	●	●
80	CLIP; FILLER HOSE ID=60	9-09915-265-1	02	1	9307-	●	●
81	HOSE; FUEL FILLER	8-94424-265-1	01	1	9307-	●	●
83	NECK; FUEL FILLER HONG KONG EQUIPMENT(PQ1)	8-94428-388-3	01	1	9307-	●
83	NECK; FUEL FILLER EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-97073-526-0	01	1	9307-	●
83	NECK; FUEL FILLER	8-97073-526-0	01	1	9307-		●
83	NECK; FUEL FILLER LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y)	8-94400-079-6	01	1	9307-	●
85	BOLT; FILLER NECK M8X35	0-20800-835-0	01	1	9307-	●	●
87	WASHER; LK,FILLER NECK ID=8.2	9-09150-508-0	01	1	9307-	●	●
89	WASHER; PL,FILLER NECK ID=8.4 OD=18	9-09160-608-0	01	1	9307-	●	●
93	HOSE; BREATHER,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=500	0-04250-500-0	01	1	9307-9406	●
93	HOSE; BREATHER,FUEL TANK L=500	0-04250-500-0	01	1	9307-9406		●
93	HOSE; BREATHER,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
93	HOSE; BREATHER,FUEL TANK L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
93	HOSE; BREATHER,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=540	0-04250-540-0	01	1	9307-9406	●
93	HOSE; BREATHER,FUEL TANK L=540	0-04250-540-0	01	1	9307-9406		●
93	HOSE; BREATHER,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=540 SERVICED BY L=3000	0-04750-300-0	01	1	9407-	●
93	HOSE; BREATHER,FUEL TANK L=540 SERVICED BY L=3000	0-04750-300-0	01	1	9407-		●
93	HOSE; BREATHER,FUEL TANK L=960 SERVICED BY L=1400	8-94152-003-0	01	1	9307-	●	●
94	GASKET; FILLER NECK	8-94227-110-0	01	1	9307-	●	●
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	9307-	●	●
101	SEAL; FILLER NECK	8-94227-111-1	01	1	9307-	●	●
103	RETAINER; FILLER NECK	8-94227-112-1	01	1	9307-	●	●
105	BOLT; RET M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
