Isuzu WW
▶
SUV
▶
WFR
▶
50685 - WFR-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#35750) — 97 parça
Tümü
A - 4ZC1 ENG
B - 4FG1 ENG
◀

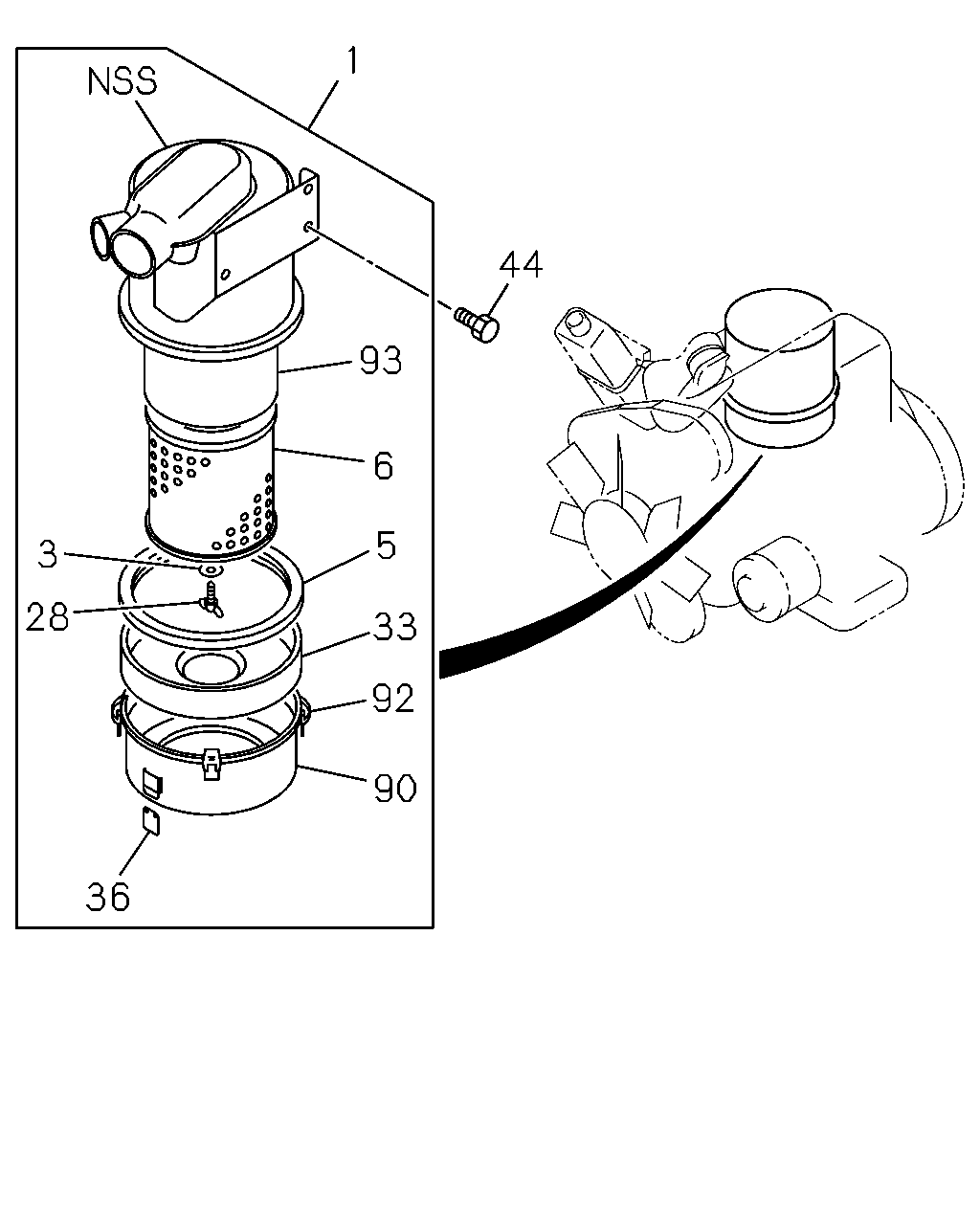

[130A] DIESEL(EXC.TURBOCHARGER) (32 parça)

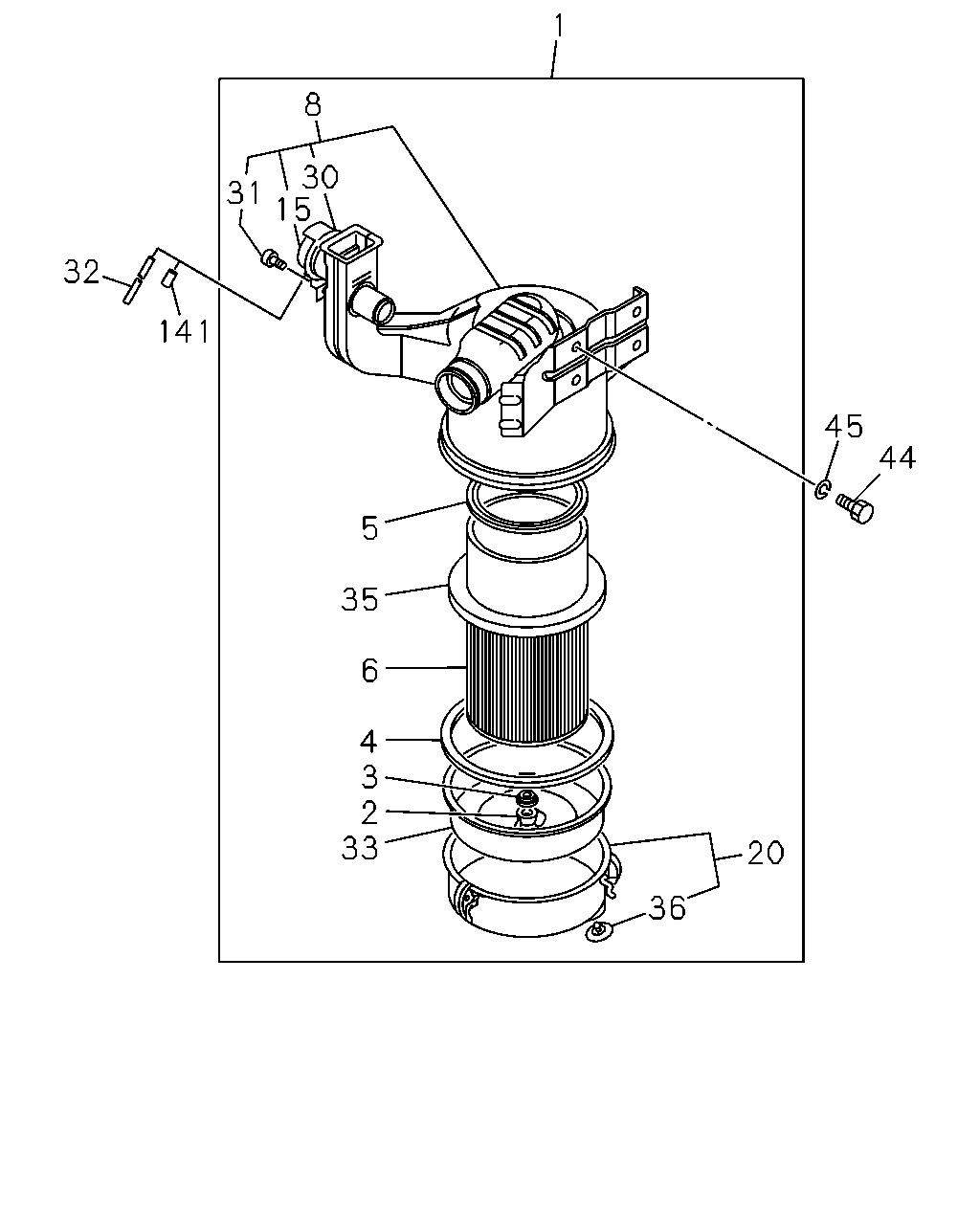

[130A] GASOLINE (37 parça)

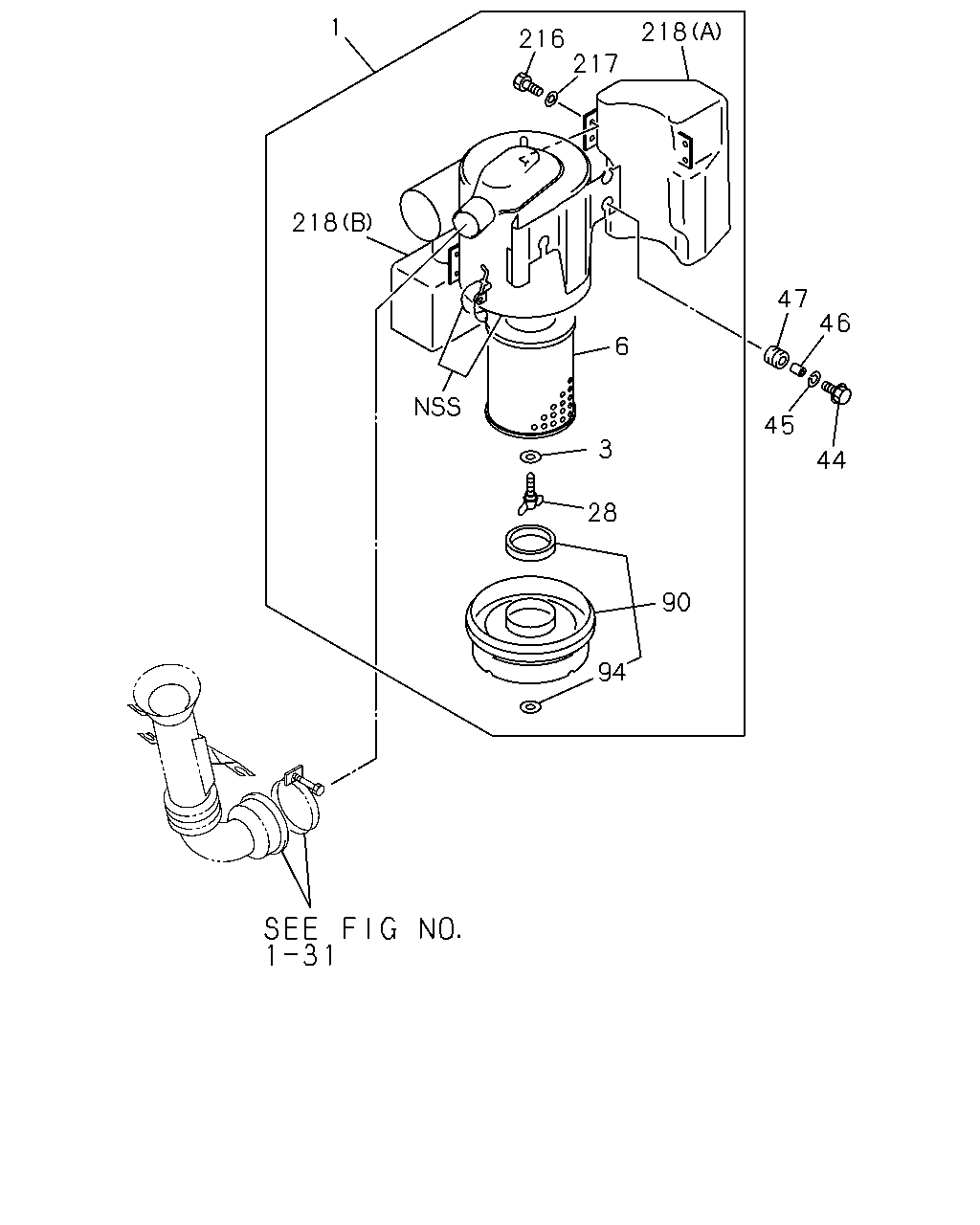

[130A] DIESEL(TURBOCHARGER) (28 parça)
▶
1
44
93
6
5
3
28
33
92
90
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
HOT AIR INTAKE<RN4>
8-94226-721-1
01
1
9307-
●
1
CLEANER ASM; AIR
EXC. HOT AIR INTAKE<RN4>
8-94249-259-0
01
1
9307-
●
1
CLEANER ASM; AIR
8-94240-697-0
01
1
9307-9406
●
1
CLEANER ASM; AIR
EXC. TURBOCHARGER(K51)
8-94240-697-0
01
1
9407-
●
1
CLEANER ASM; AIR
LONG(WFB5VF) TURBOCHARGER(K51)
8-97025-536-2
01
1
9407-
●
3
WASHER; SEAL,WING NUT
8-94237-150-0
01
1
9307-
●
3
WASHER; SEAL,WING NUT
9-14219-279-0
01
1
9307-
●
5
GASKET; ELEMENT
8-94237-149-0
01
1
9307-
●
5
GASKET; ELEMENT
9-14213-126-0
01
1
9307-9406
●
5
GASKET; ELEMENT
EXC. TURBOCHARGER(K51)
9-14213-126-0
01
1
9407-
●
6
FILTER; ACL
8-94232-059-0
01
1
9307-
●
6
FILTER; ACL
LONG(WFB5VF) TURBOCHARGER(K51)
8-94135-886-0
01
1
9407-
●
6
FILTER; ACL
5-14215-033-0
01
1
9307-9406
●
6
FILTER; ACL
EXC. TURBOCHARGER(K51)
5-14215-033-0
01
1
9407-
●
28
BOLT; WING,ACL
9-14217-090-0
01
1
9307-
●
33
BAFFLE; ACL
HOT AIR INTAKE<RN4>
8-94152-860-0
01
1
9307-
●
33
BAFFLE; ACL
9-14219-260-0
01
1
9307-9406
●
33
BAFFLE; ACL
EXC. TURBOCHARGER(K51)
9-14219-260-0
01
1
9407-
●
36
PLATE; WATER CHECK,ACL
8-94237-153-0
01
1
9307-
●
36
PLATE; WATER CHECK,ACL
9-14219-604-0
01
1
9307-9406
●
36
PLATE; WATER CHECK,ACL
EXC. TURBOCHARGER(K51)
9-14219-604-0
01
1
9407-
●
44
BOLT; ACL
M10X65
0-10806-065-0
04
1
9307-
●
44
BOLT; ACL
M10X65
5-09030-024-1
03
1
9307-9406
●
44
BOLT; ACL
EXC. TURBOCHARGER(K51) M10X65
5-09030-024-1
03
1
9407-
●
44
BOLT; ACL
LONG(WFB5VF) TURBOCHARGER(K51) M10X80
0-10806-080-0
03
1
9407-
●
90
CUP; ACL
8-94400-283-0
01
1
9307-9406
●
90
CUP; ACL
EXC. TURBOCHARGER(K51)
8-94400-283-0
01
1
9407-
●
90
CUP; ACL
LONG(WFB5VF) TURBOCHARGER(K51)
8-94366-533-0
01
1
9407-
●
92
CLIP; WIRE,ACL
8-94118-230-0
04
1
9307-9406
●
92
CLIP; WIRE,ACL
EXC. TURBOCHARGER(K51)
8-94118-230-0
04
1
9407-
●
93
GUIDE; ACL
9-14219-603-0
01
1
9307-9406
●
93
GUIDE; ACL
EXC. TURBOCHARGER(K51)
9-14219-603-0
01
1
9407-
●
1
8
30
31
15
32
141
45
44
5
35
6
4
3
2
33
20
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
HOT AIR INTAKE<RN4>
8-94226-721-1
01
1
9307-
●
1
CLEANER ASM; AIR
EXC. HOT AIR INTAKE<RN4>
8-94249-259-0
01
1
9307-
●
1
CLEANER ASM; AIR
8-94240-697-0
01
1
9307-9406
●
1
CLEANER ASM; AIR
EXC. TURBOCHARGER(K51)
8-94240-697-0
01
1
9407-
●
1
CLEANER ASM; AIR
LONG(WFB5VF) TURBOCHARGER(K51)
8-97025-536-2
01
1
9407-
●
2
NUT; WING,ELEMENT
9-09118-438-0
01
1
9307-
●
3
WASHER; SEAL,WING NUT
8-94237-150-0
01
1
9307-
●
3
WASHER; SEAL,WING NUT
9-14219-279-0
01
1
9307-
●
4
GASKET; COVER TO BODY
8-94237-151-0
01
1
9307-
●
5
GASKET; ELEMENT
8-94237-149-0
01
1
9307-
●
5
GASKET; ELEMENT
9-14213-126-0
01
1
9307-9406
●
5
GASKET; ELEMENT
EXC. TURBOCHARGER(K51)
9-14213-126-0
01
1
9407-
●
6
FILTER; ACL
8-94232-059-0
01
1
9307-
●
6
FILTER; ACL
LONG(WFB5VF) TURBOCHARGER(K51)
8-94135-886-0
01
1
9407-
●
6
FILTER; ACL
5-14215-033-0
01
1
9307-9406
●
6
FILTER; ACL
EXC. TURBOCHARGER(K51)
5-14215-033-0
01
1
9407-
●
8
COVER ASM; ACL
HOT AIR INTAKE<RN4>
8-94237-146-1
01
1
9307-
●
8
COVER ASM; ACL
EXC. HOT AIR INTAKE<RN4>
8-94255-692-0
01
1
9307-
●
15
DIAPHRAGM; VAC,ACL
HOT AIR INTAKE<RN4>
8-94237-152-0
01
1
9307-
●
20
CASE ASM; ACL
8-94237-147-0
01
1
9307-
●
30
COVER; DIAPH
HOT AIR INTAKE<RN4>
8-94152-100-0
01
1
9307-
●
31
SCREW; ACL
HOT AIR INTAKE<RN4> M6X14 W/LK&PL WASHER
9-03920-614-0
01
1
9307-
●
32
HOSE; RUBBER,VAC MOTOR
HOT AIR INTAKE<RN4> L=600 SERVICED BY L=3000
0-04730-300-0
01
1
9307-
●
33
BAFFLE; ACL
HOT AIR INTAKE<RN4>
8-94152-860-0
01
1
9307-
●
33
BAFFLE; ACL
9-14219-260-0
01
1
9307-9406
●
33
BAFFLE; ACL
EXC. TURBOCHARGER(K51)
9-14219-260-0
01
1
9407-
●
35
WING; CYCLONE
8-94237-148-0
01
1
9307-
●
36
PLATE; WATER CHECK,ACL
8-94237-153-0
01
1
9307-
●
36
PLATE; WATER CHECK,ACL
9-14219-604-0
01
1
9307-9406
●
36
PLATE; WATER CHECK,ACL
EXC. TURBOCHARGER(K51)
9-14219-604-0
01
1
9407-
●
44
BOLT; ACL
M10X65
0-10806-065-0
04
1
9307-
●
44
BOLT; ACL
M10X65
5-09030-024-1
03
1
9307-9406
●
44
BOLT; ACL
EXC. TURBOCHARGER(K51) M10X65
5-09030-024-1
03
1
9407-
●
44
BOLT; ACL
LONG(WFB5VF) TURBOCHARGER(K51) M10X80
0-10806-080-0
03
1
9407-
●
45
WASHER; LK,ACL
ID=10.2
9-09150-510-0
04
1
9307-
●
45
WASHER; LK,ACL
LONG(WFB5VF) TURBOCHARGER(K51) ID=10.2
9-09150-510-0
03
1
9407-
●
141
CAP; RUBBER,ACL
EXC. HOT AIR INTAKE<RN4> ID=4
8-94217-809-0
01
1
9307-
●
1
218
216
217
218
47
46
6
45
3
44
28
90
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
HOT AIR INTAKE<RN4>
8-94226-721-1
01
1
9307-
●
1
CLEANER ASM; AIR
EXC. HOT AIR INTAKE<RN4>
8-94249-259-0
01
1
9307-
●
1
CLEANER ASM; AIR
8-94240-697-0
01
1
9307-9406
●
1
CLEANER ASM; AIR
EXC. TURBOCHARGER(K51)
8-94240-697-0
01
1
9407-
●
1
CLEANER ASM; AIR
LONG(WFB5VF) TURBOCHARGER(K51)
8-97025-536-2
01
1
9407-
●
3
WASHER; SEAL,WING NUT
8-94237-150-0
01
1
9307-
●
3
WASHER; SEAL,WING NUT
9-14219-279-0
01
1
9307-
●
6
FILTER; ACL
8-94232-059-0
01
1
9307-
●
6
FILTER; ACL
LONG(WFB5VF) TURBOCHARGER(K51)
8-94135-886-0
01
1
9407-
●
6
FILTER; ACL
5-14215-033-0
01
1
9307-9406
●
6
FILTER; ACL
EXC. TURBOCHARGER(K51)
5-14215-033-0
01
1
9407-
●
28
BOLT; WING,ACL
9-14217-090-0
01
1
9307-
●
44
BOLT; ACL
M10X65
0-10806-065-0
04
1
9307-
●
44
BOLT; ACL
M10X65
5-09030-024-1
03
1
9307-9406
●
44
BOLT; ACL
EXC. TURBOCHARGER(K51) M10X65
5-09030-024-1
03
1
9407-
●
44
BOLT; ACL
LONG(WFB5VF) TURBOCHARGER(K51) M10X80
0-10806-080-0
03
1
9407-
●
45
WASHER; LK,ACL
ID=10.2
9-09150-510-0
04
1
9307-
●
45
WASHER; LK,ACL
LONG(WFB5VF) TURBOCHARGER(K51) ID=10.2
9-09150-510-0
03
1
9407-
●
46
COLLAR; MTG RUBBER,ACL
LONG(WFB5VF) TURBOCHARGER(K51)
8-94313-327-0
03
1
9407-
●
47
CUSHION; ACL
LONG(WFB5VF) TURBOCHARGER(K51)
8-94434-917-0
03
1
9407-
●
90
CUP; ACL
8-94400-283-0
01
1
9307-9406
●
90
CUP; ACL
EXC. TURBOCHARGER(K51)
8-94400-283-0
01
1
9407-
●
90
CUP; ACL
LONG(WFB5VF) TURBOCHARGER(K51)
8-94366-533-0
01
1
9407-
●
94
VALVE; VACUATOR
LONG(WFB5VF) TURBOCHARGER(K51)
8-94439-205-0
01
1
9407-
●
216
BOLT; ACL TO SILENCER
LONG(WFB5VF) TURBOCHARGER(K51)
8-97031-033-0
06
1
9407-
●
217
WASHER; ACL TO SILENCER
LONG(WFB5VF) TURBOCHARGER(K51)
9-14219-005-0
06
1
9407-
●
218
RESONATOR; ACL
LONG(WFB5VF) TURBOCHARGER(K51) (A)
8-97031-031-0
01
1
9407-
●
218
RESONATOR; ACL
LONG(WFB5VF) TURBOCHARGER(K51) (B)
8-97031-032-0
01
1
9407-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
