2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#3575) — 99 parça

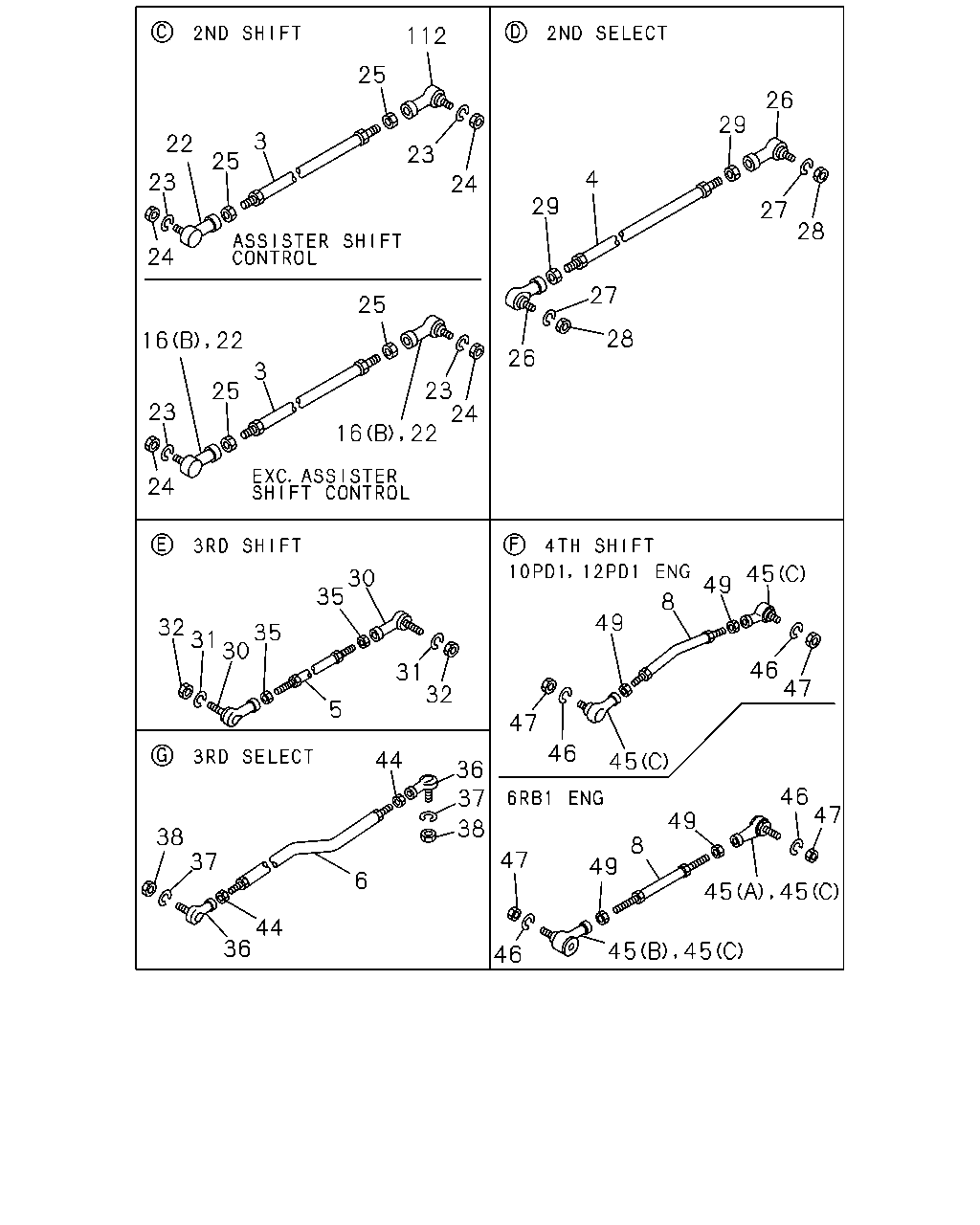

112 25 26 29 3 22 23 25 4 23 24 29 27 28 4 27 25 28 26 3 23 24 25 23 4 45 30 35 49 8 49 32 35 31 30 46 47 31 32 5 47 46 44 45 36 37 46 47 49 38 38 37 8 47 49 6 45 45 44 36 46 16 22 22 16 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	ROD; LINK,2ND SHIFT 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 C ENG(43L) L=595	1-33652-568-0	01	1	9002-	●	●	●	●	●	●	●
3	ROD; LINK,2ND SHIFT 6RB1TC-N ENG(29L) L=588	1-33652-567-1	01	1	9012-					●
4	ROD; LINK,2ND SELECT 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 C ENG(43L) L=585	1-33652-320-0	01	1	9002-	●	●	●	●	●	●	●
4	ROD; LINK,2ND SELECT 6RB1TC-N ENG(29L) L=668	1-33652-339-2	01	1	9012-					●
5	ROD; LINK,3RD SHIFT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) L=1300	1-33652-342-0	01	1	9002-	●		●	●	●	●	●
5	ROD; LINK,3RD SHIFT 10PD1 STD ENG(40L) L=855	1-33652-321-0	01	1	9002-	●			●		●
5	ROD; LINK,3RD SHIFT 12PD1 C ENG(43L) L=950	1-33652-325-0	01	1	9307-				●
6	ROD; LINK,3RD SELECT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> L=1408	1-33652-606-1	01	1	9002-				●		●
6	ROD; LINK,3RD SELECT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> L=1409	1-33652-444-0	01	1	9002-				●		●
6	ROD; LINK,3RD SELECT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> L=1576	1-33652-543-0	01	1	9002-9304				●	●	●
6	ROD; LINK,3RD SELECT 12PD1 C ENG(43L) L=1502	1-33652-585-1	01	1	9307-				●
6	ROD; LINK,3RD SELECT 6RB1TC-N ENG(29L) ASSISTER SHIFT CONTROL<WX8> L=1570	1-33652-498-1	01	1	9012-9304					●
6	ROD; LINK,3RD SELECT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) L=1570	1-33652-498-1	01	1	9305-				●	●	●
6	ROD; LINK,3RD SELECT 6RB1 STD ENG(07L) L=1635	1-33652-425-2	01	1	9002-	●		●				●
6	ROD; LINK,3RD SELECT 10PD1 STD ENG(40L) L=1440	1-33652-340-0	01	1	9002-	●	●
8	ROD; LINK,4TH SHIFT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> L=330	1-33652-405-0	01	1	9002-9103				●		●
8	ROD; LINK,4TH SHIFT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> L=502	1-33652-445-1	01	1	9002-9501				●		●
8	ROD; LINK,4TH SHIFT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	9502-				●		●
8	ROD; LINK,4TH SHIFT 10PD1 STD ENG(40L),12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> L=320	1-33652-648-1	01	1	9104-				●		●
8	ROD; LINK,4TH SHIFT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> L=277	1-33652-398-2	01	1	9002-				●	●	●
8	ROD; LINK,4TH SHIFT 6RB1TC-N ENG(29L) ASSISTER SHIFT CONTROL<WX8> L=418	1-33652-576-0	01	1	9012-9101					●
8	ROD; LINK,4TH SHIFT 6RB1TC-N ENG(29L) ASSISTER SHIFT CONTROL<WX8> L=110	1-09765-230-1	01	1	9102-9501					●
8	ROD; LINK,4TH SHIFT 6RB1TC-N ENG(29L) ASSISTER SHIFT CONTROL<WX8> L=90	1-09765-250-1	01	1	9502-					●
8	ROD; LINK,4TH SHIFT 6RB1 STD ENG(07L) L=303	1-33652-433-1	01	1	9002-	●		●				●
8	ROD; LINK,4TH SHIFT 10PD1 STD ENG(40L) L=530	1-33652-394-1	01	1	9002-	●	●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-	●	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-09760-078-0	02	1	9002-	●	●	●	●	●	●	●
22	JOINT; BALL,SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8>	1-09760-036-1	01	1	9002-				●		●
22	JOINT; BALL,SCREW,LINK ROD 6RB1TC-N ENG(29L) ASSISTER SHIFT CONTROL<WX8>	1-09760-082-0	01	1	9012-					●
22	JOINT; BALL,SCREW,LINK ROD 6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-09760-082-0	02	1	9012-					●
23	WASHER; LK,2ND LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10	9-09110-410-0	02	1	9002-9301	●	●	●	●	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●	●	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 C ENG(43L) M10	9-09111-410-0	02	1	9002-	●	●	●	●	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 6RB1TC-N ENG(29L) M12	9-99111-412-0	02	1	9012-					●
26	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-09760-038-1	02	1	9002-	●	●	●	●	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1TC-N ENG(29L)	1-09760-039-1	02	1	9012-					●
27	WASHER; LK,2ND LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●	●	●	●
28	NUT; 2ND LINK ROD	9-09110-508-0	02	1	9002-9301	●	●	●	●	●	●	●
28	NUT; 2ND LINK ROD	1-09440-049-0	02	1	9302-	●	●	●	●	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09111-408-0	02	1	9002-	●	●	●	●	●	●	●
29	NUT; LK,RIGHT SCREW,LINK ROD 6RB1TC-N ENG(29L) M10	9-09111-410-0	02	1	9012-					●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-078-0	02	1	9002-	●	●	●	●	●	●	●
31	WASHER; LK,3RD LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●	●	●	●
32	NUT; 3RD LINK ROD M10	9-09110-410-0	02	1	9002-9301	●	●	●	●	●	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●	●	●	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●	●	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-09760-038-1	02	1	9002-				●		●
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-038-1	02	1	9002-	●	●	●				●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	1-09760-039-1	02	1	9002-				●	●	●
37	WASHER; LK,3RD LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●	●	●	●
38	NUT; 3RD LINK ROD	9-09110-508-0	02	1	9002-9301	●	●	●	●	●	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L),12PD1 C ENG(43L) M8	9-09111-408-0	02	1	9002-				●		●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-	●	●	●				●
44	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M10	9-09111-410-0	02	1	9002-				●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L),12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> (C)	1-09760-082-0	02	1	9002-9501				●		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C)	1-09760-116-0	02	1	9502-				●		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8> 6RB1TC-N ENG(29L) (C)	1-09760-116-0	02	1	9502-					●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (A),(B)	1-09760-078-0	02	1	9002-9501				●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (C)	1-09760-078-0	02	1	9002-9501		●		●		●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (C)	1-09760-078-0	02	1	9502-				●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L) (C)	1-09760-078-0	02	1	9502-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L) (A)	1-09760-078-0	01	1	9002-	●		●				●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L) (B)	1-33660-157-2	01	1	9002-	●		●				●
46	WASHER; LK,4TH LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●	●	●	●
47	NUT; 4TH LINK ROD M10	9-09110-410-0	02	1	9002-9301	●	●	●	●	●	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●	●	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L),12PD1 C ENG(43L) ASSISTER SHIFT CONTROL<WX8> M12	9-99111-412-0	02	1	9002-9501				●		●
49	NUT; LK,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L),12PD1 C ENG(43L) M12	9-99111-412-0	02	1	9502-				●		●
49	NUT; LK,RIGHT SCREW,LINK ROD 6RB1TC-N ENG(29L) ASSISTER SHIFT CONTROL<WX8> M12	9-99111-412-0	02	1	9502-					●
49	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M10	9-09111-410-0	02	1	9002-9501	●		●	●	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	9002-9501	●	●		●		●
49	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	9502-				●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RB1TC-N ENG(29L),10PD1 STDENG(40L) M10	9-09111-410-0	02	1	9502-	●
49	NUT; LK,RIGHT SCREW,LINK ROD 10PD1 STD ENG(40L) M10	9-09111-410-0	02	1	9502-		●
49	NUT; LK,RIGHT SCREW,LINK ROD 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M10	9-09111-410-0	02	1	9502-							●
112	JOINT; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33660-157-2	01	1	9002-				●		●
112	JOINT; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33660-919-2	01	1	9012-					●

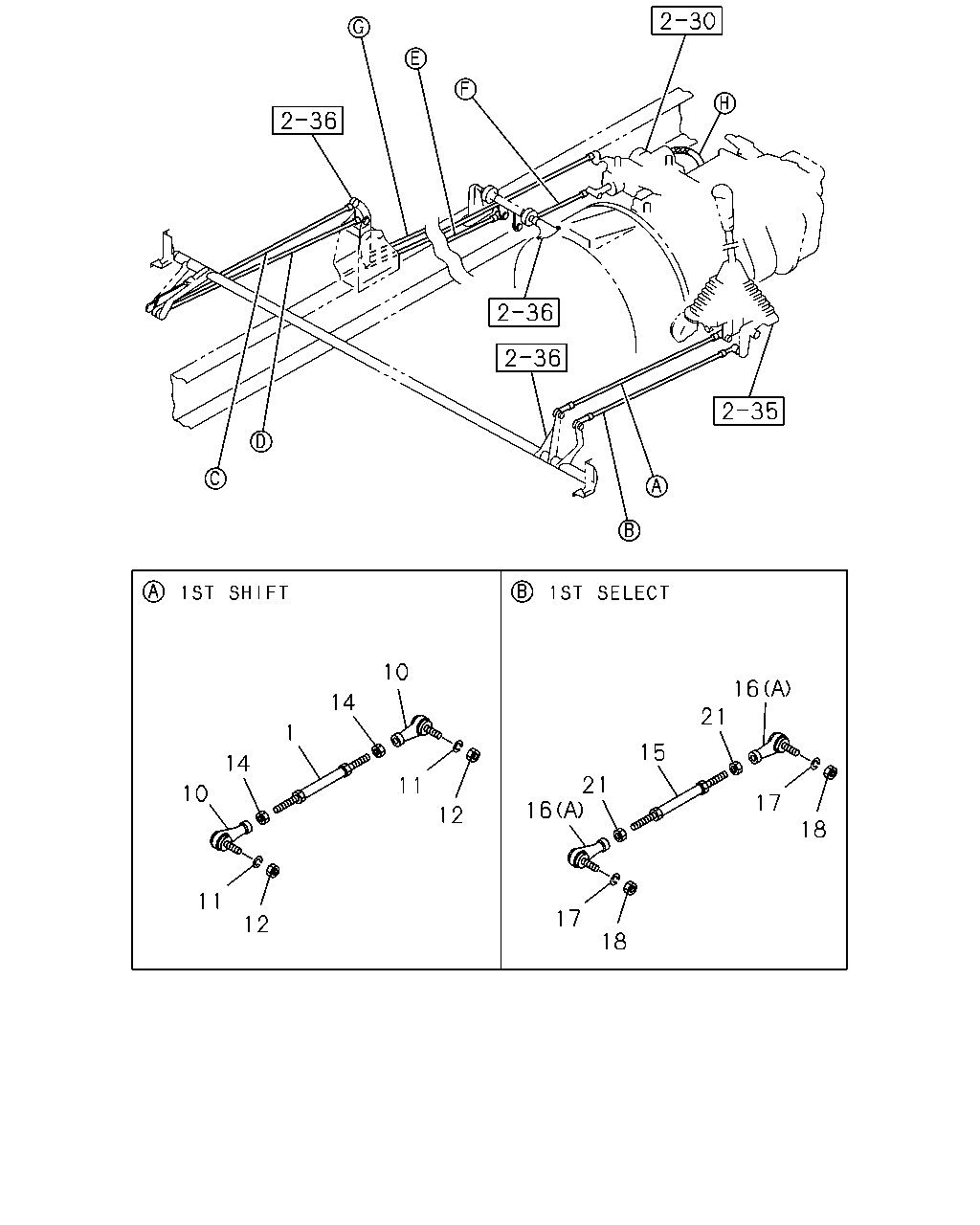

10 16 14 21 1 15 14 21 11 10 17 16 12 18 11 17 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	ROD; LINK,1ST SHIFT L=498	1-33652-269-1	01	1	9002-	●	●	●	●	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-078-0	02	1	9002-	●	●	●	●	●	●	●
11	WASHER; LK,1ST LINK ROD,SHIFT ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10	9-09110-510-0	02	1	9002-9301	●	●	●	●	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●	●	●	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-	●	●	●	●	●	●	●
15	ROD; LINK 1ST SHIFT L=513	1-33652-318-1	01	1	9002-	●	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-	●	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-09760-078-0	02	1	9002-	●	●	●	●	●	●	●
17	WASHER; LK,1ST LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301	●	●	●	●	●	●	●
18	NUT; 1ST LINK ROD M8	9-09110-508-0	02	1	9002-9301	●	●	●	●	●	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-	●	●	●	●	●	●	●

57 39 39 58 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F
39	GASKET; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●	●
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8>	1-09660-137-0	01	1	9002-9302	●	●	●
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=340	0-07150-340-0	01	1	9002-9103	●	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=360	0-07150-360-0	01	1	9104-	●	●	●
60	CLIP; FLEX HOSE ASSISTER SHIFT CONTROL<WX8>	1-09709-183-1	01	1	9002-9103	●	●	●
60	CLIP; FLEX HOSE ASSISTER SHIFT CONTROL<WX8>	8-94178-797-0	01	1	9104-9204	●	●	●
