0-85 — AUTO TIMER; INJECTION PUMP (#35746) — 25 parça

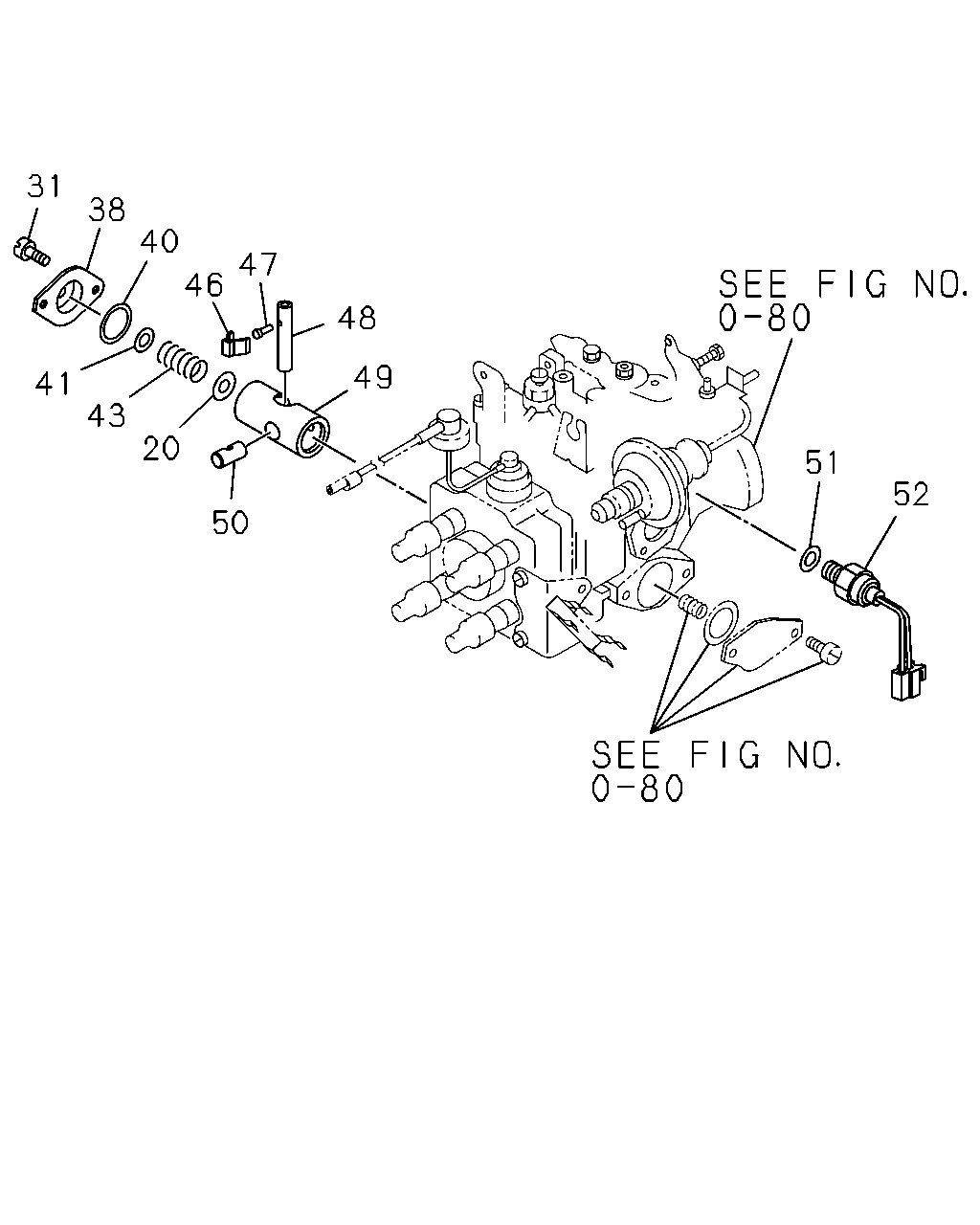

çizim 66043
31 38 40 47 46 48 49 41 43 20 51 52 50
BalonParca AdiParca NoAdetTipApplied Date
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-495-0 01 1 -
31 SCREW; TIMER COVER,INJ PUMP
BLACK ASM PART: C = 8-94386-823-0 		8-94312-276-0 02 1 -
31 SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, D = 8-97106-834-0 		8-94313-276-0 02 1 -
38 COVER; TIMER,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94473-120-0 01 1 -
40 GASKET; TIMER COVER,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-491-0 01 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=2.40 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94121-620-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-495-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-496-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-497-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-498-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.20 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-499-0 AR 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.7 EFFECT TURN=5.1 ASM PART: D = 8-97106-834-0 		8-94313-200-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.5 EFFECT TURN=4.9 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0 		8-94313-227-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.6 EFFECT TURN=5.4 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94313-241-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=38.4 K=2.05 KG/MM ASM PART: D = 8-97106-834-0 		8-94313-680-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.4 EFFECT TURN=5.2 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0 		8-94473-119-0 01 1 -
46 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-488-0 01 1 -
47 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-487-0 01 1 -
48 PIN; ROLLER HOLDER,TIMER,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0 		8-94227-486-0 01 1 -
49 PISTON; TIMER,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0 		8-94111-657-0 01 1 -
49 PISTON; TIMER,INJ PUMP
ASM PART: D = 8-97106-834-0 		8-94317-492-0 01 1 -
50 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0 		8-94227-493-0 01 1 -
50 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: D = 8-97106-834-0 		8-94433-765-0 01 1 -
51 GASKET; TIMING SENSOR,INJ PUMP
ASM PART: D = 8-97106-834-0 		8-94227-671-0 01 1 -
52 SENSOR; TIMING,TACHOMETER,INJ PUMP
ASM PART: D = 8-97106-834-0 		8-97039-804-0 01 1 -
