0-81 — GOVERNOR; INJECTION PUMP (#35742) — 253 parça

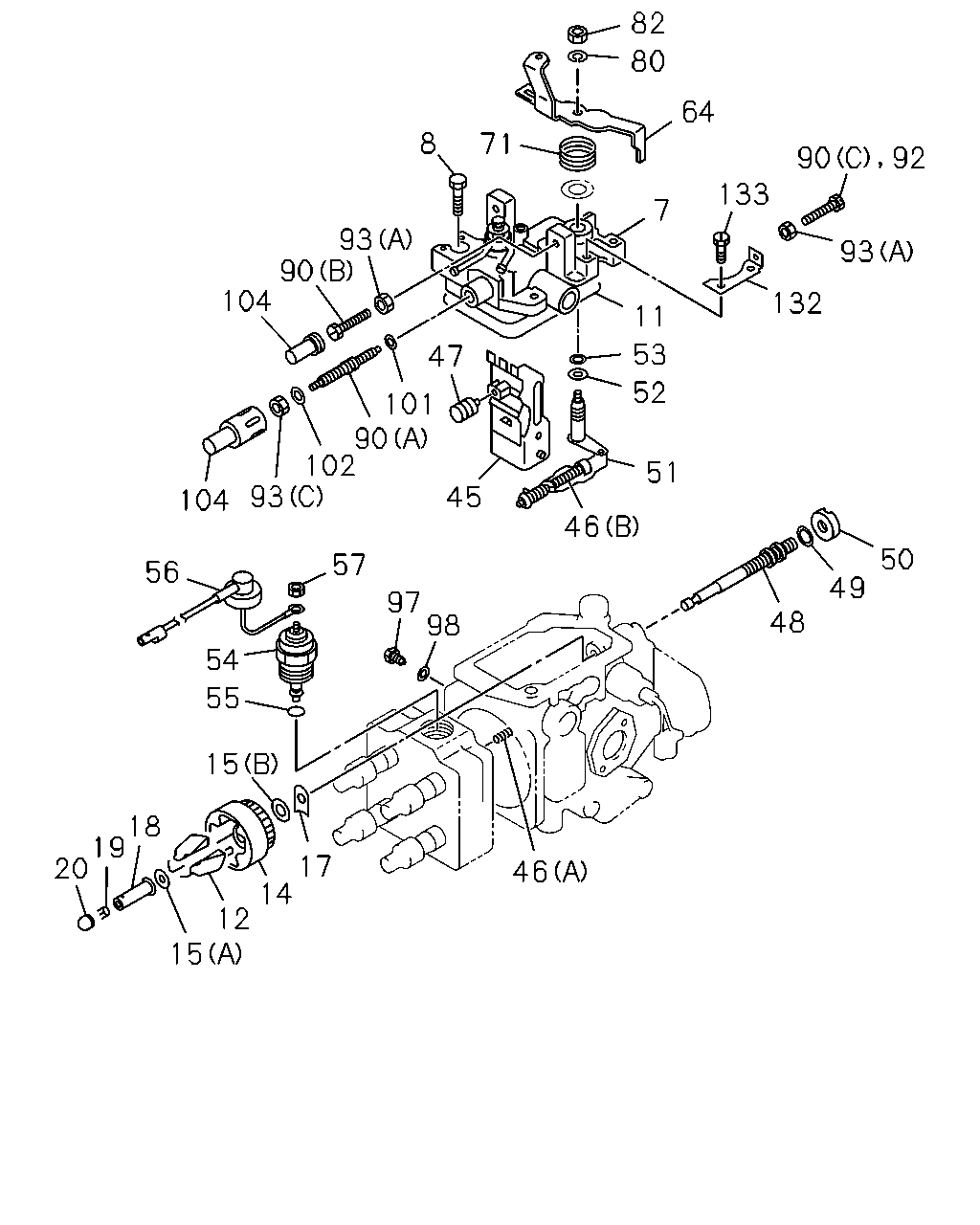

82 80 64 8 71 90 92 133 7 132 93 90 104 93 11 53 52 47 45 101 90 102 93 51 104 46 50 49 57 56 97 98 48 54 55 15 18 19 20 46 17 14 12 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94343-301-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94227-636-0	04	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94227-599-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-613-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-614-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94231-126-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-615-0	01	1	-
18	SLEEVE; GOV ASM PART: D = 8-97106-834-0	8-97018-707-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-616-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: D = 8-97106-834-0	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=1.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-617-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=1.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-618-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-619-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-620-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-621-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-622-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-623-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-624-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-625-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-626-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-627-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-628-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-629-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-630-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-631-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-632-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-633-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-634-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: D = 8-97106-834-0	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: D = 8-97106-834-0	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: D = 8-97106-834-0	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: D = 8-97106-834-0	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: D = 8-97106-834-0	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: D = 8-97106-834-0	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: D = 8-97106-834-0	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: D = 8-97106-834-0	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: D = 8-97106-834-0	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: D = 8-97106-834-0	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: D = 8-97106-834-0	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: D = 8-97106-834-0	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: D = 8-97106-834-0	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: D = 8-97106-834-0	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: D = 8-97106-834-0	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: D = 8-97106-834-0	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: D = 8-97106-834-0	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=1.80 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-223-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-224-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-225-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-226-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-227-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-228-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-229-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94433-230-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-231-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-232-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-233-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-234-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-235-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-236-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-237-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-238-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-239-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-97016-232-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: D = 8-97106-834-0	8-97091-754-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94174-816-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94473-128-0	02	1	-
47	PIN; RET ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94313-234-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94248-002-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: D = 8-97106-834-0	8-94473-130-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-606-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94174-807-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 8-97106-834-0	8-97091-750-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-590-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-585-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94242-275-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94239-373-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: D = 8-97106-834-0	8-94336-947-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94476-219-0	01	1	-
57	NUT; VLV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94473-135-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 766 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94313-232-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 767 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94313-233-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 533 ASM PART: C = 8-94386-823-0	8-94442-181-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 534 ASM PART: C = 8-94386-823-0	8-94442-182-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 056 ASM PART: D = 8-97106-834-0	8-97091-751-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 057 ASM PART: D = 8-97106-834-0	8-97091-752-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94132-785-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: D = 8-97106-834-0	8-97091-755-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: D = 8-97106-834-0	8-97091-756-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: D = 8-97106-834-0	8-94322-732-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 8-94386-823-0, D = 8-97106-834-0	8-94313-253-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, D = 8-97106-834-0	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: C = 8-94386-823-0	8-94433-782-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: C = 8-94386-823-0	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94426-047-0	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 8-94386-823-0, D = 8-97106-834-0	8-94426-047-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: D = 8-97106-834-0	8-94470-019-0	01	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-601-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-602-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-598-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=16.5 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=18.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=21.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=24.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=27.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-266-0	01	1	-
132	BRACKET; ADJ SCREW,GOV ASM PART: C = 8-94386-823-0	8-94144-511-0	01	1	-
132	BRACKET; ADJ SCREW,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94227-588-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94313-254-0	02	1	-

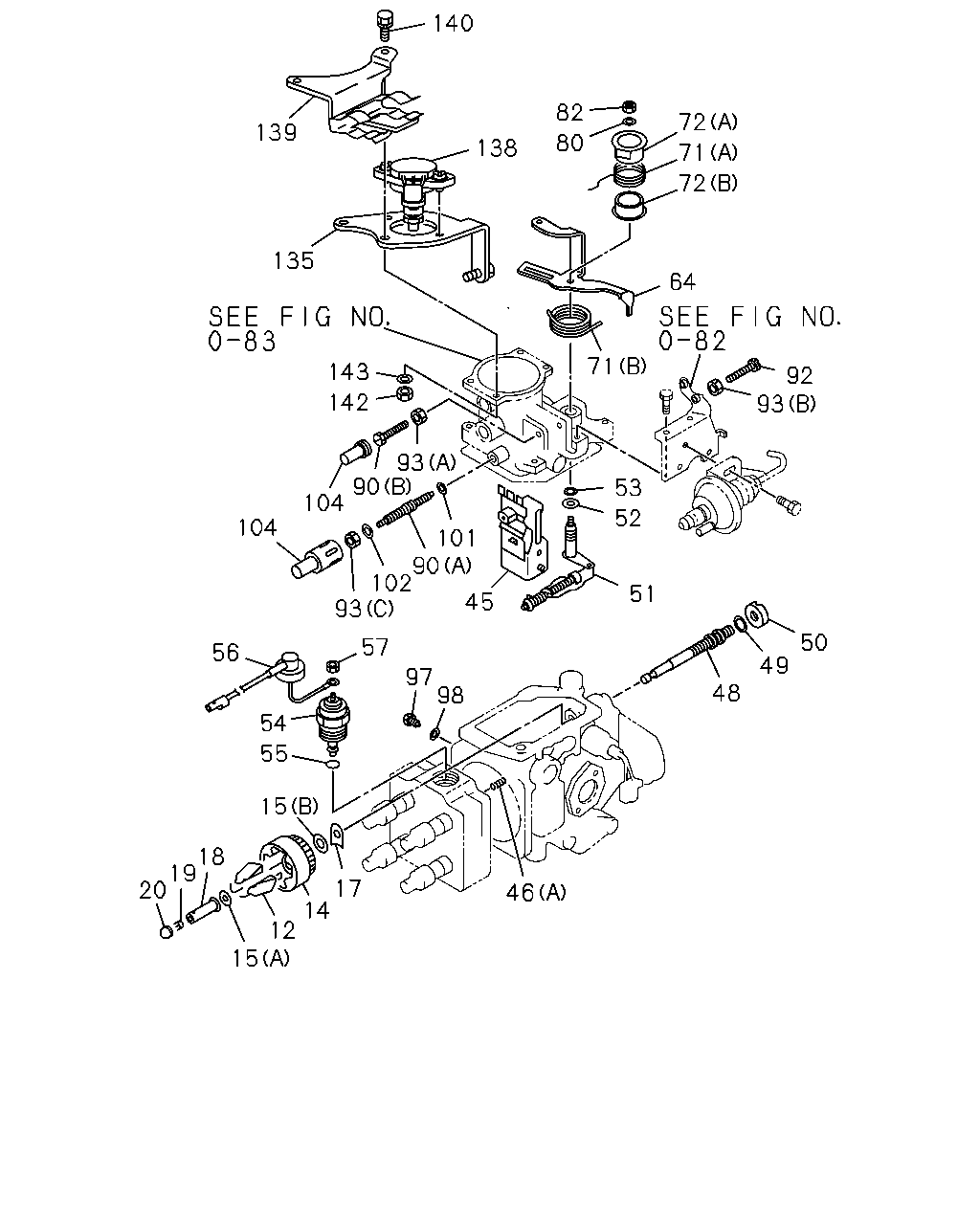

140 82 80 72 71 72 139 138 135 64 71 93 90 104 143 142 92 93 53 52 45 104 101 90 102 93 51 50 49 57 56 97 98 48 54 55 15 18 19 20 46 17 14 12 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-613-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-614-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94231-126-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-615-0	01	1	-
18	SLEEVE; GOV ASM PART: D = 8-97106-834-0	8-97018-707-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-616-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: D = 8-97106-834-0	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=1.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-617-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=1.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-618-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-619-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-620-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-621-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-622-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-623-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-624-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-625-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-626-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-627-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-628-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-629-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-630-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-631-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-632-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-633-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94227-634-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: D = 8-97106-834-0	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: D = 8-97106-834-0	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: D = 8-97106-834-0	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: D = 8-97106-834-0	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: D = 8-97106-834-0	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: D = 8-97106-834-0	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: D = 8-97106-834-0	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: D = 8-97106-834-0	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: D = 8-97106-834-0	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: D = 8-97106-834-0	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: D = 8-97106-834-0	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: D = 8-97106-834-0	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: D = 8-97106-834-0	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: D = 8-97106-834-0	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: D = 8-97106-834-0	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: D = 8-97106-834-0	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: D = 8-97106-834-0	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=1.80 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-223-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-224-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-225-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-226-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-227-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-228-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-229-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94433-230-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-231-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-232-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-233-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-234-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-235-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-236-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-237-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-238-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94433-239-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-97016-232-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: D = 8-97106-834-0	8-97091-754-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94174-816-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94473-128-0	02	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94248-002-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: D = 8-97106-834-0	8-94473-130-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-606-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94174-807-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 8-97106-834-0	8-97091-750-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-590-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-585-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94242-275-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94239-373-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: D = 8-97106-834-0	8-94336-947-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94476-219-0	01	1	-
57	NUT; VLV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94473-135-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 766 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94313-232-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 767 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94313-233-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 533 ASM PART: C = 8-94386-823-0	8-94442-181-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 534 ASM PART: C = 8-94386-823-0	8-94442-182-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 056 ASM PART: D = 8-97106-834-0	8-97091-751-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 057 ASM PART: D = 8-97106-834-0	8-97091-752-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	8-94132-785-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: D = 8-97106-834-0	8-97091-755-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: D = 8-97106-834-0	8-97091-756-0	01	1	-
72	SEAT; SPRING,CONT LEVER,GOV (A) ASM PART: D = 8-97106-834-0	8-94389-432-0	01	1	-
72	SEAT; SPRING,CONT LEVER,GOV (B) ASM PART: D = 8-97106-834-0	8-94389-434-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: D = 8-97106-834-0	8-94322-732-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 8-94386-823-0, D = 8-97106-834-0	8-94313-253-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, D = 8-97106-834-0	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: C = 8-94386-823-0	8-94433-782-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: C = 8-94386-823-0	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-94386-820-0, B = 8-94386-821-0	8-94426-047-0	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 8-94386-823-0, D = 8-97106-834-0	8-94426-047-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: D = 8-97106-834-0	8-94470-019-0	01	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-601-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-602-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-598-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=16.5 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=18.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=21.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=24.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW L=27.0 ASM PART: A = 8-94386-820-0, B = 8-94386-821-0, C = 8-94386-823-0, D = 8-97106-834-0	8-94316-266-0	01	1	-
135	BRACKET; POTENTIO METER ASM PART: D = 8-97106-834-0	8-97091-749-0	01	1	-
138	POTENTIO METER ASM PART: D = 8-97106-834-0	8-97091-758-0	01	1	-
139	BRACKET; INJ PUMP ASM PART: D = 8-97106-834-0	8-94343-304-0	01	1	-
140	BOLT; BRKT,INJ PUMP ASM PART: D = 8-97106-834-0	8-94313-264-0	01	1	-
142	NUT; BRKT M6 ASM PART: D = 8-97106-834-0	9-09110-406-0	01	1	-
143	WASHER; BRKT ID=6.1 ASM PART: D = 8-97106-834-0	9-09150-506-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
