2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#3574) — 133 parça

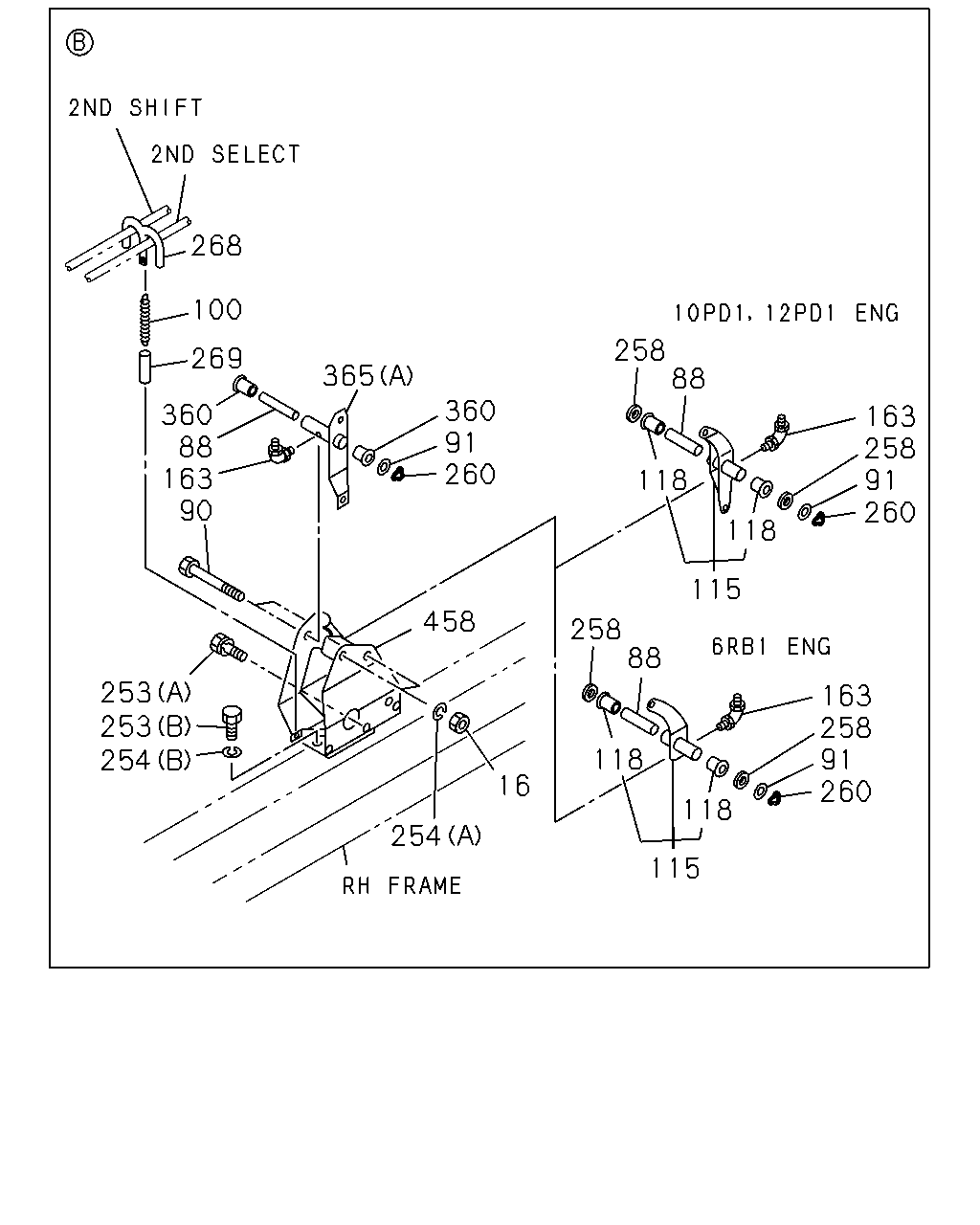

çizim 4612
268 100 258 88 269 365 360 91 260 360 88 163 90 163 258 91 260 118 118 115 458 258 88 253 253 254 163 258 91 260 118 118 16 254 115
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 NUT; RELAY LEVER
M14 		9-99111-514-0 02 1 9002- ● ● ● ● ● ● ●
88 COLLAR; RELAY LEVER 1-33659-074-0 02 1 9002- ● ● ● ● ● ● ●
90 SHAFT 1-33619-125-0 02 1 9002- ● ● ● ● ● ● ●
91 SHIM; RELAY LEVER 1-33659-092-0 02 1 9002- ● ● ● ● ● ● ●
100 SPRING
6RB1TC-N ENG(29L) 		1-09583-218-0 01 1 9012- ●
115 LEVER; RELAY,2ND SHIFT
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) 		1-33651-505-1 01 1 9002- ● ● ● ● ● ●
115 LEVER; RELAY,2ND SHIFT
10PD1 STD ENG(40L),12PD1 C ENG(43L) 		1-33651-504-1 01 1 9002- ● ● ● ●
118 BUSHING; RELAY LEVER
ID=22 OD=25 L=18 		1-09330-050-0 02 1 9002- ● ● ● ● ● ● ●
163 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 02 1 9002- ● ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
6RB1 STD ENG(07L) (B) M14X40 		9-92051-440-0 02 1 9002-9005 ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) M14X40 		0-20801-440-0 02 1 9006- ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M10X35 W/LK&PL WASHER 		9-01971-035-0 02 1 9002-9002 ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9003-9306 ● ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9307- ● ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
10PD1 STD ENG(40L) (B) M14X45 		9-92051-445-0 02 1 9002-9005 ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
10PD1 STD ENG(40L) (B) M14X45 		0-20801-445-0 02 1 9006- ● ● ● ●
254 WASHER; LK,RELAY LEVER
(B) ID=14.2 		9-09150-514-0 02 1 9002- ● ● ● ● ● ● ●
254 WASHER; LK,RELAY LEVER
(A) ID=14.2 		9-09150-614-0 02 1 9002- ● ● ● ● ● ● ●
258 WASHER; RELAY LEVER 1-09509-041-0 02 1 9002- ● ● ● ● ● ● ●
260 WASHER; WAVED 1-33659-093-0 02 1 9002- ● ● ● ● ● ● ●
268 BRACKET; LINK ROD
6RB1TC-N ENG(29L) 		1-33657-216-0 01 1 9012- ●
269 COVER; SPR
6RB1TC-N ENG(29L) 		1-15669-002-0 01 1 9012- ●
360 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9002- ● ● ● ● ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-249-4 01 1 9002- ● ● ●
365 LEVER; RELAY,SELECT
10PD1 STD ENG(40L) (A) 		1-33651-249-4 01 1 9002- ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-328-2 01 1 9002- ● ● ● ● ● ● ●
365 LEVER; RELAY,SELECT
6RB1 STD ENG(07L) (A) 		1-33651-295-1 01 1 9002- ● ● ●
458 BRACKET; 2ND RELAY LEVER
6RB1 STD ENG(07L),10PD1 STD ENG(40L),12PD1 C ENG(43L) 		1-33657-210-4 01 1 9002- ● ● ●
458 BRACKET; 2ND RELAY LEVER
10PD1 STD ENG(40L) 		1-33657-210-4 01 1 9002- ● ●
458 BRACKET; 2ND RELAY LEVER
6RB1TC-N ENG(29L) 		1-33657-215-5 01 1 9012- ●
458 BRACKET; 2ND RELAY LEVER
6RB1 STD ENG(07L) 		1-33657-221-5 01 1 9002- ● ● ●

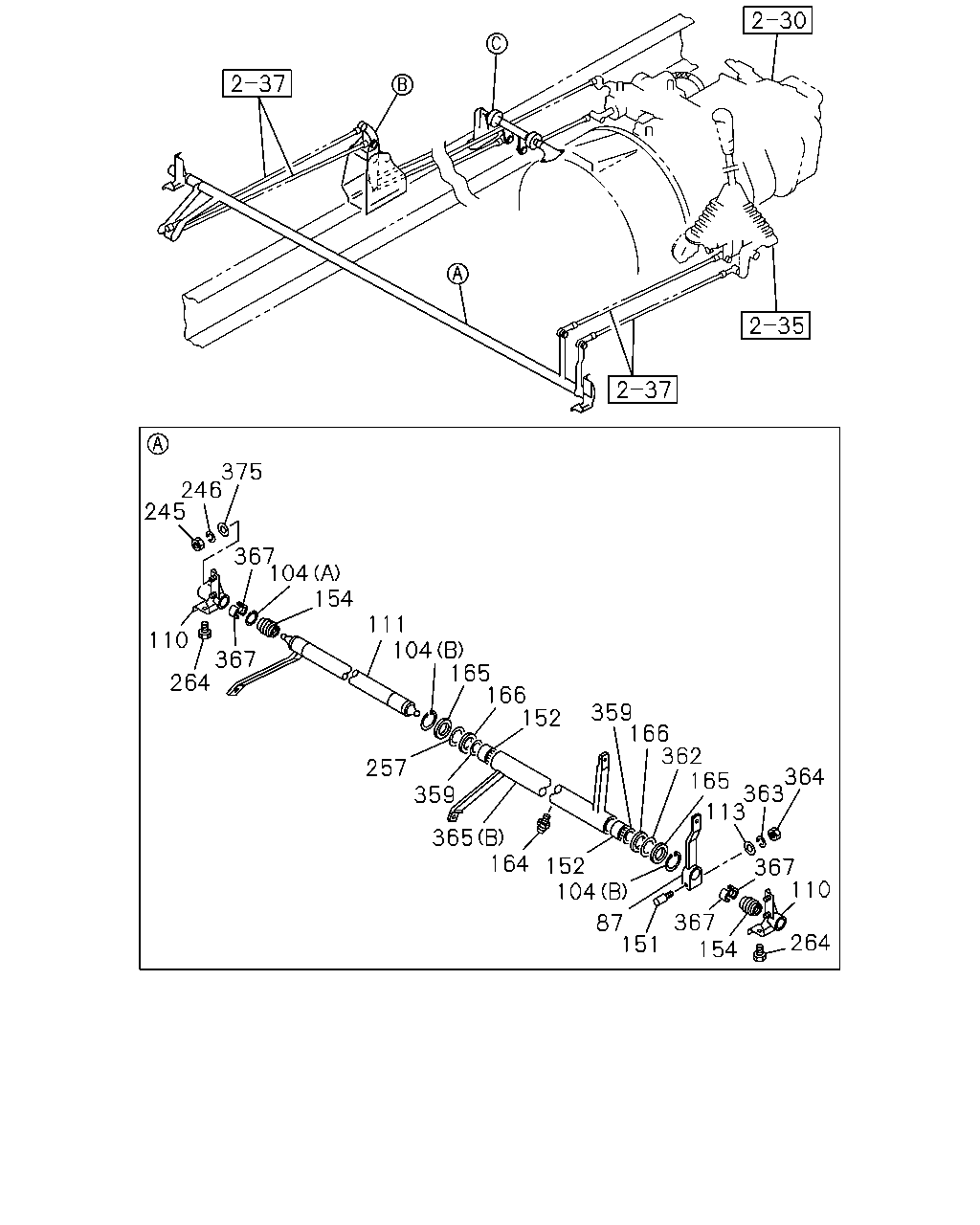

çizim 4613
375 246 245 367 104 154 111 104 165 166 152 110 367 264 359 166 362 165 257 359 364 363 113 365 164 367 110 152 104 367 154 87 151 264
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
87 LEVER; RELAY,SELECT 1-33651-327-1 01 1 9002- ● ● ● ● ● ● ●
104 RING; SNAP
(B) ID=32.2 		9-09180-035-0 02 1 9002- ● ● ● ● ● ● ●
104 RING; SNAP
(A) OD=23.5 		9-09180-122-0 01 1 9002- ● ● ● ● ● ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-261-3 01 1 9002- ● ● ● ● ● ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-383-0 01 1 9002- ● ● ● ● ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33659-103-2 01 1 9002- ● ● ● ● ● ● ●
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9002- ● ● ● ● ● ● ●
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 9002- ● ● ● ● ● ● ●
152 BEARING; NEEDLE,RELAY LEVER 1-09811-328-0 02 1 9002- ● ● ● ● ● ● ●
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 9002- ● ● ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9002- ● ● ● ● ● ● ●
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 9002- ● ● ● ● ● ● ●
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 9002- ● ● ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
M8 		9-09110-508-0 04 1 9002- ● ● ● ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=8.2 		9-09150-508-0 04 1 9002- ● ● ● ● ● ● ●
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 9002- ● ● ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		9-01970-825-0 02 1 9002-9005 ● ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9006-9306 ● ● ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9307- ● ● ● ● ● ●
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 9002- ● ● ● ● ● ● ●
362 SHIM 1-09503-172-0 AR 1 9002- ● ● ● ● ● ● ●
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 9002- ● ● ● ● ● ● ●
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 9002- ● ● ● ● ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-249-4 01 1 9002- ● ● ●
365 LEVER; RELAY,SELECT
10PD1 STD ENG(40L) (A) 		1-33651-249-4 01 1 9002- ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-328-2 01 1 9002- ● ● ● ● ● ● ●
365 LEVER; RELAY,SELECT
6RB1 STD ENG(07L) (A) 		1-33651-295-1 01 1 9002- ● ● ●
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 9002- ● ● ● ● ● ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=8.4 		9-09160-508-0 04 1 9002- ● ● ● ● ● ● ●

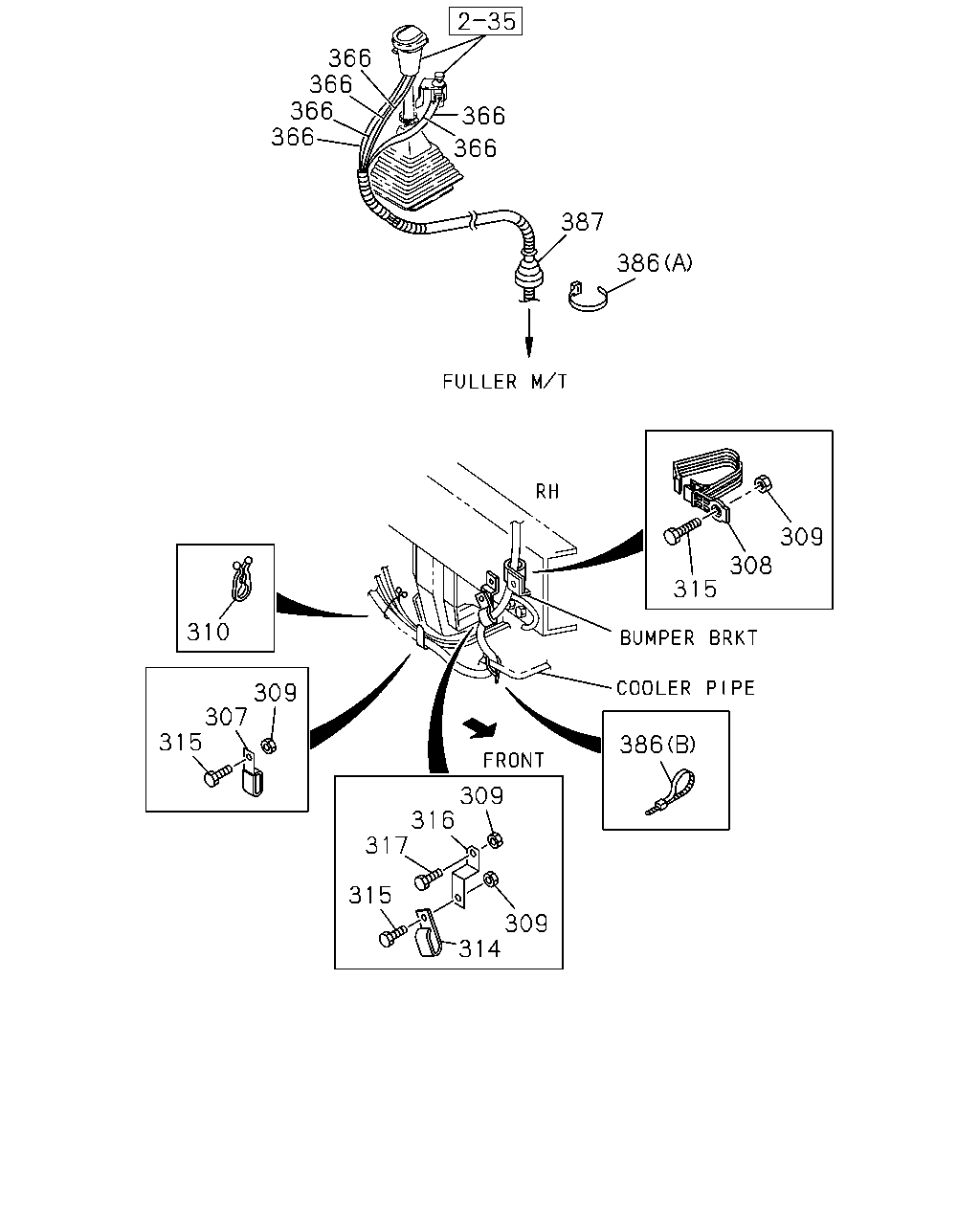

çizim 35507
366 366 366 366 366 366 387 386 309 308 315 310 309 307 315 386 309 316 317 315 309 314
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
307 CLIP; PIPE BRKT
ID=16 L=20 		9-09525-536-0 01 1 9002-9007 ● ● ●
308 CLIP; PIPE
REINFORCEMENT BUMPER<VG7> 		1-09700-780-1 01 1 9002- ● ● ● ●
308 CLIP; PIPE
EXC. REINFORCEMENT BUMPER<VG7> 		1-09700-772-2 01 1 9002- ● ● ● ●
309 NUT; PIPE CLIP
M8 		9-09110-408-0 02 1 9002-9007 ● ● ●
309 NUT; PIPE CLIP
REINFORCEMENT BUMPER<VG7> M8 		9-09110-408-0 02 1 9002-9007 ● ● ●
309 NUT; PIPE CLIP
EXC. REINFORCEMENT BUMPER<VG7> M8 		9-09110-408-0 01 1 9002-9007 ● ● ●
309 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9008- ● ● ● ●
309 NUT; PIPE CLIP
EXC. REINFORCEMENT BUMPER<VG7> M8 		9-09110-408-0 01 1 9008- ● ● ● ●
309 NUT; PIPE CLIP
REINFORCEMENT BUMPER<VG7> M8 		9-09110-408-0 02 1 9008- ● ● ● ●
310 CLIP; TUBE
6RB1 STD ENG(07L) ID=13.5 & 11 		1-09709-123-0 02 1 9002-9005 ● ● ●
310 CLIP; TUBE
ID=13.5 & 11 		1-09709-123-0 02 1 9006-9007 ● ● ●
314 CLIP; PIPE,UNDER MBR
ID=19.5X2 L=24.5 		9-09917-356-0 01 1 9002- ● ● ● ●
315 BOLT; PIPE CLIP
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9002-9007 ● ● ●
315 BOLT; PIPE CLIP
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204 ● ● ● ●
315 BOLT; PIPE CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302 ● ● ● ●
315 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ● ● ●
315 BOLT; PIPE CLIP
M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9307- ● ● ● ●
315 BOLT; PIPE CLIP
REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9002-9204 ● ● ● ●
315 BOLT; PIPE CLIP
REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205- ● ● ● ●
315 BOLT; PIPE CLIP
EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK&PL WASHER 		9-01960-825-0 01 1 9002-9204 ● ● ● ●
315 BOLT; PIPE CLIP
M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9205-9306 ● ● ● ●
316 BRACKET; CLIP 1-47465-449-1 01 1 9002- ● ● ● ●
317 BOLT; BRKT,SIDE MBR
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9204 ● ● ● ●
317 BOLT; BRKT,SIDE MBR
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ● ● ●
317 BOLT; BRKT,SIDE MBR
M8X30 FLANGE 		0-28080-830-0 01 1 9303- ● ● ● ●
366 TUBE; NYLON,FULLER CONT
3/8" TUBE SERVICID BY L=30000 		1-09369-315-0 AR 1 9002-9306 ● ● ● ●
366 TUBE; NYLON,FULLER CONT
L=5500 RED 		1-33619-359-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
L=5500 BLACK 		1-33619-369-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
L=6050 BLUE 		1-33619-377-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
L=5500 GREEN 		1-33619-386-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
L=5150 YELLOW 		1-33619-391-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
L=6050 ORANGE 		1-33619-399-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
10PD1 STD ENG(40L) 1/8" TUBE L=5500 WHITE SERVICED BY L=30000 		1-09368-256-0 02 1 9002-9306 ●
366 TUBE; NYLON,FULLER CONT
1/8" TUBE L=5500 WHITE SERVICED BY L=30000 		1-09368-256-0 01 1 9002-9306 ●
366 TUBE; NYLON,FULLER CONT
L=5700 RED 		1-33619-361-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
L=5700 BLACK 		1-33619-370-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
SERVICED BY L=5250 YELLOW 		1-33619-392-0 01 1 9307- ●
366 TUBE; NYLON,FULLER CONT
SERVICED BY L=6250 ORANGE 		1-33619-400-0 01 1 9307- ●
386 CLIP; CONT CABLE & TUBE
(A) L=250 		5-09707-030-0 02 1 9002-9007 ● ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 9002- ● ● ● ●
386 CLIP; CONT CABLE & TUBE
AIR CON MANUAL CONTROL(C60) (B) L=250 		5-09707-030-1 01 1 9002- ● ● ● ●
387 GROMMET; CONT TUBE,FULLER 1-09332-102-0 01 1 9002-9306 ● ● ● ●
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 9307- ● ●
çizim 36010
35 34 46 71 33 162 34 243 71 46 34 242 34 35 46 34 33 162 243 34 46 71 34 71 34 206
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
33 BOLT; BRKT,3RD RELAY LEVER
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M12X45 		9-01911-245-0 02 1 9002-9005 ● ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M12X45 W/LK WASHER 		0-50041-245-0 01 1 9006- ● ● ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
M14X45 		9-92051-445-0 01 1 9002-9005 ● ● ● ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
M14X45 		0-20801-445-0 01 1 9006-9306 ● ● ● ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
6RB1 STD ENG(07L),6RB1TC-N ENG(29L),10PD1 STDENG(40L) M14X45 		0-20801-445-0 01 1 9307- ● ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
10PD1 STD ENG(40L) M10X35 W/LK WASHER 		9-01911-035-0 01 1 9002-9002 ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
10PD1 STD ENG(40L) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9003-9005 ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
10PD1 STD ENG(40L) M10X45 		9-01911-045-0 01 1 9002-9002 ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
10PD1 STD ENG(40L) M10X45 W/LK WASHER 		0-50041-045-0 01 1 9003-9205 ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
10PD1 STD ENG(40L) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9206- ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
12PD1 C ENG(43L) M14X50 		0-10806-450-0 02 1 9307- ●
34 SEAT; BALL,RELAY LEVER 1-33659-118-0 04 1 9002- ● ● ● ● ● ● ●
35 RING; SNAP,RELAY LEVER
OD=23.5 		9-09180-122-0 01 1 9002- ● ● ● ● ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-076-0 02 1 9002-9106 ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-076-0 02 1 9107- ● ● ● ● ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (C) 		1-33657-193-2 01 1 9002- ● ● ● ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (D) 		1-33657-198-1 01 1 9002- ● ● ● ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
10PD1 STD ENG(40L) (A) 		1-33657-223-0 01 1 9002- ● ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
10PD1 STD ENG(40L),12PD1 C ENG(43L) (B) 		1-33657-188-0 01 1 9002- ● ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
12PD1 C ENG(43L) (A) 		1-33657-224-0 01 1 9307- ●
162 LEVER; RELAY
10PD1 STD ENG(40L) 		1-33651-271-2 01 1 9002- ● ●
162 LEVER; RELAY
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) 		1-33651-270-4 01 1 9002- ● ● ●
162 LEVER; RELAY
12PD1 C ENG(43L) 		1-33651-266-2 01 1 9307- ●
162 LEVER; RELAY
6RB1 STD ENG(07L) 		1-33651-338-1 01 1 9107- ● ● ●
162 LEVER; RELAY
10PD1 STD ENG(40L) 		1-33651-403-3 01 1 9006- ● ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
6RB1 STD ENG(07L) M12X30 W/LK WASHER 		9-01911-230-0 02 1 9002-9005 ● ● ● ● ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) M12X30 W/LK WASHER 		0-50041-230-0 02 1 9006- ● ● ● ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
10PD1 STD ENG(40L) M8 FLANGE 		5-09440-005-0 04 1 9002- ● ● ● ●
243 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 01 1 9002- ● ● ● ● ● ● ●
243 WASHER; LK,BRKT
12PD1 C ENG(43L) ID=14.2 		9-09150-614-0 02 1 9307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
