0-70 — CARBURETOR (#35738) — 142 parça

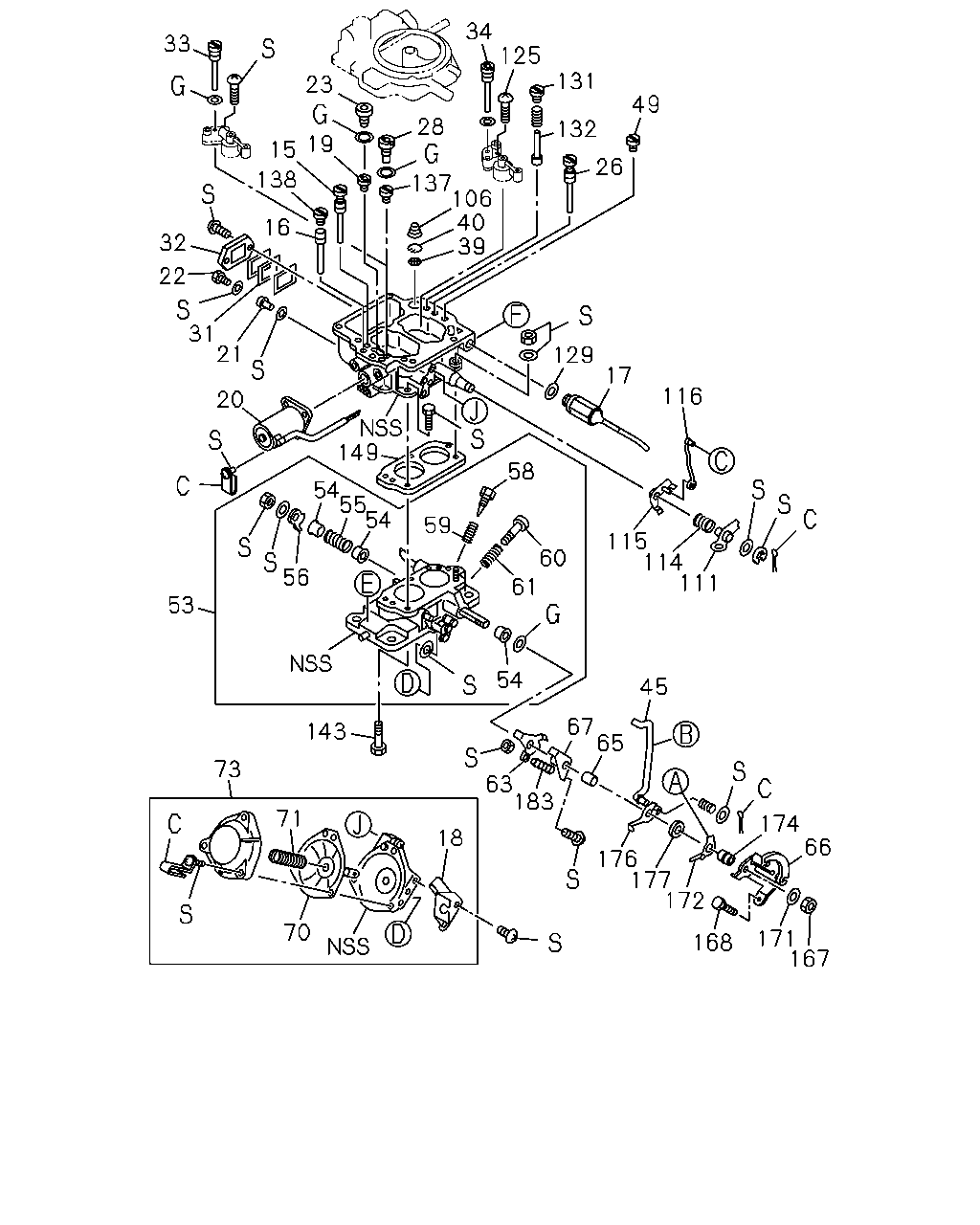

34 125 33 23 15 19 138 131 132 49 28 137 106 40 39 26 16 32 22 31 21 20 129 17 116 149 58 54 55 54 59 115 114 111 56 60 61 53 54 45 67 65 63 183 143 73 174 66 71 18 176 177 172 168 171 167 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	JET ASM; STEP,CARB ASM PART: B = 8-94344-385-1	8-94240-284-0	01	1	-9410
15	JET ASM; STEP,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-284-0	01	1	-9312
15	JET ASM; STEP,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94313-286-0	01	1	9401-
15	JET ASM; STEP,CARB ASM PART: B = 8-94344-385-1	8-94313-286-0	01	1	9411-
16	JET; COASTING,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1	8-94100-955-0	01	1	-
16	JET; COASTING,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94240-303-0	01	1	-
17	VALVE ASM; SOLENOID,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1	8-94440-143-0	01	1	-
17	VALVE ASM; SOLENOID,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94440-144-0	01	1	-
18	HOLDER; THROTTLE WIRE,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-295-0	01	1	-
19	JET; STEP,AIR BLEED,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-285-0	01	1	-9312
19	JET; STEP,AIR BLEED,CARB ASM PART: B = 8-94344-385-1	8-94240-285-0	01	1	-9410
20	ENRICHER COMPL; COASTING,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1	8-94100-954-0	01	1	-
20	ENRICHER COMPL; COASTING,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94240-302-0	01	1	-
21	JET; 2ND MAIN,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	5-15255-014-0	01	1	9401-
21	JET; 2ND MAIN,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94212-057-0	01	1	-9312
21	JET; 2ND MAIN,CARB ASM PART: A = 8-94178-217-1	8-94212-057-0	01	1	-
21	JET; 2ND MAIN,CARB ASM PART: B = 8-94344-385-1	8-94215-389-1	01	1	-
22	PLUG; MAIN PASSAGE,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94221-789-0	01	1	-
23	JET; 1ST MAIN,CARB ASM PART: B = 8-94344-385-1	8-94213-506-0	01	1	-
23	JET; 1ST MAIN,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94218-098-0	01	1	-
26	JET ASM; SLOW,CARB ASM PART: B = 8-94344-385-1	8-94150-360-0	01	1	-
26	JET ASM; SLOW,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94152-716-0	01	1	-
28	JET ASM; POWER,CARB ASM PART: B = 8-94344-385-1	8-94213-510-0	01	1	-
28	JET ASM; POWER,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94218-099-0	01	1	-
31	GLASS; FUEL LEVEL GAUGE,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-291-0	01	1	-
32	COVER; FUEL LEVEL GLASS,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-292-0	01	1	-
33	JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-283-0	01	1	-9312
33	JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: B = 8-94344-385-1	8-94240-283-0	01	1	-9410
33	JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: B = 8-94344-385-1	8-97102-589-0	01	1	9411-
33	JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-97102-589-0	01	1	9401-
34	JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: B = 8-94344-385-1	8-94240-282-0	01	1	-
34	JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-282-0	01	1	-9312
34	JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-97102-589-0	01	1	9401-
39	STRAINER; PUMP,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	9-81111-614-0	01	1	-
40	CLIP; PUMP STRAINER,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	9-81135-061-0	01	1	-
45	ROD; PUMP CONNECTOR,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94118-728-0	01	1	-
49	JET; AIR BLEED,2ND,CARB ASM PART: B = 8-94344-385-1	8-94118-726-0	01	1	-9410
49	JET; AIR BLEED,2ND,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94118-726-0	01	1	-9312
49	JET; AIR BLEED,2ND,CARB ASM PART: A = 8-94178-217-1	8-94208-714-0	01	1	-9312
53	BODY; THROTTLE,CARB ASM PART: C = 8-94419-994-1	8-94440-145-0	01	1	-
53	BODY; THROTTLE,CARB ASM PART: D = 8-94419-995-1	8-94440-146-0	01	1	-
53	BODY; THROTTLE,CARB ASM PART: B = 8-94344-385-1	8-94440-149-0	01	1	-9410
53	BODY; THROTTLE,CARB ASM PART: A = 8-94178-217-1	8-94440-149-0	01	1	-
53	BODY; THROTTLE,CARB ASM PART: B = 8-94344-385-1	8-97105-026-0	01	1	9411-
54	BUSHING; THROTTLE,SHAFT CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-308-0	02	1	-
55	SPRING; THROTTLE,RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94419-681-0	01	1	-
56	ARM; THROTTLE RETURN SPR,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94248-611-0	01	1	-
58	SCREW; IDLE ADJ,CARB ASM PART: D = 8-94419-995-1	8-94215-870-0	01	1	-
58	SCREW; IDLE ADJ,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1	8-94240-309-0	01	1	-9312
58	SCREW; IDLE ADJ,CARB ASM PART: B = 8-94344-385-1	8-94240-309-0	01	1	-9410
58	SCREW; IDLE ADJ,CARB ASM PART: B = 8-94344-385-1	8-97102-587-0	01	1	9411-
58	SCREW; IDLE ADJ,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1	8-97102-587-0	01	1	9401-
59	SPRING; IDLE ADJ,SCREW,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	9-81155-174-0	01	1	-
60	SCREW; THROTTLE ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94402-183-0	01	1	-
61	SPRING; THROTTLE ADJ,SCREW,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94206-012-0	01	1	-
63	ARM; THROTTLE SHAFT,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94140-381-0	01	1	-
65	COLLAR; THROTTLE SHAFT "A",CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-311-0	01	1	-
66	LEVER ASM; THROTTLE,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-317-0	01	1	-
67	ARM ASM; FAST IDLE CAM ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94248-612-0	01	1	-
70	DIAPHRAGM ASM; CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-294-0	01	1	-
71	SPRING; DIAPH,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1	8-94118-661-0	01	1	-
71	SPRING; DIAPH,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94248-608-0	01	1	-
73	CHAMBER ASM; CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94248-607-0	01	1	-
73	CHAMBER ASM; CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1	8-94440-142-0	01	1	-
106	SPRING; PUMP RETURN,CARB ASM PART: B = 8-94344-385-1	8-94240-287-0	01	1	-9410
106	SPRING; PUMP RETURN,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-287-0	01	1	-9312
106	SPRING; PUMP RETURN,CARB ASM PART: B = 8-94344-385-1	8-97102-567-0	01	1	9411-
106	SPRING; PUMP RETURN,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-97102-567-0	01	1	9401-
111	CAM; FAST IDLE,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94248-609-0	01	1	-
114	SPRING; FAST IDLE CAM,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-297-0	01	1	-
115	ARM; START,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-298-0	01	1	-
116	ROD; CONN,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-335-0	01	1	-
125	SCREW; MIXTURE BYPASS,CARB ASM PART: C = 8-94419-994-1	8-94240-290-0	01	1	-
125	SCREW; MIXTURE BYPASS,CARB ASM PART: D = 8-94419-995-1	8-94240-290-0	01	1	-9312
125	SCREW; MIXTURE BYPASS,CARB ASM PART: A = 8-94178-217-1, D = 8-94419-995-1	8-94240-290-0	04	1	9401-
129	GASKET; SOLENOID VLV ASM PART: A = 8-94178-217-1	8-94178-132-0	01	1	9401-
129	GASKET; SOLENOID VLV ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94178-132-0	01	1	-
131	SPRING; PUMP,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94118-656-0	01	1	-
132	SEAT ASM; CHECK VLV,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94118-657-0	01	1	-
137	PLUG; SLOW PASSAGE,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-286-0	03	1	-9312
137	PLUG; SLOW PASSAGE,CARB ASM PART: B = 8-94344-385-1	8-94240-286-0	03	1	-9410
137	PLUG; SLOW PASSAGE,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94311-881-0	03	1	9401-
137	PLUG; SLOW PASSAGE,CARB ASM PART: B = 8-94344-385-1	8-94311-881-0	03	1	9411-
138	JET; 1ST COASTING AIR BLEED,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1	8-94208-314-0	01	1	-
138	JET; 1ST COASTING AIR BLEED,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94240-304-0	01	1	-
143	SCREW; FLANGE,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94221-789-0	01	1	9401-
143	SCREW; FLANGE,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94251-769-0	01	1	-9312
143	SCREW; FLANGE,CARB ASM PART: B = 8-94344-385-1	8-94251-769-0	01	1	-
149	INSULATOR ASM; CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94140-385-0	01	1	-
167	NUT; THROTTLE SHAFT,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	9-81155-605-0	01	1	-
168	SCREW; FAST IDLE ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94402-184-0	01	1	-
171	WASHER; LEVER,THROTTLE ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	9-09150-008-0	01	1	9401-
172	ARM ASM; PRIMARY TO SECONDARY,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94248-613-0	01	1	-
174	COLLAR; THROTTLE SHAFT "B",CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94419-682-0	01	1	-
176	ARM; PUMP CONNECTOR,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-315-0	01	1	-
177	COLLAR; ROLLING,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-314-0	01	1	-
183	SPRING; SELECT SCREW,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94206-012-0	01	1	-

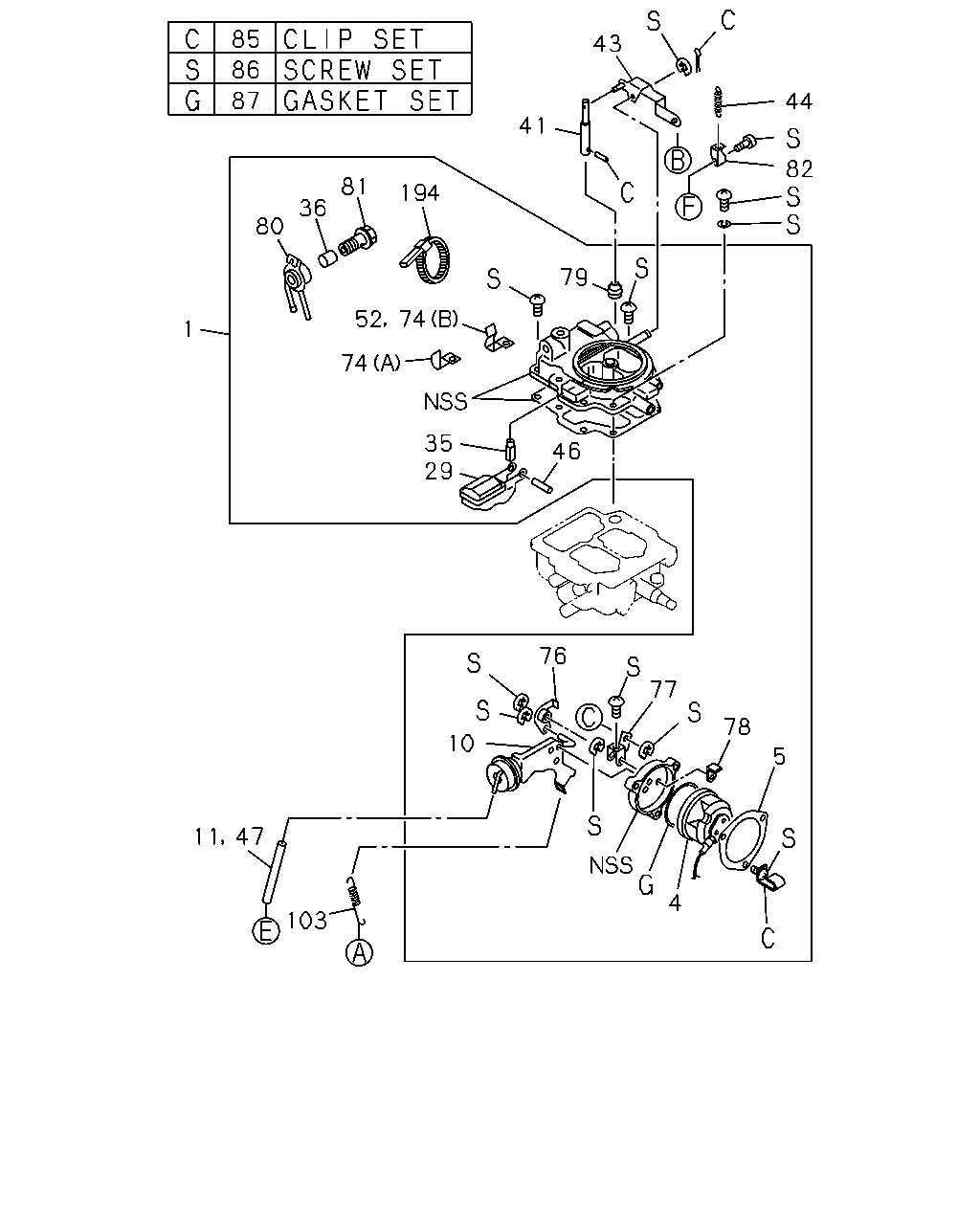

85 86 87 43 44 41 82 81 36 80 194 79 46 52 74 1 74 35 29 76 77 10 78 5 47 11 4 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AIR HORN COMPL; CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94440-153-0	01	1	-9312
1	AIR HORN COMPL; CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1	8-94440-154-0	01	1	-
1	AIR HORN COMPL; CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-97102-565-0	01	1	9401-
4	HOUSING COMPL; COIL,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94140-384-0	01	1	-
5	PLATE; BIMETAL CASE SET,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-326-0	01	1	-
10	PISTON; CHOKE,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-324-0	01	1	-
11	HOSE; VAC,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94240-339-0	01	1	-9312
29	FLOAT; CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-329-0	01	1	-
35	SEAT COMPL; FLOAT VLV,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-327-0	01	1	-
36	STRAINER ASM; CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-331-0	01	1	-
41	PLUNGER; ACCEL CMPR,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94118-727-0	01	1	-
43	ARM; PUMP,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-340-0	01	1	-
44	SPRING; SUB RETURN,CARB ASM PART: B = 8-94344-385-1	8-94240-301-0	01	1	-
44	SPRING; SUB RETURN,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-301-0	01	1	-9312
44	SPRING; SUB RETURN,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94426-149-1	01	1	9401-
46	PIN; FLOAT,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-328-0	01	1	-
47	HOSE; RUBBER,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94240-339-0	01	1	9401-
47	HOSE; RUBBER,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1	8-94440-155-0	01	1	-
52	CLIP; SOLENOID HARNESS ASM PART: A = 8-94178-217-1	8-94248-615-0	01	1	-9312
74	CLAMP; SOLENOID HARNESS,CARB (A) ASM PART: B = 8-94344-385-1	8-94150-361-0	01	1	-9410
74	CLAMP; SOLENOID HARNESS,CARB (A) ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94150-361-0	01	1	-9312
74	CLAMP; SOLENOID HARNESS,CARB (B) ASM PART: B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94248-615-0	01	1	-
74	CLAMP; SOLENOID HARNESS,CARB (B) ASM PART: A = 8-94178-217-1	8-94248-615-0	01	1	9401-
74	CLAMP; SOLENOID HARNESS,CARB (A) ASM PART: B = 8-94344-385-1	8-94311-889-0	01	1	9411-
76	LEVER; CHOKE BREAKER ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94140-383-0	01	1	-
77	ARM ASM; CHOKE BREAKER ADJ,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-321-0	01	1	-
78	ARM; CHOKE SHAFT,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94402-093-0	01	1	-
79	BELLOWS; PUMP,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-323-0	01	1	-
80	CONNECTOR; FUEL RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-332-0	01	1	-
81	BOLT; UNION,FUEL RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-330-0	01	1	-
82	HOLDER; SUB RETURN,CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-300-0	01	1	-
85	CLIP SET; CARB ASM PART: B = 8-94344-385-1	8-94240-341-0	01	1	-9410
85	CLIP SET; CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-341-0	01	1	-9312
85	CLIP SET; CARB ASM PART: B = 8-94344-385-1	8-97103-516-0	01	1	9411-
85	CLIP SET; CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-97103-516-0	01	1	9401-
86	SCREW SET; CARB ASM PART: A = 8-94178-217-1, B = 8-94344-385-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-342-0	01	1	-
87	GASKET SET; CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94240-343-0	01	1	-9312
87	GASKET SET; CARB ASM PART: B = 8-94344-385-1	8-94240-343-0	01	1	-9410
87	GASKET SET; CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-97103-517-0	01	1	9401-
87	GASKET SET; CARB ASM PART: B = 8-94344-385-1	8-97103-517-0	01	1	9411-
103	SPRING; PRIMARY TO SECONDARY,CARB ASM PART: A = 8-94178-217-1	8-94168-495-0	01	1	9401-
103	SPRING; PRIMARY TO SECONDARY,CARB ASM PART: C = 8-94419-994-1, D = 8-94419-995-1	8-94168-495-0	01	1	-
103	SPRING; PRIMARY TO SECONDARY,CARB ASM PART: B = 8-94344-385-1	8-94240-336-0	01	1	-
103	SPRING; PRIMARY TO SECONDARY,CARB ASM PART: A = 8-94178-217-1	8-94240-336-0	01	1	-9312
194	CLIP; CORD CONNECTOR,CARB ASM PART: A = 8-94178-217-1, C = 8-94419-994-1, D = 8-94419-995-1	8-94311-889-0	01	1	9401-
