0-66 — GENERATOR (#35737) — 98 parça

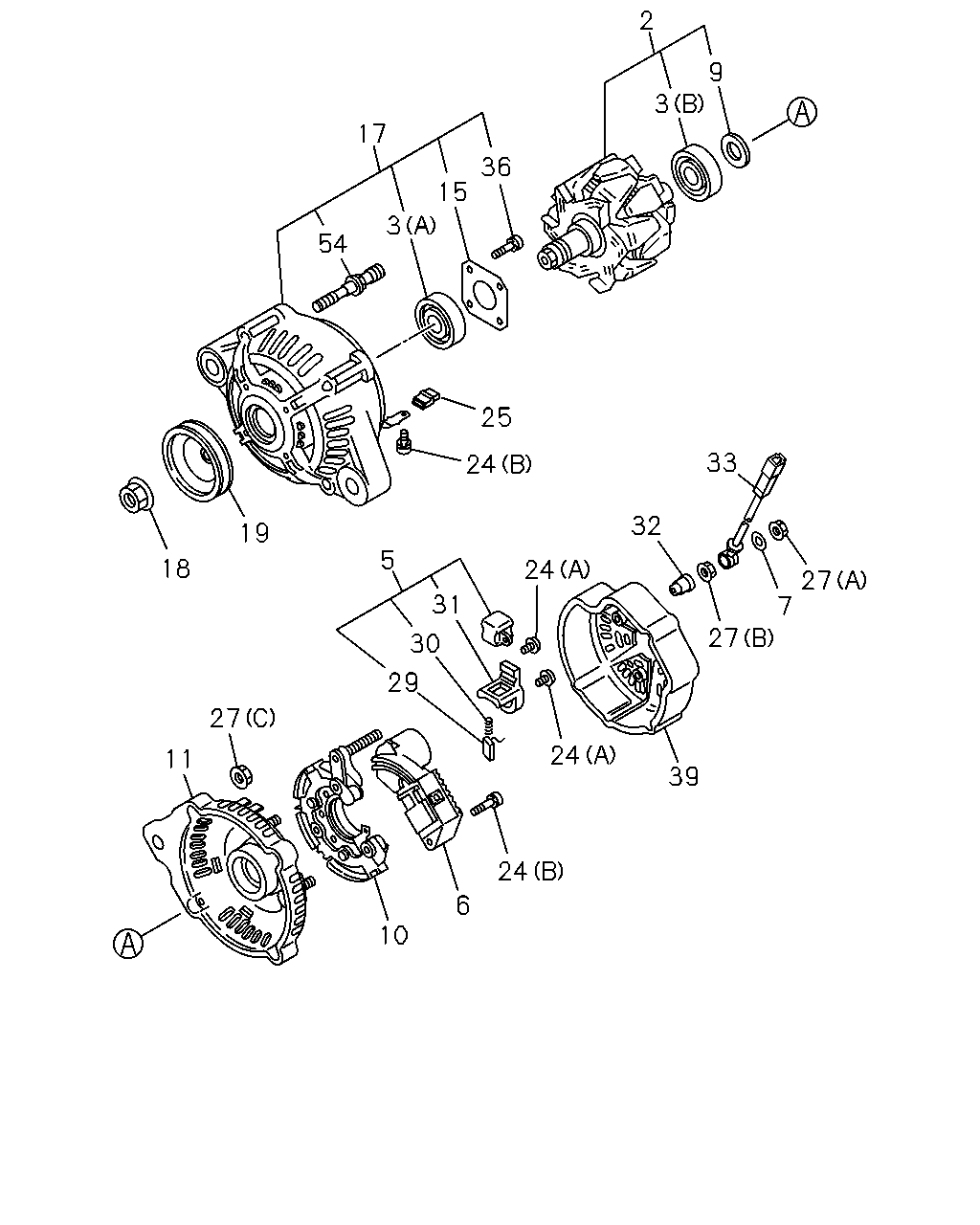

2 9 3 17 36 15 3 54 25 33 24 32 19 5 18 24 27 7 27 31 30 29 27 24 11 39 24 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94380-626-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-94413-997-0	8-94406-983-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-94413-997-0	8-94123-050-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-585-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-979-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-94413-997-0	8-94410-981-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-94413-997-0	8-94139-013-1	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-592-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94413-997-0	8-94139-012-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94167-410-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ID=6.1 ASM PART: A = 8-94413-997-0	9-09150-506-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-94413-997-0	8-94123-051-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-94413-997-0	8-94123-052-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-94449-054-2	8-94167-411-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-94452-740-3	8-94453-149-0	01	1	-
11	COVER; RR,GEN ASM PART: A = 8-94413-997-0	8-94178-603-0	01	1	-
11	COVER; RR,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94380-629-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-94413-997-0	8-94410-982-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-94413-997-0	8-94406-980-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94453-150-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-94413-997-0	8-94123-043-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-975-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-94413-997-0	8-94406-979-0	01	1	-
24	SCREW; RECTIFIER,GEN (A) ASM PART: A = 8-94413-997-0	8-94123-061-0	02	1	-
24	SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94413-997-0	8-94123-066-0	07	1	-
24	SCREW; RECTIFIER,GEN KIT ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-603-0	01	1	-
25	BUSHING; INSULATION TERMINAL ASM PART: A = 8-94413-997-0	8-94123-059-0	04	1	-
27	NUT; RECTIFIER,GEN (C) ASM PART: A = 8-94413-997-0	8-94123-064-0	07	1	-
27	NUT; RECTIFIER,GEN (B), M6 ASM PART: A = 8-94413-997-0	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: A = 8-94413-997-0	9-09110-406-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-94413-997-0	8-94123-056-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-593-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 8-94413-997-0	8-94123-057-0	02	1	-
31	SHEET; BRUSH,GEN ASM PART: A = 8-94413-997-0	8-94139-014-1	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: A = 8-94413-997-0	8-94123-063-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94340-756-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: A = 8-94413-997-0	8-94425-634-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-94413-997-0	8-94123-047-0	04	1	-
39	COVER; END,RR COVER,GEN ASM PART: A = 8-94413-997-0	8-94123-062-0	01	1	-
54	BOLT; RECTIFIER,GEN ASM PART: A = 8-94413-997-0	8-94123-048-0	04	1	-

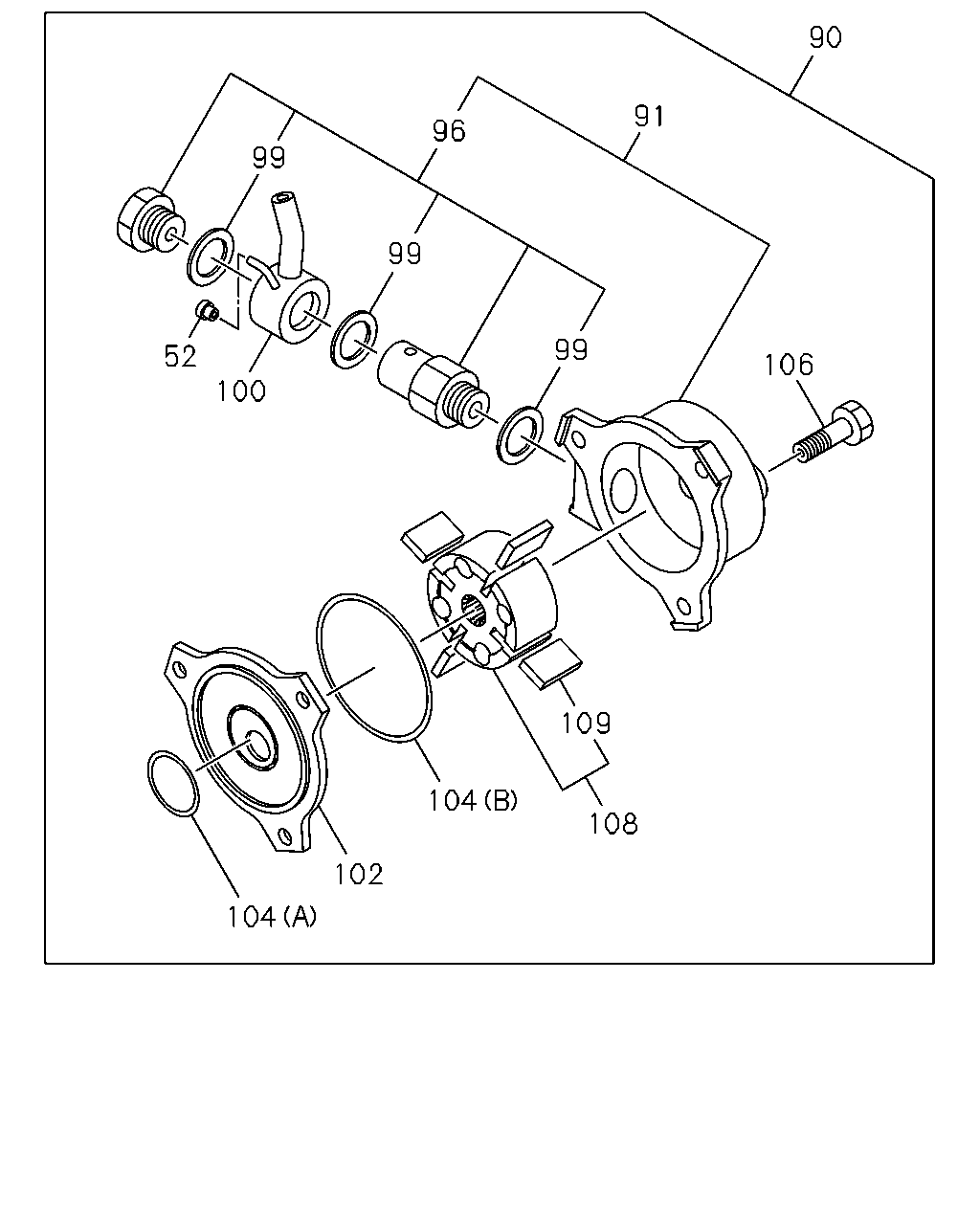

90 91 96 99 99 99 52 106 100 109 104 108 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	CAP; RUBBER,TERMINAL ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94404-963-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-94452-740-3	8-94380-630-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-94449-054-2	8-94380-631-0	01	1	-
91	BODY; VAC PUMP ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94453-153-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP ID=18 OD=24 ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP ID=12 OD=24 ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: C = 8-94452-740-3	8-94402-315-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-94449-054-2	8-94463-797-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-606-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-994-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94380-632-0	01	1	-
109	VANE; VAC PUMP ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-985-0	04	1	-

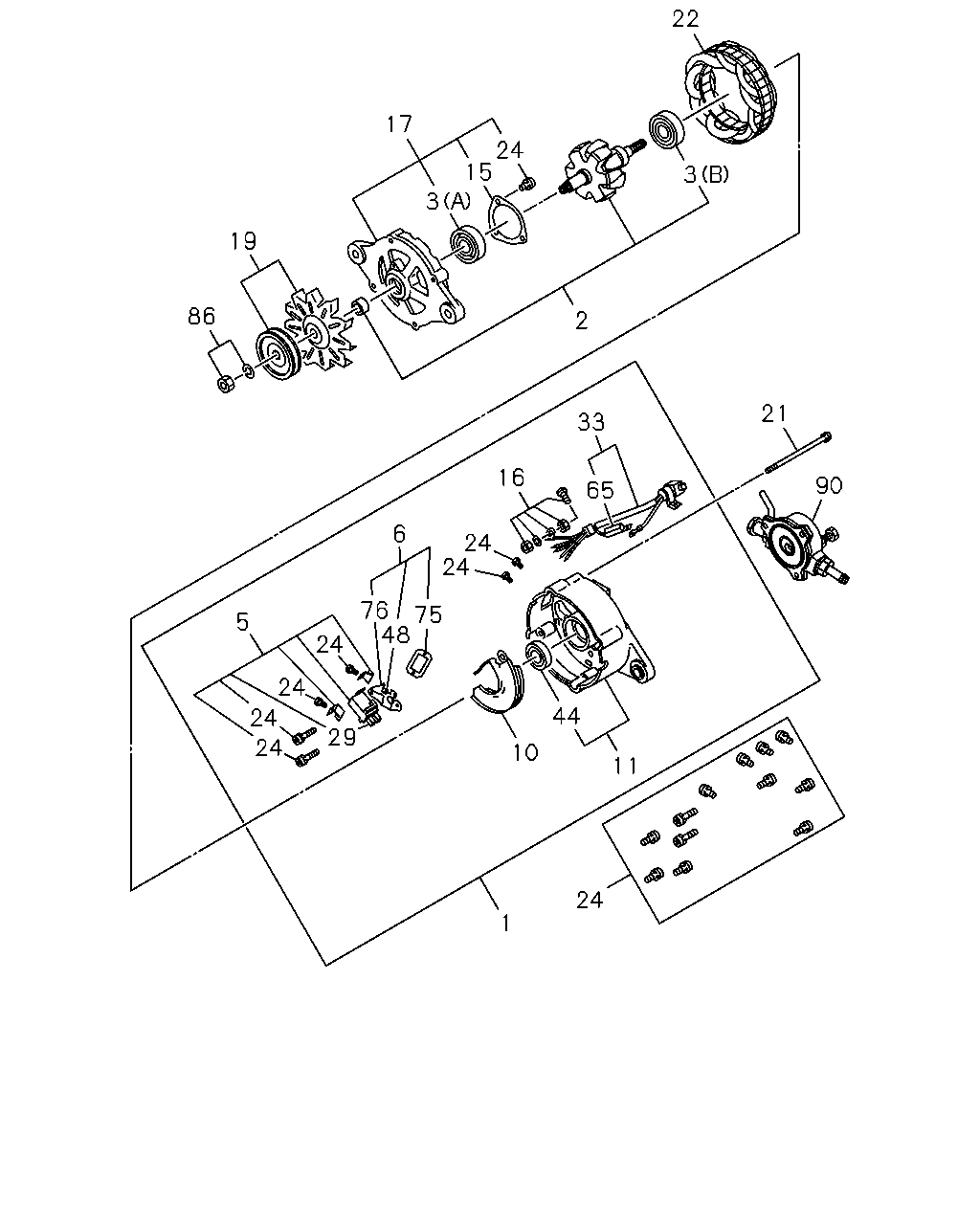

22 17 24 15 3 3 19 86 2 21 33 16 90 65 6 24 24 76 75 48 5 24 24 24 24 44 29 10 11 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: B = 8-94449-054-2	8-94380-627-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 8-94452-740-3	8-94380-628-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94380-626-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-94413-997-0	8-94406-983-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-94413-997-0	8-94123-050-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-585-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-979-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-94413-997-0	8-94410-981-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-94413-997-0	8-94139-013-1	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-592-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94413-997-0	8-94139-012-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94167-410-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-94413-997-0	8-94123-052-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-94449-054-2	8-94167-411-0	01	1	-
10	RECTIFIER; GEN ASM PART: C = 8-94452-740-3	8-94453-149-0	01	1	-
11	COVER; RR,GEN ASM PART: A = 8-94413-997-0	8-94178-603-0	01	1	-
11	COVER; RR,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94380-629-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-974-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-94413-997-0	8-94410-982-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-597-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-94413-997-0	8-94406-980-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94453-150-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94223-975-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-94413-997-0	8-94406-979-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-602-0	04	1	-
22	STATOR; GEN ASM PART: B = 8-94449-054-2	8-94167-406-0	01	1	-
22	STATOR; GEN ASM PART: C = 8-94452-740-3	8-94453-146-0	01	1	-
24	SCREW; RECTIFIER,GEN (A) ASM PART: A = 8-94413-997-0	8-94123-061-0	02	1	-
24	SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94413-997-0	8-94123-066-0	07	1	-
24	SCREW; RECTIFIER,GEN KIT ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-603-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-94413-997-0	8-94123-056-0	02	1	-
29	BRUSH; GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-593-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94340-756-0	01	1	-
33	WIRE; LEAD,GEN ASM PART: A = 8-94413-997-0	8-94425-634-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-589-0	01	1	-
48	DIODE; GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94237-727-0	01	1	-
65	CONDENSER; GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-594-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94250-964-0	01	1	-
76	BLOCK; REG,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-591-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: B = 8-94449-054-2, C = 8-94452-740-3	8-94156-601-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 8-94452-740-3	8-94380-630-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-94449-054-2	8-94380-631-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
