◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50685 - WFR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#35734) — 109 parça

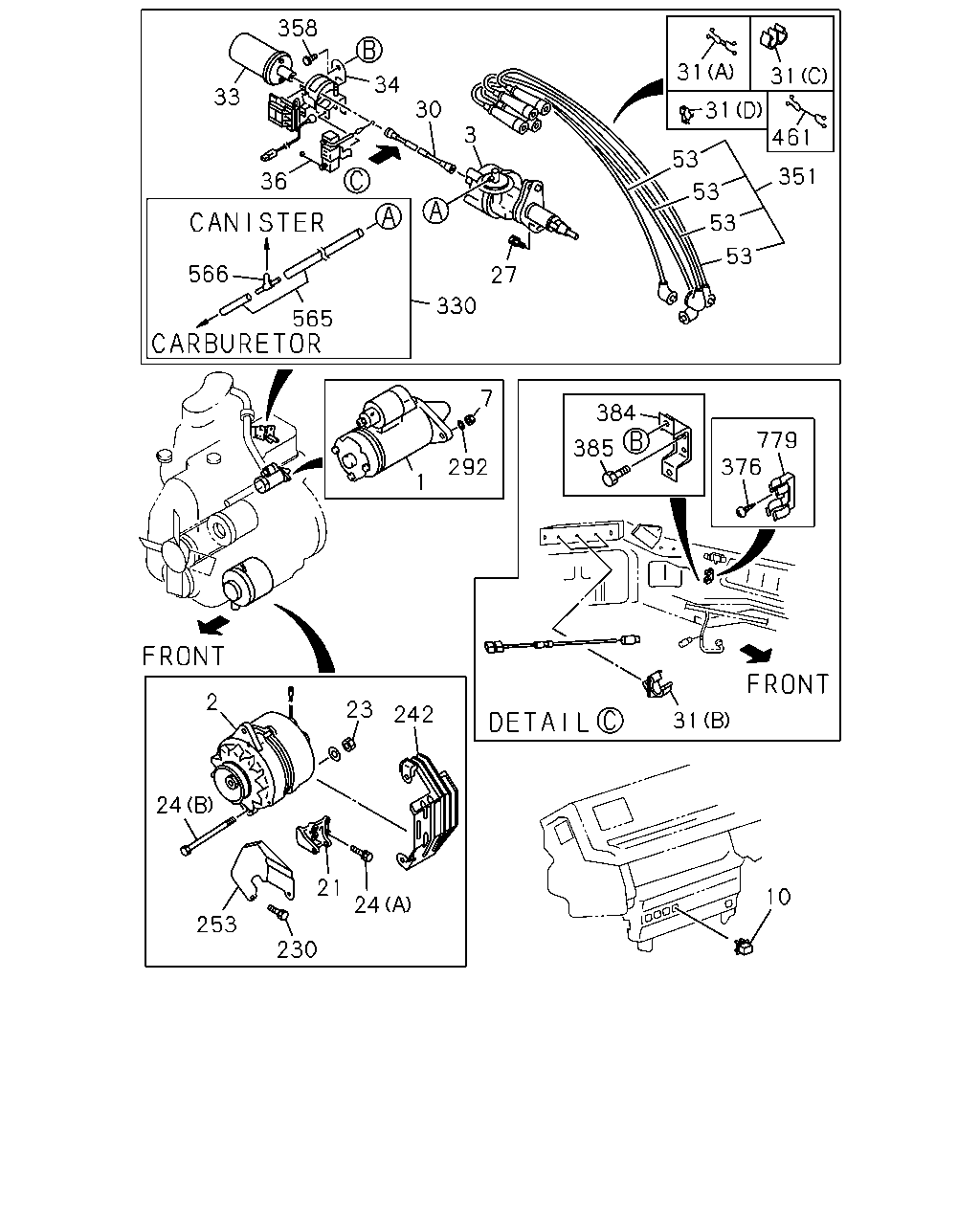

çizim 19580
358 34 30 31 31 33 31 461 3 53 53 53 53 351 36 27 330 566 565 7 384 779 376 385 292 1 2 23 242 31 24 21 24 10 253 230
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 0.9KW 		8-94412-142-1 01 1 9307- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-94469-496-3 01 1 9307- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94413-997-0 01 1 9307- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A HITACHI 		8-94449-054-2 01 1 9307-9406 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER(K51) 12V 50A HITACHI 		8-94449-054-2 01 1 9407- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. LONG(WFB5VF) TURBOCHARGER(K51) 12V 55A HITACHI 		8-94452-740-3 01 1 9407- ●
3 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94419-998-0 01 1 9307-9403 ●
3 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94419-998-0 01 1 9404- ●
3 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94419-999-0 01 1 9307-9403 ●
7 NUT; STARTER
M8 		9-09111-508-0 01 1 9307-9406 ●
7 NUT; STARTER
M8 		9-09111-408-0 01 1 9407- ●
7 NUT; STARTER
M10 		9-09110-510-0 01 1 9307-9406 ●
7 NUT; STARTER
M10 		9-09110-410-0 01 1 9407- ●
10 RELAY; STARTER
12V 15A 		8-94147-095-0 01 1 9307- ●
21 BRACKET; GEN 8-94433-419-2 01 1 9307- ●
21 BRACKET; GEN
EXC. POWER STEERING<N40> 		8-94323-030-0 01 1 9307-9404 ●
21 BRACKET; GEN
POWER STEERING<N40> 		8-94323-029-0 01 1 9307-9404 ●
21 BRACKET; GEN 8-94323-029-0 01 1 9405-9406 ●
21 BRACKET; GEN
EXC. GENERATOR 55A<6LF> 		8-94323-029-0 01 1 9407- ●
23 NUT; GEN
M10 		9-09110-510-0 01 1 9307- ●
24 BOLT; GEN BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307- ●
24 BOLT; GEN BRKT
(B) M10X100 		9-09600-092-0 01 1 9307-9405 ●
24 BOLT; GEN BRKT
(B) M10X100 		0-10806-000-0 01 1 9406- ●
24 BOLT; GEN BRKT
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9307- ●
24 BOLT; GEN BRKT
M10X45 W/LK WASHER 		0-50041-045-0 03 1 9307- ●
27 BOLT; DISTR
M8X22 W/LK&PL WASHER 		0-50140-822-0 01 1 9307- ●
30 CABLE; DISTR TO IGN COIL 8-94402-008-3 01 1 9307- ●
31 CLIP; HIGH TENSION CABLE
(C) ID=6.8X2 		8-94126-636-0 01 1 9307- ●
31 CLIP; HIGH TENSION CABLE
(D) ID=6.8 & 6.8 		8-94208-733-0 01 1 9307- ●
31 CLIP; HIGH TENSION CABLE
(A) ID=8 & 10 		8-94252-372-0 03 1 9307- ●
31 CLIP; HIGH TENSION CABLE
(B) ID=7.0 		8-94423-229-0 03 1 9307- ●
33 COIL ASM; IGN 8-94438-364-0 01 1 9307- ●
34 BAND; IGN COIL 8-94109-761-0 01 1 9307- ●
36 WIRE; IGN COIL 8-94438-363-0 01 1 9307- ●
53 CABLE; IGN PLUG
NO.1 		8-94238-875-0 01 1 9307- ●
53 CABLE; IGN PLUG
NO.3 		8-94238-877-0 01 1 9307- ●
53 CABLE; IGN PLUG
NO.2 		8-94338-300-0 01 1 9307- ●
53 CABLE; IGN PLUG
NO.4 		8-94338-301-0 01 1 9307- ●
230 BOLT; HEAT PROTECTOR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9307- ●
242 PLATE; GUIDE,GEN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94433-421-1 01 1 9307- ●
253 PROTECTOR; HEAT,GEN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94433-420-3 01 1 9307- ●
292 WASHER; LK,STARTER
ID=8.2 		9-09150-508-0 01 1 9307- ●
330 HOSE; CARBURETOR TO DISTR
HONG KONG EQUIPMENT(PQ1) L=70 & L=290 		8-94420-003-0 01 1 9307- ●
330 HOSE; CARBURETOR TO DISTR
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=400 SERVICED BY L=3000 		0-04730-300-0 01 1 9307- ●
330 HOSE; CARBURETOR TO DISTR
LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) L=400 SERVICED BY L=3000 		0-04740-300-0 01 1 9307- ●
351 CABLE KIT; HIGH TENSION 8-94338-230-0 01 1 9307- ●
358 BOLT; IGN COIL TO BODY
M8X16 W/LK&PL WASHER 		0-50140-816-0 02 1 9307- ●
376 SCREW; IGN COIL
M5X8 TAPPING 		9-07065-508-0 02 1 9307- ●
384 BRACKET ASM; IGN COIL TO PANEL 8-94277-850-1 01 1 9307- ●
385 BOLT; BRKT,IGN COIL
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9307- ●
461 CLIP; PURSE LOCK 8-94423-049-0 02 1 9307- ●
565 HOSE; RUBBER
HONG KONG EQUIPMENT(PQ1) SERVICED BY L=3000 		0-04740-300-0 02 1 9307- ●
566 JOINT; 3 WAY
HONG KONG EQUIPMENT(PQ1) 		8-94111-558-0 01 1 9307- ●
779 BRACKET; CONNECTOR 8-94415-155-0 01 1 9307- ●
çizim 65852
777 101 1 7 6 4 16 2 24 24 21 16 326 326 132 131 132 130 578
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 0.9KW 		8-94412-142-1 01 1 9307- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-94469-496-3 01 1 9307- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A 		8-94413-997-0 01 1 9307- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A HITACHI 		8-94449-054-2 01 1 9307-9406 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER(K51) 12V 50A HITACHI 		8-94449-054-2 01 1 9407- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. LONG(WFB5VF) TURBOCHARGER(K51) 12V 55A HITACHI 		8-94452-740-3 01 1 9407- ●
4 BOLT; STARTER
M10X30 		0-20801-030-0 01 1 9307- ●
4 BOLT; STARTER
M10X40 W/LK&PL WASHER 		0-50151-040-0 01 1 9307- ●
6 WASHER; PL,STARTER
ID=10.5 OD=26 		9-09164-710-0 01 1 9307- ●
7 NUT; STARTER
M8 		9-09111-508-0 01 1 9307-9406 ●
7 NUT; STARTER
M8 		9-09111-408-0 01 1 9407- ●
7 NUT; STARTER
M10 		9-09110-510-0 01 1 9307-9406 ●
7 NUT; STARTER
M10 		9-09110-410-0 01 1 9407- ●
16 BOLT; GEN
(A) M10X35 W/LK&PL WASHER 		0-50141-035-0 01 1 9307- ●
16 BOLT; GEN
(B) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9307- ●
21 BRACKET; GEN 8-94433-419-2 01 1 9307- ●
21 BRACKET; GEN
EXC. POWER STEERING<N40> 		8-94323-030-0 01 1 9307-9404 ●
21 BRACKET; GEN
POWER STEERING<N40> 		8-94323-029-0 01 1 9307-9404 ●
21 BRACKET; GEN 8-94323-029-0 01 1 9405-9406 ●
21 BRACKET; GEN
EXC. GENERATOR 55A<6LF> 		8-94323-029-0 01 1 9407- ●
24 BOLT; GEN BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9307- ●
24 BOLT; GEN BRKT
(B) M10X100 		9-09600-092-0 01 1 9307-9405 ●
24 BOLT; GEN BRKT
(B) M10X100 		0-10806-000-0 01 1 9406- ●
24 BOLT; GEN BRKT
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9307- ●
24 BOLT; GEN BRKT
M10X45 W/LK WASHER 		0-50041-045-0 03 1 9307- ●
101 BOLT; HARNESS
M6X12 W/LK WASHER 		0-50040-612-0 01 1 9307- ●
130 CONTROLLER; EGR
LONG(WFB5VF) TURBOCHARGER(K51) 		8-97103-841-0 01 1 9407- ●
131 BRACKET; EGR
LONG(WFB5VF) TURBOCHARGER(K51) 		8-94459-155-0 01 1 9407- ●
132 NUT; CONTROLLER
M6 FLANGE 		5-09440-004-0 02 1 9307- ●
326 CLIP; RESISTOR HARNESS
(B) ID=20 		1-09709-068-0 01 1 9307-9406 ●
326 CLIP; RESISTOR HARNESS
EXC. TURBOCHARGER(K51) (B) ID=20 		1-09709-068-0 01 1 9407- ●
326 CLIP; RESISTOR HARNESS
(A) L=290 		8-94238-173-0 01 1 9307- ●
578 RELAY; CHARGE WARNING
12V 20A BLUE 		8-94235-627-0 01 1 9307- ●
777 HARNESS; GLOW PLUG CONNECTOR 8-94366-279-1 01 1 9307- ●

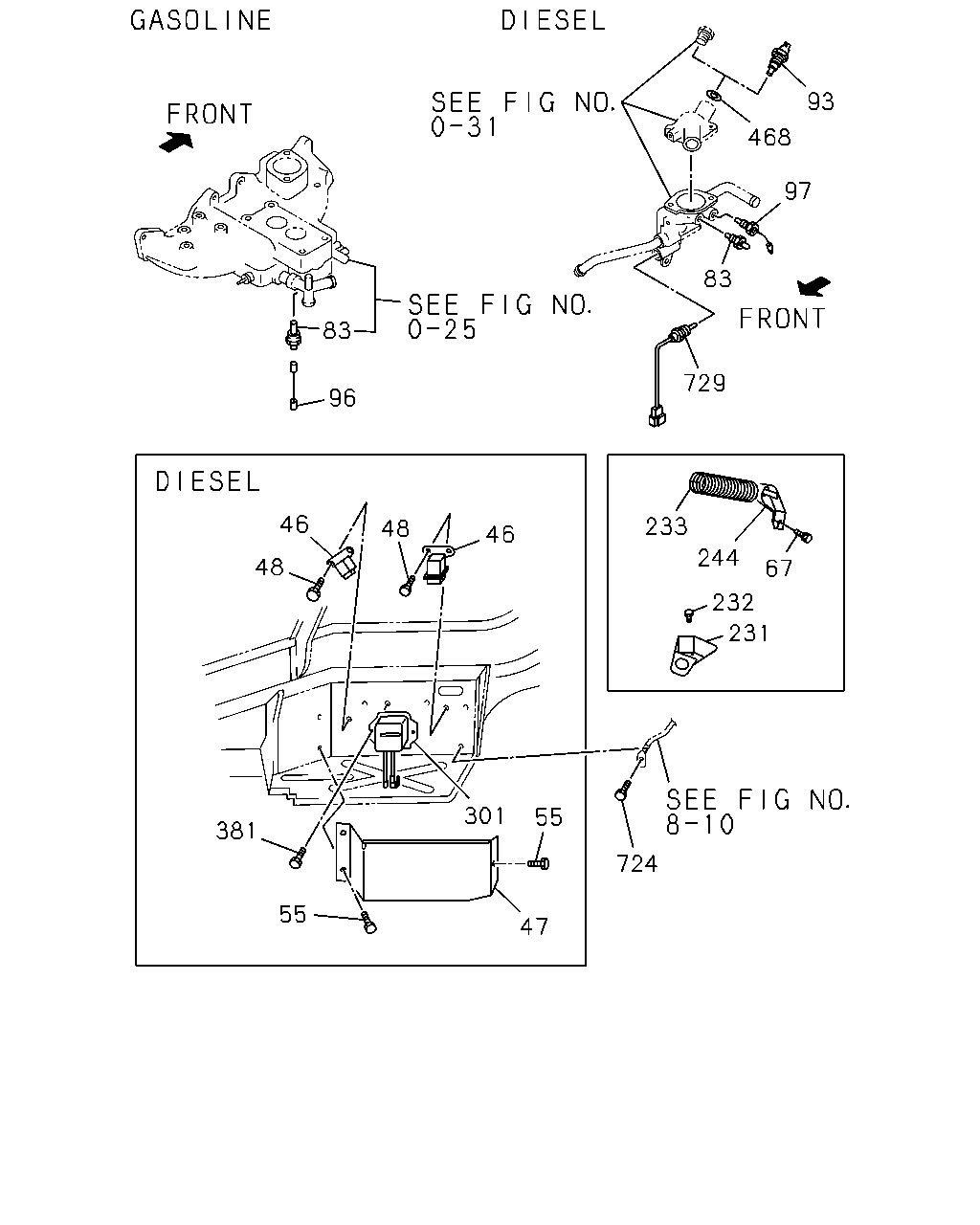

çizim 70683
93 468 97 83 83 729 96 46 233 244 48 46 48 67 232 231 301 55 381 724 55 47
BalonParca AdiParca NoAdetTipApplied Date A B
46 RELAY; GLOW PLUG 8-94248-162-0 02 1 9307- ●
47 COVER; GLOW RELAY 8-94293-850-1 01 1 9307- ●
48 BOLT; GLOW PLUG RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9307- ●
55 BOLT; COVER TO RELAY
M6X14 W/LK&PL WASHER 		0-50140-614-0 03 1 9307- ●
67 BOLT; STAY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9307- ●
83 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9307- ●
83 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9307- ●
83 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9307- ●
93 SWITCH; THERMO,A/C CUT
STANDARD(WFB5VC) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94107-993-1 01 1 9307-9406 ●
93 SWITCH; THERMO,A/C CUT
LONG(WFB5VF) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. IRISH EQUIPMENT(6CU) 		8-94107-993-1 01 1 9307-9406 ●
96 HARNESS; THERMO UNIT
L=240 		8-94321-193-0 01 1 9307- ●
97 SWITCH; THERMO,EGR CONT
LONG(WFB5VF) TURBOCHARGER(K51) YELLOW 		8-94154-986-1 01 1 9407- ●
231 COVER; AIR GUIDE,GEN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94438-592-2 01 1 9307- ●
232 BOLT; AIR GUIDE COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X14 W/LK WASHER 		0-50040-814-0 02 1 9307- ●
233 HOSE; FLEX,AIR,AC GEN
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94311-110-0 01 1 9307- ●
244 STAY; GEN BRKT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94311-107-0 01 1 9307- ●
301 RESISTOR; DROPPING 8-94364-592-0 01 1 9307- ●
381 BOLT; DROPPING RESISTOR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9307- ●
468 GASKET; THERMO SWITCH
ID=16.2 OD=24 		9-09571-416-0 01 1 9307- ●
724 BOLT; ENG EARTH CABLE
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9307- ● ●
729 SENSOR; QOS THERMO 8-97018-064-0 01 1 9307- ●
