0-57 — EMISSION PIPING (#35733) — 73 parça

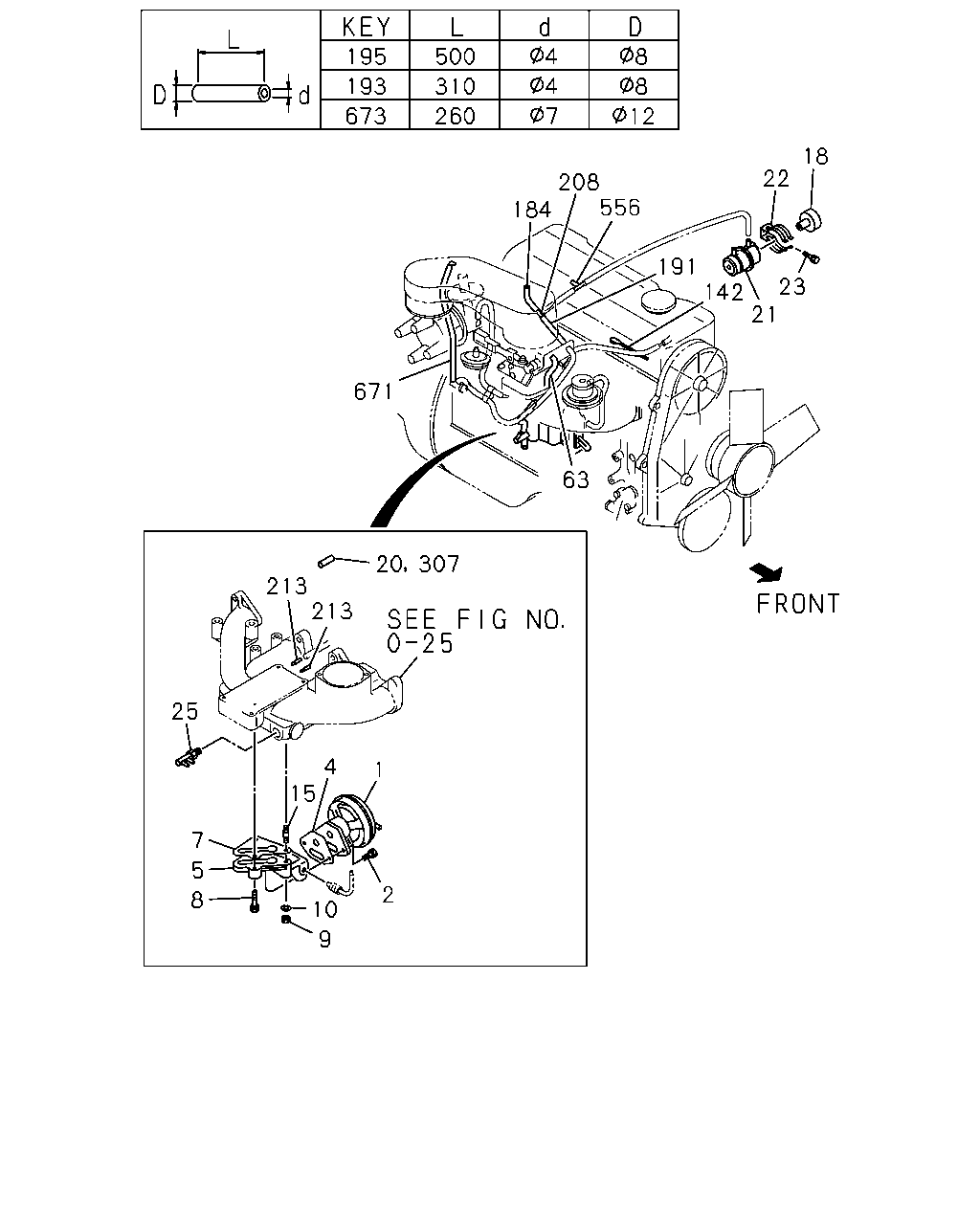

195 193 673 18 22 208 184 556 191 142 23 21 671 63 213 213 25 4 15 1 10 9 7 5 8 2 20 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94248-646-0	01	1	9307-	●
1	VALVE; EGR LONG(WFB5VF) TURBOCHARGER(K51)	8-97043-021-4	01	1	9407-		●
2	BOLT; EGR VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) M8X20 W/LK WASHER	0-50040-820-0	02	1	9307-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94324-191-0	01	1	9307-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). LONG(WFB5VF) TURBOCHARGER(K51)	8-94334-338-0	01	1	9407-		●
5	ADAPTER ASM HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94125-350-0	01	1	9307-	●
7	GASKET; ADAPTER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94328-253-0	01	1	9307-	●
8	BOLT; EGR ADAPTER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) M8X30 W/LK WASHER	0-50040-830-0	01	1	9307-	●
9	NUT; EGR ADAPTER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) M8	9-09110-508-0	02	1	9307-9406	●
9	NUT; EGR ADAPTER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) M8	9-09110-408-0	02	1	9407-	●
10	WASHER; EGR ADAPTER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ID=8.2	9-09150-508-0	02	1	9307-	●
15	STUD; EGR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) M8X35 L=47	9-04110-835-0	02	1	9307-	●
18	FILTER ASM; VCV LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y)	8-94429-710-0	01	1	9307-	●
20	CAP; RUBBER ID=4	8-94217-809-0	01	1	9307-	●
21	VALVE ASM; VAC CONT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94423-329-0	01	1	9307-	●
22	BRACKET; VAC CONT VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94209-610-0	01	1	9307-	●
23	BOLT; BRKT,VAC CONT VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) M8X12 W/LK WASHER	0-50040-812-0	01	1	9307-	●
25	VALVE; THERMAL VAC HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94213-554-0	01	1	9307-	●
63	HOSE; FAST IDLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=360 SERVICED BY L=3000	0-04730-300-0	01	1	9307-	●
142	CLIP; PIPE & HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=100	5-09707-036-0	01	1	9307-	●
184	HOSE; RUBBER,VCV TO 3 WAY HONG KONG EQUIPMENT(PQ1) L=50 SERVICED BY L=3000	0-04770-300-0	01	1	9307-	●
184	HOSE; RUBBER,VCV TO 3 WAY LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y) L=70 SERVICED BY L=3000	0-04770-300-0	01	1	9307-	●
191	HOSE; RUBBER,3 WAY TO PIPE HONG KONG EQUIPMENT(PQ1) L=210 SERVICED BY L=3000	0-04770-300-0	01	1	9307-	●
193	HOSE; TVV TO EGR VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=310 SERVICED BY L=3050	8-94209-298-1	01	1	9307-9406	●
193	HOSE; TVV TO EGR VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=310 SERVICED BY L=3000	0-04740-300-0	01	1	9407-	●
195	HOSE; VAC AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2),SINGAPORE EQUIPMENT(S9Y) L=500 SERVICED BY L=3000	0-04740-300-0	01	1	9307-	●
195	HOSE; VAC LONG(WFB5VF) TURBOCHARGER(K51) (A) OD=7 L=560 SERVICED BY L=3000	0-04730-300-0	01	1	9407-		●
195	HOSE; VAC LONG(WFB5VF) TURBOCHARGER(K51) (B) OD=7 L=1230	8-97106-960-0	01	1	9407-		●
208	JOINT; 3 WAY,VCV HONG KONG EQUIPMENT(PQ1) 3WAY	8-94211-900-1	01	1	9307-	●
213	PIPE; ABV SIGNAL OD=5 L=34	8-94200-851-2	02	1	9307-9406	●
213	PIPE; ABV SIGNAL OD=5 L=34	8-94200-851-2	01	1	9407-	●
307	CAP; RUBBER,VSV EXC. HOT AIR INTAKE<RN4> ID=4	8-94217-809-0	01	1	9307-	●
556	JOINT; 3 WAY,FILTER LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y)	8-94423-523-0	01	1	9307-	●
671	HOSE; RUBBER,VENT TO 3 WAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=260 SERVICED BY L=3000	0-04870-300-0	01	1	9307-	●
673	HOSE; RUBBER,CARB TO VLV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=260 SERVICED BY L=3000	0-04870-300-0	01	1	9307-	●

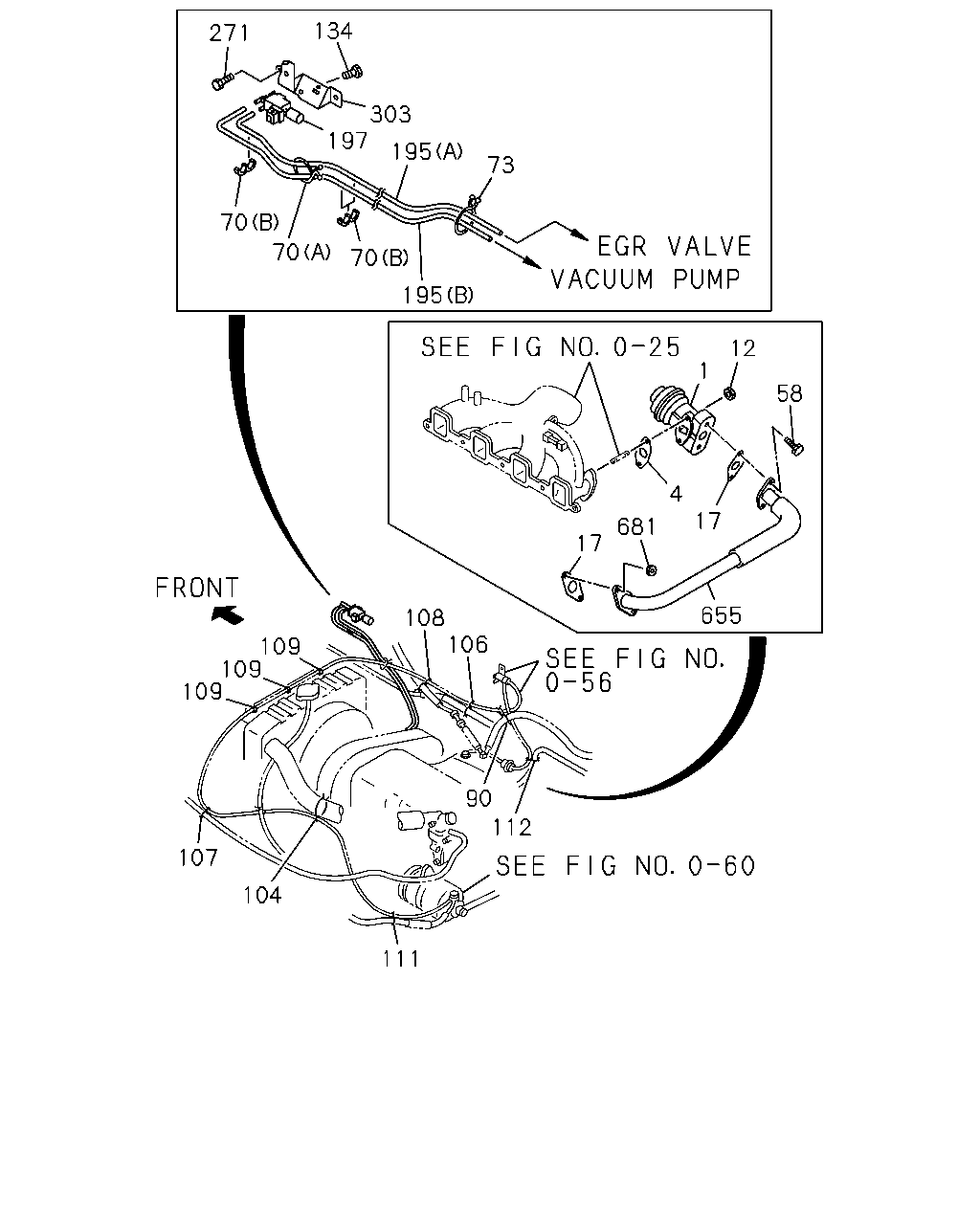

134 271 303 197 195 73 70 70 70 195 12 1 58 4 681 17 17 655 108 106 109 109 109 90 112 107 104 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94248-646-0	01	1	9307-	●
1	VALVE; EGR LONG(WFB5VF) TURBOCHARGER(K51)	8-97043-021-4	01	1	9407-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94324-191-0	01	1	9307-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). LONG(WFB5VF) TURBOCHARGER(K51)	8-94334-338-0	01	1	9407-		●
12	NUT; EGR VLV LONG(WFB5VF) TURBOCHARGER(K51) M8 FLANGE	0-91150-108-0	02	1	9407-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). LONG(WFB5VF) TURBOCHARGER(K51)	8-94422-576-0	02	1	9407-		●
58	BOLT; PIPE LONG(WFB5VF) TURBOCHARGER(K51) M8X22 W/LK WASHER	0-50040-822-0	02	1	9407-		●
70	CLIP; RUBBER HOSE LONG(WFB5VF) TURBOCHARGER(K51) (A) ID=20	1-09709-068-0	01	1	9407-		●
70	CLIP; RUBBER HOSE LONG(WFB5VF) TURBOCHARGER(K51) (B) ID=6.8X2	8-94126-636-0	03	1	9407-		●
73	CLIP; VAC HOSE LONG(WFB5VF) TURBOCHARGER(K51) ID=15	1-09709-003-0	01	1	9407-		●
90	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 16	8-94165-407-0	01	1	9307-9401		●
90	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 16	5-09707-032-0	01	1	9402-9406		●
90	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) ID=8 & 16	5-09707-032-0	01	1	9407-		●
104	CLIP; VAC HOSE TO RAD UPR HOSE	8-94109-862-0	01	1	9307-9406		●
104	CLIP; VAC HOSE TO RAD UPR HOSE	8-94109-862-0	01	1	9407-		●
106	CLIP; VAC HOSE TO HTR HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 23	5-09707-002-0	01	1	9307-9406		●
106	CLIP; VAC HOSE TO HTR HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) ID=8 & 23	5-09707-002-0	01	1	9407-		●
107	CLIP; VAC HOSE TO CMPR HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 23	5-09707-002-0	01	1	9307-		●
108	CLIP; VAC HOSE TO ACCEL CABLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 10	8-94252-372-0	01	1	9307-9406		●
108	CLIP; VAC HOSE TO ACCEL CABLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) ID=8 & 10	8-94252-372-0	01	1	9407-		●
109	CLIP; VAC HOSE TO RAD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=6	8-94104-894-0	01	1	9307-9406		●
109	CLIP; VAC HOSE TO RAD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) ID=6	8-94104-894-0	01	1	9407-		●
109	CLIP; VAC HOSE TO RAD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8	8-94110-509-0	02	1	9307-9406		●
109	CLIP; VAC HOSE TO RAD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) ID=8	8-94110-509-0	02	1	9407-		●
111	CLIP; VAC HOSE TO FUEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 16	8-94165-407-0	01	1	9307-9401		●
111	CLIP; VAC HOSE TO FUEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 16	5-09707-032-0	01	1	9402-9406		●
111	CLIP; VAC HOSE TO FUEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) ID=8 & 16	5-09707-032-0	01	1	9407-		●
112	CLIP; VAC HOSE TO FUEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8 & 10	8-94252-372-0	01	1	9307-9406		●
112	CLIP; VAC HOSE TO FUEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) ID=8 & 10	8-94252-372-0	01	1	9407-		●
134	BOLT; VSV LONG(WFB5VF) TURBOCHARGER(K51) M4X6	9-03494-406-0	01	1	9407-		●
195	HOSE; VAC AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2),SINGAPORE EQUIPMENT(S9Y) L=500 SERVICED BY L=3000	0-04740-300-0	01	1	9307-	●
195	HOSE; VAC LONG(WFB5VF) TURBOCHARGER(K51) (A) OD=7 L=560 SERVICED BY L=3000	0-04730-300-0	01	1	9407-		●
195	HOSE; VAC LONG(WFB5VF) TURBOCHARGER(K51) (B) OD=7 L=1230	8-97106-960-0	01	1	9407-		●
197	VALVE; VAC SWITCHING LONG(WFB5VF) TURBOCHARGER(K51)	8-94450-271-0	01	1	9407-		●
271	BOLT; BRKT LONG(WFB5VF) TURBOCHARGER(K51) M8X12 W/LK WASHER	0-50040-812-0	02	1	9407-		●
303	BRACKET; VAC SW LONG(WFB5VF) TURBOCHARGER(K51)	8-97085-948-1	01	1	9407-		●
655	PIPE; EGR VLV LONG(WFB5VF) TURBOCHARGER(K51)	8-94321-788-2	01	1	9407-		●
681	NUT; EGR PIPE LONG(WFB5VF) TURBOCHARGER(K51) M8 FLANGE	0-91150-108-0	02	1	9407-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
