0-56 — EMISSION SYSTEM (#35732) — 21 parça

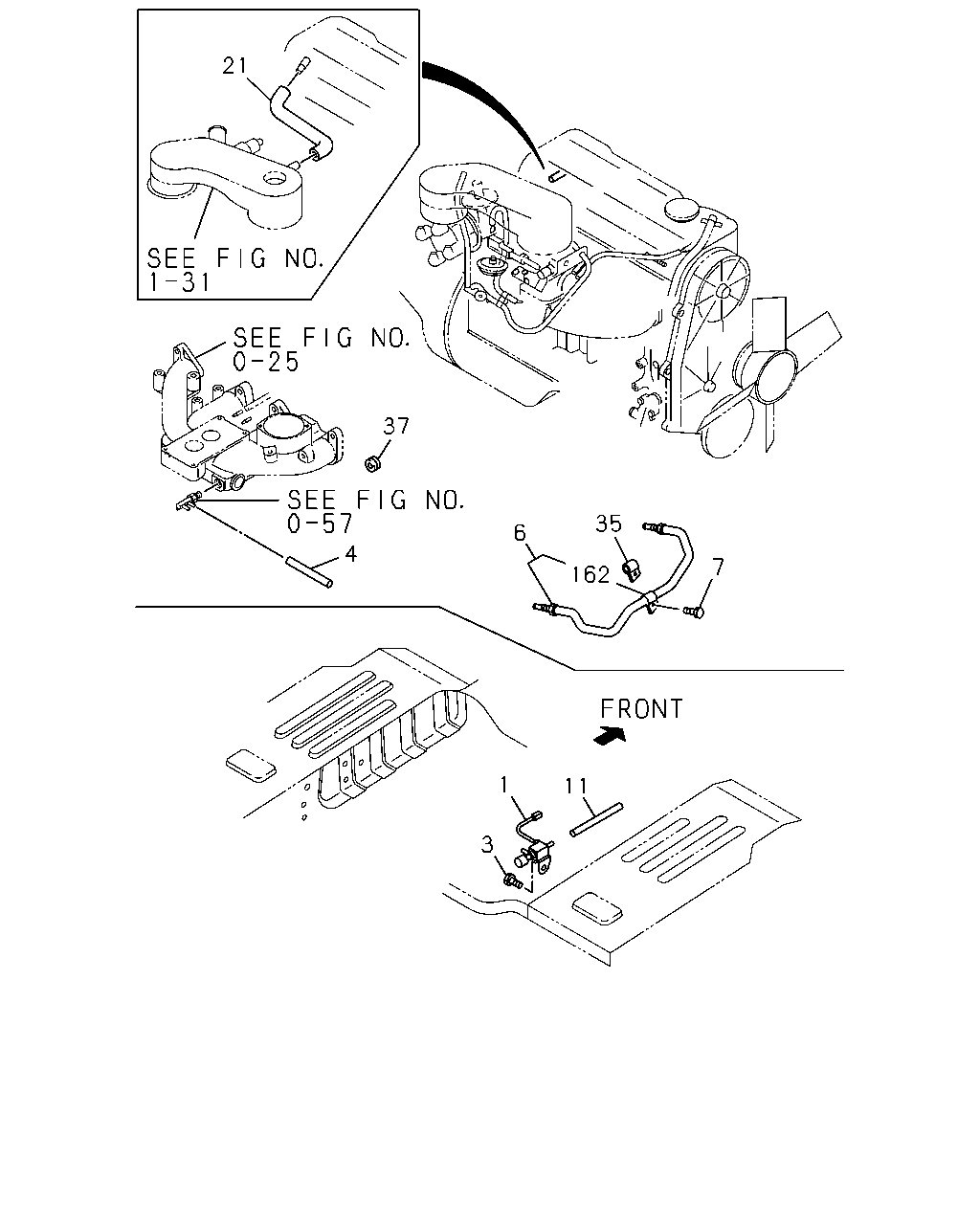

çizim 65841
21 4 37 35 6 7 162 1 11 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; VAC SW
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94217-299-0 01 1 9307- ●
3 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9307- ●
4 HOSE; CARB TO TVV
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=80 SERVICED BY L=3050 		8-94209-298-1 01 1 9307-9406 ●
4 HOSE; CARB TO TVV
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) L=80 SERVICED BY L=3000 		0-04740-300-0 01 1 9407- ●
6 PIPE; EGR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94227-918-0 01 1 9307- ●
7 BOLT; BRKT,EGR PIPE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9307- ●
11 HOSE; 3 WAY TO VSV
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=210 SERVICED BY L=3000 		0-04740-300-0 01 1 9307- ●
21 HOSE; HD COVER TO COMMON CHAMBER 8-94338-886-0 01 1 9307- ●
35 CLIP; EGR PIPE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94232-308-0 01 1 9307- ●
37 PLUG
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) PT3/8 		5-09605-005-0 01 1 9307- ●
162 CLIP; PIPE,EGR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-94232-308-0 01 1 9307- ●

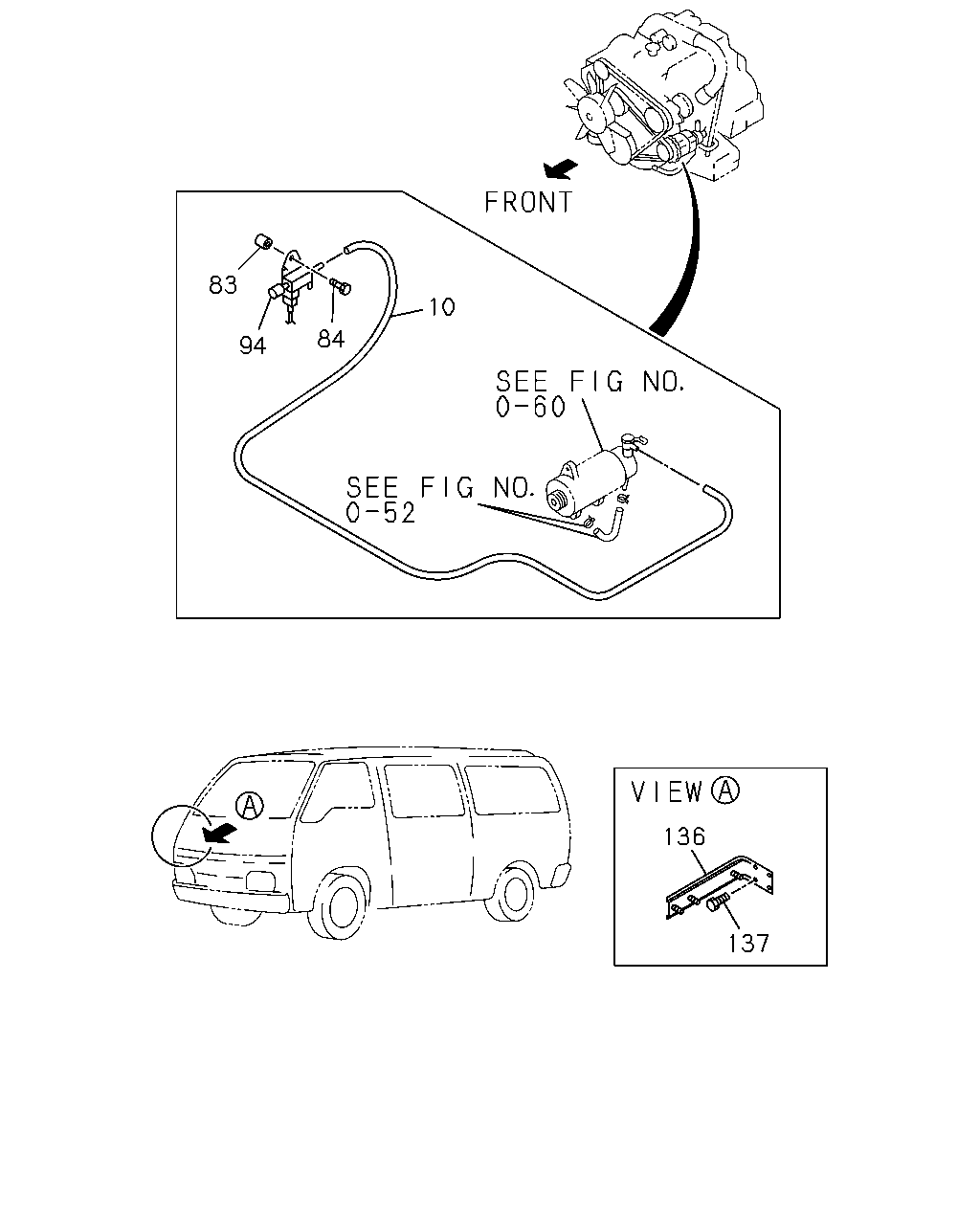

çizim 68323
83 10 84 94 136 137
BalonParca AdiParca NoAdetTipApplied Date A B
10 HOSE; RUBBER,PUMP TO VSV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=1640 		8-94407-082-0 01 1 9307-9406 ●
10 HOSE; RUBBER,PUMP TO VSV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) L=1640 SERVICED BY L=3000 		0-04730-300-0 01 1 9407- ●
83 PIECE; DIST,VSV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94146-294-0 01 1 9307-9406 ●
83 PIECE; DIST,VSV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) 		8-94146-294-0 01 1 9407- ●
84 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9307-9406 ●
84 BOLT; VSV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9407- ●
94 VALVE; VAC SWITCH,FAST IDLE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94421-565-0 01 1 9307-9406 ●
94 VALVE; VAC SWITCH,FAST IDLE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) 		8-94421-565-0 01 1 9407- ●
136 STAY; BRKT,ENG SPD SENSOR
LONG(WFB5VF) TURBOCHARGER(K51) EXC. POWER WINDOW FRT DOOR<A32> 		8-94405-173-2 01 1 9407- ●
137 BOLT; SENSOR STAY
LONG(WFB5VF) TURBOCHARGER(K51) EXC. POWER WINDOW FRT DOOR<A32> M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9407- ●
