0-52 — OIL AND VACUUM PIPING; ENGINE (#35731) — 28 parça

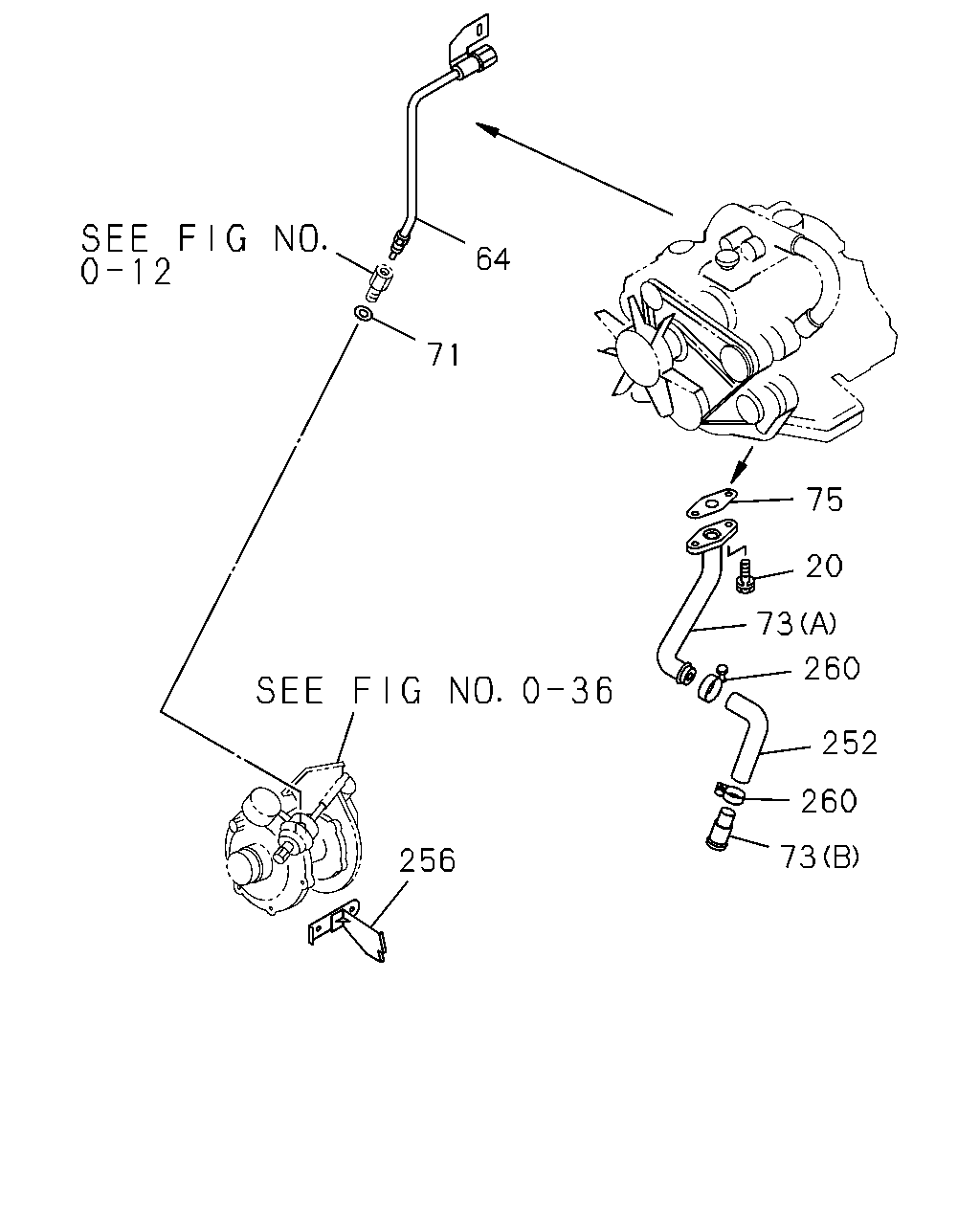

çizim 19341
64 71 75 20 73 260 252 260 73 256
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; OIL PIPE TO TURBOCHARGER
LONG(WFB5VF) TURBOCHARGER(K51) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9407-
64 PIPE ASM; OIL,HD TO TURBOCHARGER
LONG(WFB5VF) TURBOCHARGER(K51) 		8-94119-590-2 01 1 9407-
71 GASKET; OIL PIPE,HD TO TURBOCHARGER
LONG(WFB5VF) TURBOCHARGER(K51) ID=10.2 OD=16.0 		9-09571-410-0 01 1 9407-
73 PIPE ASM; OIL,TURBOCHARGER RETURN
LONG(WFB5VF) TURBOCHARGER(K51) (B) OD=15 L=41 		8-94442-052-0 01 1 9407-
73 PIPE ASM; OIL,TURBOCHARGER RETURN
LONG(WFB5VF) TURBOCHARGER(K51) (A) 		8-97102-436-0 01 1 9407-
75 GASKET; TURBOCHARGER RETURN PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). LONG(WFB5VF) TURBOCHARGER(K51) ID=14 		8-97041-638-0 01 1 9407-
252 HOSE; RUBBER,TURBOCHARGER RETURN
LONG(WFB5VF) TURBOCHARGER(K51) 		8-94457-422-0 01 1 9407-
256 PROTECTOR; HEAT,PIPE
LONG(WFB5VF) TURBOCHARGER(K51) 		8-97083-612-0 01 1 9407-
260 CLIP; HOSE,TURBOCHARGER RETURN
LONG(WFB5VF) TURBOCHARGER(K51) 		8-94466-056-0 02 1 9407-

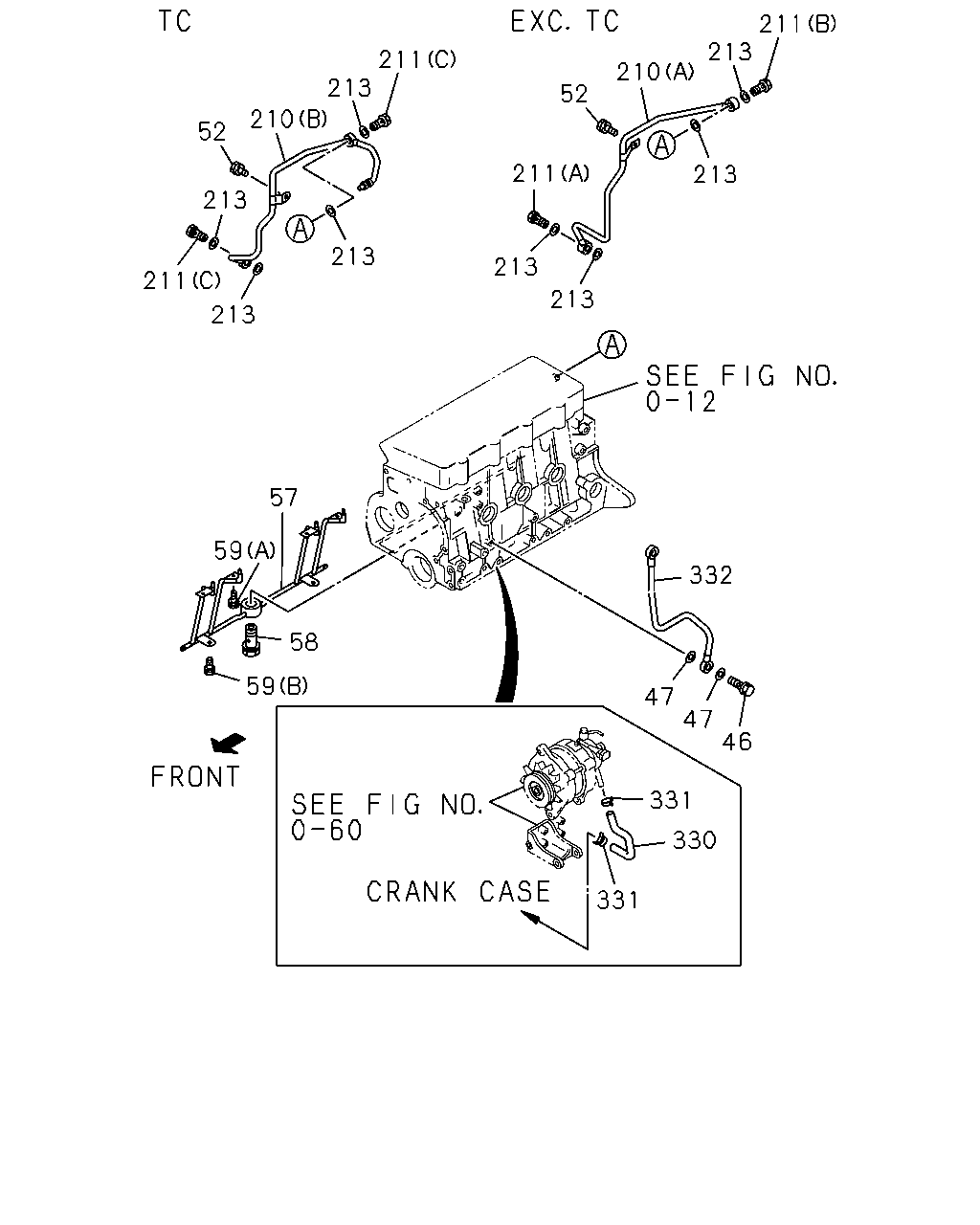

çizim 68474
211 213 210 211 213 210 52 52 211 213 213 211 213 213 213 213 57 59 332 58 59 47 47 46 331 330 331
BalonParca AdiParca NoAdetTipApplied Date
46 BOLT; JOINT,OIL FEED PIPE,VAC PUMP
M10X24 		9-09906-205-1 01 1 9307-
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=19 		9-09572-010-0 04 1 9307-
52 BOLT; OIL PIPE CLIP
M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9307-
57 PIPE; OIL,OIL JET 8-94449-076-0 01 1 9307-
58 VALVE; RELIEF,OIL JET,PISTON COOLING 8-94143-255-1 01 1 9307-
59 BOLT; OIL JET
(A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9307-
59 BOLT; OIL JET
(B) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9307-
210 PIPE; OIL,C/BL TO HD,ROCKER OIL FEED
(A) 		8-97016-375-0 01 1 9307-9406
210 PIPE; OIL,C/BL TO HD,ROCKER OIL FEED
EXC. TURBOCHARGER(K51) (A) 		8-97016-375-0 01 1 9407-
210 PIPE; OIL,C/BL TO HD,ROCKER OIL FEED
LONG(WFB5VF) TURBOCHARGER(K51) (B) 		8-94457-871-1 01 1 9407-
211 BOLT; JOINT,FEED PIPE
(B) M8X20 EYE BOLT 		5-09675-018-1 01 1 9307-9406
211 BOLT; JOINT,FEED PIPE
EXC. TURBOCHARGER(K51) (B) M8X20 EYE BOLT 		5-09675-018-1 01 1 9407-
211 BOLT; JOINT,FEED PIPE
(A) M8X25 		8-94220-986-1 01 1 9307-9406
211 BOLT; JOINT,FEED PIPE
EXC. TURBOCHARGER(K51) (A) M8X25 		8-94220-986-1 01 1 9407-
211 BOLT; JOINT,FEED PIPE
LONG(WFB5VF) TURBOCHARGER(K51) (C) M8X25 		8-94140-395-1 02 1 9407-
213 GASKET; ROCKER OIL FEED PIPE
ID=8.2 OD=17 		9-09572-008-0 04 1 9307-
330 HOSE; VAC PUMP,RETURN 8-94458-512-0 01 1 9307-
331 CLAMP; VAC HOSE,PUMP RETURN 8-94466-057-0 02 1 9307-
332 PIPE; OIL,C/BL TO VAC PUMP 8-94123-015-0 01 1 9307-
