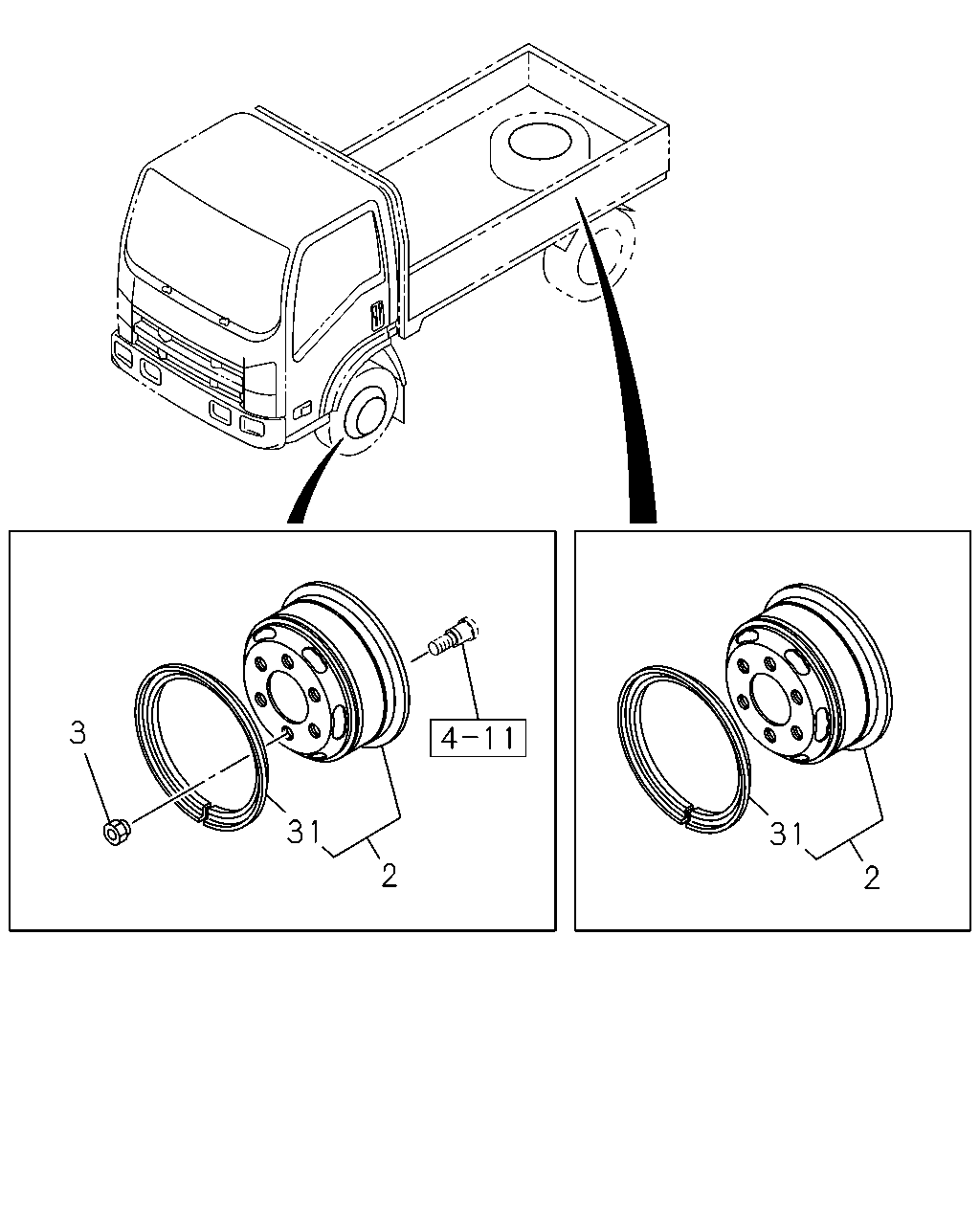

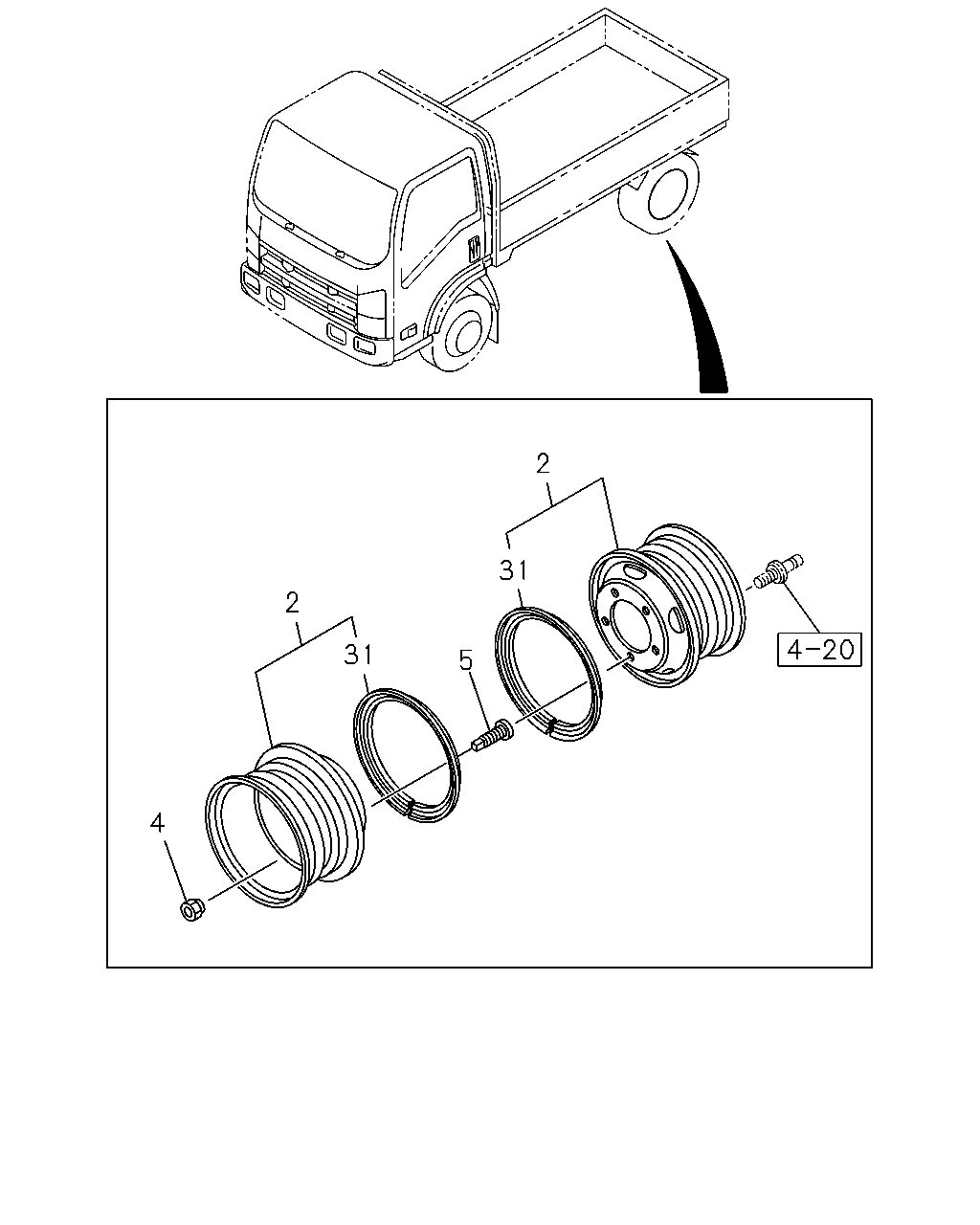

4-80 — ROAD WHEEL (#35727) — 46 parça

2 31 2 31 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0901-0902
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0903-1003
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	1004-1004
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	1005-1208
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	1209-
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0901-0902
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0903-1003
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	1004-1004
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	1005-1208
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	1209-
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0901-
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0901-
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0901-
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0901-
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	0901-0902
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	0903-1003
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	1004-1004
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	1005-1208
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	1209-
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	0901-0902
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	0903-1003
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	1004-1004
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	1005-1208
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	1209-

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0901-0902
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0903-1003
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	1004-1004
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	1005-1208
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	1209-
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0901-0902
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0903-1003
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	1004-1004
2	WHEEL; DISC FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	1005-1208
2	WHEEL; DISC FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	1209-
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0901-
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0901-
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	0901-0902
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	0903-1003
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	1004-1004
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	1005-1208
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	1209-
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	0901-0902
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	0903-1003
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	1004-1004
31	RING; SIDE,DISC WHEEL FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	1005-1208
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	1209-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
