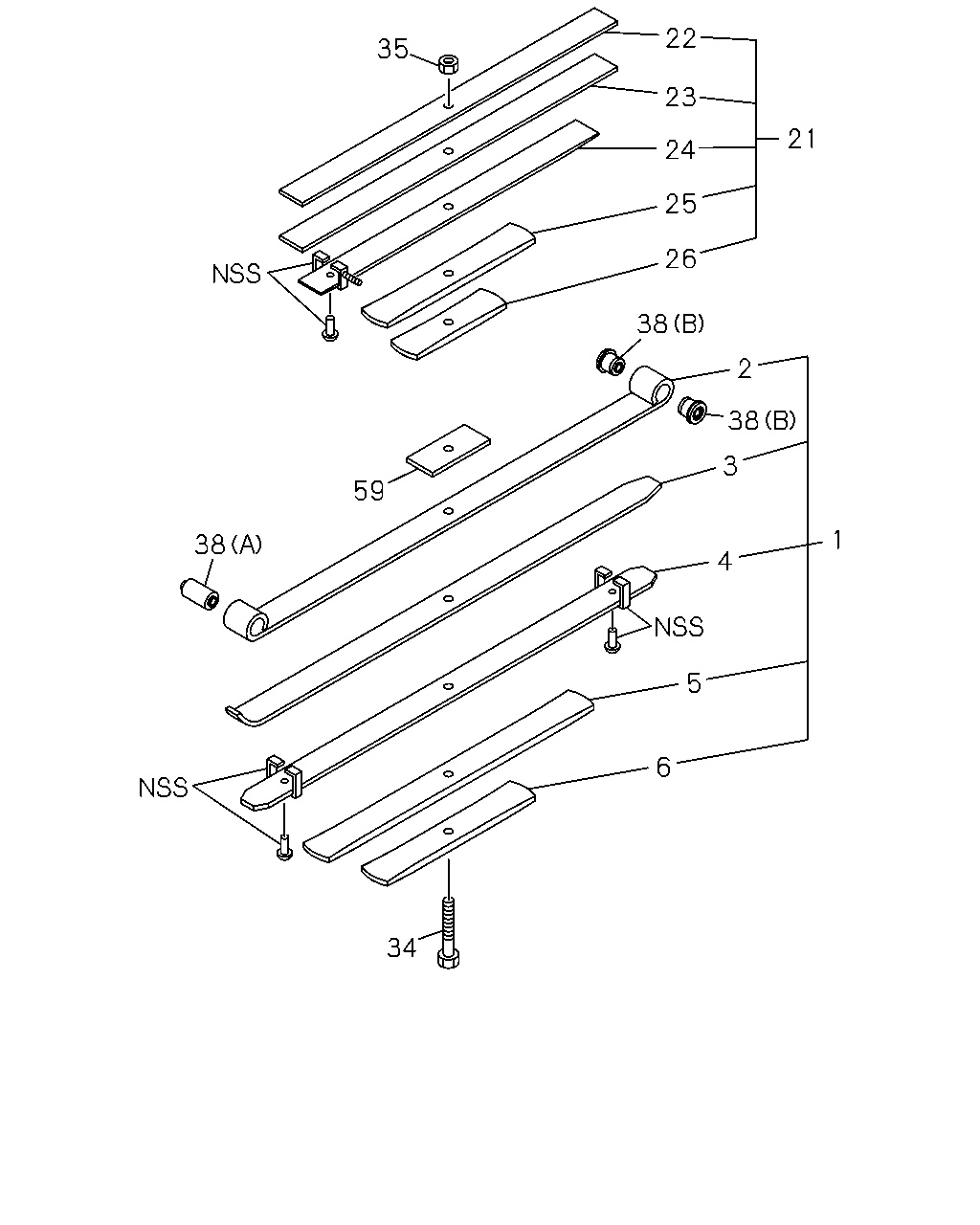

4-65 — REAR LEAF SPRING (#35726) — 18 parça

22 35 23 21 24 25 26 38 2 38 3 59 1 38 4 5 6 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN THA ASM PART: A = 8-98022-374-0	8-98063-882-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-98022-374-0	8-98063-883-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-98022-374-0	8-98063-884-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-98022-374-0	8-98063-885-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-98022-374-0	8-98063-886-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN THA ASM PART: A = 8-98022-374-0	8-98063-887-0	01	1	-
21	SPRING ASM; LEAF,RR SUB THA ASM PART: A = 8-98022-374-0	8-98063-888-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-98022-374-0	8-98063-889-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-98022-374-0	8-98063-890-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB THA ASM PART: A = 8-98022-374-0	8-98063-891-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB THA ASM PART: A = 8-98022-374-0	8-98063-892-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB THA ASM PART: A = 8-98022-374-0	8-98063-893-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=125, THA ASM PART: A = 8-98022-374-0	8-98037-584-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12, THA ASM PART: A = 8-98022-374-0	9-99110-512-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98022-374-0	5-87610-163-0	01	1	-
38	BUSHING; LEAF SPR,RR (B), OD=40 L=43.7 ASM PART: A = 8-98022-374-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98022-374-0	8-97074-826-0	01	1	-
59	SEAT; RR SPRING,SUB T=6, THA ASM PART: A = 8-98022-374-0	8-94367-965-0	01	1	-
