◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51242 - NMR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#35720) — 14 parça

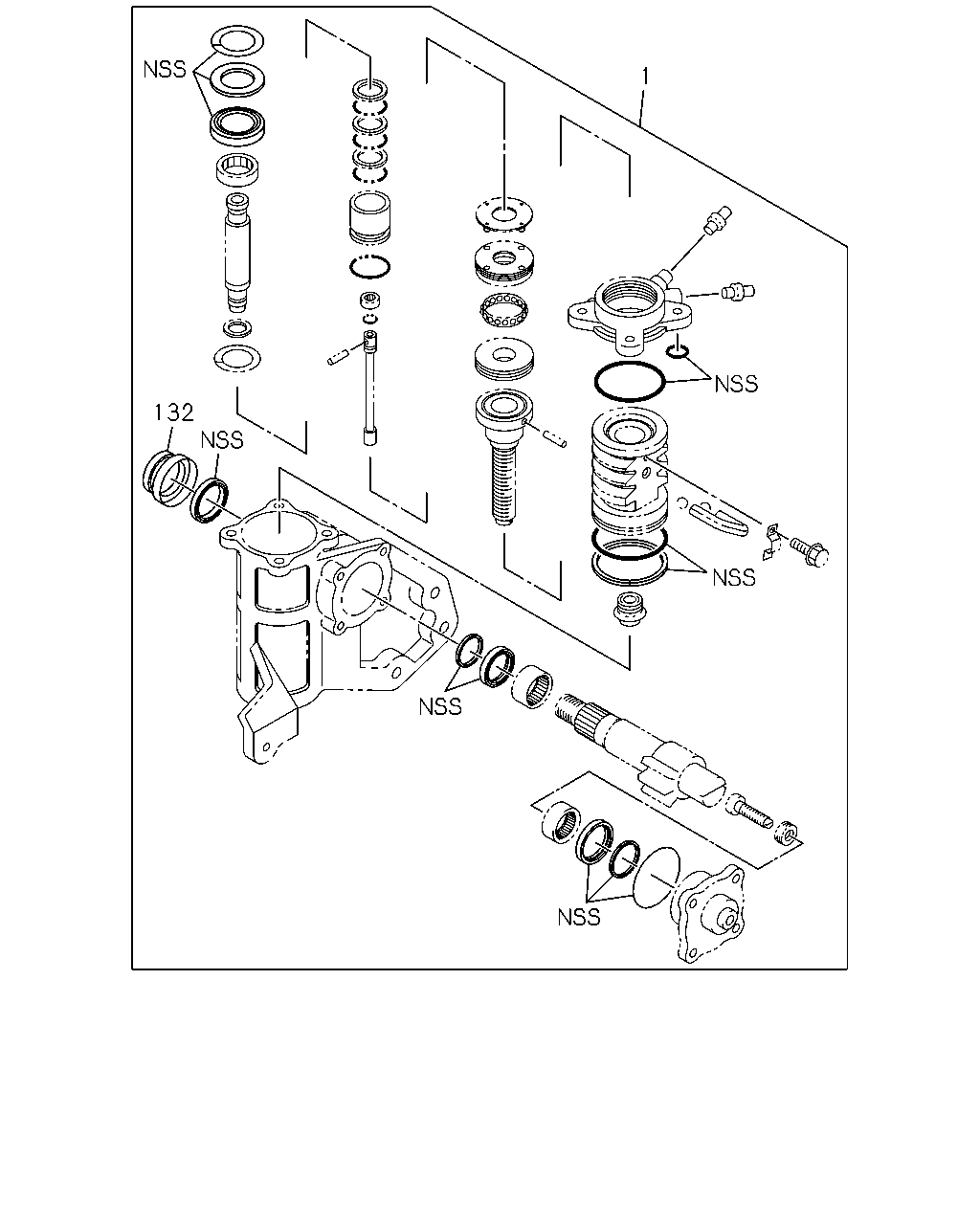

çizim 123644
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-98110-217-1 		8-97356-138-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-98101-297-3 		8-98171-736-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-97076-372-0 01 1 -
çizim 123649
35 72 132 14 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: B = 8-98110-217-1 		8-98061-386-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-98101-297-3 		8-98101-305-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-98061-392-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-98036-333-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-97014-842-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-98036-336-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-98036-337-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-98112-931-3 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-98036-336-0 04 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-297-3, B = 8-98110-217-1 		8-97076-372-0 01 1 -
