Sayfa 2-30 - Isuzu EPC

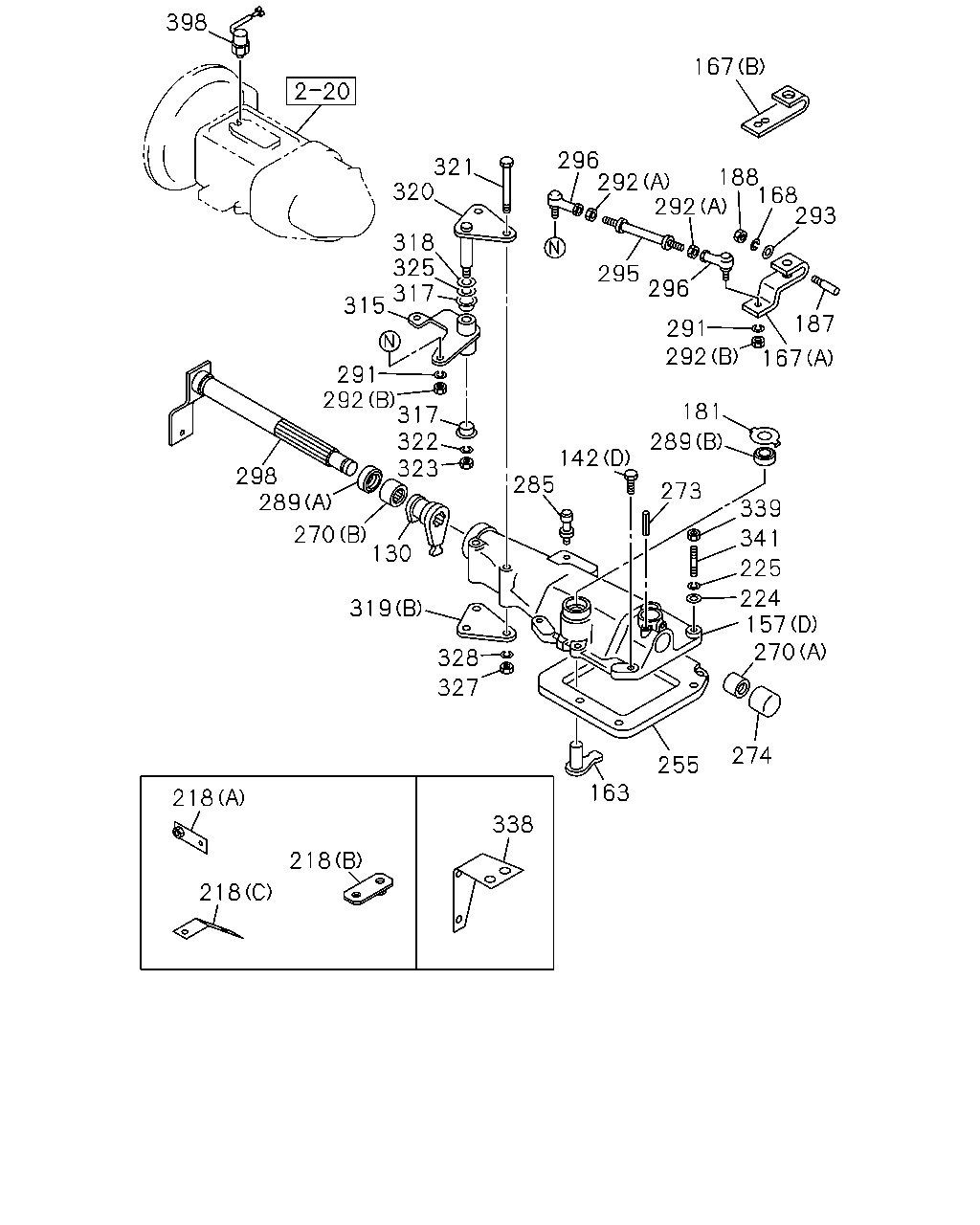

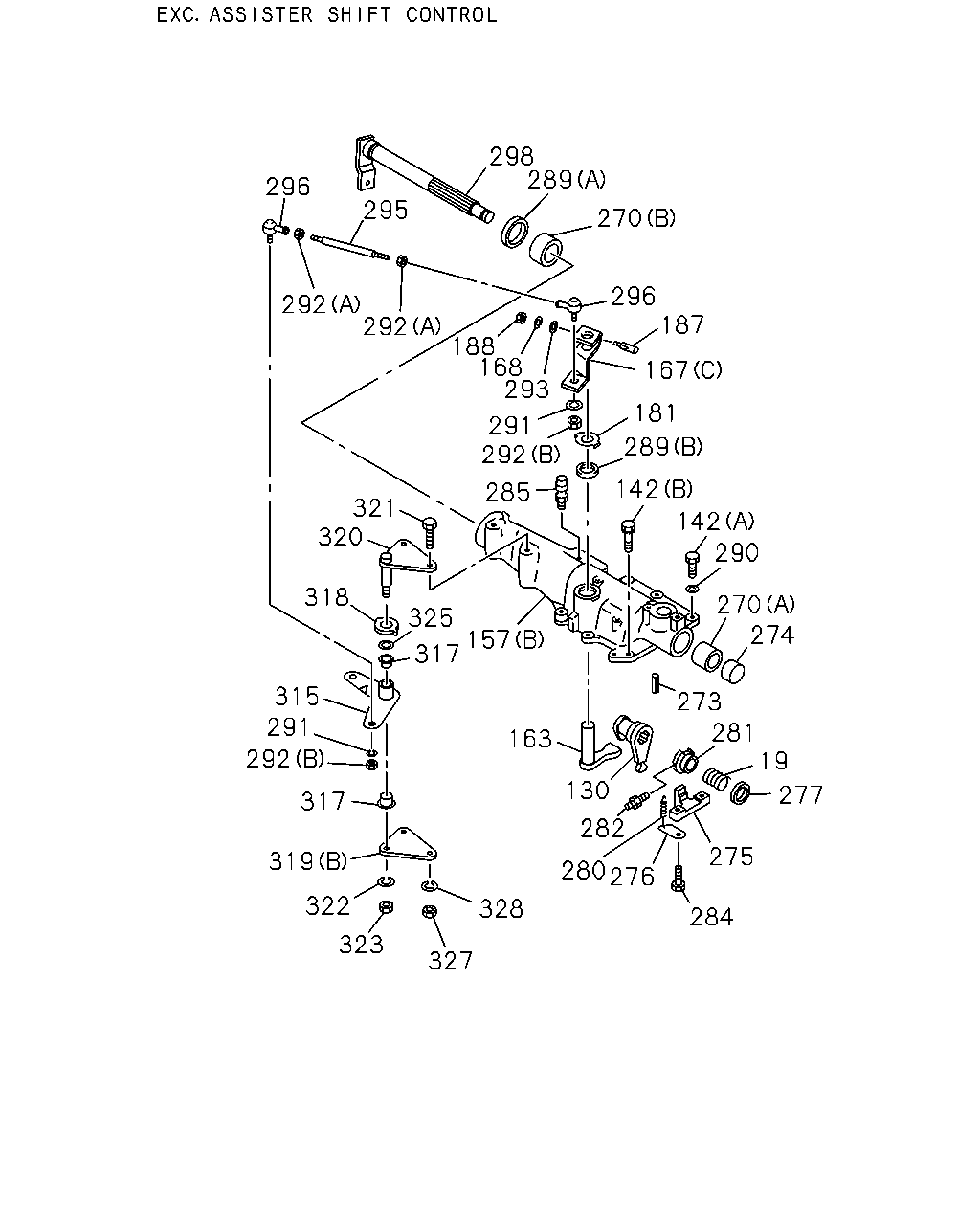

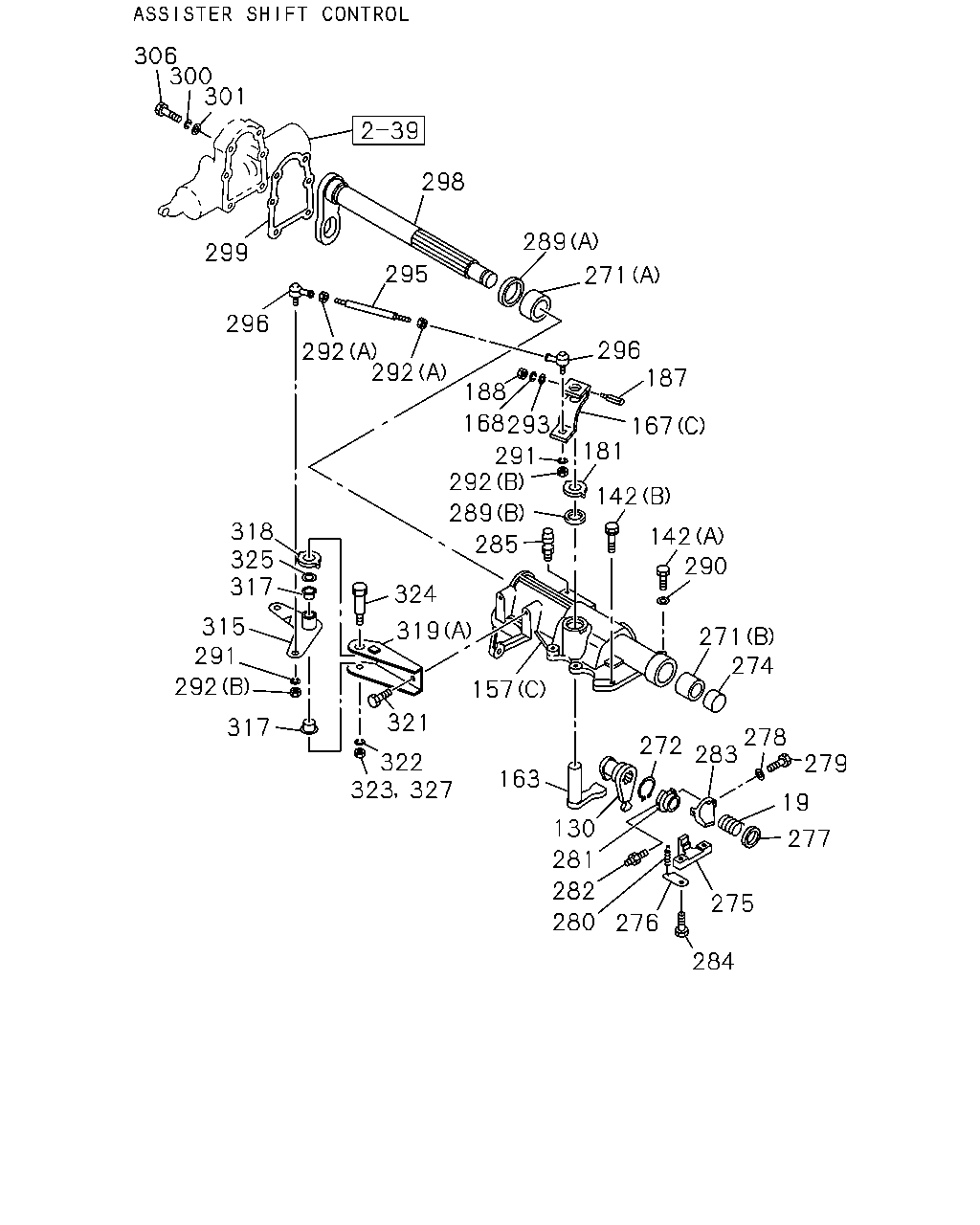

2-30 — GEAR SHIFTER AND QUADRANT BOX (#3572) — 648 parça

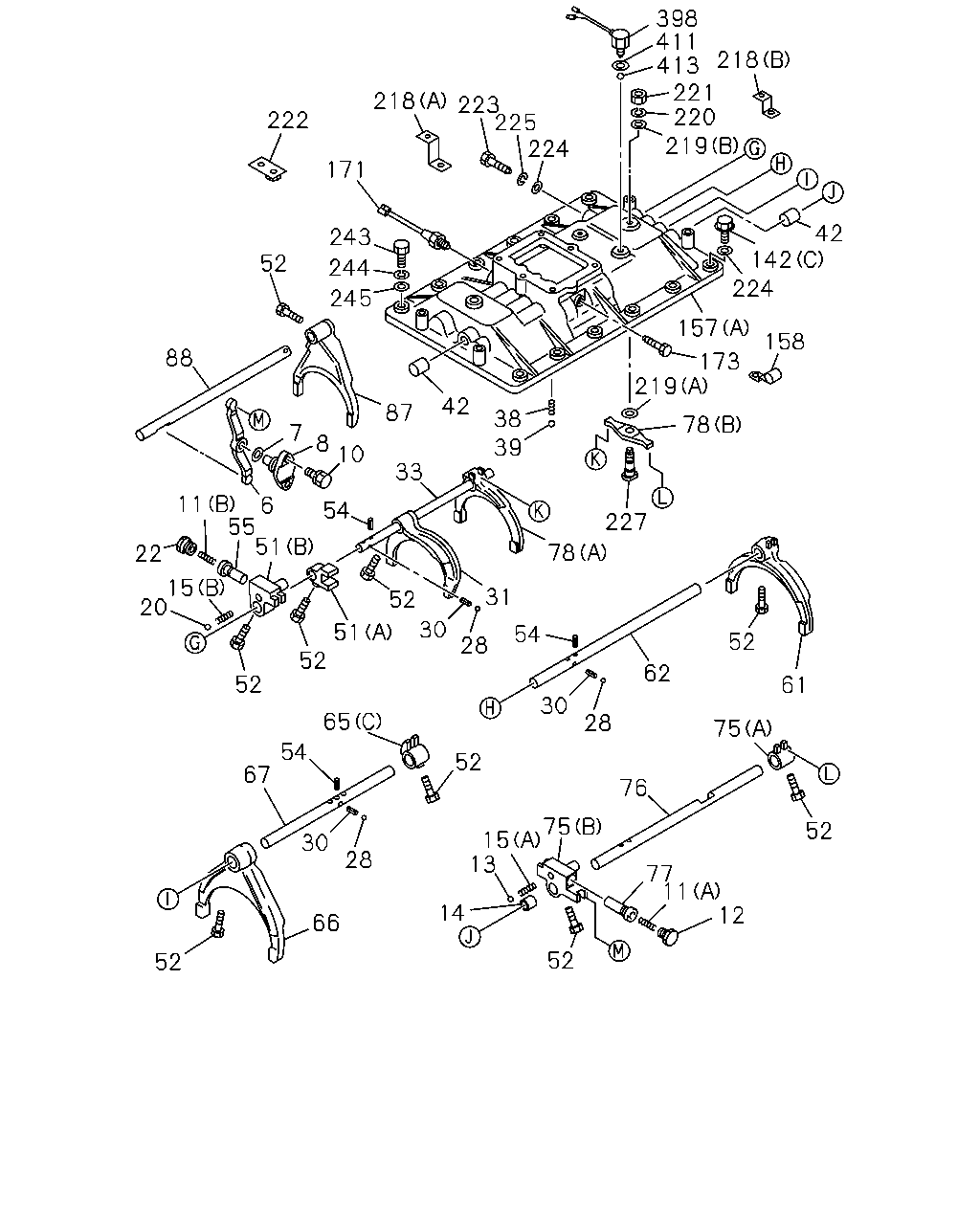

398 411 413 221 220 218 218 223 225 224 222 219 171 42 142 243 52 244 224 245 157 158 88 173 219 42 87 38 78 7 8 39 10 33 11 6 55 51 54 227 78 22 15 20 31 52 30 51 52 54 52 28 62 52 61 30 65 28 75 54 52 67 76 75 52 15 13 30 28 77 11 12 14 66 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
6	LEVER; RELAY	1-33511-233-1	01	1	9002-	●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9002-9306	●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9307-	●	●
8	SPINDLE; REV & 7TH	1-33519-008-1	01	1	9002-	●	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-9002	●	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9203	●	●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205	●	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-420-0	01	1	9002-9004			●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9002-	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9002-9004	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9005-	●	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9002-	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●
14	STOPPER; SHIFT ROD,7TH TO RR	1-33537-019-0	01	1	9002-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9005-			●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9002-9004	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9005-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9002-	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9002-	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9002-	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9002-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-295-1	01	1	9002-9306			●
31	ARM; SHIFT,LOW & 2ND	1-33511-386-1	01	1	9307-			●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9002-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-296-1	01	1	9002-			●
33	ROD; SHIFT,LOW & 2ND	1-33531-293-1	01	1	9002-9010	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9011-	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	9002-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9002-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9002-	●	●	●
51	BLOCK; SHIFT,1ST & 2ND (C)	1-33511-286-1	01	1	9002-			●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-2	01	1	9002-	●	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-4	01	1	9002-	●	●
52	BOLT; SHIFT ARM M12X20 3-HOLE	1-09052-025-0	09	1	9002-9107	●	●	●
52	BOLT; SHIFT ARM M12X20 NO-HOLE	1-09052-032-1	09	1	9108-9512	●	●	●
52	BOLT; SHIFT ARM M12X20	1-09052-039-0	09	1	9601-	●	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9002-	●	●	●
55	SLEEVE; 1ST & 2ND	1-33516-022-1	01	1	9002-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-315-1	01	1	9002-			●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9002-	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	9002-	●	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-256-2	01	1	9002-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-293-2	01	1	9002-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-286-1	01	1	9002-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-297-1	01	1	9002-			●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9002-	●	●
67	ROD; SHIFT,5TH & 6TH	1-33531-297-1	01	1	9002-			●
67	ROD; SHIFT,5TH & 6TH	1-33531-291-1	01	1	9002-	●	●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-236-1	01	1	9002-	●	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-300-4	01	1	9002-	●	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-294-1	01	1	9002-	●	●
77	SLEEVE; REV & 7TH	1-33516-022-1	01	1	9002-	●	●
78	ARM; SHIFT,REV (A)	1-33511-245-1	01	1	9002-			●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9002-	●	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9002-	●	●
87	ARM; SHIFT,7TH	1-33511-275-1	01	1	9002-	●	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-285-0	01	1	9002-	●	●
142	BOLT; QUAD BOX (C) M10X33 & M10X20	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (A) M10X28	1-09040-089-1	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X32	9-01991-032-0	11	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (C) M10X32	0-50151-032-0	11	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (B) M10X35	9-01991-035-0	04	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (B) M10X35	0-50151-035-0	04	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	13	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-1	03	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55&M10X20	1-09049-016-0	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (D) M10X28	9-01971-028-0	04	1	9002-9002				●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-				●	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9602	●	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	9002-				●	●	●	●
158	CLIP; HARNESS 10PD1 STD ENG(40L) ID=6.0	9-09917-391-0	01	1	9002-9003	●		●
158	CLIP; HARNESS ID=6.0	9-09917-391-0	01	1	9004-9306	●	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9307-			●
158	CLIP; HARNESS L=36	8-94224-891-1	03	1	9307-	●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9002-9009	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●	●	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-	●	●	●
173	SCREW; SET,7TH TO REV	1-09000-446-1	01	1	9002-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47475-689-0	02	1	9002-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-425-0	01	1	9307-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47465-485-0	02	1	9002-				●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-123-1	01	1	9002-				●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-228-0	02	1	9002-				●	●	●	●
219	WASHER; PL,SPINDLE (B) ID=12.0	9-09164-612-0	01	1	9002-9205	●	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9002-	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9002-9205	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9002-9205	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●
222	BRACKET; CLIP L=65	1-47476-513-0	01	1	9002-9306	●	●	●
222	BRACKET; CLIP L=65	1-47476-513-0	02	1	9307-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-				●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9002-				●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9002-	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	9-02050-610-0	01	1	9002-9005	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9006-9205	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●	●	●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9002-9205	●	●	●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9307-	●	●	●
398	SWITCH; REV LAMP	1-82440-046-0	01	1	9002-				●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.0	9-09920-393-0	01	1	9002-9208	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9002-	●	●	●

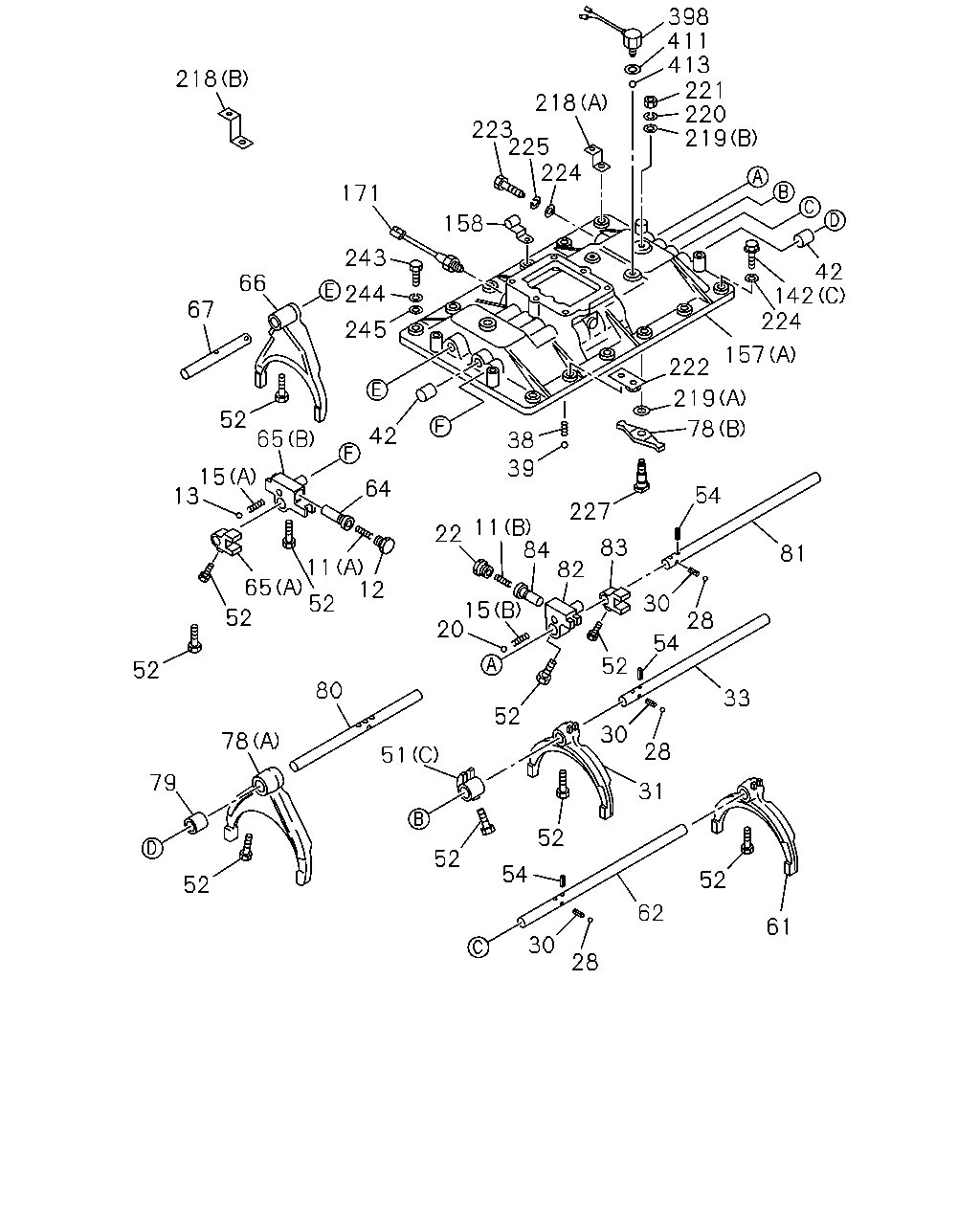

398 411 413 221 220 219 218 218 223 225 224 171 158 243 42 142 224 66 244 67 245 157 222 219 52 78 42 65 38 39 15 13 64 54 227 11 84 82 22 83 81 11 52 12 65 30 15 20 52 28 54 52 52 80 33 52 30 78 28 51 79 31 52 52 54 52 52 62 61 30 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-420-0	01	1	9002-9004			●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9002-	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9002-9004	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9005-	●	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9002-	●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9005-			●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9002-9004	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9005-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9002-	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9002-	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9002-	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9002-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-295-1	01	1	9002-9306			●
31	ARM; SHIFT,LOW & 2ND	1-33511-386-1	01	1	9307-			●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9002-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-296-1	01	1	9002-			●
33	ROD; SHIFT,LOW & 2ND	1-33531-293-1	01	1	9002-9010	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9011-	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	9002-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9002-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9002-	●	●	●
51	BLOCK; SHIFT,1ST & 2ND (C)	1-33511-286-1	01	1	9002-			●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-2	01	1	9002-	●	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-4	01	1	9002-	●	●
52	BOLT; SHIFT ARM M12X20 3-HOLE	1-09052-025-0	09	1	9002-9107	●	●	●
52	BOLT; SHIFT ARM M12X20 NO-HOLE	1-09052-032-1	09	1	9108-9512	●	●	●
52	BOLT; SHIFT ARM M12X20	1-09052-039-0	09	1	9601-	●	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9002-	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-315-1	01	1	9002-			●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9002-	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	9002-	●	●	●
64	SLEEVE; SHIFT BLOCK,5TH TO 6TH	1-33516-022-1	01	1	9002-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-256-2	01	1	9002-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-293-2	01	1	9002-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-286-1	01	1	9002-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-297-1	01	1	9002-			●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9002-	●	●
67	ROD; SHIFT,5TH & 6TH	1-33531-297-1	01	1	9002-			●
67	ROD; SHIFT,5TH & 6TH	1-33531-291-1	01	1	9002-	●	●
78	ARM; SHIFT,REV (A)	1-33511-245-1	01	1	9002-			●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9002-	●	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9002-	●	●
79	STOPPER; REV BLOCK	9-33537-018-0	01	1	9002-			●
80	ROD; SHIFT,REV ARM	1-33531-289-0	01	1	9002-			●
81	ROD; SHIFT,REV BLOCK	1-33531-295-1	01	1	9002-			●
82	BLOCK; SHIFT,REV	1-33511-298-4	01	1	9002-			●
83	BLOCK; SHIFT,REV LEVER	1-33511-038-2	01	1	9002-			●
84	SLEEVE; REV	1-33516-022-1	01	1	9002-			●
142	BOLT; QUAD BOX (C) M10X33 & M10X20	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (A) M10X28	1-09040-089-1	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X32	9-01991-032-0	11	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (C) M10X32	0-50151-032-0	11	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (B) M10X35	9-01991-035-0	04	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (B) M10X35	0-50151-035-0	04	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	13	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-1	03	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55&M10X20	1-09049-016-0	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (D) M10X28	9-01971-028-0	04	1	9002-9002				●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-				●	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9602	●	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	9002-				●	●	●	●
158	CLIP; HARNESS 10PD1 STD ENG(40L) ID=6.0	9-09917-391-0	01	1	9002-9003	●		●
158	CLIP; HARNESS ID=6.0	9-09917-391-0	01	1	9004-9306	●	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	9307-			●
158	CLIP; HARNESS L=36	8-94224-891-1	03	1	9307-	●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9002-9009	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●	●	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47475-689-0	02	1	9002-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-425-0	01	1	9307-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47465-485-0	02	1	9002-				●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-123-1	01	1	9002-				●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-228-0	02	1	9002-				●	●	●	●
219	WASHER; PL,SPINDLE (B) ID=12.0	9-09164-612-0	01	1	9002-9205	●	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9002-	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9002-9205	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9002-9205	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●
222	BRACKET; CLIP L=65	1-47476-513-0	01	1	9002-9306	●	●	●
222	BRACKET; CLIP L=65	1-47476-513-0	02	1	9307-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-				●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9002-				●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9002-	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	9-02050-610-0	01	1	9002-9005	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9006-9205	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●	●	●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9002-9205	●	●	●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9307-	●	●	●
398	SWITCH; REV LAMP	1-82440-046-0	01	1	9002-				●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.0	9-09920-393-0	01	1	9002-9208	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9002-	●	●	●

398 167 296 292 292 321 320 188 168 293 318 325 317 315 295 296 187 291 292 167 291 292 317 322 323 181 289 142 285 298 289 273 339 270 130 341 225 224 157 270 319 328 327 274 255 163 218 338 218 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-114-1	01	1	9002-9306			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9002-9306	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	9307-			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9307-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-115-1	01	1	9002-9401	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-125-0	01	1	9402-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-055-0	01	1	9002-				●	●	●	●
142	BOLT; QUAD BOX (C) M10X33 & M10X20	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (A) M10X28	1-09040-089-1	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X32	9-01991-032-0	11	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (C) M10X32	0-50151-032-0	11	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (B) M10X35	9-01991-035-0	04	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (B) M10X35	0-50151-035-0	04	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	13	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-1	03	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55&M10X20	1-09049-016-0	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (D) M10X28	9-01971-028-0	04	1	9002-9002				●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-				●	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9602	●	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	9002-				●	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9002-	●	●	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C)	1-33521-096-1	01	1	9002-	●		●
167	LEVER; SELECT,EXTERNAL 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (C)	1-33521-079-0	01	1	9002-	●	●	●
167	LEVER; SELECT,EXTERNAL ASSISTER SHIFT CONTROL<WX8> (C)	1-33521-113-0	01	1	9012-		●
167	LEVER; SELECT,EXTERNAL 6RB1 STD ENG(07L) (B)	1-33521-070-0	01	1	9002-				●		●	●
167	LEVER; SELECT,EXTERNAL 10PD1 STD ENG(40L) (A)	1-33521-064-0	01	1	9002-				●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9002-9205	●	●	●	●	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9206-				●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9002-	●	●	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9002-	●	●	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8	1-09440-049-0	01	1	9305-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9002-9205	●	●	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-				●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-47475-689-0	02	1	9002-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-425-0	01	1	9307-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47465-485-0	02	1	9002-				●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-123-1	01	1	9002-				●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-228-0	02	1	9002-				●	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-				●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9002-				●	●	●	●
255	PLATE; DIST,QUAD BOX	1-33549-070-1	01	1	9002-				●	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9002-	●	●	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9002-	●	●	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9002-	●	●	●	●	●	●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9002-9306	●	●	●	●	●	●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9307-				●			●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9002-	●	●	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	9002-9008	●	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-	●	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9002-	●	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9002-	●	●	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9205	●	●	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312				●	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9401-	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9002-9003	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9002-9003	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9004-9006	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9004-9006	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9007-9011	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9007-9011	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9012-9012	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9012-9012	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9101-9205	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9101-	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9206-9312				●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9002-	●	●	●	●	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9510	●	●	●			●	●
295	ROD; LINK,RELAY LEVER 6RB1 STD ENG(07L)	1-33652-393-0	01	1	9002-9510				●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-	●	●	●			●	●
295	ROD; LINK,RELAY LEVER 6RB1 STD ENG(07L)	9-08400-815-0	01	1	9511-				●
295	ROD; LINK,RELAY LEVER 10PD1 STD ENG(40L)	1-33652-392-0	01	1	9002-9402				●	●
295	ROD; LINK,RELAY LEVER 10PD1 STD ENG(40L) L=130	1-09765-262-0	01	1	9403-				●	●
296	ROD END L=48	1-09760-038-1	02	1	9002-	●	●	●	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9002-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-089-0	01	1	9002-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-068-0	01	1	9002-				●	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-513-0	01	1	9002-	●		●
315	LEVER; SELECT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-417-0	01	1	9002-	●		●
315	LEVER; SELECT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-416-0	01	1	9002-	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-419-0	01	1	9012-		●
315	LEVER; SELECT 6RB1 STD ENG(07L)	1-33651-337-0	01	1	9002-				●		●	●
315	LEVER; SELECT 10PD1 STD ENG(40L)	1-33651-246-2	01	1	9002-				●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9002-	●	●	●	●	●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●	●	●
318	WASHER; WAVE 10PD1 STD ENG(40L)	9-09855-315-0	01	1	9002-				●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33657-447-0	01	1	9002-	●		●
319	BRACKET; SELECT LEVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-196-0	01	1	9002-	●	●	●	●		●	●
319	BRACKET; SELECT LEVER 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-190-0	01	1	9002-	●		●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33657-245-0	01	1	9012-		●
320	SHAFT; LEVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-134-0	01	1	9002-	●	●	●	●		●	●
320	SHAFT; LEVER 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-129-0	01	1	9002-	●		●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-9002	●		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	9-01056-080-0	02	1	9002-9004	●	●	●	●		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9005-	●	●	●	●	●	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●	●	●	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9002-	●	●	●	●	●	●	●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●	●	●
325	SHIM; LEVER 10PD1 STD ENG(40L)	1-33659-096-0	01	1	9002-				●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9002-9003	●	●	●	●		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	02	1	9002-9003	●	●	●	●		●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9004-	●	●	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	02	1	9004-9205	●	●	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	02	1	9206-				●	●	●	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●	●	●	●	●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9206-				●	●	●	●
338	BRACKET; FLEX TUBE	1-47475-452-0	01	1	9002-				●	●	●	●
339	NUT; QUAD BOX M10	9-09110-510-0	02	1	9002-				●	●	●	●
341	STUD; QUAD BOX	1-09305-004-0	02	1	9002-				●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9307-	●	●	●
398	SWITCH; REV LAMP	1-82440-046-0	01	1	9002-				●	●	●	●

298 289 296 295 270 296 187 292 292 188 168 293 167 181 291 292 289 142 285 321 320 142 290 318 270 274 325 157 317 315 291 273 281 19 163 292 130 277 317 282 275 319 280 276 322 328 284 323 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
19	SPRING; COIL COMP	1-09580-431-0	01	1	9002-9205	●	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-114-1	01	1	9002-9306			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9002-9306	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	9307-			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9307-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-115-1	01	1	9002-9401	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-125-0	01	1	9402-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-055-0	01	1	9002-				●	●	●	●
142	BOLT; QUAD BOX (C) M10X33 & M10X20	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (A) M10X28	1-09040-089-1	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X32	9-01991-032-0	11	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (C) M10X32	0-50151-032-0	11	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (B) M10X35	9-01991-035-0	04	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (B) M10X35	0-50151-035-0	04	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	13	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-1	03	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55&M10X20	1-09049-016-0	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (D) M10X28	9-01971-028-0	04	1	9002-9002				●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-				●	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9602	●	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	9002-				●	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9002-	●	●	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C)	1-33521-096-1	01	1	9002-	●		●
167	LEVER; SELECT,EXTERNAL 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (C)	1-33521-079-0	01	1	9002-	●	●	●
167	LEVER; SELECT,EXTERNAL ASSISTER SHIFT CONTROL<WX8> (C)	1-33521-113-0	01	1	9012-		●
167	LEVER; SELECT,EXTERNAL 6RB1 STD ENG(07L) (B)	1-33521-070-0	01	1	9002-				●		●	●
167	LEVER; SELECT,EXTERNAL 10PD1 STD ENG(40L) (A)	1-33521-064-0	01	1	9002-				●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9002-9205	●	●	●	●	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9206-				●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9002-	●	●	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9002-	●	●	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8	1-09440-049-0	01	1	9305-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9002-9205	●	●	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-				●	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9002-	●	●	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9002-	●	●	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9002-	●	●	●	●	●	●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9002-9306	●	●	●	●	●	●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9307-				●			●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9002-	●	●	●	●	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-33529-031-1	01	1	9002-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-027-0	01	1	9002-	●	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9002-	●	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9002-	●	●
280	SPRING; COIL TENSION ASSISTER SHIFT CONTROL<WX8>	1-09583-285-0	01	1	9002-	●	●
280	SPRING; COIL TENSION EXC. ASSISTER SHIFT CONTROL<WX8>	1-09583-255-0	01	1	9002-	●	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	9002-	●	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9002-	●	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9002-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	9002-9008	●	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-	●	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9002-	●	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9002-	●	●	●	●	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9205	●	●	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312				●	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9401-	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9002-9003	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9002-9003	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9004-9006	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9004-9006	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9007-9011	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9007-9011	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9012-9012	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9012-9012	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9101-9205	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9101-	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9206-9312				●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9002-	●	●	●	●	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9510	●	●	●			●	●
295	ROD; LINK,RELAY LEVER 6RB1 STD ENG(07L)	1-33652-393-0	01	1	9002-9510				●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-	●	●	●			●	●
295	ROD; LINK,RELAY LEVER 6RB1 STD ENG(07L)	9-08400-815-0	01	1	9511-				●
295	ROD; LINK,RELAY LEVER 10PD1 STD ENG(40L)	1-33652-392-0	01	1	9002-9402				●	●
295	ROD; LINK,RELAY LEVER 10PD1 STD ENG(40L) L=130	1-09765-262-0	01	1	9403-				●	●
296	ROD END L=48	1-09760-038-1	02	1	9002-	●	●	●	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9002-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-089-0	01	1	9002-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-068-0	01	1	9002-				●	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-513-0	01	1	9002-	●		●
315	LEVER; SELECT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-417-0	01	1	9002-	●		●
315	LEVER; SELECT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-416-0	01	1	9002-	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-419-0	01	1	9012-		●
315	LEVER; SELECT 6RB1 STD ENG(07L)	1-33651-337-0	01	1	9002-				●		●	●
315	LEVER; SELECT 10PD1 STD ENG(40L)	1-33651-246-2	01	1	9002-				●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9002-	●	●	●	●	●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●	●	●
318	WASHER; WAVE 10PD1 STD ENG(40L)	9-09855-315-0	01	1	9002-				●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33657-447-0	01	1	9002-	●		●
319	BRACKET; SELECT LEVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-196-0	01	1	9002-	●	●	●	●		●	●
319	BRACKET; SELECT LEVER 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-190-0	01	1	9002-	●		●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33657-245-0	01	1	9012-		●
320	SHAFT; LEVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-134-0	01	1	9002-	●	●	●	●		●	●
320	SHAFT; LEVER 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-129-0	01	1	9002-	●		●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-9002	●		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	9-01056-080-0	02	1	9002-9004	●	●	●	●		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9005-	●	●	●	●	●	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●	●	●	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9002-	●	●	●	●	●	●	●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●	●	●
325	SHIM; LEVER 10PD1 STD ENG(40L)	1-33659-096-0	01	1	9002-				●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9002-9003	●	●	●	●		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	02	1	9002-9003	●	●	●	●		●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9004-	●	●	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	02	1	9004-9205	●	●	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	02	1	9206-				●	●	●	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●	●	●	●	●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9206-				●	●	●	●

306 300 301 298 289 299 295 271 296 296 187 292 292 188 167 181 291 292 142 289 318 325 317 142 285 290 324 315 291 319 271 274 292 157 321 317 278 283 272 322 279 163 19 130 277 281 282 275 280 276 284 323 327 168 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
19	SPRING; COIL COMP	1-09580-431-0	01	1	9002-9205	●	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-114-1	01	1	9002-9306			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9002-9306	●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	9307-			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9307-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-115-1	01	1	9002-9401	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-125-0	01	1	9402-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-055-0	01	1	9002-				●	●	●	●
142	BOLT; QUAD BOX (C) M10X33 & M10X20	1-09029-050-0	01	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-0	01	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●
142	BOLT; QUAD BOX (A) M10X28	1-09040-089-1	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01651-060-0	04	1	9002-9004	●	●	●
142	BOLT; QUAD BOX (C) M10X60	0-16811-060-0	04	1	9005-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	04	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (C) M10X32	9-01991-032-0	11	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (C) M10X32	0-50151-032-0	11	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	15	1	9206-9306	●	●	●
142	BOLT; QUAD BOX (B) M10X35	9-01991-035-0	04	1	9002-9002	●	●	●
142	BOLT; QUAD BOX (B) M10X35	0-50151-035-0	04	1	9003-9205	●	●	●
142	BOLT; QUAD BOX (C) M10X28	0-28181-028-0	13	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X14 & M10X20	1-09049-014-1	03	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55&M10X20	1-09049-016-0	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (C) M10X55	8-94399-863-1	02	1	9307-	●	●	●
142	BOLT; QUAD BOX (D) M10X28	9-01971-028-0	04	1	9002-9002				●	●	●
142	BOLT; QUAD BOX (D) M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-				●	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108			●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9602	●	●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	9002-				●	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9002-	●	●	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL 10PD1 STD ENG(40L),12PD1 C ENG(43L) (C)	1-33521-096-1	01	1	9002-	●		●
167	LEVER; SELECT,EXTERNAL 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (C)	1-33521-079-0	01	1	9002-	●	●	●
167	LEVER; SELECT,EXTERNAL ASSISTER SHIFT CONTROL<WX8> (C)	1-33521-113-0	01	1	9012-		●
167	LEVER; SELECT,EXTERNAL 6RB1 STD ENG(07L) (B)	1-33521-070-0	01	1	9002-				●		●	●
167	LEVER; SELECT,EXTERNAL 10PD1 STD ENG(40L) (A)	1-33521-064-0	01	1	9002-				●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9002-9205	●	●	●	●	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9206-				●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9002-	●	●	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9002-	●	●	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8	1-09440-049-0	01	1	9305-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9002-9205	●	●	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-				●	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9002-9602	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9603-	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9002-9602	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9603-	●	●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9002-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9002-	●	●	●	●	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-33529-031-1	01	1	9002-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-027-0	01	1	9002-	●	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9002-	●	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9002-	●	●
278	WASHER; LK,STOPPER ASSISTER SHIFT CONTROL<WX8> ID=5.1	9-09150-505-0	01	1	9002-9111	●	●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8> M5X8	9-92050-508-0	01	1	9002-9005	●	●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8> M5X8	0-20800-508-0	01	1	9006-	●	●
280	SPRING; COIL TENSION ASSISTER SHIFT CONTROL<WX8>	1-09583-285-0	01	1	9002-	●	●
280	SPRING; COIL TENSION EXC. ASSISTER SHIFT CONTROL<WX8>	1-09583-255-0	01	1	9002-	●	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	9002-	●	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9002-	●	●
283	STOPPER; SHIFT SHAFT ASSISTER SHIFT CONTROL<WX8>	1-33529-032-0	01	1	9002-	●	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9002-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	9002-9008	●	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-	●	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9002-	●	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9002-	●	●	●	●	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9205	●	●	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312				●	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9401-	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9002-9003	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9002-9003	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9004-9006	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9004-9006	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9007-9011	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9007-9011	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9012-9012	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9012-9012	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9101-9205	●	●	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9101-	●	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9206-9312				●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9002-	●	●	●	●	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9510	●	●	●			●	●
295	ROD; LINK,RELAY LEVER 6RB1 STD ENG(07L)	1-33652-393-0	01	1	9002-9510				●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-	●	●	●			●	●
295	ROD; LINK,RELAY LEVER 6RB1 STD ENG(07L)	9-08400-815-0	01	1	9511-				●
295	ROD; LINK,RELAY LEVER 10PD1 STD ENG(40L)	1-33652-392-0	01	1	9002-9402				●	●
295	ROD; LINK,RELAY LEVER 10PD1 STD ENG(40L) L=130	1-09765-262-0	01	1	9403-				●	●
296	ROD END L=48	1-09760-038-1	02	1	9002-	●	●	●	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9002-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-089-0	01	1	9002-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-068-0	01	1	9002-				●	●	●	●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T). ASSISTER SHIFT CONTROL<WX8>	1-33542-032-0	01	1	9002-9406	●	●	●
300	WASHER; LK,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	06	1	9002-9205	●	●	●
301	WASHER; PL,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=18	9-09160-510-0	06	1	9002-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	9-01656-050-0	02	1	9002-9004	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	0-16806-050-0	02	1	9005-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9206-	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	9-01656-085-0	02	1	9002-9004	●		●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	0-16806-085-0	02	1	9005-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X80	0-28181-080-0	02	1	9206-9406	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X80	0-28181-080-0	04	1	9407-	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	1-09040-062-1	02	1	9002-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X82	1-09040-092-1	02	1	9206-9406	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-513-0	01	1	9002-	●		●
315	LEVER; SELECT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-417-0	01	1	9002-	●		●
315	LEVER; SELECT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-416-0	01	1	9002-	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-419-0	01	1	9012-		●
315	LEVER; SELECT 6RB1 STD ENG(07L)	1-33651-337-0	01	1	9002-				●		●	●
315	LEVER; SELECT 10PD1 STD ENG(40L)	1-33651-246-2	01	1	9002-				●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9002-	●	●	●	●	●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●	●	●
318	WASHER; WAVE 10PD1 STD ENG(40L)	9-09855-315-0	01	1	9002-				●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33657-447-0	01	1	9002-	●		●
319	BRACKET; SELECT LEVER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-196-0	01	1	9002-	●	●	●	●		●	●
319	BRACKET; SELECT LEVER 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-190-0	01	1	9002-	●		●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33657-245-0	01	1	9012-		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-9002	●		●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	9-01056-080-0	02	1	9002-9004	●	●	●	●		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9005-	●	●	●	●	●	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●	●	●	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9002-	●	●	●	●	●	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> L=61	1-33619-126-2	01	1	9002-	●	●	●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●	●	●
325	SHIM; LEVER 10PD1 STD ENG(40L)	1-33659-096-0	01	1	9002-				●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9002-9003	●	●	●	●		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	02	1	9002-9003	●	●	●	●		●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9004-	●	●	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	02	1	9004-9205	●	●	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	02	1	9206-				●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
