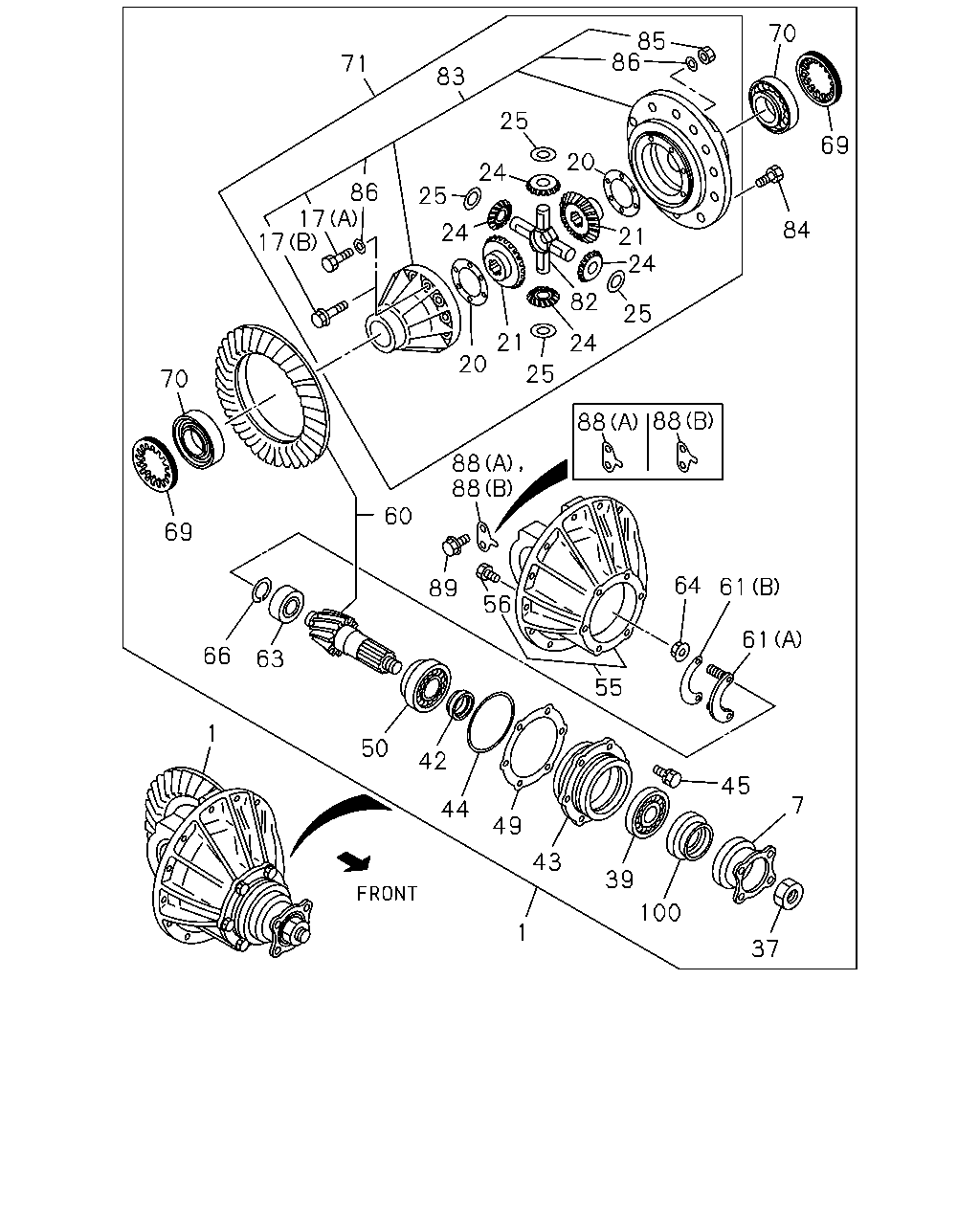

4-25 — REAR FINAL DRIVE (#35714) — 60 parça

71 83 25 24 25 24 20 21 24 25 82 24 25 21 20 17 17 86 86 85 70 69 84 88 88 88 88 60 89 56 70 69 66 63 1 50 42 44 49 43 39 100 37 7 45 55 64 61 61 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> REAR WIDE TREAD<V4T> 41/7	8-97388-711-0	01	1	0901-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> REAR WIDE TREAD<V4T> 39/7	8-97388-710-0	01	1	0901-
7	FLANGE; FINAL REAR WIDE TREAD<V4T>	8-97073-802-2	01	1	0901-
17	BOLT; DIFF CAGE SETTING REAR WIDE TREAD<V4T> (A) M12X90	8-97047-295-0	12	1	0901-1208
17	BOLT; DIFF CAGE SETTING REAR WIDE TREAD<V4T> (B) M12X90	8-98219-448-0	12	1	1209-
20	WASHER; THRUST,SIDE GEAR REAR WIDE TREAD<V4T> T=2.80	1-41562-073-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR REAR WIDE TREAD<V4T> T=2.90	1-41562-074-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR REAR WIDE TREAD<V4T> T=3.00	1-41562-075-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR REAR WIDE TREAD<V4T> T=3.10	1-41562-076-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR REAR WIDE TREAD<V4T> T=3.20	1-41562-077-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR REAR WIDE TREAD<V4T> T=3.30	1-41562-078-0	AR	1	0901-
20	WASHER; THRUST,SIDE GEAR REAR WIDE TREAD<V4T> T=3.40	1-41562-079-0	AR	1	0901-
21	GEAR; SIDE,DIFF REAR WIDE TREAD<V4T> Z=16	1-41561-093-0	02	1	0901-1004
21	GEAR; SIDE,DIFF REAR WIDE TREAD<V4T> Z=16	8-98165-935-0	02	1	1005-
24	GEAR; PINION,DIFF REAR WIDE TREAD<V4T> Z=10	1-41551-024-0	04	1	0901-1004
24	GEAR; PINION,DIFF REAR WIDE TREAD<V4T> Z=10	1-41551-050-0	04	1	1005-
25	WASHER; THRUST,PINION REAR WIDE TREAD<V4T>	1-41552-020-0	04	1	0901-
37	NUT; DRIVING PINION REAR WIDE TREAD<V4T> M30 FLANGE	8-97047-146-0	01	1	0901-
39	BEARING; FINAL PINION REAR WIDE TREAD<V4T> JTEKT	5-09812-062-1	01	1	1002-
39	BEARING; FINAL PINION REAR WIDE TREAD<V4T> NSK	1-09812-026-0	01	1	0901-1002
39	BEARING; FINAL PINION REAR WIDE TREAD<V4T> NSK	5-09812-063-0	01	1	1003-
42	COLLAR; DIST,COLLAPSIBLE REAR WIDE TREAD<V4T>	8-97047-097-0	01	1	0901-
43	CAGE; FINAL PINION REAR WIDE TREAD<V4T>	8-97047-098-0	01	1	0901-
44	GASKET; PINION CAGE REAR WIDE TREAD<V4T>	8-97048-053-0	01	1	0901-
45	BOLT; FINAL PINION CAGE REAR WIDE TREAD<V4T> M12X40 W/LK WASHER	0-50071-240-0	06	1	0901-0909
45	BOLT; FINAL PINION CAGE REAR WIDE TREAD<V4T> M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	BOLT; FINAL PINION CAGE REAR WIDE TREAD<V4T> M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	SHIM; FINAL PINION CAGE REAR WIDE TREAD<V4T> ID=142 T=0.12	8-97047-298-0	AR	1	0901-
49	SHIM; FINAL PINION CAGE REAR WIDE TREAD<V4T> ID=142 T=0.15	8-97047-299-0	AR	1	0901-
49	SHIM; FINAL PINION CAGE REAR WIDE TREAD<V4T> ID=142 T=0.20	8-97047-300-0	AR	1	0901-
49	SHIM; FINAL PINION CAGE REAR WIDE TREAD<V4T> ID=142 T=0.25	8-97048-418-0	AR	1	0901-
49	SHIM; FINAL PINION CAGE REAR WIDE TREAD<V4T> ID=142 T=0.50	8-97048-419-0	AR	1	0901-
50	BEARING; FINAL PINION REAR WIDE TREAD<V4T> NSK	1-09812-041-2	01	1	0901-
50	BEARING; FINAL PINION REAR WIDE TREAD<V4T> JTEKT	1-09812-042-1	01	1	0901-
55	CARRIER; DIFF REAR WIDE TREAD<V4T>	8-97094-637-0	01	1	0901-
56	BOLT; BRG CAP REAR WIDE TREAD<V4T> M14X95 FLANGE	1-09070-027-0	04	1	0901-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> REAR WIDE TREAD<V4T> 41/7	8-97083-126-0	01	1	0901-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> REAR WIDE TREAD<V4T> 39/7	8-97121-593-1	01	1	0901-
61	RETAINER; PILOT BRG,PINION REAR WIDE TREAD<V4T> (A) W/STUD	8-97047-149-0	01	1	0901-
61	RETAINER; PILOT BRG,PINION REAR WIDE TREAD<V4T> (B)	8-97047-150-0	01	1	0901-
63	BEARING; PINION PILOT REAR WIDE TREAD<V4T> NSK	8-97047-296-0	01	1	0901-
63	BEARING; PINION PILOT REAR WIDE TREAD<V4T> JTEKT	8-97047-928-0	01	1	0901-
64	NUT; RET REAR WIDE TREAD<V4T> M6 FLANGE THA	0-91180-106-0	02	1	0901-
66	RING; SNAP,PILOT BRG REAR WIDE TREAD<V4T>	8-97047-297-0	01	1	0901-
69	NUT; ADJ,DIFF CAGE REAR WIDE TREAD<V4T> M115 H=20	1-41121-039-0	02	1	0901-
70	BEARING; DIFF CAGE REAR WIDE TREAD<V4T> JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0901-
71	CAGE ASM; DIFF,FINAL DRIVE REAR WIDE TREAD<V4T>	8-97047-100-4	01	1	0901-
82	SPIDER; DIFF PINION REAR WIDE TREAD<V4T>	1-41521-035-2	01	1	0901-1004
82	SPIDER; DIFF PINION REAR WIDE TREAD<V4T>	1-41521-062-0	01	1	1005-1309
82	SPIDER; DIFF PINION REAR WIDE TREAD<V4T>	1-41521-035-2	01	1	1310-
83	CAGE ASM; DIFF REAR WIDE TREAD<V4T>	8-97047-117-2	01	1	0901-1208
83	CAGE ASM; DIFF REAR WIDE TREAD<V4T>	8-98219-707-0	01	1	1209-
84	BOLT; FINAL DRIVE GEAR REAR WIDE TREAD<V4T> M16X30	8-97047-147-0	12	1	0901-
85	NUT; DIFF CAGE SETTING REAR WIDE TREAD<V4T> M12	8-97065-214-0	12	1	0901-
86	WASHER; PL,DIFF CAGE SETTING REAR WIDE TREAD<V4T> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0901-1208
86	WASHER; PL,DIFF CAGE SETTING REAR WIDE TREAD<V4T> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	PLATE; LK,ADJ NUT REAR WIDE TREAD<V4T> (B) T=2.3	8-97087-821-0	AR	1	0901-
88	PLATE; LK,ADJ NUT REAR WIDE TREAD<V4T> (A) T=2.3	9-41124-015-0	AR	1	0901-
89	BOLT; LK PLATE REAR WIDE TREAD<V4T> M8X16 FLANGE THA	0-28050-816-0	04	1	0901-
100	SEAL; OIL,FINAL PINION REAR WIDE TREAD<V4T> NOK	1-09625-484-1	01	1	0901-
