Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#3571) — 299 parça

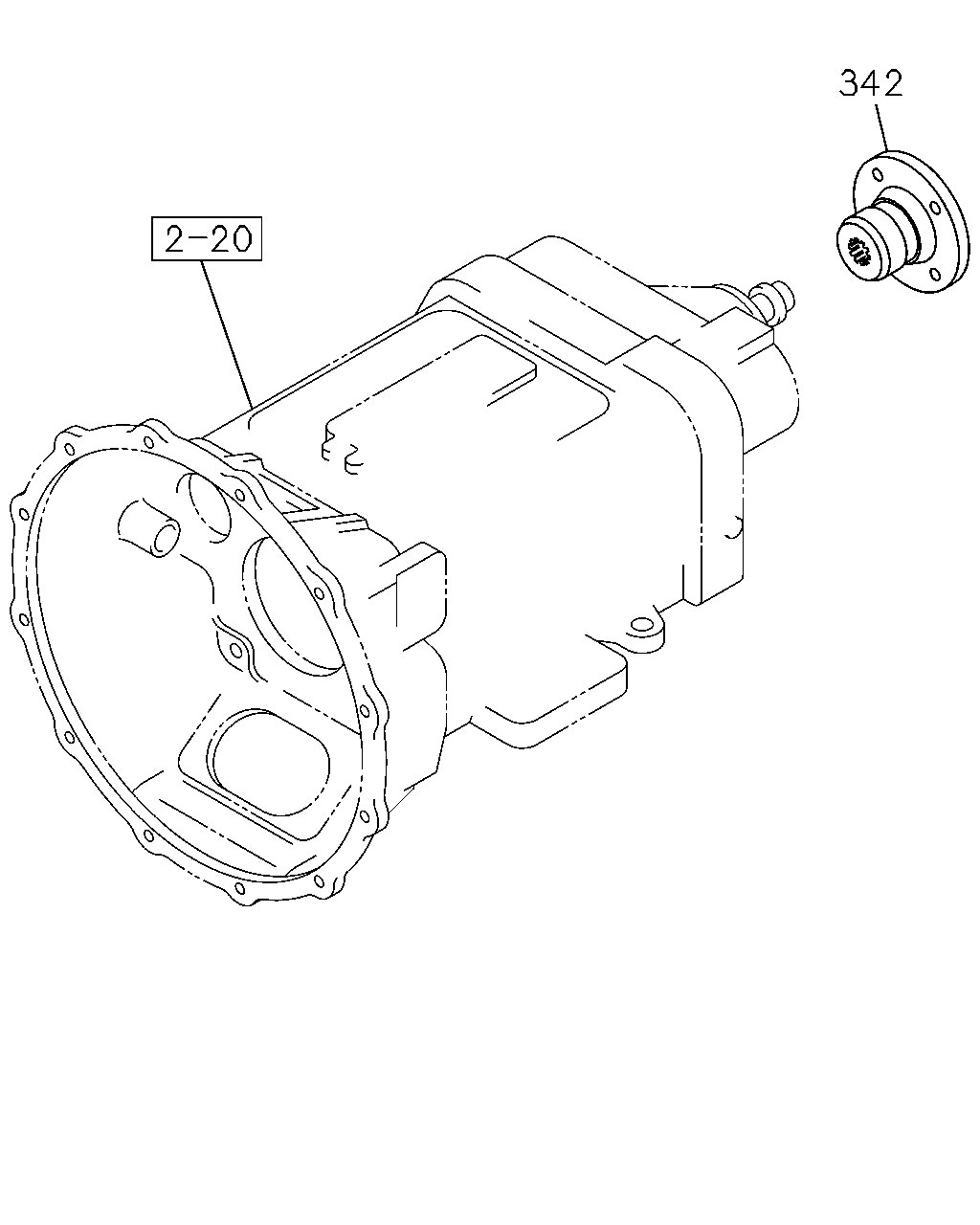

342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
342	FLANGE; OUTPUT 10PD1 STD ENG(40L)	1-37243-203-0	01	1	9002-	●
342	FLANGE; OUTPUT 12PD1 C ENG(43L)	1-37243-203-0	01	1	9002-		●
342	FLANGE; OUTPUT 6RB1TC-N ENG(29L)	1-37243-203-0	01	1	9002-			●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L)	1-37243-171-4	01	1	9002-	●		●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-37243-171-4	01	1	9002-		●
342	FLANGE; OUTPUT	1-37243-202-0	01	1	9002-				●	●	●	●

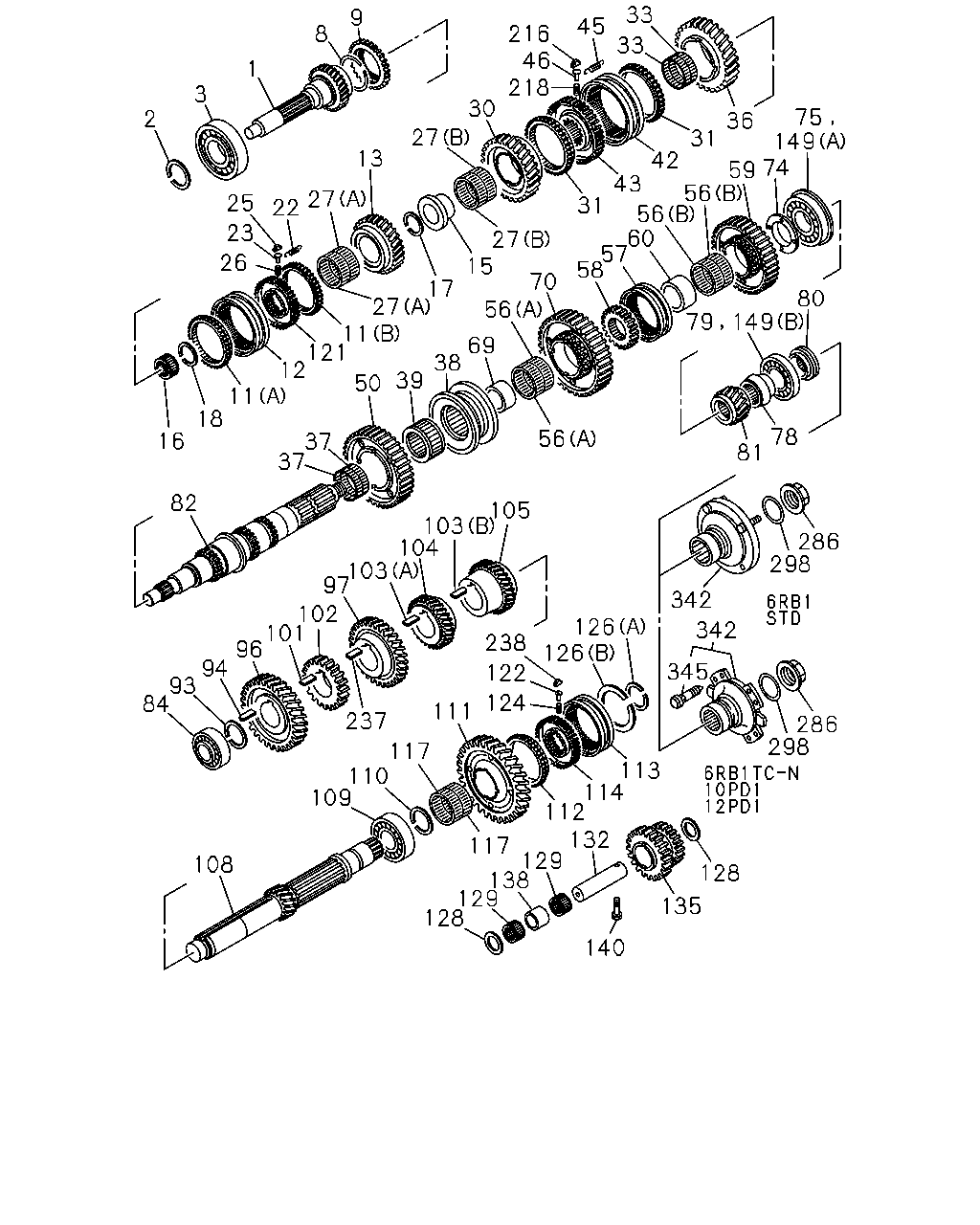

33 9 45 216 46 218 8 33 1 3 30 75 149 59 74 56 56 60 57 58 2 36 27 31 13 42 43 27 22 25 31 23 27 15 26 70 56 17 80 149 27 11 121 12 79 69 38 39 50 11 18 78 56 16 37 37 81 82 105 103 104 103 97 286 298 342 102 101 96 94 93 84 126 126 342 238 345 122 124 111 237 286 298 117 110 109 113 114 112 132 129 138 129 128 117 108 18 135 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-		●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●
11	RING; BLOCK,5TH & 6TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-5	01	1	9407-	●	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9407-	●	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9002-	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9002-	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-416-0	01	1	9002-		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9002-			●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-	●	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-		●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205	●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9206-	●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9412-	●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205	●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9206-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-	●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-333-0	02	1	9002-9111	●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-376-3	02	1	9112-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9002-	●	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9002-	●	●	●
42	SLEEVE	1-33262-133-2	01	1	9002-	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-154-4	01	1	9002-9204	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9205-	●	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9002-	●	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205	●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-	●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205	●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-	●	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	9002-	●	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9002-	●	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-	●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-		●
60	COLLAR; REV MAIN	1-33234-062-0	01	1	9002-9302	●	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9303-	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9002-	●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-2	01	1	9002-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9002-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9002-9306	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9002-9306	●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●
80	GEAR; SPD DRIVE EXC. FINAL GEAR 37/6 18.5"(W3F),RR TIRE 10.00R20<87X> Z=7	1-33371-021-4	01	1	9002-	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> Z=5	1-33371-028-1	01	1	9002-		●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9002-		●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9002-		●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9002-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-	●	●	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-			●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9002-	●
97	GEAR; 5TH,COUNTER Z=41	1-33338-231-0	01	1	9002-		●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9002-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-	●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-	●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-	●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-	●	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-	●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110		●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-		●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110			●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-	●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9002-		●	●
112	RING; BLOCK,7TH SYN	1-33265-213-1	01	1	9002-9203		●	●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9204-		●	●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	9002-		●	●
114	HUB; CLU,7TH	1-33261-152-1	01	1	9002-9204		●	●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9205-		●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-248-0	01	1	9002-9205		●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9206-		●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-390-0	02	1	9412-9601		●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9602-		●	●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204	●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-	●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●
126	RING; SNAP,CLU HUB (B)	1-09588-040-0	01	1	9002-		●	●
126	RING; SNAP,CLU HUB (A)	1-09588-160-1	01	1	9002-		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-	●	●	●
132	SHAFT; REV	1-33351-016-2	01	1	9002-	●	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-	●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9002-	●	●	●
140	BOLT; LK PIECE M10X16	9-02351-016-0	01	1	9002-9002	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9003-9205	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9307-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9307-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-		●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9002-	●	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD	1-09580-091-1	03	1	9002-	●	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9002-	●	●	●
238	INSERT	1-33263-025-2	03	1	9002-		●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9002-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9002-	●	●	●
342	FLANGE; OUTPUT 10PD1 STD ENG(40L)	1-37243-203-0	01	1	9002-	●
342	FLANGE; OUTPUT 12PD1 C ENG(43L)	1-37243-203-0	01	1	9002-		●
342	FLANGE; OUTPUT 6RB1TC-N ENG(29L)	1-37243-203-0	01	1	9002-			●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L)	1-37243-171-4	01	1	9002-	●		●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-37243-171-4	01	1	9002-		●
342	FLANGE; OUTPUT	1-37243-202-0	01	1	9002-				●	●	●	●
345	BOLT; FLANGE TO YOKE 10PD1 STD ENG(40L)	1-46219-069-0	04	1	9002-	●
345	BOLT; FLANGE TO YOKE 12PD1 C ENG(43L)	1-46219-069-0	04	1	9002-		●
345	BOLT; FLANGE TO YOKE 6RB1TC-N ENG(29L)	1-46219-069-0	04	1	9002-			●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412	●		●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412		●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) M16X51 W/MARK	1-46219-086-0	04	1	9501-	●		●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M16X51 W/MARK	1-46219-086-0	04	1	9501-		●

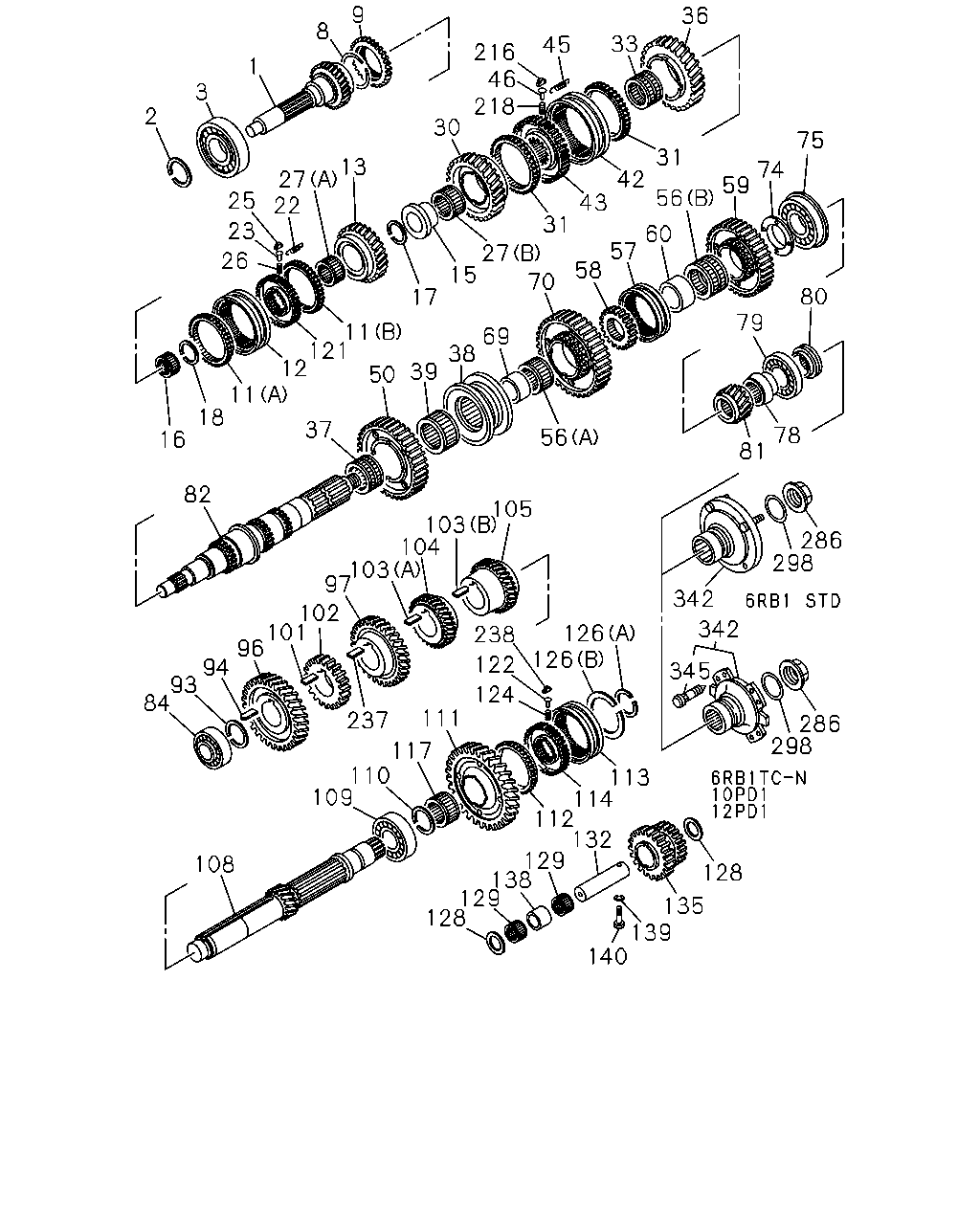

9 36 8 33 45 216 46 218 1 3 2 30 75 31 13 74 59 56 42 43 27 22 25 31 23 60 57 58 27 15 26 70 80 17 79 11 121 12 69 38 39 50 11 18 37 78 56 16 81 82 105 103 104 103 97 286 298 342 102 101 96 94 93 84 342 126 126 238 122 345 124 111 237 286 298 117 110 109 113 114 112 132 129 138 129 128 108 18 135 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-		●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●
11	RING; BLOCK,5TH & 6TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-5	01	1	9407-	●	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9407-	●	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9002-	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9002-	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-416-0	01	1	9002-		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9002-			●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-	●	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-		●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205	●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9206-	●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9412-	●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205	●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9206-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-	●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-333-0	02	1	9002-9111	●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-376-3	02	1	9112-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9002-	●	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9002-	●	●	●
42	SLEEVE	1-33262-133-2	01	1	9002-	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-154-4	01	1	9002-9204	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9205-	●	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9002-	●	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205	●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-	●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205	●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-	●	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	9002-	●	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9002-	●	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-	●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-		●
60	COLLAR; REV MAIN	1-33234-062-0	01	1	9002-9302	●	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9303-	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9002-	●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-2	01	1	9002-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9002-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9002-9306	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9002-9306	●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●
80	GEAR; SPD DRIVE EXC. FINAL GEAR 37/6 18.5"(W3F),RR TIRE 10.00R20<87X> Z=7	1-33371-021-4	01	1	9002-	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> Z=5	1-33371-028-1	01	1	9002-		●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9002-		●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9002-		●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9002-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-	●	●	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-			●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9002-	●
97	GEAR; 5TH,COUNTER Z=41	1-33338-231-0	01	1	9002-		●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9002-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-	●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-	●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-	●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-	●	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-	●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110		●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-		●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110			●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-	●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9002-		●	●
112	RING; BLOCK,7TH SYN	1-33265-213-1	01	1	9002-9203		●	●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9204-		●	●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	9002-		●	●
114	HUB; CLU,7TH	1-33261-152-1	01	1	9002-9204		●	●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9205-		●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-248-0	01	1	9002-9205		●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9206-		●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-390-0	02	1	9412-9601		●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9602-		●	●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204	●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-	●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●
126	RING; SNAP,CLU HUB (B)	1-09588-040-0	01	1	9002-		●	●
126	RING; SNAP,CLU HUB (A)	1-09588-160-1	01	1	9002-		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-	●	●	●
132	SHAFT; REV	1-33351-016-2	01	1	9002-	●	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-	●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9002-	●	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9002-9205	●	●	●
140	BOLT; LK PIECE M10X16	9-02351-016-0	01	1	9002-9002	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9003-9205	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-	●	●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9002-	●	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD	1-09580-091-1	03	1	9002-	●	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9002-	●	●	●
238	INSERT	1-33263-025-2	03	1	9002-		●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9002-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9002-	●	●	●
342	FLANGE; OUTPUT 10PD1 STD ENG(40L)	1-37243-203-0	01	1	9002-	●
342	FLANGE; OUTPUT 12PD1 C ENG(43L)	1-37243-203-0	01	1	9002-		●
342	FLANGE; OUTPUT 6RB1TC-N ENG(29L)	1-37243-203-0	01	1	9002-			●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L)	1-37243-171-4	01	1	9002-	●		●
342	FLANGE; OUTPUT 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-37243-171-4	01	1	9002-		●
342	FLANGE; OUTPUT	1-37243-202-0	01	1	9002-				●	●	●	●
345	BOLT; FLANGE TO YOKE 10PD1 STD ENG(40L)	1-46219-069-0	04	1	9002-	●
345	BOLT; FLANGE TO YOKE 12PD1 C ENG(43L)	1-46219-069-0	04	1	9002-		●
345	BOLT; FLANGE TO YOKE 6RB1TC-N ENG(29L)	1-46219-069-0	04	1	9002-			●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412	●		●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M16X51 W/MARK	1-46219-048-1	04	1	9307-9412		●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L) M16X51 W/MARK	1-46219-086-0	04	1	9501-	●		●
345	BOLT; FLANGE TO YOKE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M16X51 W/MARK	1-46219-086-0	04	1	9501-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
