◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51242 - NMR CNG(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#35708) — 163 parça
çizim 123611
39 116 165 39 184 165 184
BalonParca AdiParca NoAdetTipApplied Date
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0901-
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0901-0909
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0901-1001
184 BRACKET; UNION FIX
(C) 		8-98155-345-0 01 1 1002-1103
184 BRACKET; UNION FIX
(C) 		8-98183-467-1 01 1 1104-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0901-

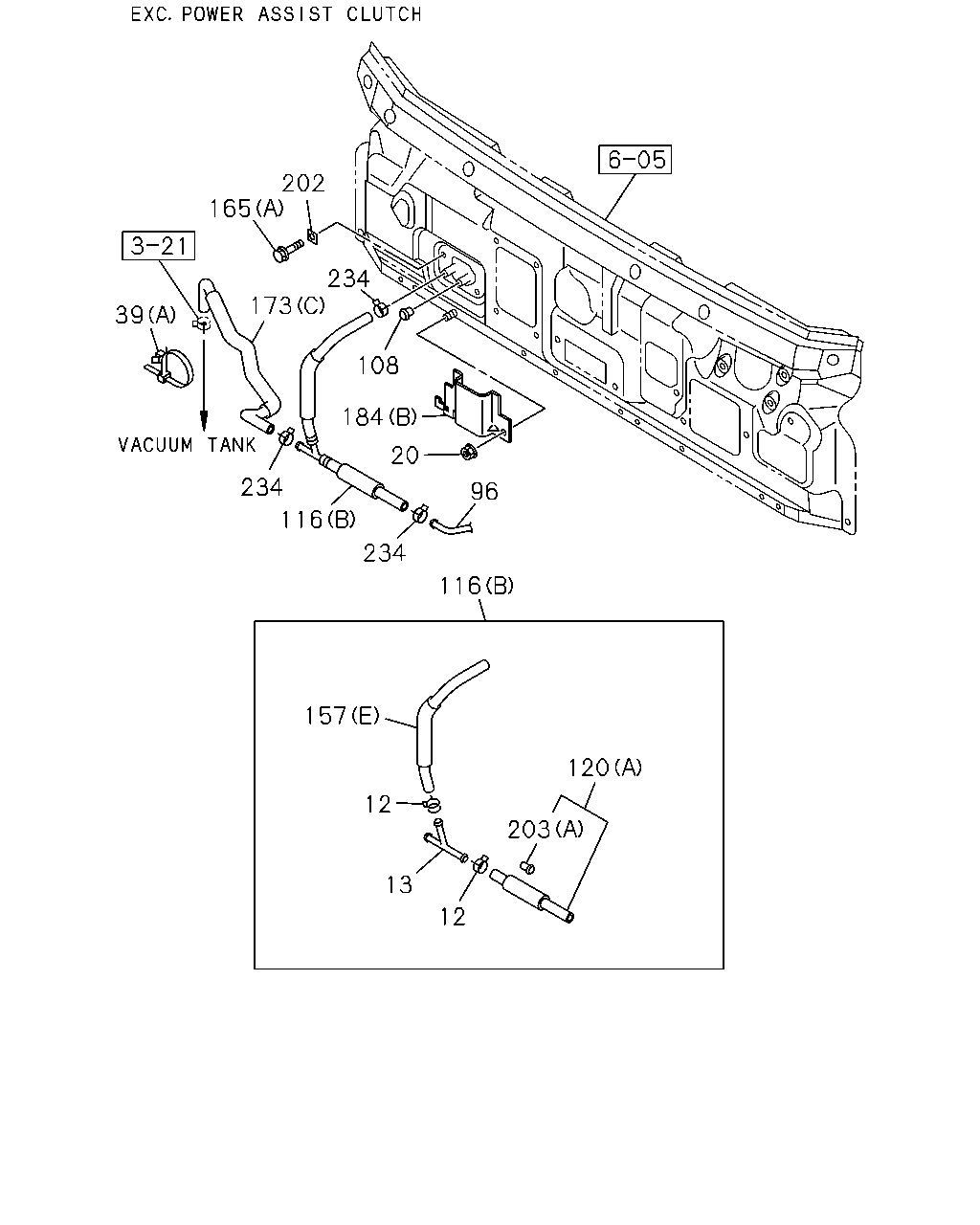

çizim 123622
202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0901-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0901-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
20 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1208-
20 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 0901-1207
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 1207-
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 0901-1206
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH<S2T> 		9-09956-353-0 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0901-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0901-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0901-
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0901-0909
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98055-936-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98121-941-0 01 1 1101-
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98055-937-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98121-940-0 01 1 1101-
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) 		8-98022-870-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) THA 		8-98107-558-0 01 1 1101-
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0901-1001
184 BRACKET; UNION FIX
(C) 		8-98155-345-0 01 1 1002-1103
184 BRACKET; UNION FIX
(C) 		8-98183-467-1 01 1 1104-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0901-
202 SEAL 8-97856-616-0 02 1 0901-
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0901-
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0901-
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 04 1 0901-
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0901-

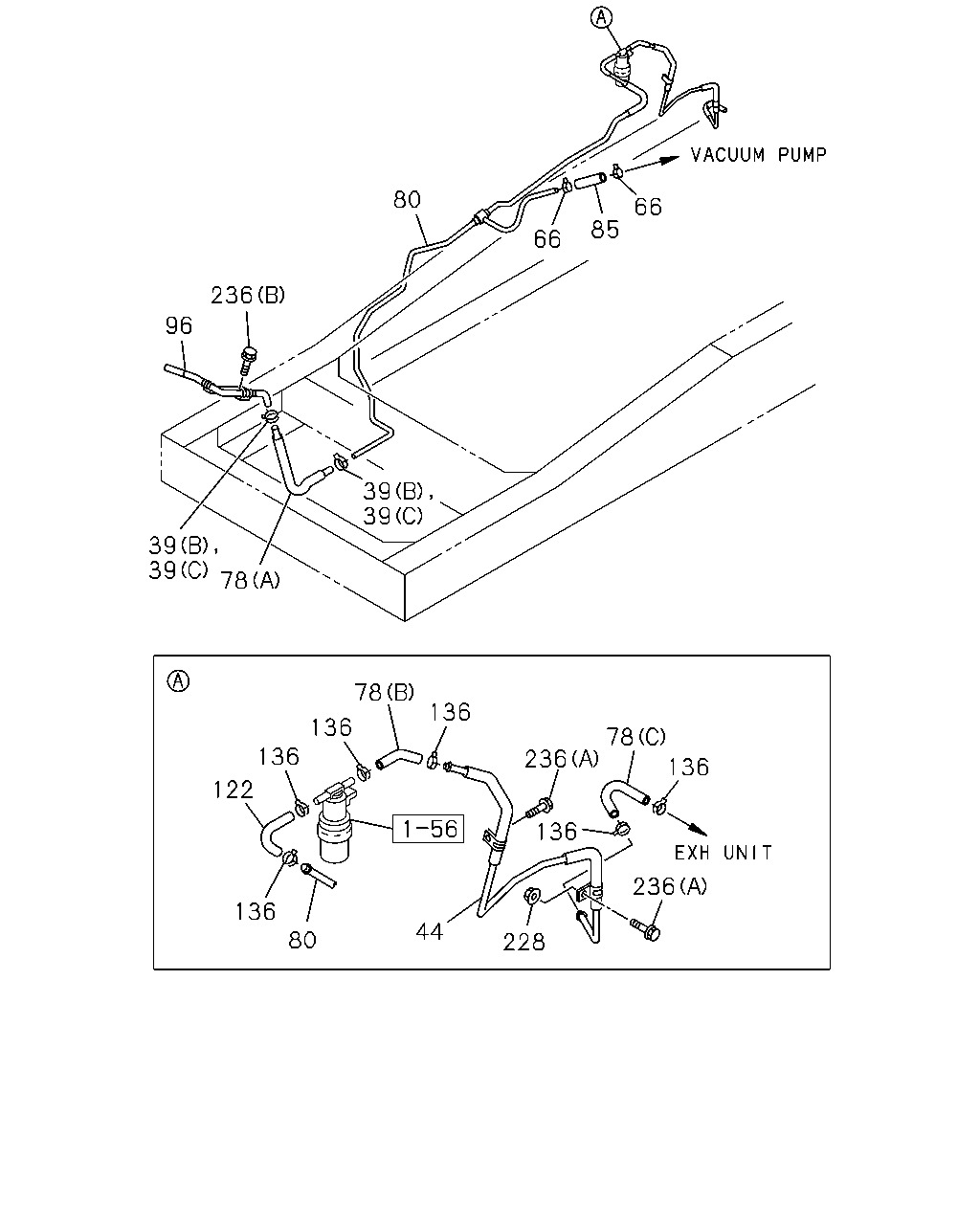

çizim 123636
80 66 85 66 236 96 39 39 39 39 78 78 136 136 78 136 236 136 122 136 236 136 44 80 228
BalonParca AdiParca NoAdetTipApplied Date
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
44 PIPE; VAC,MAG VLV 8-98053-848-1 01 1 0901-
66 CLIP; VAC HOSE,M/VAC
ID=16 THA 		8-94238-568-0 02 1 0901-0911
66 CLIP; VAC HOSE,M/VAC
ID=16 THA 		8-98008-098-0 02 1 0912-
78 HOSE; VAC,PIPE TO PIPE
(A) THA 		8-97389-745-1 01 1 1207-
78 HOSE; VAC,PIPE TO PIPE
(A) THA 		8-97389-745-1 01 1 0901-1206
78 HOSE; VAC,PIPE TO PIPE
(B) 		8-97226-977-1 01 1 0901-
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98108-901-0 01 1 0901-
80 PIPE; VAC,ENG SIDE 8-98053-847-3 01 1 0901-
85 HOSE; VAC,ENG SIDE 8-97322-957-2 01 1 0901-
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 1207-
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 0901-1206
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-97183-719-2 01 1 0901-
136 CLIP; VAC HOSE
ID=16 THA 		8-94238-568-0 02 1 0901-0911
136 CLIP; VAC HOSE
ID=16 THA 		8-98008-098-0 02 1 0912-
136 CLIP; VAC HOSE
ID=16 THA 		8-94238-568-0 04 1 0901-0911
136 CLIP; VAC HOSE
ID=16 THA 		8-98008-098-0 04 1 0912-
228 NUT; PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 0901-
236 BOLT; PIPE
(B) M6X12 FLANGE THA 		0-28050-612-0 01 1 1207-
236 BOLT; PIPE
(B) M6X12 FLANGE THA 		0-28050-612-0 01 1 0901-1206
236 BOLT; PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 0901-

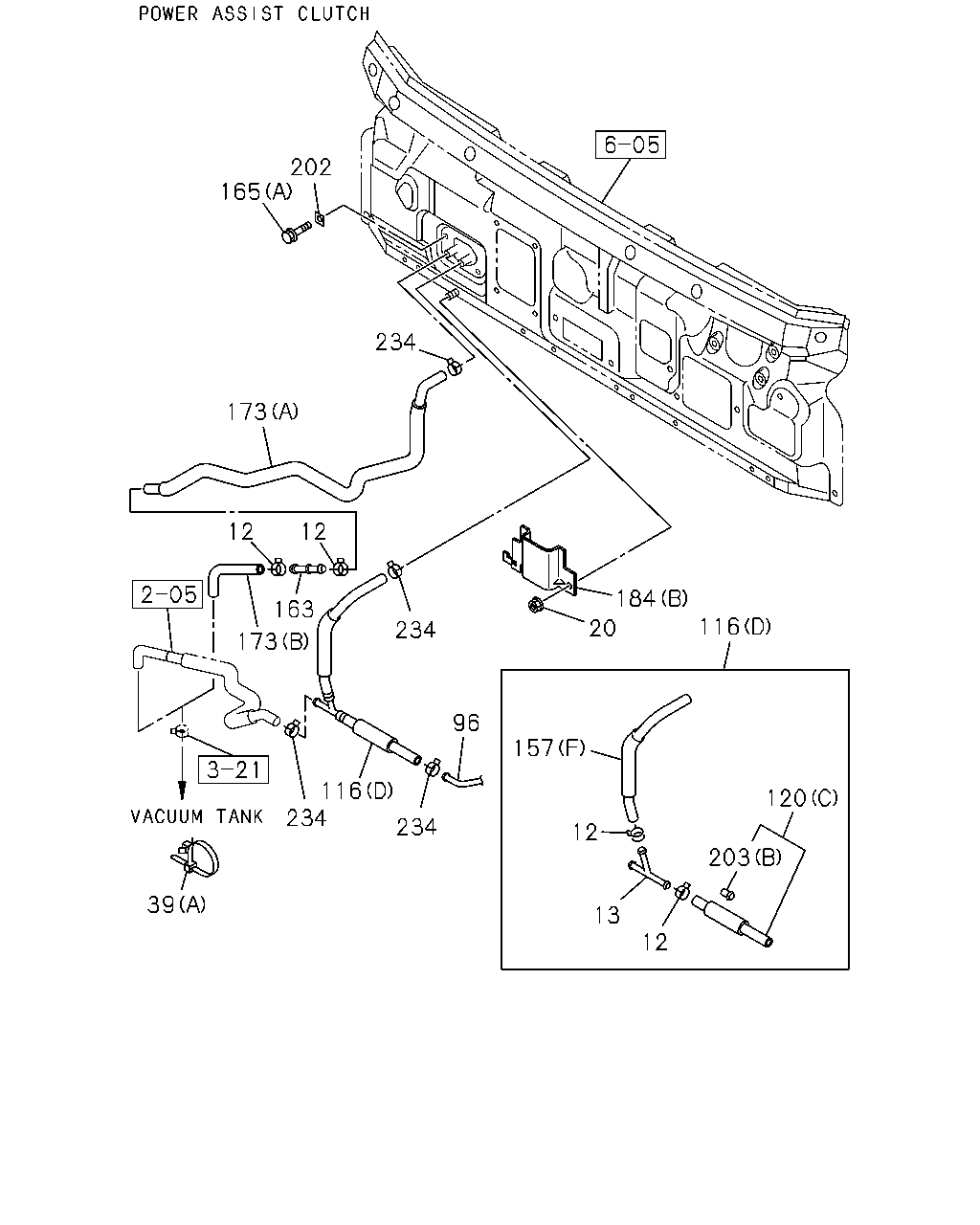

çizim 123638
202 165 234 173 12 12 184 163 116 20 234 173 96 157 116 234 120 234 12 203 39 13 12
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0901-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0901-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
20 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1208-
20 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 0901-1207
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 1207-
96 PIPE; VAC,M/VAC TO VAC PUMP
THA 		8-98039-736-1 01 1 0901-1206
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0901-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0901-
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH<S2T> 		8-97353-668-0 01 1 0901-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0901-
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0901-0909
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98055-936-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98121-941-0 01 1 1101-
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (B) 		8-98055-937-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> (A) 		8-98121-940-0 01 1 1101-
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) 		8-98022-870-1 01 1 0901-1012
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH<S2T> (C) THA 		8-98107-558-0 01 1 1101-
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0901-1001
184 BRACKET; UNION FIX
(C) 		8-98155-345-0 01 1 1002-1103
184 BRACKET; UNION FIX
(C) 		8-98183-467-1 01 1 1104-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0901-
202 SEAL 8-97856-616-0 02 1 0901-
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0901-
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0901-
234 CLAMP; PIPE
POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 04 1 0901-
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH<S2T> ID=16 THA 		8-94238-568-0 03 1 0901-

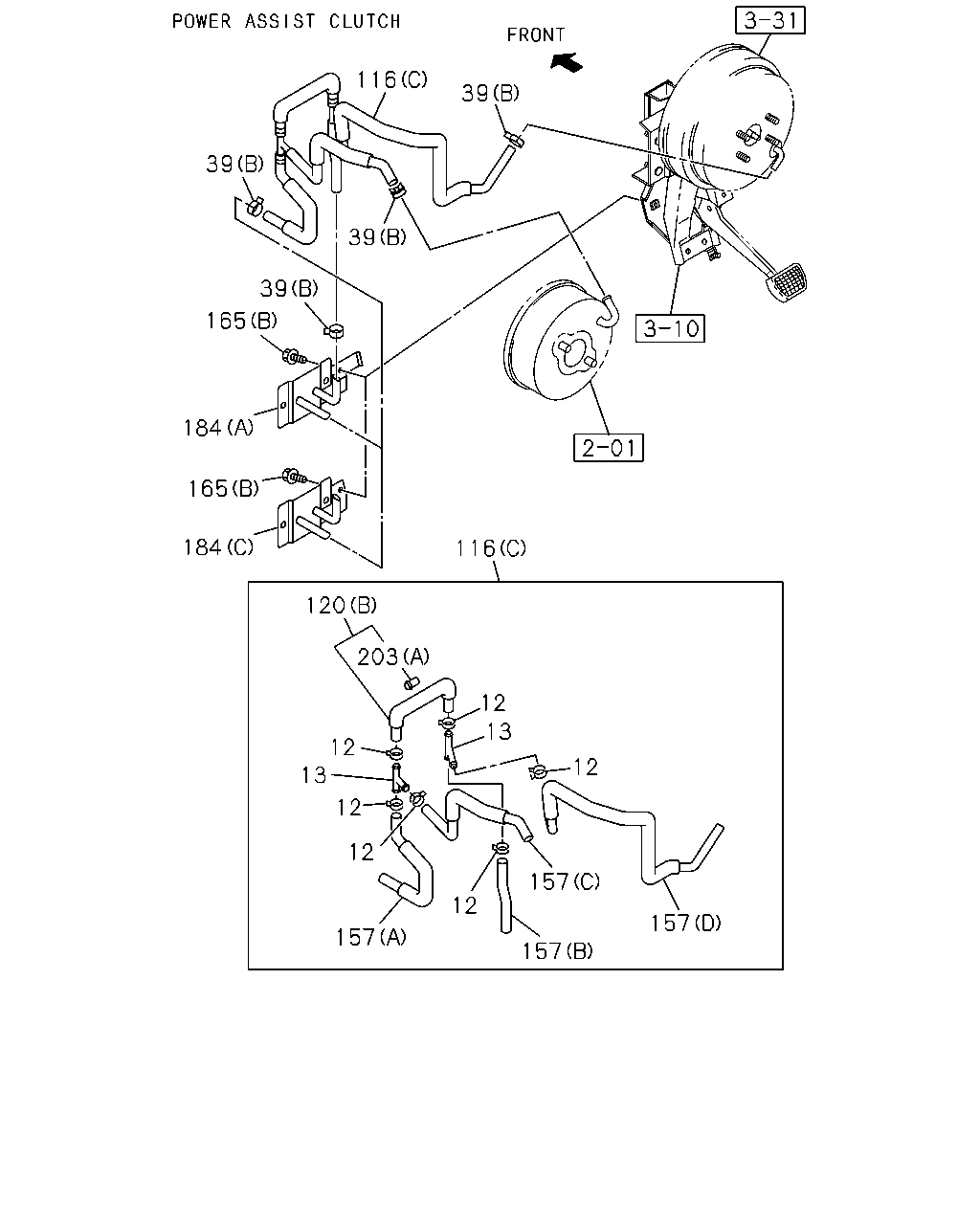

çizim 123648
116 39 39 39 39 165 184 165 184 116 120 203 12 13 12 13 12 12 12 157 12 157 157 157
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 14 1 0901-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH<S2T> ID=15.5 THA 		8-98008-097-0 02 1 0901-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH<S2T> THA 		8-98035-106-0 03 1 0901-
39 CLIP; HOSE,VAC
(C) ID=16 THA 		8-98008-098-0 02 1 0912-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 04 1 0901-
39 CLIP; HOSE,VAC
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
39 CLIP; HOSE,VAC
(B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0901-0911
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16 THA 		8-94238-568-0 02 1 0912-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-674-3 01 1 0901-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH<S2T> (D) 		8-97389-689-3 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (B) THA 		8-97924-102-1 01 1 0901-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH<S2T> (A) THA 		8-98094-547-0 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97389-696-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (C) 		8-97389-695-2 01 1 0901-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-352-3 01 1 0901-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH<S2T> (E) 		8-98022-868-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (F) 		8-98017-168-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (D) 		8-98027-350-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (C) 		8-98027-351-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (B) 		8-98027-353-3 01 1 0901-
157 HOSE; JOINT
POWER ASSIST CLUTCH<S2T> (A) 		8-98027-354-2 01 1 0901-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0901-
165 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0901-0909
184 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0901-1001
184 BRACKET; UNION FIX
(C) 		8-98155-345-0 01 1 1002-1103
184 BRACKET; UNION FIX
(C) 		8-98183-467-1 01 1 1104-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0901-
203 VALVE; CHECK
POWER ASSIST CLUTCH<S2T> (B) 		8-94104-021-0 01 1 0901-
203 VALVE; CHECK
(A) THA 		8-94386-540-0 01 1 0901-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
