2-25 — SPEEDOMETER DRIVEN GEAR (#3570) — 66 parça

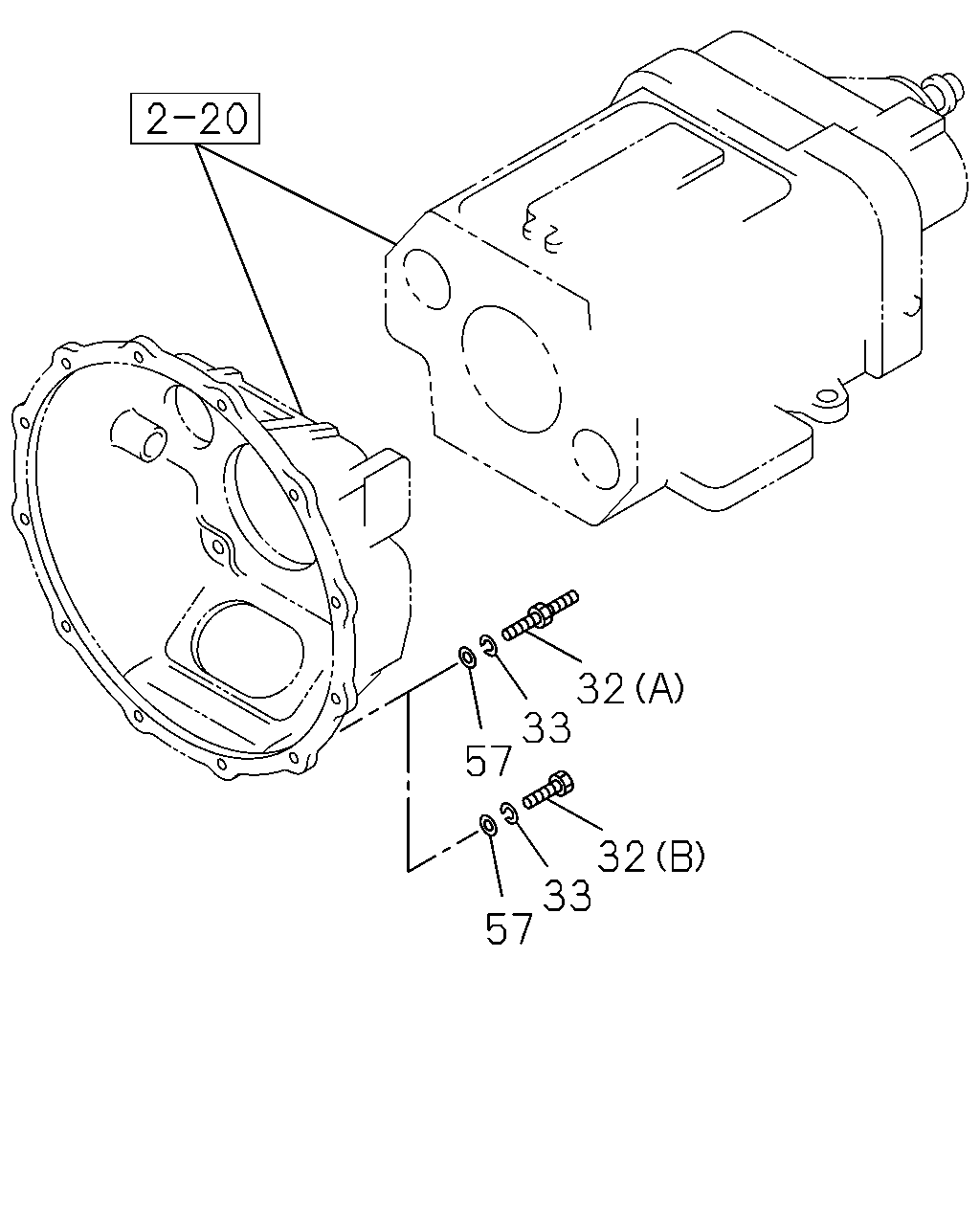

32 33 57 32 33 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 & M10X16	1-09029-031-1	02	1	9002-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PD1 STD ENG(40L) (A) M12X35 & M10X16	1-09029-031-1	02	1	9002-				●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	9-02351-235-0	10	1	9002-9005	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	0-23801-235-0	10	1	9006-9205	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	0-50151-235-0	10	1	9206-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RB1 STD ENG(07L) (B) M12X35	9-02351-235-0	08	1	9002-9005				●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RB1 STD ENG(07L) (B) M12X35	0-23801-235-0	08	1	9006-9205				●		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RB1 STD ENG(07L) (B) M12X35	0-50151-235-0	08	1	9206-				●		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X45	9-02351-245-0	03	1	9002-9205				●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X45	0-50151-245-0	03	1	9206-				●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RB1 STD ENG(07L) (A) M12X35 & M10X16	1-09029-031-1	01	1	9002-				●		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PD1 STD ENG(40L) (B) M12X35	9-02351-235-0	07	1	9002-9005				●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PD1 STD ENG(40L) (B) M12X35	0-23801-235-0	07	1	9006-9205				●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PD1 STD ENG(40L) (B) M12X35	0-50151-235-0	07	1	9206-				●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	12	1	9002-9205	●	●	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	02	1	9206-	●	●	●
33	WASHER; LK,CLU HSG 10PD1 STD ENG(40L) ID=12.2	9-09150-612-0	02	1	9206-				●	●
33	WASHER; LK,CLU HSG 6RB1 STD ENG(07L) ID=12.2	9-09150-612-0	01	1	9206-				●		●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	9206-	●	●	●
57	WASHER; PL,CLU HSG 10PD1 STD ENG(40L) ID=12.5	9-09164-512-0	02	1	9206-				●	●
57	WASHER; PL,CLU HSG 6RB1 STD ENG(07L) ID=12.5	9-09164-512-0	01	1	9206-				●		●	●

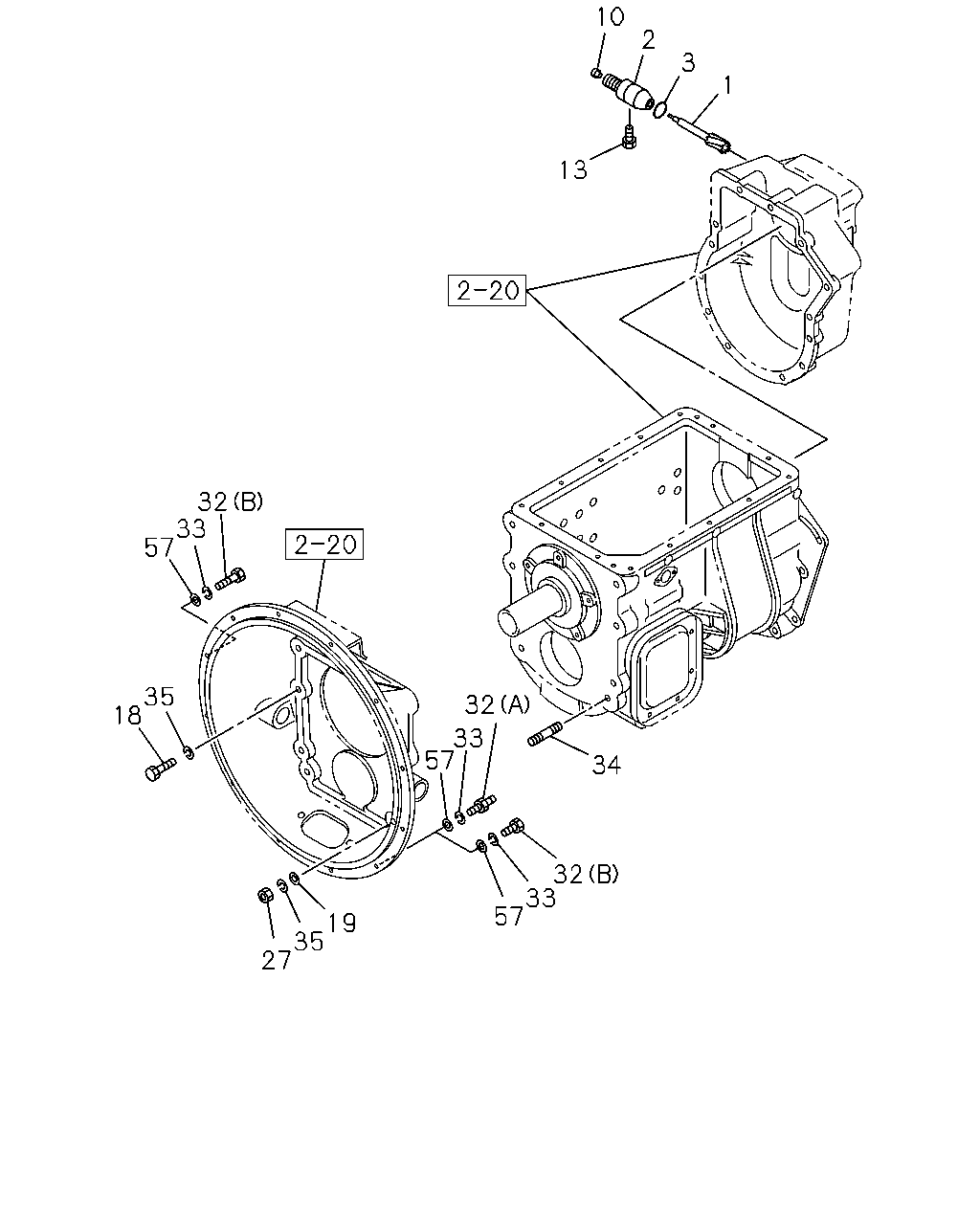

10 2 3 1 13 32 33 57 35 18 32 33 57 34 32 33 57 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	GEAR; DRIVEN,SPD FINAL GEAR 38/7 18.5"(W3E) RR TIRE 11.00-20<97X> Z=17	1-33372-143-4	01	1	9002-	●	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 41/8 18.5"(W3M) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>, RR TIRE 10.00-20<96X> Z=17	1-33372-143-4	01	1	9002-	●	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 38/7 18.5"(W3E) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>, RR TIRE 10.00-20<96X> Z=18	1-33372-144-4	01	1	9002-	●	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 39/8 18.5"(W3D) Z=16	1-33372-142-4	01	1	9002-	●	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 41/8 18.5"(W3M) RR TIRE 11.00-20<97X> Z=16	1-33372-142-4	01	1	9002-	●	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 41/7 18.5"(W3Q) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>, RR TIRE 11.00-20<97X> Z=19	1-33372-145-4	01	1	9002-	●
1	GEAR; DRIVEN,SPD FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> Z=15	1-33372-147-4	01	1	9002-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>, RR TIRE 11.00-20<97X> Z=20	1-33372-146-4	01	1	9002-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR 41/7 18.5"(W3Q) RR TIRE 10.00R20<87X> Z=20	1-33372-146-4	01	1	9002-	●
1	GEAR; DRIVEN,SPD FINAL GEAR 41/9 18.5"(W3N) Z=15	1-33372-141-2	01	1	9012-9306		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-056-2	01	1	9002-9309	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-074-0	01	1	9310-	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9002-	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	1-09625-113-0	01	1	9002-9004	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T).	1-09625-510-0	01	1	9005-	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9002-	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50	9-92351-650-0	06	1	9002-9005	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50	0-23801-650-0	06	1	9006-9203	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9204-	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9204-	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9002-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 & M10X16	1-09029-031-1	02	1	9002-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PD1 STD ENG(40L) (A) M12X35 & M10X16	1-09029-031-1	02	1	9002-				●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	9-02351-235-0	10	1	9002-9005	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	0-23801-235-0	10	1	9006-9205	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	0-50151-235-0	10	1	9206-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RB1 STD ENG(07L) (B) M12X35	9-02351-235-0	08	1	9002-9005				●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RB1 STD ENG(07L) (B) M12X35	0-23801-235-0	08	1	9006-9205				●		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RB1 STD ENG(07L) (B) M12X35	0-50151-235-0	08	1	9206-				●		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X45	9-02351-245-0	03	1	9002-9205				●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X45	0-50151-245-0	03	1	9206-				●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RB1 STD ENG(07L) (A) M12X35 & M10X16	1-09029-031-1	01	1	9002-				●		●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PD1 STD ENG(40L) (B) M12X35	9-02351-235-0	07	1	9002-9005				●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PD1 STD ENG(40L) (B) M12X35	0-23801-235-0	07	1	9006-9205				●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PD1 STD ENG(40L) (B) M12X35	0-50151-235-0	07	1	9206-				●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	12	1	9002-9205	●	●	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	02	1	9206-	●	●	●
33	WASHER; LK,CLU HSG 10PD1 STD ENG(40L) ID=12.2	9-09150-612-0	02	1	9206-				●	●
33	WASHER; LK,CLU HSG 6RB1 STD ENG(07L) ID=12.2	9-09150-612-0	01	1	9206-				●		●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	9002-	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-616-0	08	1	9002-9203	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9204-	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	9206-	●	●	●
57	WASHER; PL,CLU HSG 10PD1 STD ENG(40L) ID=12.5	9-09164-512-0	02	1	9206-				●	●
57	WASHER; PL,CLU HSG 6RB1 STD ENG(07L) ID=12.5	9-09164-512-0	01	1	9206-				●		●	●
