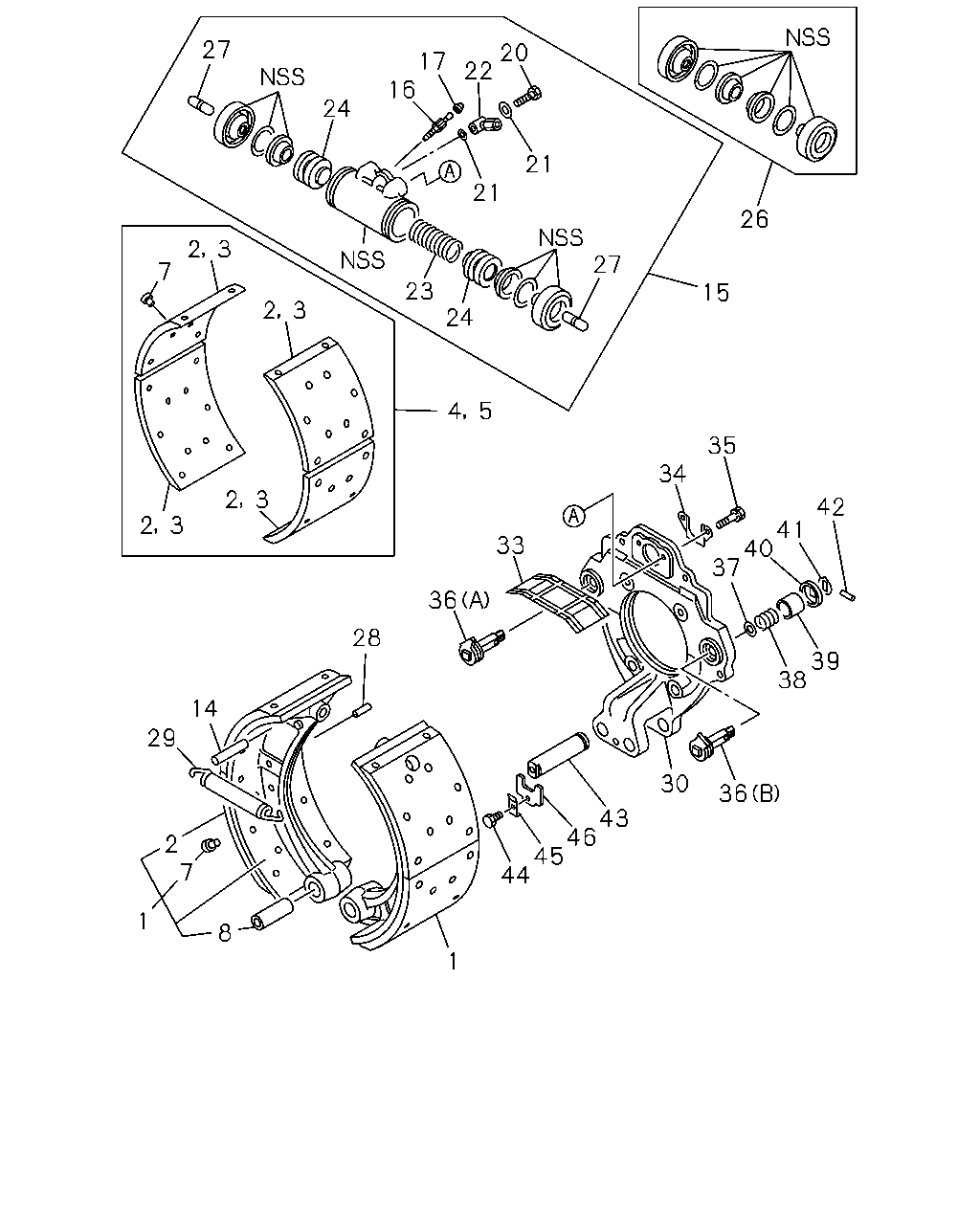

3-01 — FRONT WHEEL BRAKE (#357) — 65 parça
çizim 27397
27 20 22 17 16 24 21 21 26 27 2 3 7 23 15 2 3 24 5 4 35 34 2 3 42 3 2 41 40 37 33 36 28 39 38 14 29 30 36 43 46 45 44 2 7 1 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 1-47110-962-0 04 1 9202-9508 ●
1 SHOE; BRK,FRT
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		1-47110-962-0 04 1 9202-9508 ●
1 SHOE; BRK,FRT 1-47110-962-0 04 1 9509- ● ●
1 SHOE; BRK,FRT
BRAKE SYSTEM HEAVY DUTY<J55> 		1-47120-174-0 04 1 9307-9508 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47115-867-0 08 1 9202-9508 ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		1-47115-867-0 08 1 9202-9508 ●
2 LINING; FRT BRK SHOE,STANDARD 1-47115-867-0 08 1 9509- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE SYSTEM HEAVY DUTY<J55> 		1-47125-299-0 08 1 9307-9508 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47115-869-0 08 1 9202-9508 ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		1-47115-869-0 08 1 9202-9508 ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47115-869-0 08 1 9509- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE SYSTEM HEAVY DUTY<J55> 		1-47125-300-0 08 1 9307-9508 ●
4 LINING SET; FRT BRK,STANDARD 1-88302-956-0 02 1 9202-9508 ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		1-88302-956-0 02 1 9202-9508 ●
4 LINING SET; FRT BRK,STANDARD 1-88302-956-0 02 1 9509- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE SYSTEM HEAVY DUTY<J55> 		1-88310-222-0 02 1 9307-9508 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-001-0 02 1 9202-9508 ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		1-88310-001-0 02 1 9202-9508 ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-001-0 02 1 9509- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE SYSTEM HEAVY DUTY<J55> 		1-88310-223-0 02 1 9307-9508 ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 9202- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 9202- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 9202- ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-675-0 01 1 9202- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		1-47600-675-0 01 1 9202- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-674-0 01 1 9202- ●
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		1-47600-674-0 01 1 9202- ●
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY<J55> 		1-47600-690-0 01 1 9307- ●
15 CYLINDER; WHEEL,FRT BRK
BRAKE SYSTEM HEAVY DUTY<J55> 		1-47600-689-0 01 1 9307- ●
16 SCREW; BLEEDER,FRT BRK
L=66.5 		1-47615-005-0 02 1 9202- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 9202- ● ●
20 BOLT; JOINT 1-47634-006-0 02 1 9202- ● ●
21 GASKET; UNION BOLT
ID=15.2 		1-09630-019-0 02 1 9202- ● ●
21 GASKET; UNION BOLT
ID=12.2 		1-09630-020-0 02 1 9202- ● ●
22 JOINT; PIPE 1-47631-057-1 02 1 9202- ● ●
23 SPRING; COIL 9-09940-435-0 02 1 9202- ● ●
24 PISTON; FRT WHEEL CYL 9-47624-210-0 04 1 9202- ●
24 PISTON; FRT WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		9-47624-210-0 04 1 9202- ●
24 PISTON; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY<J55> 		9-47624-211-0 04 1 9307- ●
26 CUP SET; FRT WHEEL CYL
ID=47.5 		1-87830-521-0 02 1 9202- ●
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE SYSTEM HEAVY DUTY<J55> ID=47.5 		1-87830-521-0 02 1 9202- ●
26 CUP SET; FRT WHEEL CYL
BRAKE SYSTEM HEAVY DUTY<J55> ID=33.3 		1-87830-525-0 02 1 9307- ●
27 ROD; PUSH 1-47621-009-0 04 1 9202- ● ●
28 PIN; SHOE ADJ CAM GUIDE 1-47116-002-0 04 1 9202- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-185-2 02 1 9202- ●
29 SPRING; RETURN,FRT BRK SHOE
EXC. BRAKE SYSTEM HEAVY DUTY<J55> 		1-09583-185-2 02 1 9202- ●
29 SPRING; RETURN,FRT BRK SHOE
BRAKE SYSTEM HEAVY DUTY<J55> 		1-09583-269-1 02 1 9307- ●
30 BRACKET; ANCHOR,FRT 1-47137-149-0 02 1 9202- ● ●
33 COVER; WHEEL CYL 1-47159-080-0 02 1 9202- ● ●
34 PLATE; DIRECTION,FRT 1-47159-094-0 02 1 9202- ● ●
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50051-235-0 04 1 9202- ● ●
36 CAM ASM; ADJ
(A) 		1-47165-058-1 02 1 9202- ● ●
36 CAM ASM; ADJ
(B) 		1-47165-059-1 02 1 9202- ● ●
37 WASHER; ADJ CAM 1-47169-033-0 04 1 9202- ● ●
38 SPRING; ADJ CAM 9-09941-293-0 04 1 9202-9506 ● ●
38 SPRING; ADJ CAM 1-47169-046-0 04 1 9507- ● ●
39 BOOT; ADJ CAM 1-47169-034-0 04 1 9202- ● ●
40 COVER; BOOT,ADJ CAM 1-47169-031-0 04 1 9202- ● ●
41 INDICATOR 1-47169-032-1 04 1 9202- ● ●
42 PIN; SPINDLE 1-47169-030-0 04 1 9202- ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 9202- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		9-02041-016-0 02 1 9202-9204 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 9205- ● ●
45 WASHER; LK 1-47133-011-0 02 1 9202- ● ●
46 PLATE; LOCK 1-47133-005-0 02 1 9202- ● ●
