Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

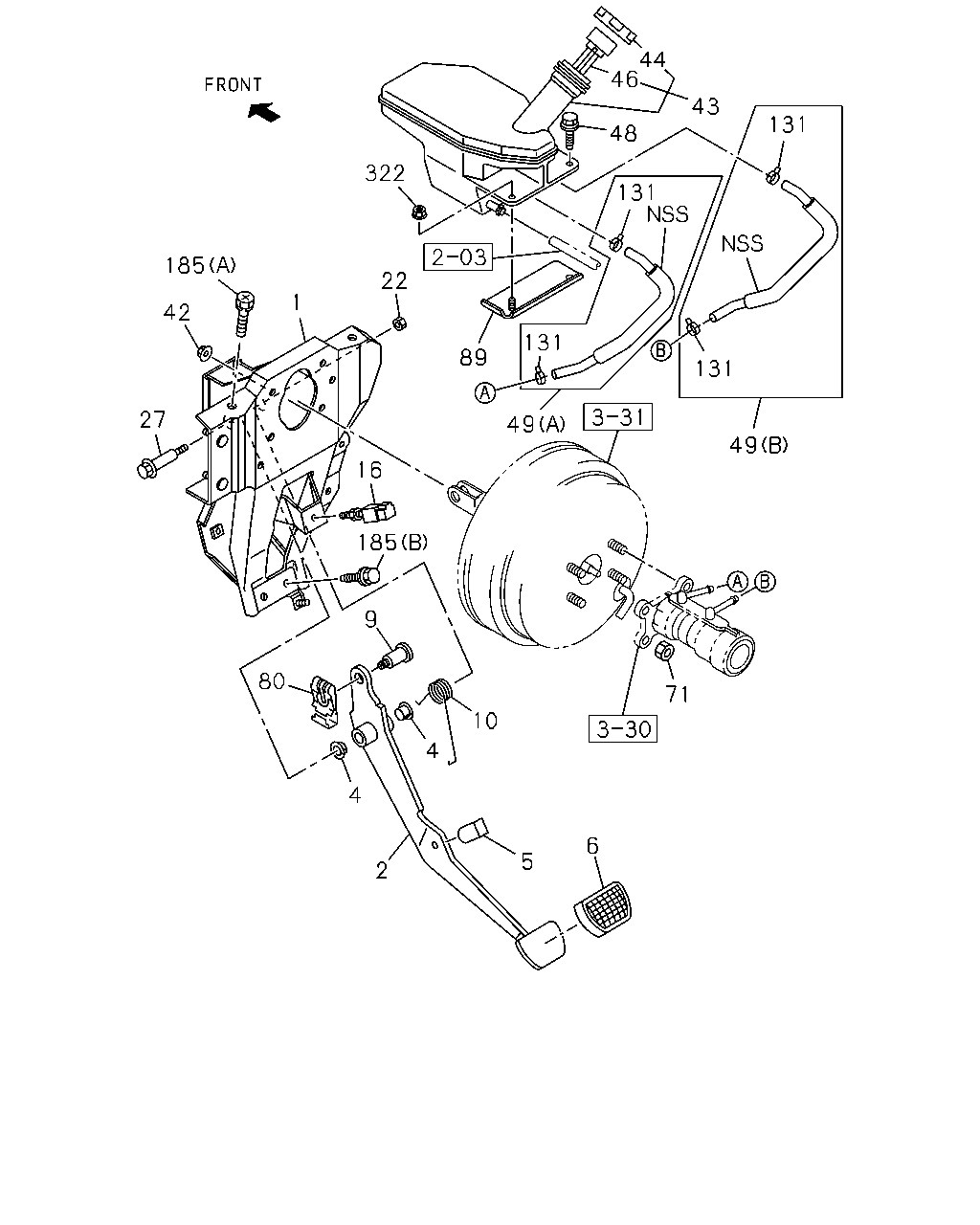

3-10 — BRAKE PEDAL AND CONTROL
(#35699) — 27 parça
44
46
43
131
48
322
131
185
22
1
42
131
89
131
27
49
49
16
185
9
80
71
10
4
4
6
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-98029-185-1
01
1
0901-
2
PEDAL; BRK
8-98003-157-0
01
1
0901-
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
0901-
5
STOPPER; BRK PEDAL
8-98029-187-0
01
1
0901-
6
COVER; BRK PEDAL
8-97853-413-2
01
1
0901-
9
PIN; JAW JOINT
8-97387-230-0
01
1
0901-1007
9
PIN; JAW JOINT
8-98147-657-0
01
1
1008-
10
SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
0901-
16
SWITCH; STOP LAMP
8-98000-028-0
01
1
0901-
22
NUT; SHAFT
M10 LOCK NUT FLANGE THA
0-91380-010-0
01
1
0901-
27
SHAFT; BRK PEDAL
8-97866-667-0
01
1
0901-
42
NUT; BRK PEDAL
M8 W/LK WASHER
8-94279-050-0
04
1
0901-
43
TANK ASM; OIL
8-97387-217-3
01
1
0901-
44
CAP; OIL TANK
8-98022-268-0
01
1
0901-
46
FILTER; RESERVOIR,BRK
8-98022-269-0
01
1
0901-
48
BOLT; OIL TANK TO BRKT
M6X20 W/PL WASHER THA
8-97370-668-0
01
1
0901-
49
HOSE; OIL TANK TO BRK M/CYL
(A)
8-97387-666-1
01
1
0901-
49
HOSE; OIL TANK TO BRK M/CYL
(B)
8-97387-667-1
01
1
0901-
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
04
1
0901-
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
0901-
89
BRACKET; M/CYL
8-98014-337-1
01
1
0901-
131
CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
THA
8-98031-178-0
04
1
0901-
185
BOLT; BRKT
(B) M10X22 W/PL WASHER
8-98033-926-0
02
1
0901-0903
185
BOLT; BRKT
(B) M10X22 W/PL WASHER
8-97313-188-0
02
1
0904-
185
BOLT; BRKT
(A) M10X25 FLANGE THA
0-28661-025-0
02
1
0901-
322
NUT; OIL TANK
M6 FLANGE THA
0-91180-106-0
01
1
1208-
322
NUT; OIL TANK
M6 FLANGE THA
0-91180-106-0
01
1
0901-1207
