Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#35692) — 53 parça
◀

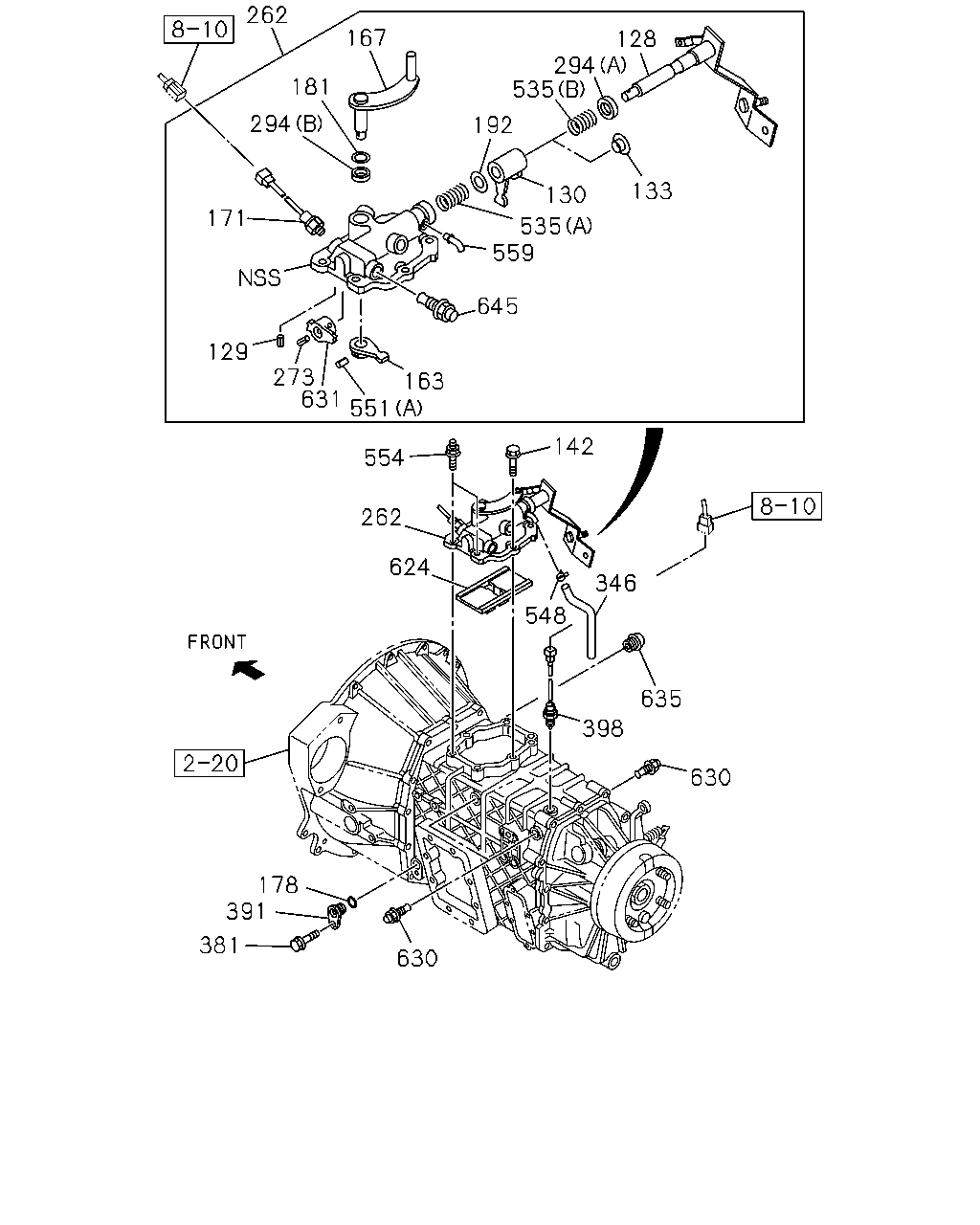

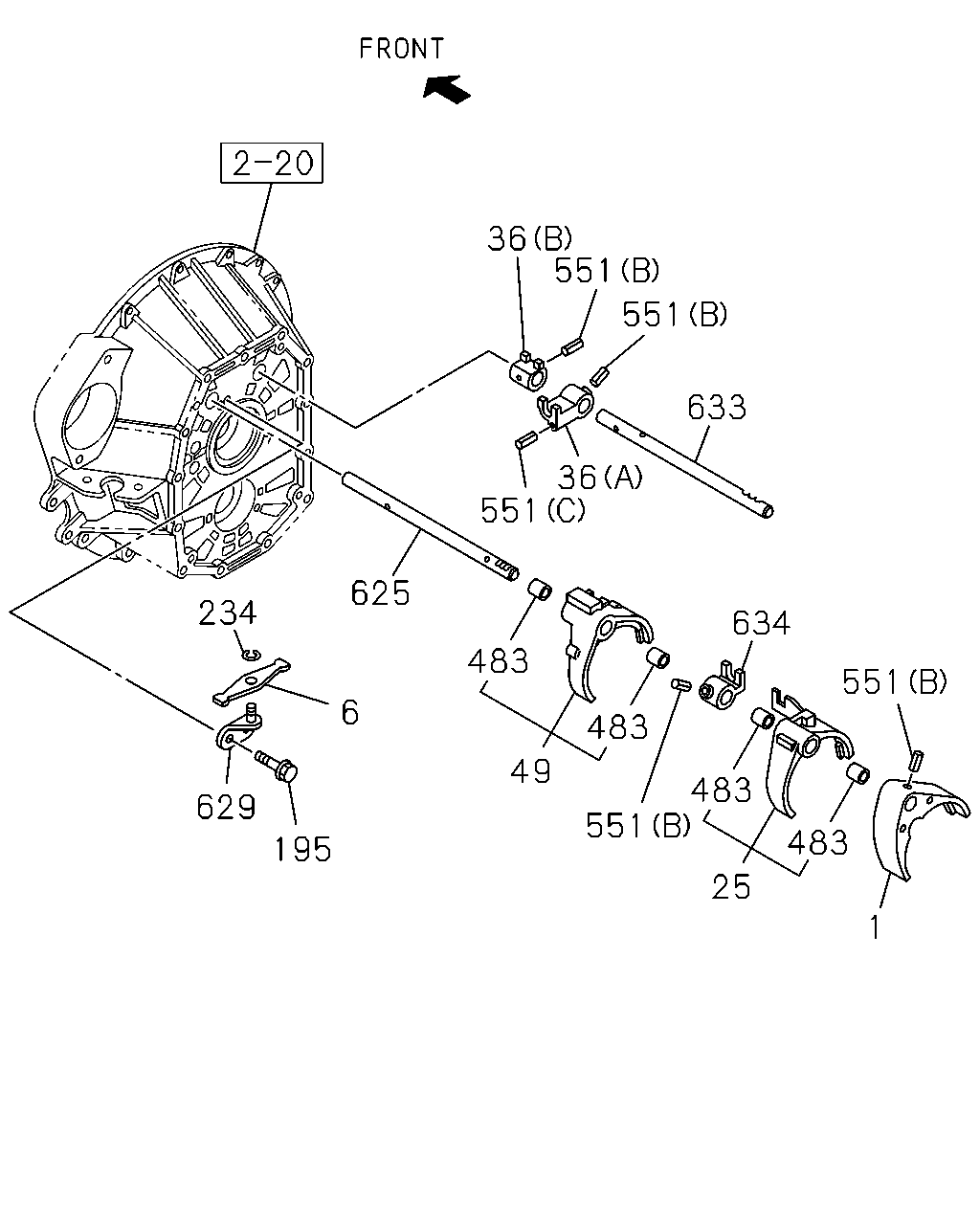

[230A] NO.2 (36 parça)
[230A] NO.1 (17 parça)
▶
262
167
128
294
535
181
294
192
133
130
171
535
559
645
129
273
631
163
551
142
554
262
624
346
548
635
398
630
178
391
381
630
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
128
LEVER; SHIFT,EXTERNAL
8-97305-725-0
01
1
0901-
129
PIN; SPR,SHIFT
L=30 OD=4
1-09748-031-0
01
1
0901-
130
LEVER; SHIFT,INTERNAL
8-97306-647-0
01
1
0901-
133
SEAT; SPR
8-97305-667-0
01
1
0901-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
0901-
163
LEVER; SELECT,INTERNAL
8-97305-663-0
01
1
0901-
167
LEVER; SELECT,EXTERNAL
8-98039-434-0
01
1
0901-
171
SWITCH; NEUTRAL
8-98023-050-0
01
1
0901-1312
171
SWITCH; NEUTRAL
8-98242-172-1
01
1
1401-
178
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
9-09567-113-0
01
1
0901-
181
WASHER; PL,SELECT LEVER
8-97367-327-0
01
1
0901-
192
WASHER; PL
8-97305-661-0
01
1
0901-
262
BOX ASM; SHIFT CONT
8-97362-750-2
01
1
0901-1312
262
BOX ASM; SHIFT CONT
8-98240-999-1
01
1
1401-
273
PIN; SPR,STOPPER
D=4.2 L=25
8-97103-142-0
01
1
0901-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B)
8-97305-662-0
01
1
0901-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A)
8-97363-225-0
01
1
0901-
346
HOSE; AIR
8-97309-855-0
01
1
0901-
381
BOLT
M6X16 FLANGE THA
0-28650-616-0
01
1
0901-
391
PLUG; SW HOLE
8-97300-273-1
01
1
0901-
398
SWITCH; REV LAMP
8-98023-050-0
01
1
0901-1106
398
SWITCH; REV LAMP
8-98186-003-0
01
1
1107-1311
398
SWITCH; REV LAMP
8-98256-418-0
01
1
1312-
535
SPRING; LEVER
(A)
8-97323-771-0
01
1
0901-
535
SPRING; LEVER
(B)
8-97323-772-0
01
1
0901-
548
CLIP; HOSE
8-97031-674-0
01
1
0901-
551
PIN; SPRING
(A) L=25 OD=5
1-09748-032-0
01
1
0901-
551
PIN; SPRING
(B) L=32
8-97011-596-2
04
1
0901-
551
PIN; SPRING
(C) L=20
8-97241-340-0
01
1
0901-
554
STUD; CONT BOX
M8X15,M8X25 L=49
8-97365-378-0
02
1
0901-
559
PIPE; BREATHER
8-97358-318-0
01
1
0901-
624
PLATE; INTER LOCK
8-97241-317-3
01
1
0901-
630
DETENT ASM
8-98019-536-0
03
1
0901-
631
STOPPER; SPRING
8-97305-666-0
01
1
0901-
635
PLUG; DETENT
8-97380-892-0
01
1
0901-
645
DETENT ASM
8-98019-536-0
01
1
0901-
36
551
551
633
36
551
625
234
634
483
551
6
483
49
483
551
629
483
195
25
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; SHIFT,1ST & REV
8-97241-320-2
01
1
0901-
6
LEVER; RELAY
8-97241-344-0
01
1
0901-
25
ARM; SHIFT,2ND & 3RD
8-97362-731-2
01
1
0901-1407
25
ARM; SHIFT,2ND & 3RD
8-98255-926-1
01
1
1408-
36
BLOCK; SHIFT,4TH & 5TH
(A)
8-97241-329-1
01
1
0901-
36
BLOCK; SHIFT,4TH & 5TH
(B)
8-97241-330-0
01
1
0901-
49
ARM; SHIFT,4TH & 5TH
8-97258-716-0
01
1
0901-
195
BOLT
M10X28 FLANGE REAMER
8-97365-375-0
02
1
0901-
234
RING; SNAP
ID=12
8-94460-357-0
01
1
0901-
483
BUSHING; SHIFT ARM
8-97241-326-2
04
1
0901-
551
PIN; SPRING
(A) L=25 OD=5
1-09748-032-0
01
1
0901-
551
PIN; SPRING
(B) L=32
8-97011-596-2
04
1
0901-
551
PIN; SPRING
(C) L=20
8-97241-340-0
01
1
0901-
625
ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
8-97362-741-0
01
1
0901-
629
BRIDGE; LEVER
8-97237-107-1
01
1
0901-
633
ROD; GEAR SHIFT,4TH,5TH
8-97362-743-0
01
1
0901-
634
BLOCK; SHIFT,LOW,REV
8-97241-327-1
01
1
0901-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
