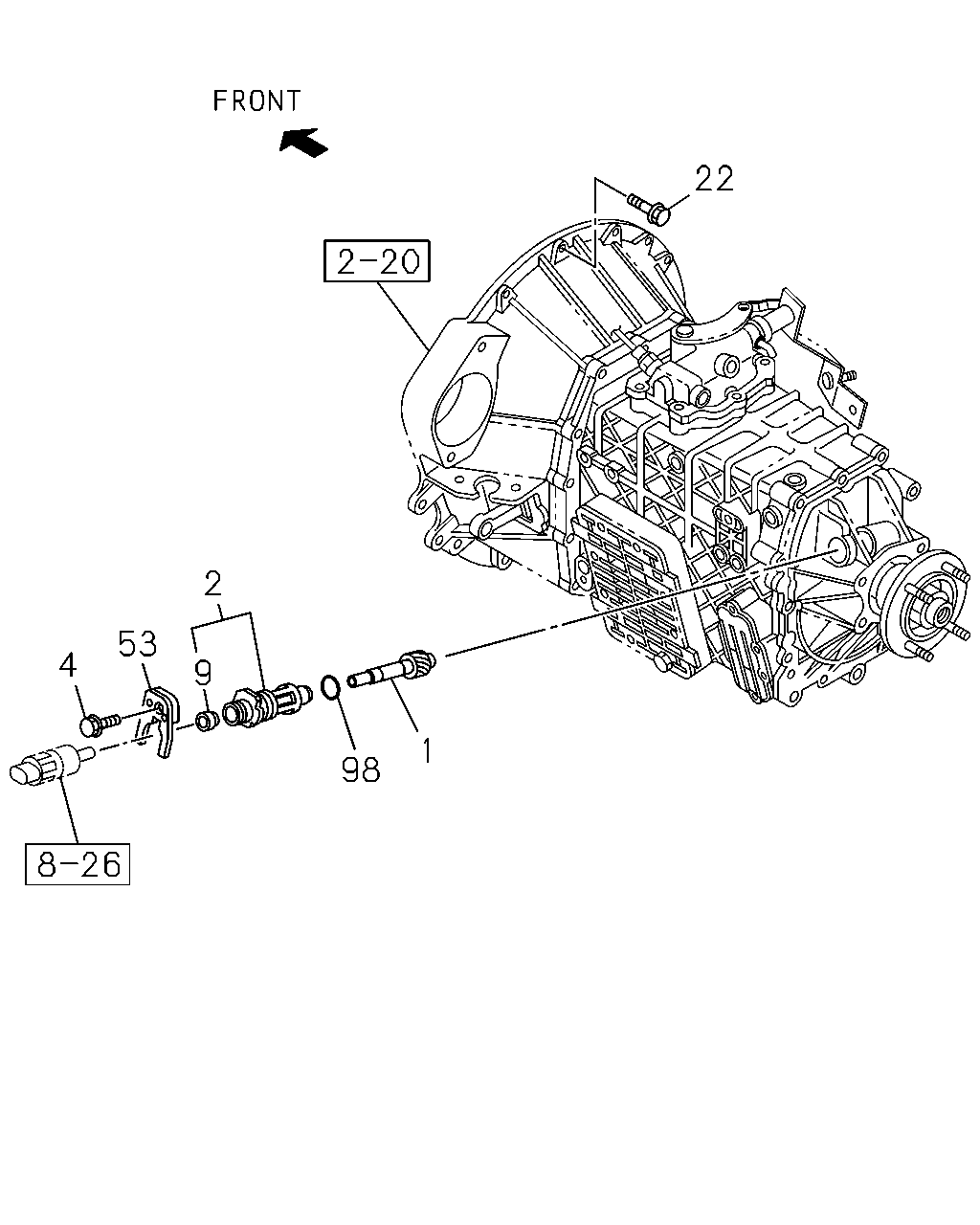

2-25 — SPEEDOMETER DRIVEN GEAR (#35690) — 22 parça

22 2 53 4 9 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 43/8<R40> FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> Z=14	8-97253-561-1	01	1	0901-0902
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 43/8<R40> FRT&RR 7-16-12 16X5.5F-115<96H> Z=14	8-97253-561-1	01	1	0903-0903
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7<GV1>,FINAL GEAR RATIO 43/8<R40> FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> Z=14	8-97253-561-1	01	1	0904-
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7<R41> FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> Z=15	8-97253-560-1	01	1	0901-0902
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7<R41> FRT&RR 7-16-12 16X5.5F-115<96H> Z=15	8-97253-560-1	01	1	0903-0903
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7<R41> FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> Z=15	8-97253-560-1	01	1	0904-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> MARK "12,13,14,15"	8-97253-125-0	01	1	0901-0902
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7-16-12 16X5.5F-115<96H> MARK "12,13,14,15"	8-97253-125-0	01	1	0903-0903
2	BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> MARK "12,13,14,15"	8-97253-125-0	01	1	0904-
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28650-820-0	01	1	1208-
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28650-820-0	01	1	0901-1207
9	SEAL; OIL,DRIVEN GEAR FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H> NOK	8-97131-328-1	01	1	0901-0902
9	SEAL; OIL,DRIVEN GEAR FRT&RR 7-16-12 16X5.5F-115<96H> NOK	8-97131-328-1	01	1	0903-0903
9	SEAL; OIL,DRIVEN GEAR FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> NOK	8-97131-328-1	01	1	0904-
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28151-035-0	03	1	0901-
22	BOLT; TRANS CASE TO ENG M10X55 FLANGE	8-97365-449-0	02	1	0901-
22	BOLT; TRANS CASE TO ENG M10X30 FLANGE	0-28151-030-0	02	1	0901-
22	BOLT; TRANS CASE TO ENG M10X30 FLANGE	0-28151-030-0	02	1	0901-
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0901-
98	SEAL; OIL,BUSH FRT&RR 7R-16-12 16X5.5F-115<08H>,FRT&RR 7-16-12 16X5.5F-115<96H>	9-09561-324-0	01	1	0901-0902
98	SEAL; OIL,BUSH FRT&RR 7-16-12 16X5.5F-115<96H>	9-09561-324-0	01	1	0903-0903
98	SEAL; OIL,BUSH FRT&RR 7R-16-12 16X5.5F-115 EXP SPEC<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H>	9-09561-324-0	01	1	0904-
