2-20 — MANUAL TRANSMISSION ASM AND CASE (#3569) — 141 parça

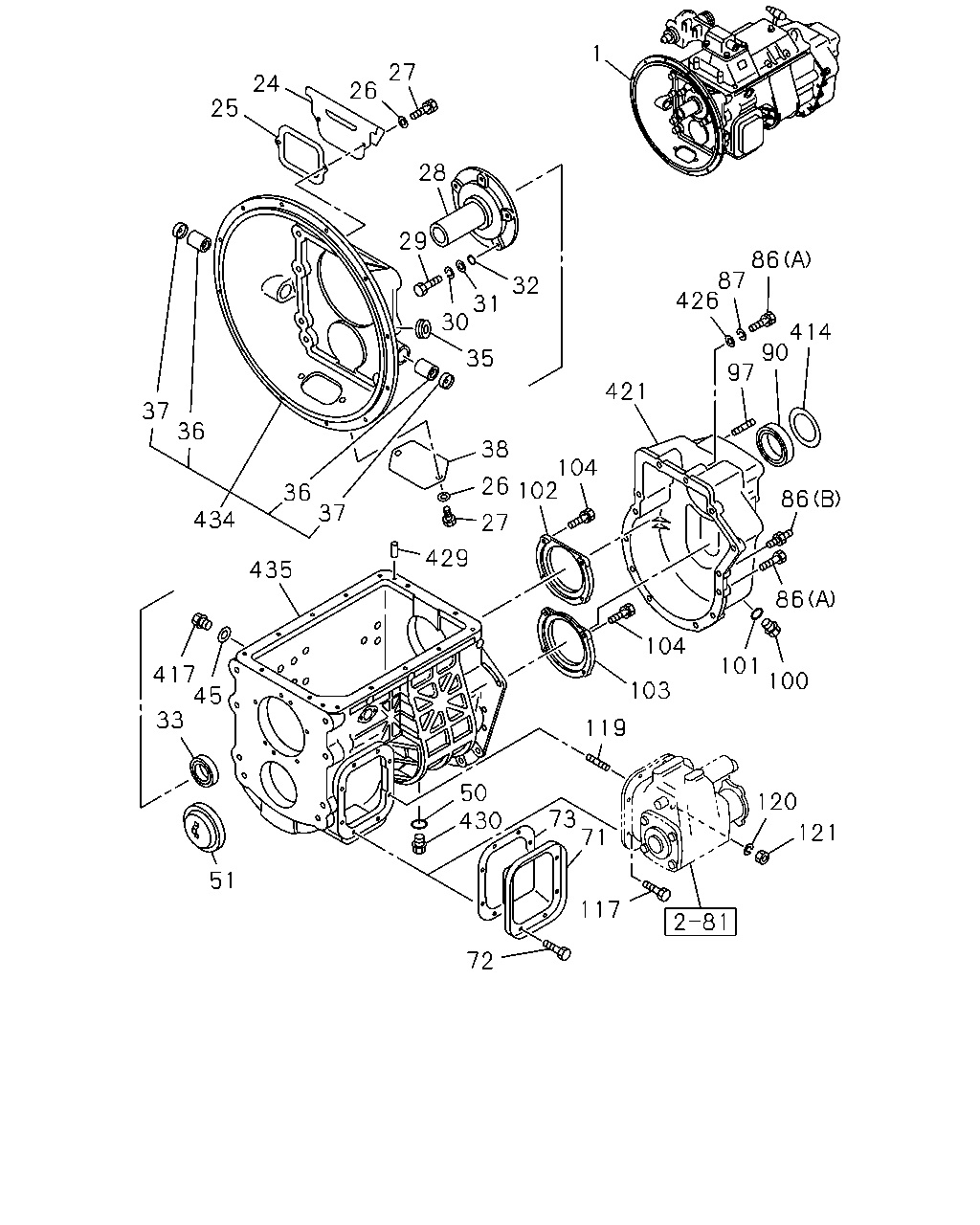

1 27 24 26 25 28 29 86 87 426 32 31 30 414 90 97 35 421 37 36 38 104 102 26 36 37 86 434 27 429 435 86 104 101 417 45 33 100 103 119 50 430 120 73 71 121 51 117 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8>	1-33026-964-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33026-938-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L)	1-33037-830-0	01	1	9307-	●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X>	1-33026-921-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E)	1-33026-912-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>, RR TIRE 11.00-20<97X>	1-33026-912-0	01	1	9002-9306	●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L)	1-33037-817-0	01	1	9307-	●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8>	1-33027-095-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-069-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 41/8 18.5"(W3M) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33038-105-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 38/7 18.5"(W3E) RR TIRE 11.00-20<97X> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33038-105-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/7 18.5"(W3Q) ASSISTER SHIFT CONTROL<WX8>	1-33037-858-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 41/8 18.5"(W3M) ASSISTER SHIFT CONTROL<WX8> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>, RR TIRE 10.00-20<96X>	1-33037-858-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 41/7 18.5"(W3Q) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33037-851-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 38/7 18.5"(W3E) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>, RR TIRE 10.00-20<96X> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33037-851-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 10PD1 STD ENG(40L) FINAL GEAR 41/8 18.5"(W3M) ASSISTER SHIFT CONTROL<WX8> RR TIRE 11.00-20<97X>	1-33037-951-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 12PD1 C ENG(43L)	1-33037-953-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 37/6 18.5"(W3F) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33032-354-0	01	1	9101-9306		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33032-348-0	01	1	9101-9306		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>, RR TIRE 10.00-20<96X>	1-33037-847-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33032-361-0	01	1	9101-9306		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L) RR TIRE 11.00-20<97X>	1-33037-949-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L)	1-33026-990-0	01	1	9002-9306			●
1	TRANSMISSION ASM; MANUAL 6RB1 STD ENG(07L)	1-33037-836-0	01	1	9307-			●
1	TRANSMISSION ASM; MANUAL 6RB1TC-N ENG(29L) ASSISTER SHIFT CONTROL<WX8>	1-33027-546-0	01	1	9012-9306			●
1	TRANSMISSION ASM; MANUAL 6RB1TC-N ENG(29L)	1-33037-845-0	01	1	9307-			●
1	TRANSMISSION ASM; MANUAL 6RB1TC-N ENG(29L) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-520-0	01	1	9012-9306			●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9002-	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-003-0	01	1	9002-				●	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9002-	●	●	●
26	WASHER; PL,COVER ID=8.4 OD=22	9-09160-708-0	02	1	9002-9205	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9206-	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9206-				●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-1	01	1	9002-	●	●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	05	1	9002-9205	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9206-	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	05	1	9002-9205	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9002-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-496-0	01	1	9002-	●	●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9002-	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9002-	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-181-0	04	1	9002-				●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9002-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-215-0	02	1	9002-				●	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9002-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-014-0	01	1	9002-				●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9002-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9002-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9002-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9002-	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9002-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33142-037-0	01	1	9002-9411	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9412-	●	●	●
86	BOLT; RR COVER (A) M12X40	9-01931-240-0	10	1	9002-9205	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	10	1	9206-9512	●	●	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	9601-		●	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	10	1	9601-	●
86	BOLT; RR COVER (B) M10X16,M12X35 L=59	1-09029-031-0	02	1	9002-9205		●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9206-9512		●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-		●	●
86	BOLT; RR COVER (A) M12X70	9-01656-270-0	02	1	9002-9205		●	●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9206-		●	●
86	BOLT; RR COVER (A) M12X40	9-01991-240-0	10	1	9002-9205		●	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	04	1	9002-9205		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-472-0	01	1	9002-9406	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9407-	●	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9002-	●	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9002-		●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9002-		●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	9002-		●	●
103	RETAINER; BRG	1-33151-035-1	01	1	9002-		●	●
104	BOLT; BRG RET M10X30	9-01931-030-0	08	1	9002-9002		●	●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	08	1	9003-9205		●	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER	9-01931-025-0	03	1	9002-9002	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER	0-50051-025-0	03	1	9003-9205	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	9206-	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER	9-01931-040-0	02	1	9002-9002	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER	0-50051-040-0	02	1	9003-9006	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50	0-16806-050-0	02	1	9007-9205	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	9206-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37	9-04501-025-0	03	1	9002-9203	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	03	1	9204-9205	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9206-	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	03	1	9002-9006	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	05	1	9007-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-510-0	03	1	9002-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9007-	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9002-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●
421	COVER; RR,TRANS	1-33131-109-1	01	1	9002-	●
421	COVER; RR,TRANS	1-33131-122-2	01	1	9002-9012		●	●
421	COVER; RR,TRANS	1-33131-138-1	01	1	9101-		●	●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	04	1	9002-9205		●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9002-	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9002-	●	●	●
434	HOUSING; CLU	1-31110-118-8	01	1	9002-	●	●	●
434	HOUSING; CLU	1-31110-103-0	01	1	9002-				●	●	●	●
435	CASE; TRANS	1-33111-197-1	01	1	9002-	●
435	CASE; TRANS	1-33111-195-1	01	1	9002-		●	●

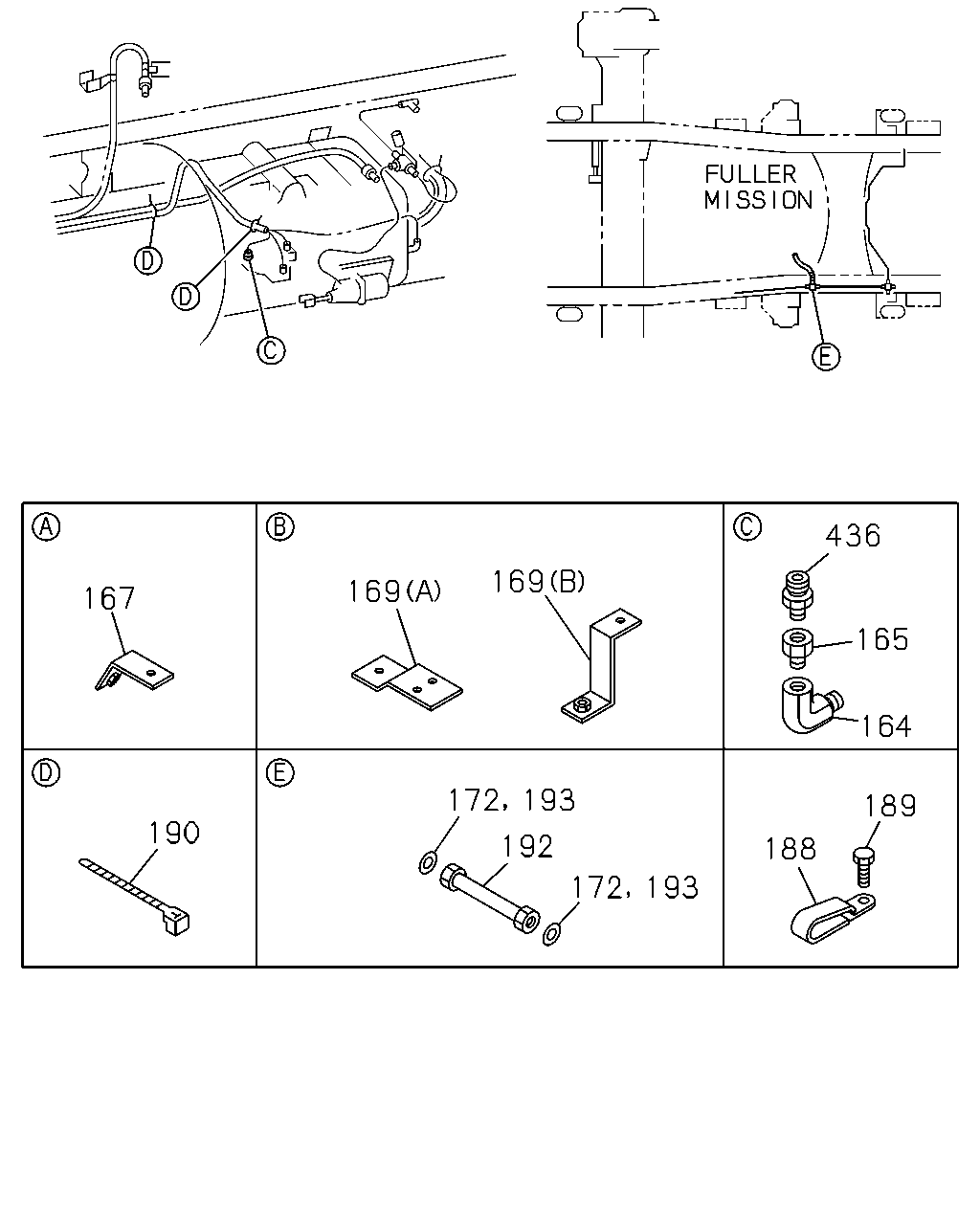

436 169 169 167 165 164 172 193 189 190 192 188 172 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F	G
164	CONNECTOR; ELBOW	1-33619-290-0	02	1	9002-	●	●	●	●
165	ADAPTER; STRAIGHT	1-33619-291-0	02	1	9002-	●	●	●	●
167	BRACKET; CLIP,AIR TUBE	1-47465-769-0	01	1	9002-	●	●	●	●
169	BRACKET; CLIP,PIPE HOSE (A)	1-47475-633-0	01	1	9002-	●	●	●	●
169	BRACKET; CLIP,PIPE HOSE 10PD1 STD ENG(40L) (B) 77X80	1-46147-083-0	01	1	9002-	●	●
169	BRACKET; CLIP,PIPE HOSE 10PD1 STD ENG(40L) (B) 50X65	1-47475-689-0	01	1	9002-	●	●
172	GASKET; AIR HOSE ID=11 OD=18	9-09572-510-0	02	1	9307-	●			●
188	CLIP; PIPE,BRKT	1-09701-085-0	01	1	9002-9306	●	●	●	●
188	CLIP; PIPE,BRKT ID=18 L=50	1-09701-072-0	01	1	9307-9412	●			●
188	CLIP; PIPE,BRKT ID=19 L=50	9-09525-886-0	01	1	9501-	●			●
189	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●	●
189	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●	●	●
189	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9303-	●	●	●	●
190	CLIP; BAND,CONT TUBE L=140	5-09707-031-0	01	1	9002-9007	●	●	●
190	CLIP; BAND,CONT TUBE L=140	5-09707-031-1	02	1	9008-	●	●	●	●
190	CLIP; BAND,CONT TUBE L=250	5-09707-030-1	01	1	9002-	●	●	●	●
192	HOSE; FLEX,TRANS L=480	0-07150-480-0	01	1	9002-	●	●	●	●
193	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●	●	●
436	CONNECTOR; AIR HOSE,SUPPLY L=35	1-09660-039-0	01	1	9002-	●	●	●	●

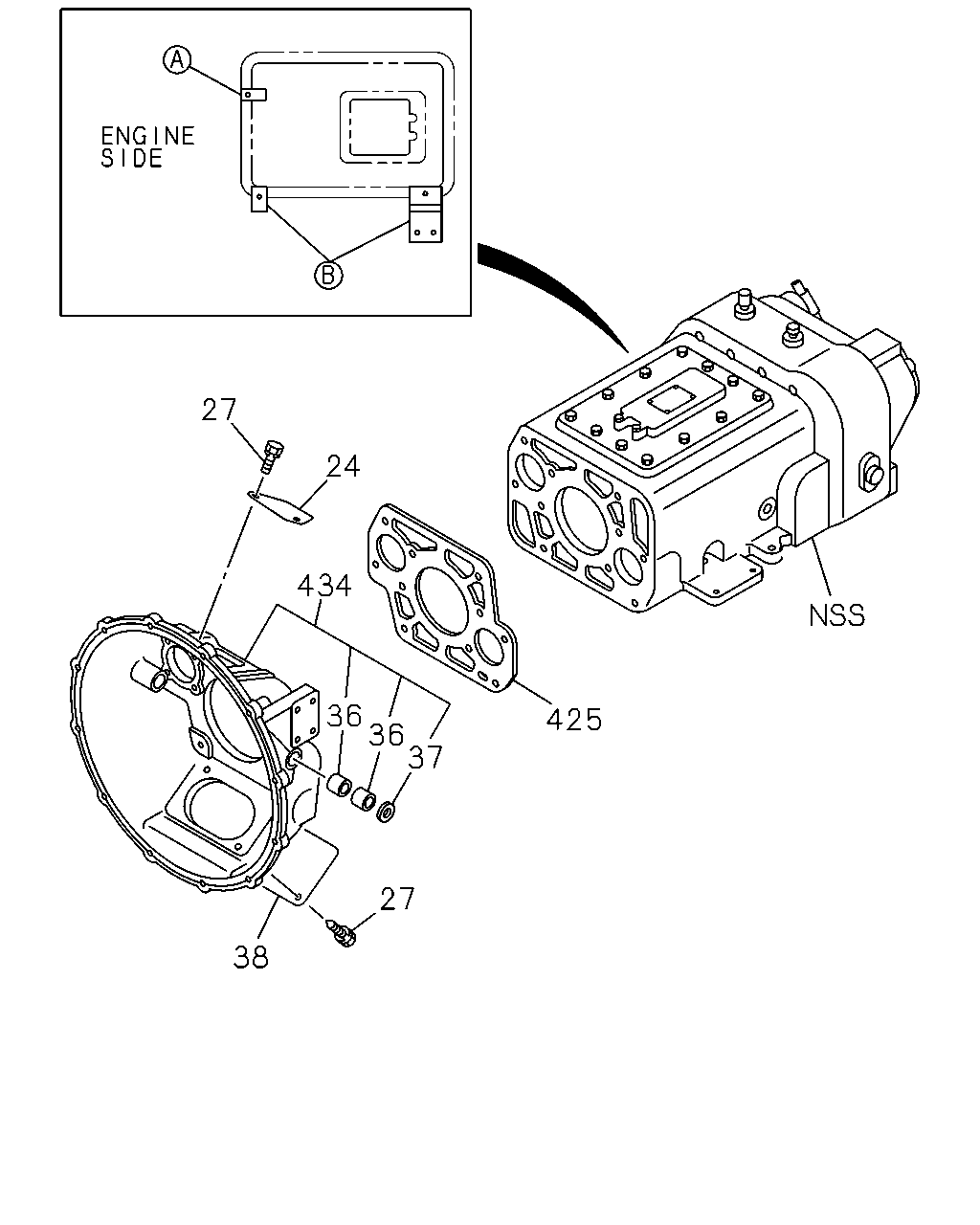

27 24 434 36 36 37 425 27 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9002-	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-003-0	01	1	9002-				●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9206-	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205	●	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9206-				●	●	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	9002-	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-181-0	04	1	9002-				●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	9002-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-215-0	02	1	9002-				●	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	9002-	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-014-0	01	1	9002-				●	●	●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-31121-004-0	01	1	9002-				●	●	●	●
434	HOUSING; CLU	1-31110-118-8	01	1	9002-	●	●	●
434	HOUSING; CLU	1-31110-103-0	01	1	9002-				●	●	●	●
