2-20 — MANUAL TRANSMISSION ASM AND CASE (#35689) — 31 parça

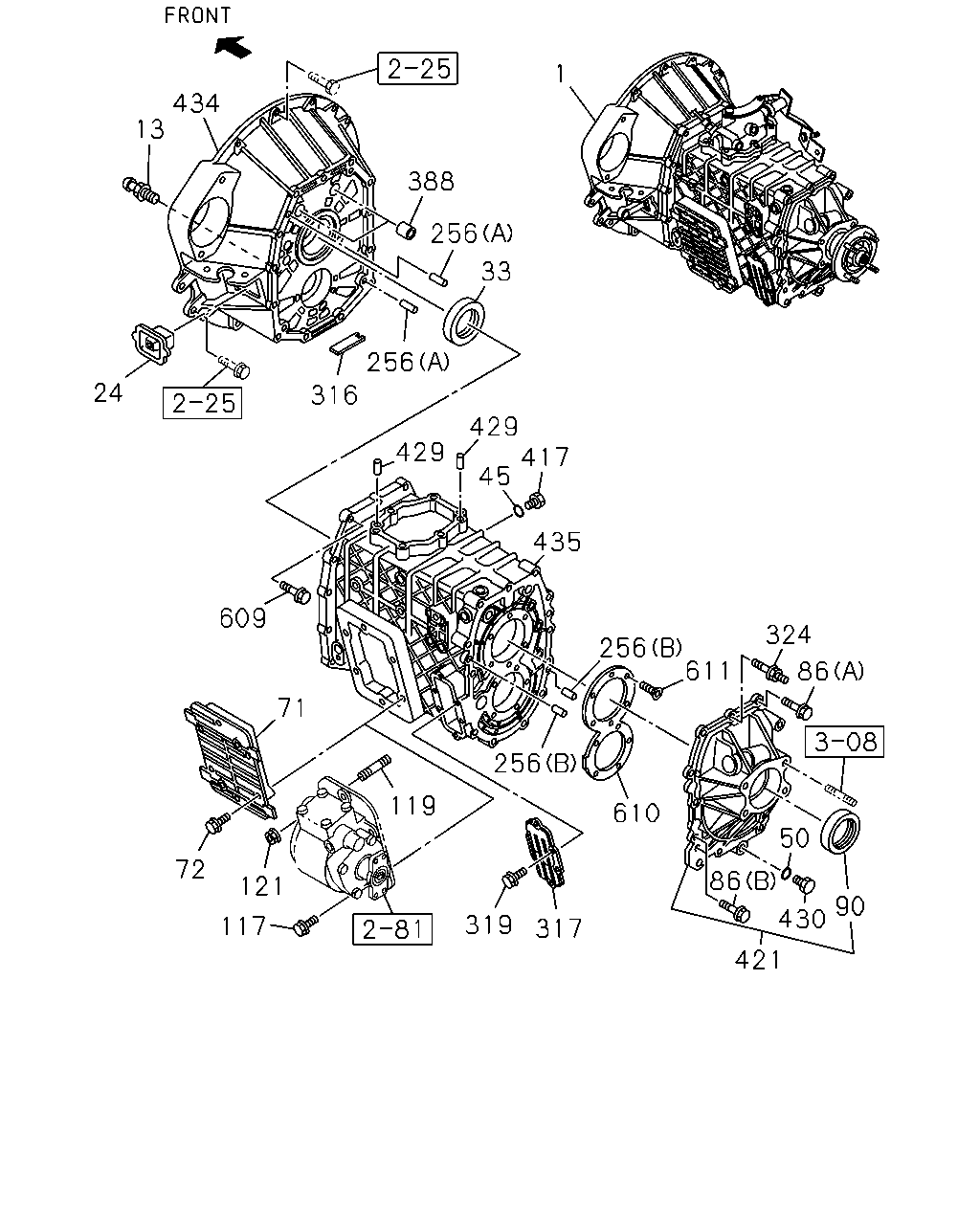

çizim 123599
1 434 13 388 256 33 256 24 316 429 417 45 429 435 609 324 256 611 86 256 71 119 610 50 86 72 121 90 430 319 117 317 421
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-98067-718-0 01 1 0901-
1 TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE<V66> 		8-98067-718-0 01 1 0901-
13 SUPPORT; SHIFT FORK 8-97255-384-1 01 1 0901-
24 COVER; CHECK HOLE,DUST 8-97255-201-0 01 1 0901-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		8-97253-550-0 01 1 0901-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0901-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0901-
71 COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE<V66> 		8-97252-625-0 01 1 0901-
72 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE 		8-98014-142-0 06 1 0901-
86 BOLT; RR COVER
(A) M10X40 FLANGE 		0-28151-040-0 10 1 0901-
86 BOLT; RR COVER
(B) M10X40 FLANGE 		8-97365-377-0 02 1 0901-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97253-552-1 01 1 0901-
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> M10X30 FLANGE 		0-28751-030-0 03 1 0901-
119 STUD; PTO FIX
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> M10X25 L=40 THA 		0-44011-025-0 03 1 0901-
121 NUT; PTO FIX
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> M10 FLANGE THA 		0-91180-210-0 03 1 0901-
256 PIN; KNOCK
(A) OD=10 L=20 		8-97135-423-0 02 1 0901-
256 PIN; KNOCK
(B) ID=6 L=12 THA 		9-08160-612-0 02 1 0901-
316 MAGNET; TRANS CASE 8-94249-524-2 01 1 0901-
317 COVER; CASE 8-97252-626-0 01 1 0901-
319 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 06 1 0901-
324 STUD; RR COVER
M10X15,M10X40 L=65 		8-97365-379-0 01 1 0901-
388 BUSHING; CLU HSG 8-97241-326-2 02 1 0901-
417 PLUG; OIL FILLER,TRANS 8-97365-373-0 01 1 0901-
421 COVER; RR,TRANS 8-98020-029-0 01 1 0901-
429 PIN; STRAIGHT
OD=10 L=20 		8-97135-423-0 02 1 0901-
430 PLUG; OIL DRAIN 8-97365-374-0 01 1 0901-
434 HOUSING; CLU 8-97237-099-5 01 1 0901-
435 CASE; TRANS 8-97379-375-0 01 1 0901-
609 BOLT; HSG TO CASE
M10X40 FLANGE 		0-28151-040-0 13 1 0901-
610 RETAINER; BRG 8-97241-315-1 01 1 0901-
611 SCREW
M10X27 TORQUES 		8-97365-354-0 11 1 0901-
