3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#35677) — 46 parça
Tümü
A - NPC5SN
B - NPC5SF
◀
[350A] CAB SIDE(NO.2) (9 parça)

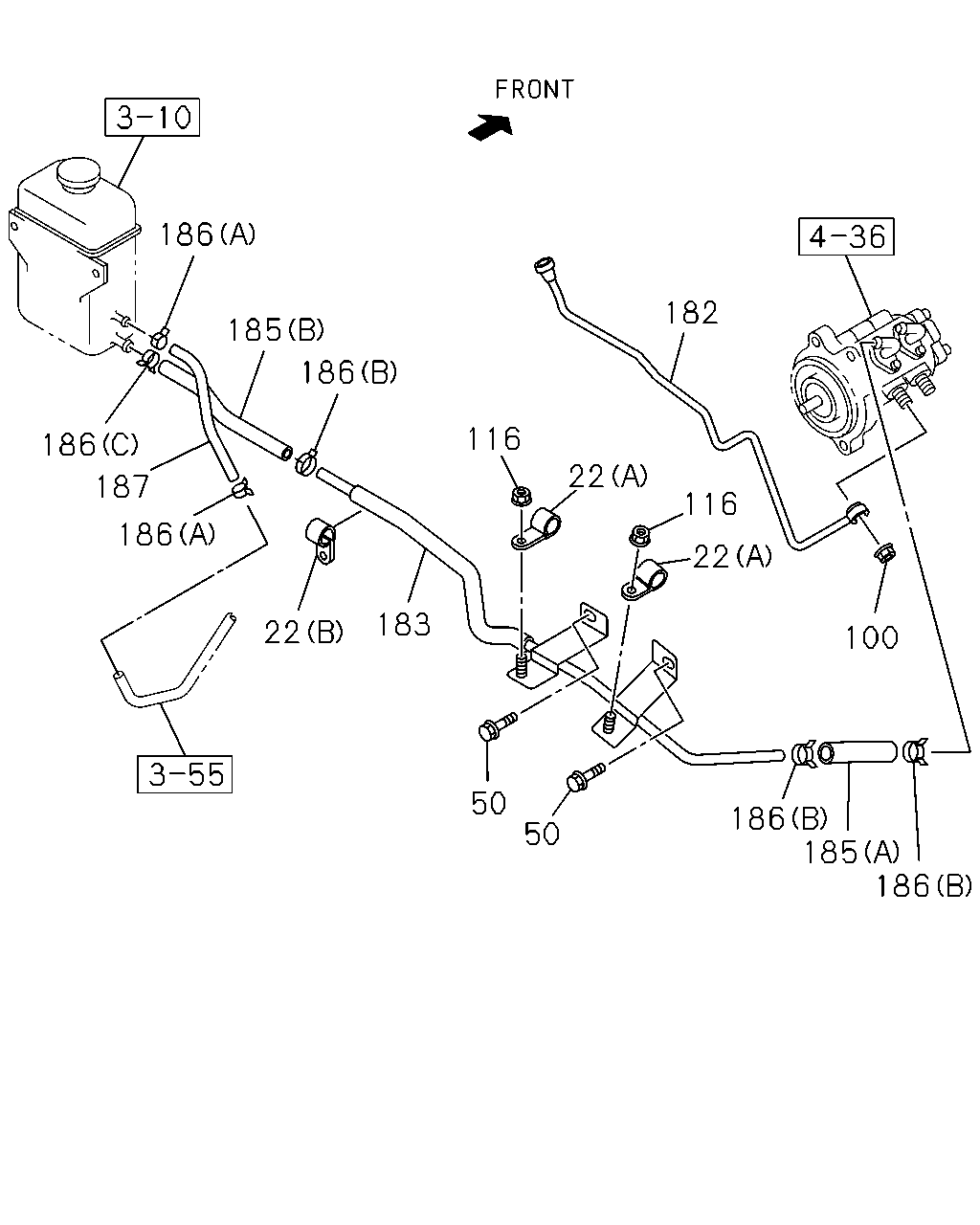

[350A] FRAME SIDE (18 parça)

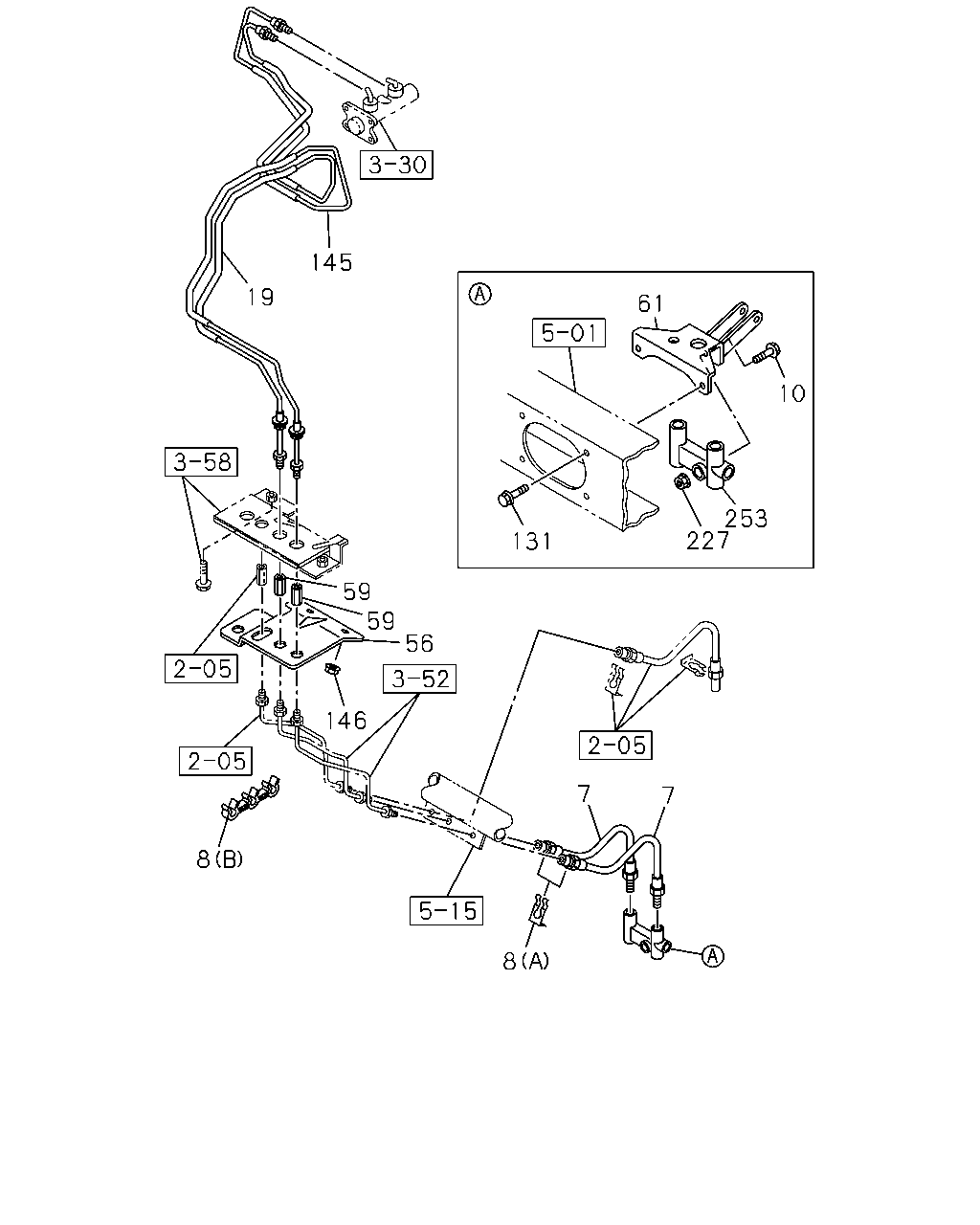

[350A] CAB SIDE(NO.1) (19 parça)
▶
193
188
181
192
195
194
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
129
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0702-0702
●
129
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0703-
●
181
BOLT; PIPE
M6X16 FLANGE
0-28650-616-0
01
1
0701-
●
●
188
NUT; PIPE
M6 FLANGE
0-91180-106-0
01
1
0701-
●
●
192
PIPE; PRESSURE
THA
8-97922-672-0
01
1
0701-
●
●
193
PIPE; RETURN
THA
8-97177-033-3
01
1
0701-
●
●
194
HOSE; CAB TO PIPE
8-97177-089-5
01
1
0701-
●
●
195
CLIP; HOSE
ID=11-19.5
8-94426-597-0
01
1
0701-1005
●
●
195
CLIP; HOSE
ID=11-17
8-98173-762-0
01
1
1006-
●
●
186
182
185
186
116
186
22
187
116
186
22
183
22
100
50
186
185
186
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
CLIP
(A) ID=11 L=16
0-95235-025-0
02
1
0701-
●
●
22
CLIP
(B) ID=19 L=20
0-95235-836-0
01
1
0701-
●
●
50
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
02
1
0701-
●
●
100
NUT; HYDRAULIC UNIT
M12 SELF LOCK
8-97028-390-1
01
1
0701-
●
●
116
NUT
M8 FLANGE
0-91180-108-0
02
1
0701-
●
●
129
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0702-0702
●
129
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0703-
●
182
PIPE; HYDRAULIC BRK BOOSTER
8-97328-692-0
01
1
0701-
●
●
183
PIPE; SUCTION
8-97328-693-0
01
1
0701-
●
●
185
HOSE; RUBBER,SUCTION
(B) SERVICED BY L=300
0-09814-300-0
01
1
0701-
●
●
185
HOSE; RUBBER,SUCTION
(A)
8-97330-513-0
01
1
0701-
●
●
186
CLIP; HOSE
(A) ID=16
8-94238-568-0
02
1
0701-0911
●
●
186
CLIP; HOSE
(A) ID=16 THA
8-98008-098-0
02
1
0912-
●
●
186
CLIP; HOSE
(B) ID=21
8-94242-034-0
03
1
0701-0911
●
●
186
CLIP; HOSE
(B) ID=21
8-98150-355-0
03
1
0912-
●
●
186
CLIP; HOSE
(C) ID=22
8-94382-401-0
01
1
0701-1003
●
●
186
CLIP; HOSE
(C) ID=22
8-97359-141-0
01
1
1004-
●
●
187
HOSE; RUBBER,OIL TANK
L=270 SERVICED BY L=3000
0-19809-300-0
01
1
0701-
●
●
145
19
61
10
253
227
131
59
59
56
146
7
7
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
0701-
●
●
8
CLIP; FLEX HOSE,CABLE SIDE
(B)
8-97076-471-0
01
1
0701-
●
●
8
CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0701-
●
●
10
BOLT; JOINT
M6X40 FLANGE
0-28650-640-0
01
1
0701-
●
●
19
PIPE; BRK,M/CYL TO UNION
REAR THA
8-97917-181-0
01
1
0701-
●
●
56
BRACKET; UNION,BRK
8-97149-604-1
01
1
0701-
●
●
59
UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0701-
●
●
61
BRACKET; 5 WAY JOINT
8-97170-632-0
01
1
0701-
●
●
129
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0702-0702
●
129
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0703-
●
131
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0701-
●
●
145
PIPE; BRK,METERING VLV TO UNION
FRONT THA
8-97917-180-0
01
1
0701-
●
●
146
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0703-
●
146
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0701-0701
●
●
146
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0702-0702
●
●
146
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0702-0702
●
146
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0703-
●
●
227
NUT; JOINT
M6 FLANGE
0-91180-106-0
01
1
0701-
●
●
253
JOINT
5-47456-009-1
01
1
0701-
●
●
