Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#35673) — 34 parça
Tümü
A - NPC5SF
B - NPC5SN
◀
[311A] FIXING PARTS (19 parça)

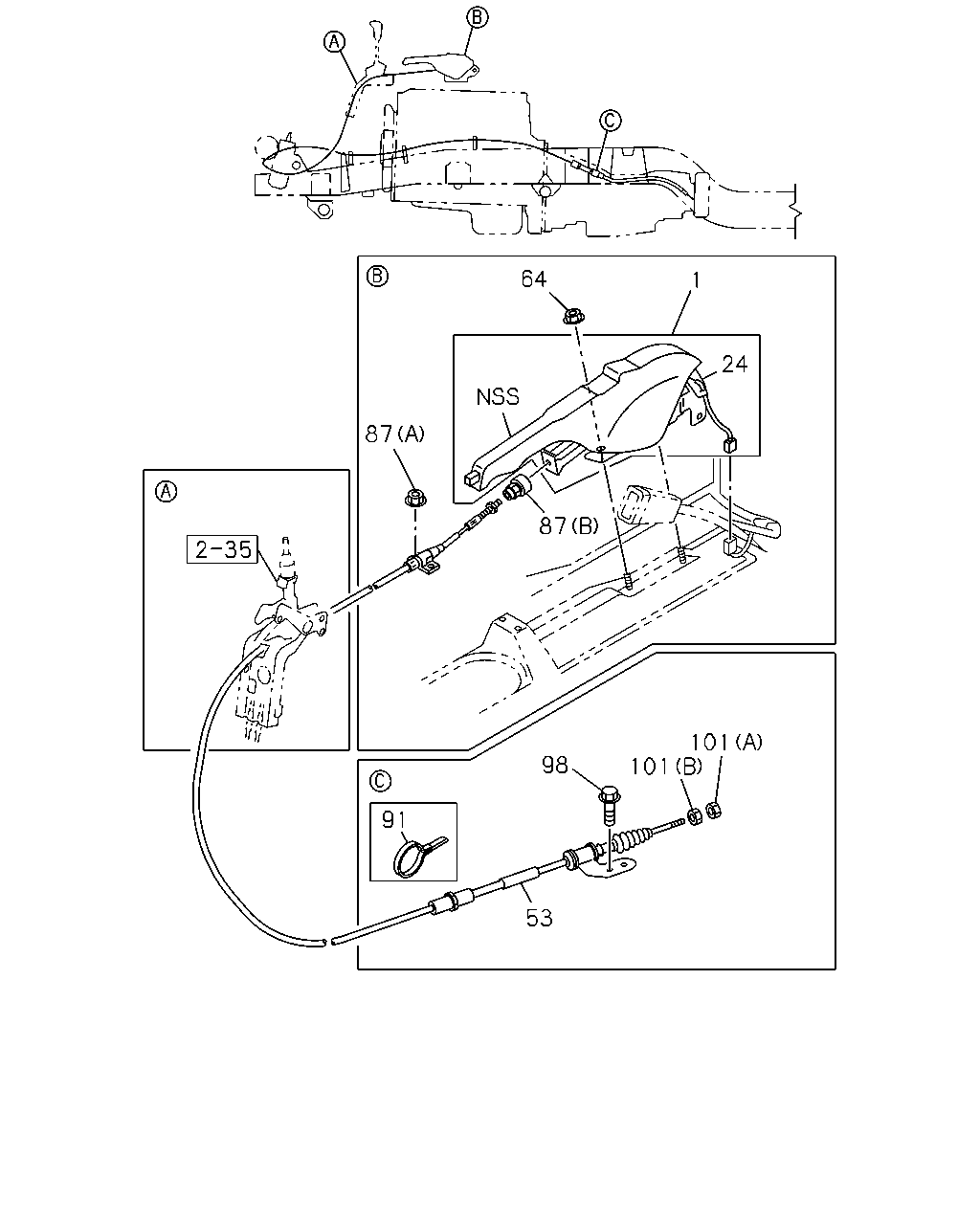

[311A] STEM AND CABLE (15 parça)
▶
53
24
223
241
324
225
334
181
86
224
324
224
333
324
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0701-
●
●
25
SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0701-
●
●
53
CABLE; PARK BRK,FRT LWR
THA
8-97922-893-0
01
1
0701-
●
●
84
BOLT; CABLE
M8X30 FLANGE
0-28650-830-0
02
1
0702-0702
●
84
BOLT; CABLE
M8X40 FLANGE
0-28650-840-0
02
1
0703-
●
86
BOLT
M10X16 FLANGE
0-28151-016-0
01
1
0701-
●
●
156
BOLT; CONT BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0702-
●
181
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
01
1
0701-
●
●
223
CLIP; PARKING BRK CABLE
ID=16 L=28
0-95235-556-0
01
1
0701-
●
●
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0701-
●
●
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0701-
●
●
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0701-
●
●
225
NUT; CABLE CLIP
M8 FLANGE
0-91180-108-0
01
1
0701-
●
●
241
NUT; BRKT
M10 FLANGE
0-91180-110-0
01
1
0701-
●
●
324
BRACKET
(A)
8-97188-151-0
01
1
0701-
●
●
324
BRACKET
(B)
8-97307-874-0
01
1
0701-
●
●
324
BRACKET
(C)
8-98012-620-1
01
1
0701-
●
●
333
CLIP; CABLE
ID=11 L=60
0-95235-096-0
01
1
0701-
●
●
334
PROTECTOR; EDGE
L=200
8-97096-423-0
01
1
0701-
●
●
64
1
24
87
87
101
101
98
91
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STEM ASM; PARKING BRK
GRAY
8-97409-386-0
01
1
0701-
●
●
24
SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0701-
●
●
25
SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0701-
●
●
53
CABLE; PARK BRK,FRT LWR
THA
8-97922-893-0
01
1
0701-
●
●
64
NUT; PARKING BRK
M8 FLANGE
0-91180-108-0
02
1
0703-
●
64
NUT; PARKING BRK
M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0701-
●
●
84
BOLT; CABLE
M8X30 FLANGE
0-28650-830-0
02
1
0702-0702
●
84
BOLT; CABLE
M8X40 FLANGE
0-28650-840-0
02
1
0703-
●
87
NUT
(A) M8 FLANGE
0-91180-108-0
02
1
0701-
●
●
87
NUT
(B) M6
8-98034-313-1
01
1
0701-
●
●
91
CLIP; PARKING BRK CABLE
ID=20 L=50 THA
8-97916-115-0
01
1
0701-
●
●
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
0701-
●
●
101
NUT; CABLE TO LEVER
(A) M8
9-09110-408-0
01
1
0701-
●
●
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
9-46259-016-0
01
1
0701-
●
●
156
BOLT; CONT BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0702-
●
