Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

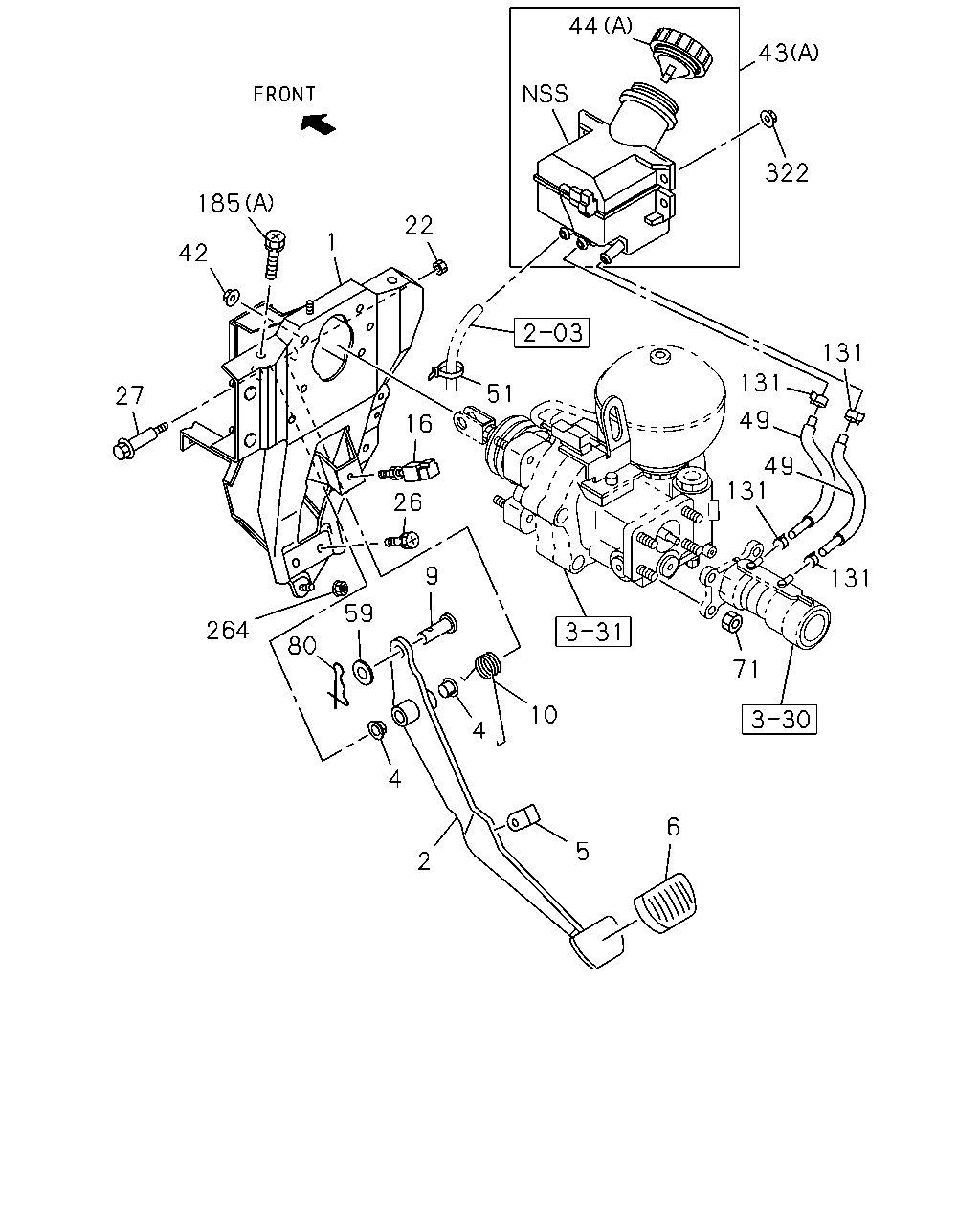

3-10 — BRAKE PEDAL AND CONTROL
(#35672) — 44 parça
Tümü
A - NPC5SF
B - NPC5SN
◀
[310A] NO.2 (17 parça)
[310A] NO.1 (27 parça)
▶
43
44
46
163
200
199
185
199
48
203
200
197
98
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
TANK ASM; OIL
(A)
8-97179-813-1
01
1
0701-
●
●
43
TANK ASM; OIL
(B)
8-97306-217-0
01
1
0701-
●
●
44
CAP; OIL TANK
(B)
8-94146-153-2
01
1
0701-
●
●
44
CAP; OIL TANK
(A)
8-97178-291-1
01
1
0701-
●
●
46
FILTER; RESERVOIR,BRK
8-97094-732-0
01
1
0701-
●
●
48
BOLT; OIL TANK TO BRKT
M6X25 FLANGE
0-28650-625-0
02
1
0702-
●
48
BOLT; OIL TANK TO BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0701-
●
●
98
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0701-
●
●
163
COVER; OIL TANK
8-97164-749-1
01
1
0701-
●
●
185
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0701-
●
●
185
BOLT; BRKT
(A) M10X25 FLANGE
0-28661-025-0
02
1
0701-
●
●
197
BRACKET; OIL TANK
(A)
8-97173-342-2
01
1
0701-
●
●
197
BRACKET; OIL TANK
(B)
8-97333-555-2
01
1
0701-
●
●
199
BOLT; OIL TANK BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0701-
●
●
200
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0701-
●
●
203
WASHER; PL,OIL TANK
ID=8.4 OD=22
0-91610-708-0
02
1
0701-
●
●
224
NUT
M10 FLANGE
0-91180-210-0
02
1
0702-
●
44
43
322
185
22
1
42
131
131
51
27
49
16
49
131
26
9
131
59
264
80
71
10
4
4
6
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
8-97896-968-0
01
1
0701-
●
●
2
PEDAL; BRK
THA
8-97920-903-0
01
1
0701-
●
●
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
0701-
●
●
5
STOPPER; BRK PEDAL
THA
8-97853-602-1
01
1
0701-
●
●
6
COVER; BRK PEDAL
8-97853-413-1
01
1
0701-
●
●
9
PIN; JAW JOINT
8-94410-276-0
01
1
0701-
●
●
10
SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
0701-
●
●
16
SWITCH; STOP LAMP
THA
8-97855-187-0
01
1
0701-
●
●
22
NUT; SHAFT
M10 FLANGE
1-09440-022-0
01
1
0701-
●
●
26
BOLT; PEDAL
M10X22 W/PL WASHER
8-97313-188-0
02
1
0701-
●
●
27
SHAFT; BRK PEDAL
8-97866-667-0
01
1
0701-
●
●
42
NUT; BRK PEDAL
M8 W/LK WASHER
8-94279-050-0
04
1
0701-
●
●
43
TANK ASM; OIL
(A)
8-97179-813-1
01
1
0701-
●
●
43
TANK ASM; OIL
(B)
8-97306-217-0
01
1
0701-
●
●
44
CAP; OIL TANK
(B)
8-94146-153-2
01
1
0701-
●
●
44
CAP; OIL TANK
(A)
8-97178-291-1
01
1
0701-
●
●
49
HOSE; OIL TANK TO BRK M/CYL
8-97129-583-0
02
1
0701-
●
●
51
CLIP; HOSE,OIL TANK
L=140
5-09707-031-1
01
1
0701-
●
●
59
WASHER; PL,JAW JOINT
ID=15
0-91610-514-0
01
1
0701-
●
●
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
04
1
0701-
●
●
80
PIN; SNAP,BRK PEDAL
8-94279-912-0
01
1
0701-
●
●
131
CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
8-97130-480-0
04
1
0701-
●
●
185
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0701-
●
●
185
BOLT; BRKT
(A) M10X25 FLANGE
0-28661-025-0
02
1
0701-
●
●
224
NUT
M10 FLANGE
0-91180-210-0
02
1
0702-
●
264
NUT; BRKT,COLUMN SUPT TO B.PDL
M8 W/DISHED WASHER
8-97329-625-0
01
1
0701-
●
●
322
NUT; OIL TANK
M6 FLANGE
0-91180-106-0
02
1
0701-
●
●
