◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#35671) — 28 parça

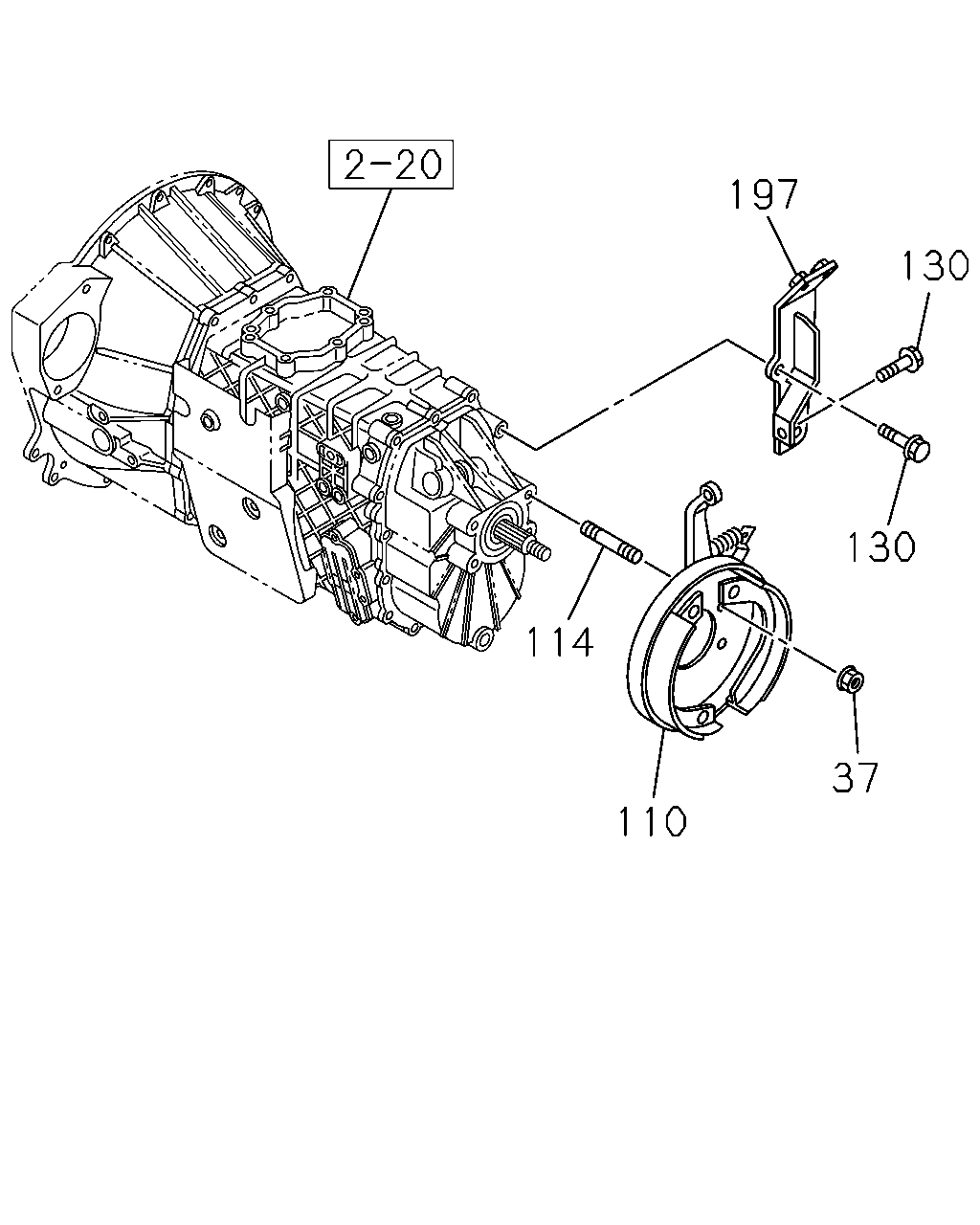

çizim 13949
197 130 130 114 37 110
BalonParca AdiParca NoAdetTipApplied Date A B
37 NUT; SUPPORT PLATE
M14 FLANGE 		8-97365-444-0 04 1 0701- ● ●
110 BRAKE ASM; PARKING 8-97205-628-0 01 1 0701-0706 ● ●
110 BRAKE ASM; PARKING 8-98034-305-0 01 1 0707- ● ●
114 STUD; SUPPORT PLATE
M14X22.5 L=42.5 		8-97365-445-0 04 1 0701- ● ●
130 BOLT; BRKT
M10X25 FLANGE 		0-28151-025-0 03 1 0701- ● ●
197 BRACKET; CENTER BRAKE CABLE 8-97244-812-0 01 1 0701- ● ●

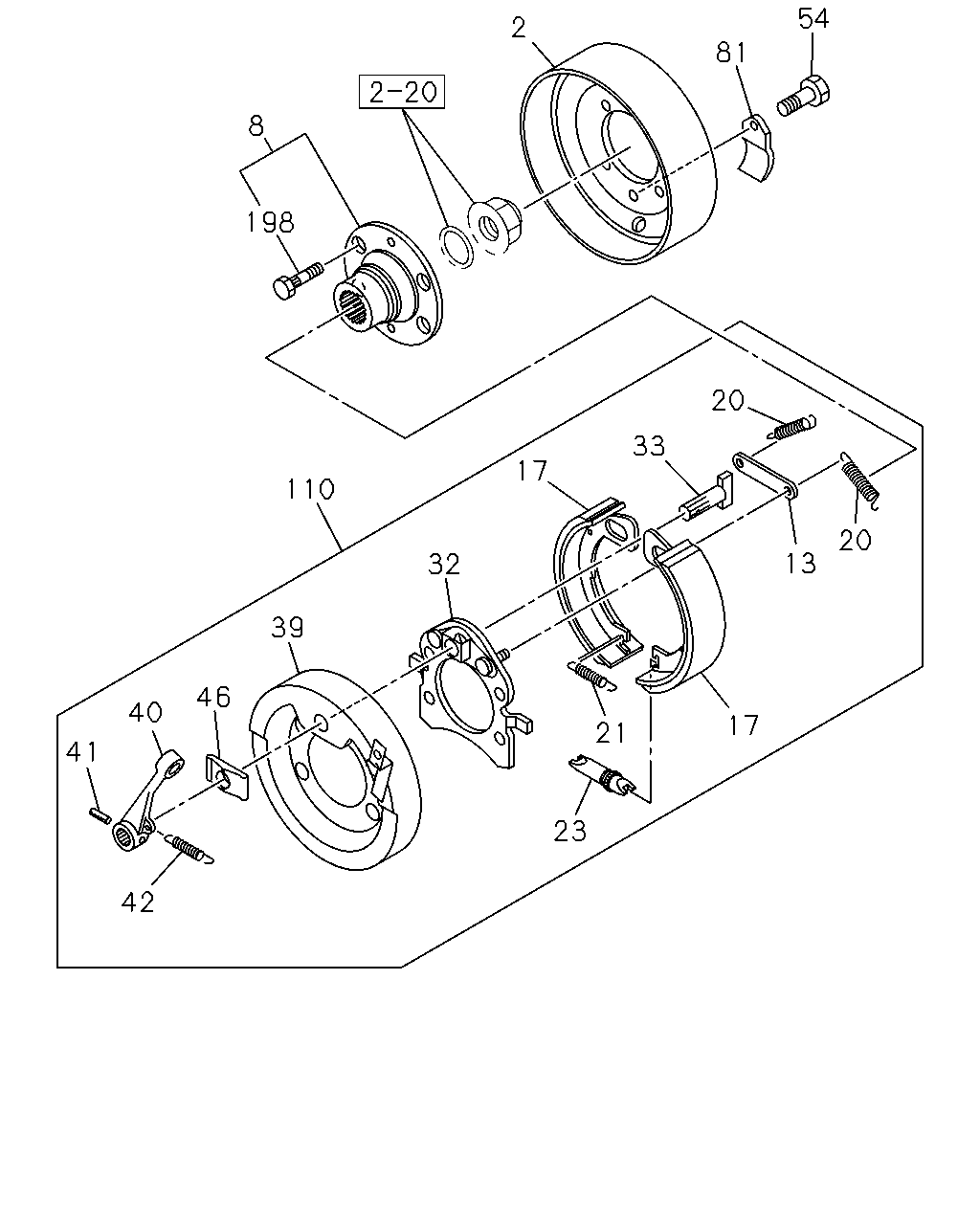

çizim 57598
54 2 81 8 198 20 33 17 110 20 13 32 39 46 40 17 21 41 23 42
BalonParca AdiParca NoAdetTipApplied Date A B
2 DRUM; PARKING BRK 1-46211-057-0 01 1 0701- ● ●
8 FLANGE; PARKING BRK 8-98044-142-0 01 1 0701- ● ●
13 BRACE; PARKING BRK 1-46239-003-0 01 1 0701- ● ●
17 SHOE; PARKING BRK 8-97042-934-1 02 1 0701- ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK 1-09586-002-0 02 1 0701- ● ●
21 SPRING; RETURN,PARKING BRK SHOE 1-09583-280-0 01 1 0701- ● ●
23 SCREW; ADJ,PARKING BRK SHOE 1-46240-004-0 01 1 0701-0706 ● ●
23 SCREW; ADJ,PARKING BRK SHOE 8-98043-963-0 01 1 0707- ● ●
32 PLATE; SUPPORT,PARKING BRK 1-46213-069-0 01 1 0701- ● ●
33 SHAFT; CAM,PARKING BRK 1-46251-009-0 01 1 0701-0706 ● ●
33 SHAFT; CAM,PARKING BRK 8-98043-961-0 01 1 0707- ● ●
39 COVER; DUST,PARKING BRK 1-46213-075-0 01 1 0701- ● ●
40 LEVER; CM/SHF,PARKING BRK 1-46252-041-0 01 1 0701-0706 ● ●
40 LEVER; CM/SHF,PARKING BRK 8-98047-550-0 01 1 0707- ● ●
41 PIN; KNOCK,LEVER 9-09878-594-0 01 1 0701- ● ●
42 SPRING; RETURN,LEVER 1-09583-041-0 01 1 0701- ● ●
46 WASHER; LEVER 1-09509-057-0 01 1 0701- ● ●
54 BOLT; COVER
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0701- ● ●
81 COVER; CHECK HOLE,PARKING BRK 8-98031-861-0 02 1 0701- ● ●
110 BRAKE ASM; PARKING 8-97205-628-0 01 1 0701-0706 ● ●
110 BRAKE ASM; PARKING 8-98034-305-0 01 1 0707- ● ●
198 BOLT; KNURL
M12X39 		8-97365-446-0 04 1 0701- ● ●
