3-05 — REAR WHEEL BRAKE (#35670) — 29 parça

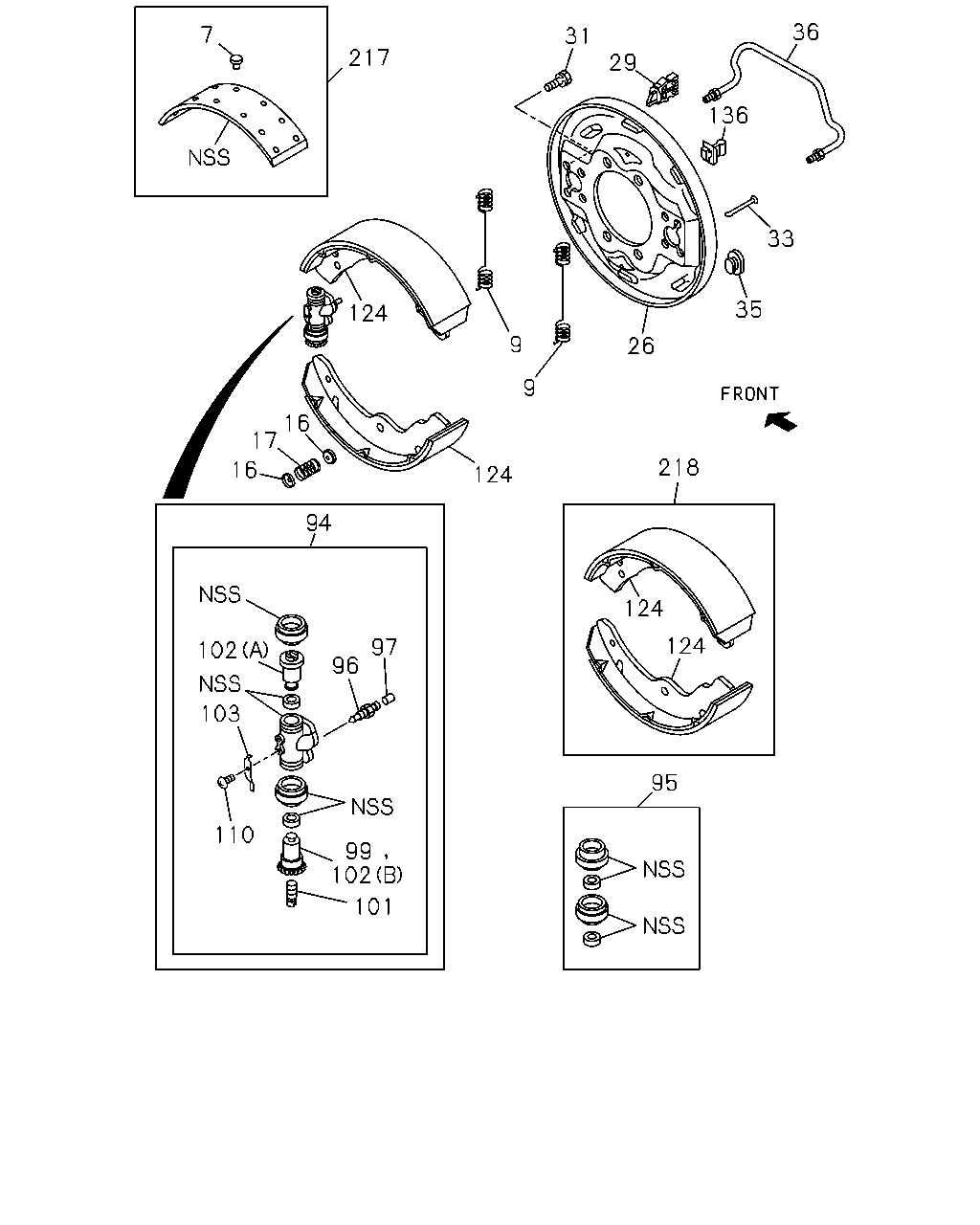

çizim 57378
36 7 31 217 29 136 33 35 124 9 26 9 16 17 218 16 124 94 124 124 97 102 96 103 95 110 99 102 101
BalonParca AdiParca NoAdetTipApplied Date A B
7 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0701- ● ●
9 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0701- ● ●
16 CUP; SHOE HOLDING 9-47165-096-0 08 1 0701- ● ●
17 SPRING; SHOE HOLD DOWN 5-09580-101-1 04 1 0701- ● ●
26 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0701- ● ●
26 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0701- ● ●
29 CLIP; PIPE,BRK 8-97022-086-0 02 1 0701- ● ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0701- ● ●
33 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0701- ● ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0701- ● ●
36 PIPE; OIL,RR BRK
THA 		8-97940-705-0 02 1 0701- ● ●
94 CYLINDER; WHEEL,RR BRK 8-97353-570-0 02 1 0701- ● ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97353-571-0 01 1 0701- ● ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97353-572-0 01 1 0701- ● ●
95 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0701- ● ●
96 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0701-0710 ● ●
96 SCREW; BLEEDER,RR BRK 8-98050-477-0 01 1 0711- ● ●
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0701-0710 ● ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0711- ● ●
99 PISTON; RR WHEEL CYL 8-97353-579-0 03 1 0701- ● ●
101 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0701- ● ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97353-578-0 04 1 0701- ● ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97353-579-0 01 1 0701- ● ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0701- ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0701- ● ●
124 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0701- ● ●
136 GROMMET
THA 		8-97044-742-1 04 1 0701- ● ●
217 LINING KIT; RR BRK 5-87831-692-0 01 1 0701- ● ●
218 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0701- ● ●
