Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#35663) — 48 parça
◀

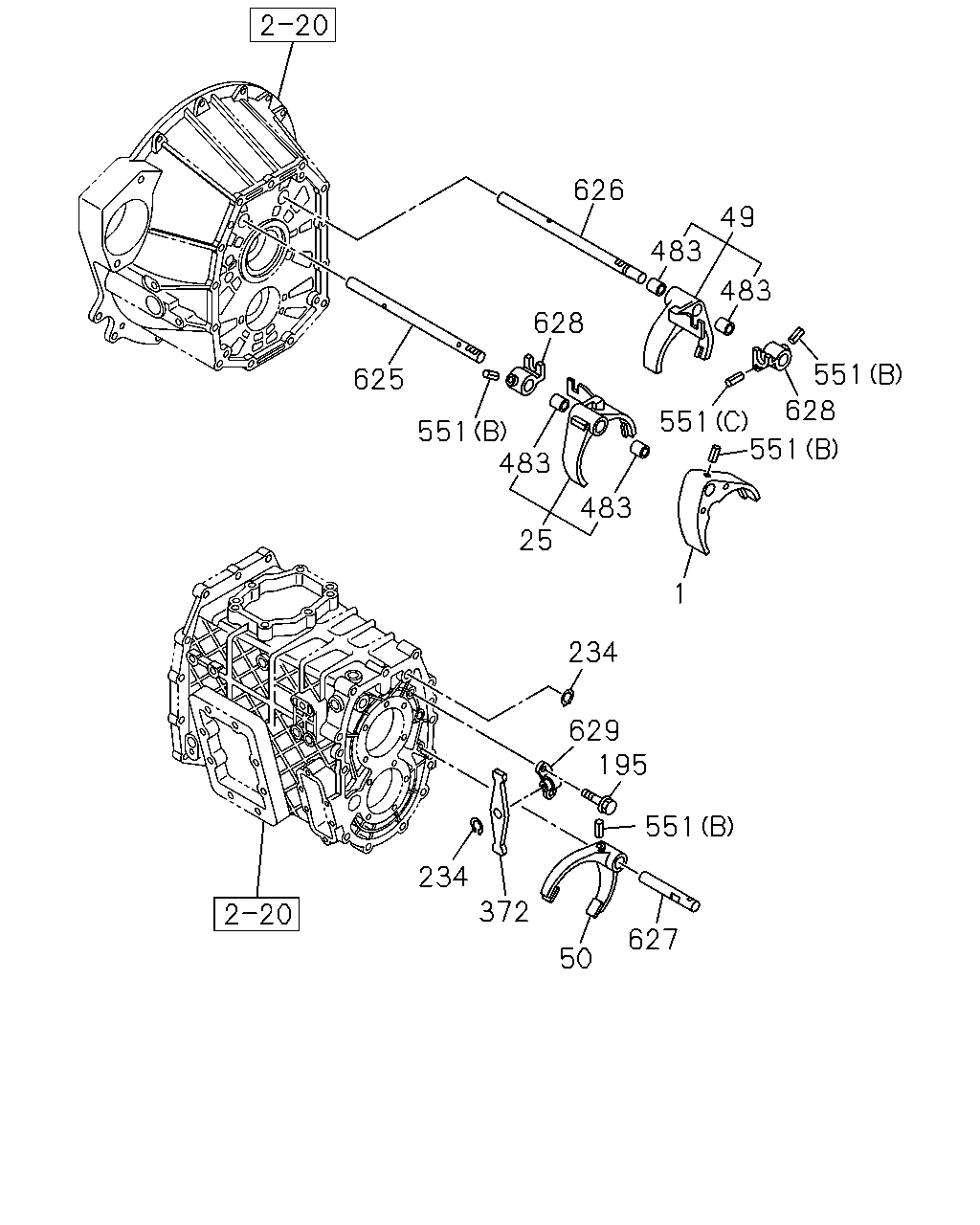

[230A] GEAR SHIFT (18 parça)

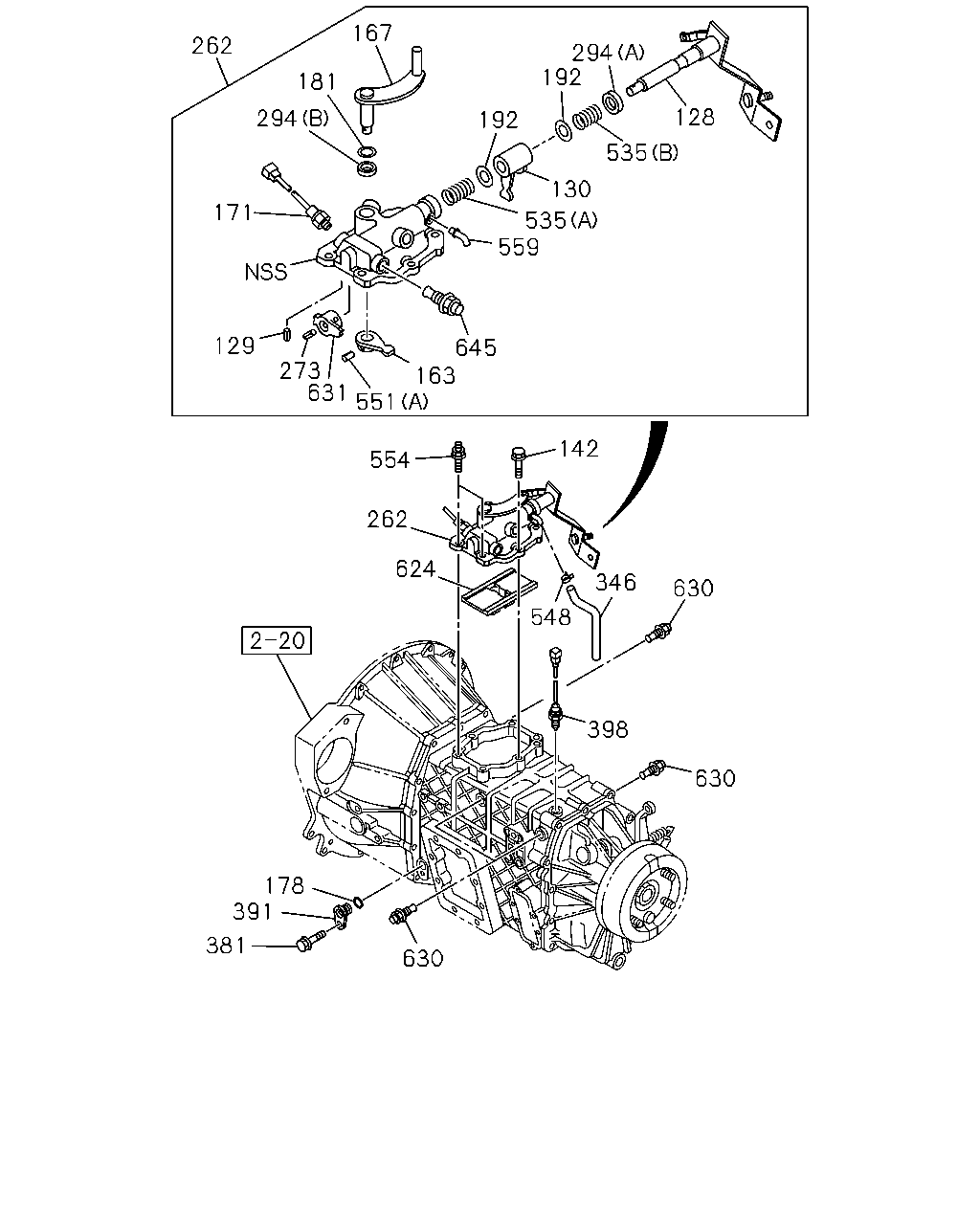

[230A] SHIFT CONT BOX (30 parça)
▶
626
49
483
483
628
551
625
628
551
551
551
483
483
25
1
234
629
195
551
234
372
627
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; SHIFT,1ST & REV
8-97241-319-2
01
1
0701-
25
ARM; SHIFT,2ND & 3RD
8-97362-737-1
01
1
0701-
49
ARM; SHIFT,4TH & 5TH
8-97362-738-1
01
1
0701-
50
ARM; SHIFT,6TH
8-97241-324-1
01
1
0701-
195
BOLT
M10X28 FLANGE REAMER
8-97365-375-0
02
1
0701-
234
RING; SNAP
ID=16.5
0-91800-618-0
01
1
0701-
372
LEVER; RELAY,6TH
8-97241-342-0
01
1
0701-
483
BUSHING; SHIFT ARM
8-97241-326-2
04
1
0701-
551
PIN; SPRING
(A) L=17
1-09748-032-0
01
1
0701-
551
PIN; SPRING
(B) L=32
8-97011-596-2
05
1
0701-
551
PIN; SPRING
(C) L=20
8-97241-340-0
01
1
0701-
625
ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
8-97362-735-0
01
1
0701-
626
ROD; GEAR SHIFT,4TH,5TH & 6TH
8-97383-754-0
01
1
0701-0801
626
ROD; GEAR SHIFT,4TH,5TH & 6TH
8-98107-548-0
01
1
0802-
627
ROD; GEAR SHIFT,6TH SUB
8-97241-339-0
01
1
0701-0805
627
ROD; GEAR SHIFT,6TH SUB
8-98119-293-0
01
1
0806-
628
BLOCK; SHIFT,LOW,REV & 6TH
8-97241-327-1
02
1
0701-
629
BRIDGE; LEVER
8-97241-345-1
01
1
0701-
167
262
294
192
181
128
294
192
535
130
171
535
559
129
645
163
551
273
631
142
554
262
624
346
630
548
398
630
178
391
381
630
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
128
LEVER; SHIFT,EXTERNAL
8-98021-595-0
01
1
0701-
129
PIN; SPR,SHIFT
D=4
1-09748-031-0
01
1
0701-
130
LEVER; SHIFT,INTERNAL
8-97306-647-0
01
1
0701-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
0701-
163
LEVER; SELECT,INTERNAL
8-97305-663-0
01
1
0701-
167
LEVER; SELECT,EXTERNAL
8-98039-444-0
01
1
0701-
171
SWITCH; NEUTRAL
8-98023-050-0
01
1
0701-
178
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
9-09567-113-0
01
1
0701-
181
WASHER; PL,SELECT LEVER
8-97367-327-0
01
1
0701-
192
WASHER; PL
8-97305-661-0
02
1
0701-
262
BOX ASM; SHIFT CONT
8-98021-592-1
01
1
0701-
273
PIN; SPR,STOPPER
D=4.2 L=25
8-97103-142-0
01
1
0701-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B)
8-97305-662-0
01
1
0701-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A)
8-97363-225-0
01
1
0701-
346
HOSE; AIR
8-97309-855-0
01
1
0701-
381
BOLT
M6X16 FLANGE
0-28650-616-0
01
1
0701-
391
PLUG; SW HOLE
8-97300-273-1
01
1
0701-
398
SWITCH; REV LAMP
8-98023-050-0
01
1
0701-
535
SPRING; LEVER
(A)
8-97305-659-0
01
1
0701-
535
SPRING; LEVER
(B)
8-97305-660-0
01
1
0701-
548
CLIP; HOSE
8-97031-674-0
01
1
0701-
551
PIN; SPRING
(A) L=17
1-09748-032-0
01
1
0701-
551
PIN; SPRING
(B) L=32
8-97011-596-2
05
1
0701-
551
PIN; SPRING
(C) L=20
8-97241-340-0
01
1
0701-
554
STUD; CONT BOX
M8X15,M8X25 L=49
8-97365-378-0
02
1
0701-
559
PIPE; BREATHER
8-97358-318-0
01
1
0701-
624
PLATE; INTER LOCK
8-97241-317-3
01
1
0701-
630
DETENT ASM
8-98019-536-0
04
1
0701-
631
STOPPER; SPRING
8-97305-666-0
01
1
0701-
645
DETENT ASM
8-98019-536-0
01
1
0701-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
