2-26 — MANUAL TRANSMISSION GEAR (#35662) — 76 parça

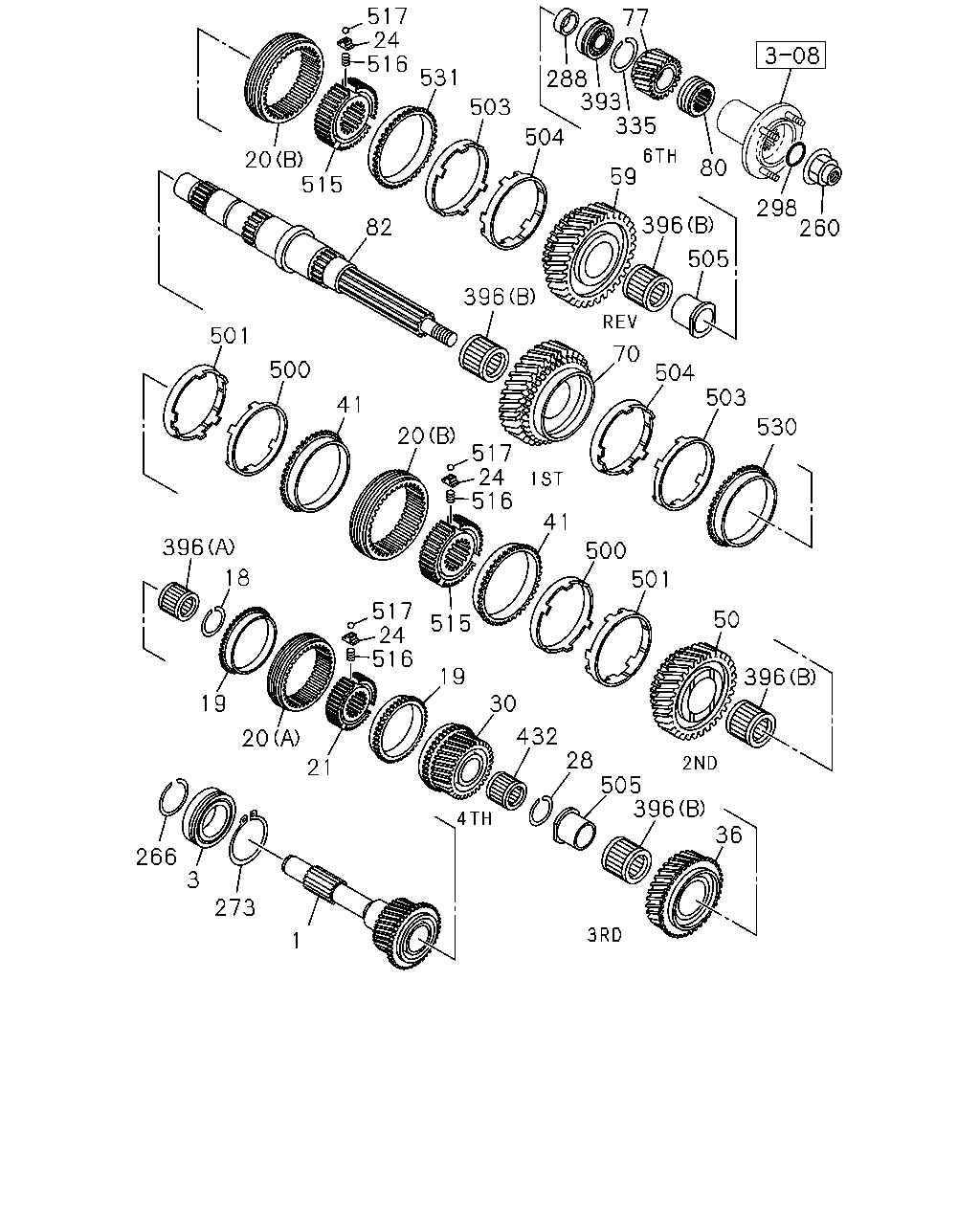

çizim 13849
517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=25 		8-97371-090-0 01 1 0701-
3 BEARING; TOP GEAR SHAFT 8-97253-097-1 01 1 0701-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 0701-
19 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 0701-
20 SLEEVE
(B) 		8-97241-295-2 02 1 0701-
20 SLEEVE
(A) 		8-97241-296-1 02 1 0701-
21 HUB; CLU,4TH & 5TH 8-97241-299-2 01 1 0701-
24 BLOCK; INDEX,SYN 8-97241-313-1 12 1 0701-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0701-
30 GEAR; 4TH,MAINSHAFT
Z=28 		8-97252-628-0 01 1 0701-
36 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 0701-
41 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 0701-
50 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 0701-
59 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 0701-
70 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 0701-
77 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 0701-
80 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 0701-
82 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 0701-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 0701-
266 RING; SNAP,BRG INNER 8-97286-915-0 01 1 0701-
273 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 0701-
288 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 0701-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 0701-
335 RING; SNAP,BEARING 8-97254-720-0 01 1 0701-
393 BEARING; MAINSHAFT END 8-97253-104-0 01 1 0701-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 0701-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0701-
432 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 0701-
500 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 0701-
501 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 0701-
503 RING; OUTSIDE,LOW & REV 8-97241-307-1 02 1 0701-
504 RING; INSIDE,LOW & REV 8-97241-311-1 02 1 0701-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 0701-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 02 1 0701-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 12 1 0701-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 12 1 0701-
530 RING; BLOCK,LOW
Z=54 		8-97241-305-2 01 1 0701-
531 RING; BLOCK,REV
Z=54 		8-97241-305-2 01 1 0701-

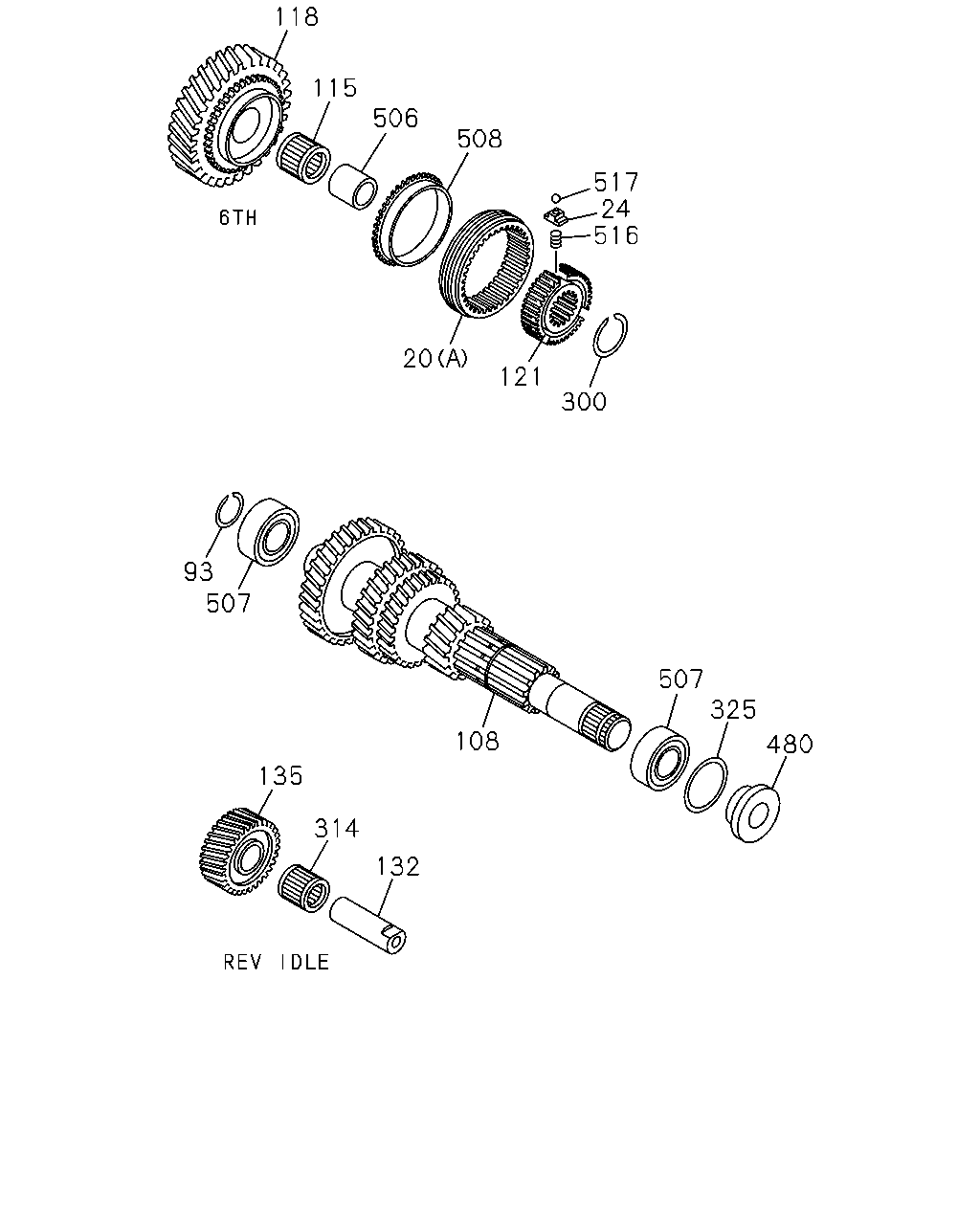

çizim 58350
118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 480 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
20 SLEEVE
(B) 		8-97241-295-2 02 1 0701-
20 SLEEVE
(A) 		8-97241-296-1 02 1 0701-
24 BLOCK; INDEX,SYN 8-97241-313-1 12 1 0701-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 0701-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 0701-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 0701-
108 SHAFT; COUNTER
Z=46-38-29-21 		8-97349-881-0 01 1 0701-0910
108 SHAFT; COUNTER
Z=46-38-29-21 		8-98113-224-0 01 1 0911-
115 BEARING; NEEDLE,6TH,COUNTER 8-97253-113-0 01 1 0701-
118 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 0701-
121 HUB; CLU,6TH 8-97241-301-2 01 1 0701-
132 SHAFT; REV 8-97252-655-0 01 1 0701-
135 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 0701-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 0701-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 0701-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 0701-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 0701-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 0701-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 0701-
480 WASHER; THRUST,6TH 8-97253-122-1 01 1 0701-
506 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 0701-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 0701-
508 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 0701-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 12 1 0701-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 12 1 0701-
