2-20 — MANUAL TRANSMISSION ASM AND CASE (#35660) — 36 parça

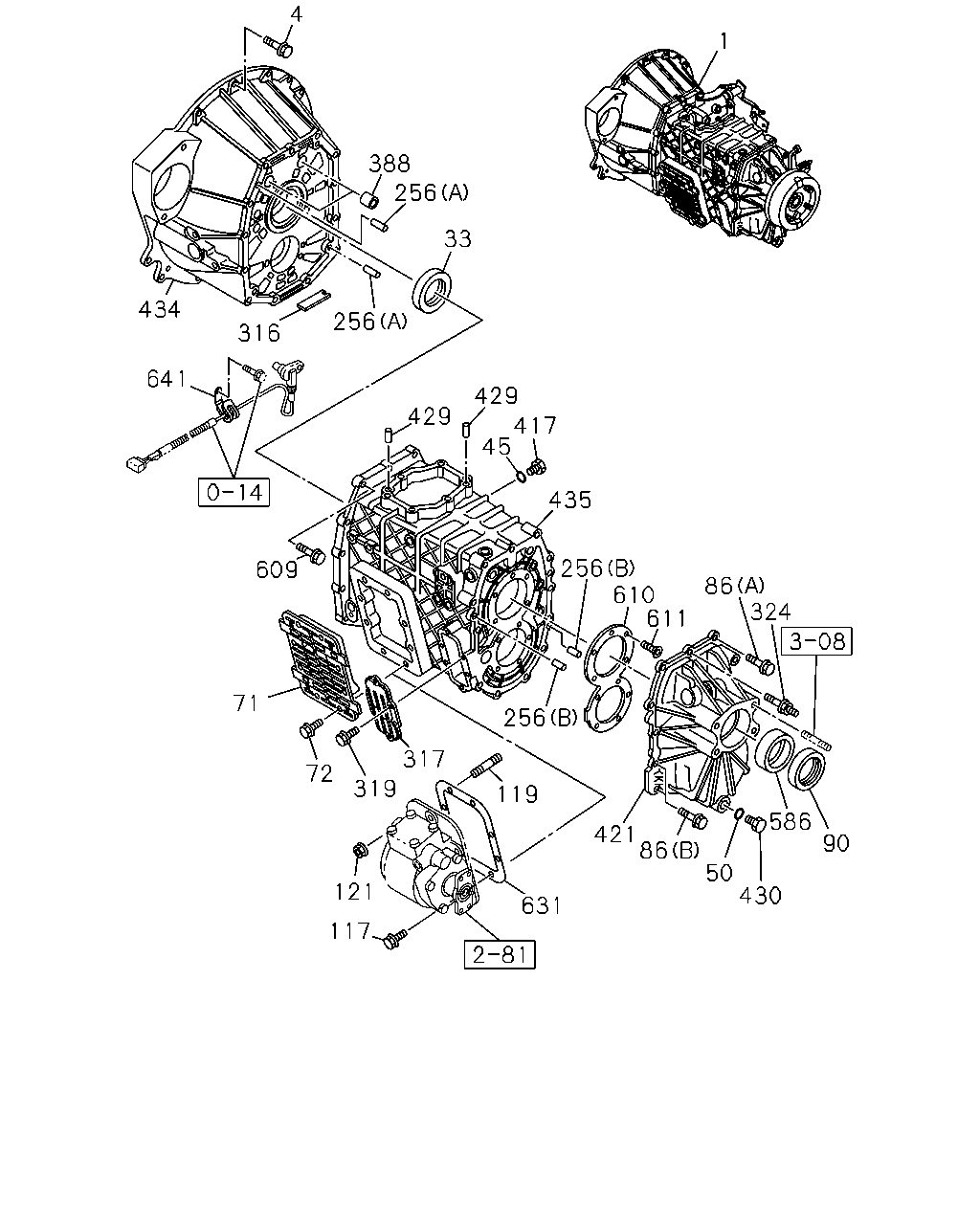

çizim 14128
4 1 388 256 33 434 256 316 641 429 429 417 45 435 256 610 611 609 86 324 256 71 317 72 319 119 586 421 86 50 430 90 121 631 117
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE<V66> 		8-98020-836-0 01 1 0701-
1 TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE<V66> 		8-98020-836-0 01 1 0701-
4 BOLT; FLYWHEEL HSG
M10X30 FLANGE 		0-28151-030-0 04 1 0701-
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28151-035-0 03 1 0701-
4 BOLT; FLYWHEEL HSG
M10X55 FLANGE 		8-97365-449-0 02 1 0701-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		8-97253-550-0 01 1 0701-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0701-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0701-
71 COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE<V66> 		8-97252-624-2 01 1 0701-
72 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE 		8-98014-142-0 01 1 0701-
86 BOLT; RR COVER
(A) M10X40 FLANGE 		0-28151-040-0 10 1 0701-
86 BOLT; RR COVER
(B) M10X40 FLANGE 		8-97365-377-0 02 1 0701-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-97253-551-1 01 1 0701-
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE<V66> M10X28 FLANGE 		0-28181-028-0 06 1 0701-0706
117 BOLT; PTO FIX
PTO TRANSMISSION SIDE<V66> M10X28 FLANGE 		8-98044-944-0 06 1 0707-
119 STUD; PTO FIX
PTO TRANSMISSION SIDE<V66> M10X25 L=40 		0-44011-025-0 02 1 0701-
121 NUT; PTO FIX
PTO TRANSMISSION SIDE<V66> M10 FLANGE 		0-91180-210-0 02 1 0701-
256 PIN; KNOCK
(A) OD=10 L=20 		8-97135-423-0 02 1 0701-
256 PIN; KNOCK
(B) ID=6 L=12 		9-08160-612-0 02 1 0701-
316 MAGNET; TRANS CASE 8-94249-524-2 01 1 0701-
317 COVER; CASE 8-97252-626-0 01 1 0701-
319 BOLT; COVER
M8X20 FLANGE 		0-28050-820-0 06 1 0701-
324 STUD; RR COVER
M10X15,M10X40 L=65 		8-97365-379-0 01 1 0701-
388 BUSHING; CLU HSG 8-97241-326-2 02 1 0701-
417 PLUG; OIL FILLER,TRANS 8-97365-373-0 01 1 0701-
421 COVER; RR,TRANS 8-97238-934-4 01 1 0701-
429 PIN; STRAIGHT
OD=10 L=20 		8-97135-423-0 02 1 0701-
430 PLUG; OIL DRAIN 8-97365-374-0 01 1 0701-
434 HOUSING; CLU 8-97238-930-4 01 1 0701-
435 CASE; TRANS 8-97382-868-1 01 1 0701-
586 BEARING; NEEDLE 8-97253-108-0 01 1 0701-
609 BOLT; HSG TO CASE
M10X40 FLANGE 		0-28151-040-0 13 1 0701-
610 RETAINER; BRG 8-97241-314-2 01 1 0701-
611 SCREW
M10X27 TORQUES 		8-97365-354-0 10 1 0701-
631 SPACER; PTO
PTO TRANSMISSION SIDE<V66> 		8-97328-662-0 01 1 0701-
641 CLIP; CAM SENSOR
KD PREPARATORY PACK<6HF> ID=8 		8-94107-659-0 01 1 0701-
