Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

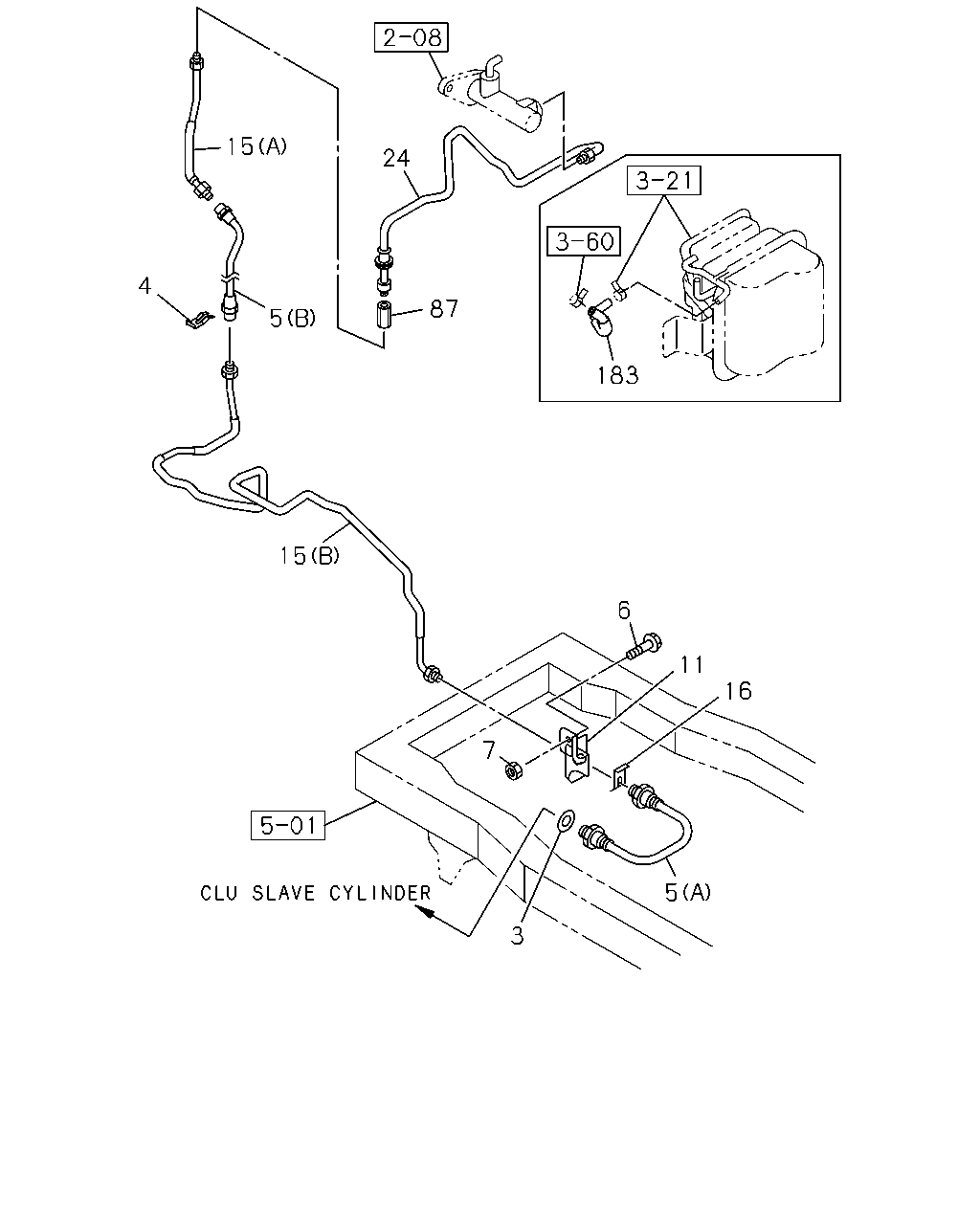

2-05 — CLUTCH PIPING
(#35655) — 15 parça
15
24
4
87
5
183
15
6
11
16
7
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; FLEX HOSE,CLU
9-09920-873-1
01
1
0701-
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
02
1
0701-
5
HOSE; FLEX,CLU PIPE
(B)
8-98004-775-0
01
1
0701-0706
5
HOSE; FLEX,CLU PIPE
(B)
8-98090-655-0
01
1
0707-
5
HOSE; FLEX,CLU PIPE
(A)
8-98020-158-0
01
1
0701-
6
BOLT; BRKT,FLEX HOSE
M8X25 FLANGE
0-28650-825-0
01
1
0701-
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE
0-91180-108-0
01
1
0701-
11
BRACKET; FLEX HOSE,CLU
8-97365-305-0
01
1
0701-
15
PIPE; CLU,FLEX HOSE
(A) THA
8-97917-169-1
01
1
0701-
15
PIPE; CLU,FLEX HOSE
(B) THA
8-97917-170-1
01
1
0701-
16
CLIP; FLEX HOSE
8-97365-304-0
01
1
0701-
24
PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T>
8-97177-034-0
01
1
0701-
24
PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> THA
8-97917-183-1
01
1
0701-
87
UNION; OIL PIPE
M12 STRAIGHT
0-92107-006-0
01
1
0701-
183
HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T>
8-97129-874-0
01
1
0701-
