◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#35650) — 94 parça

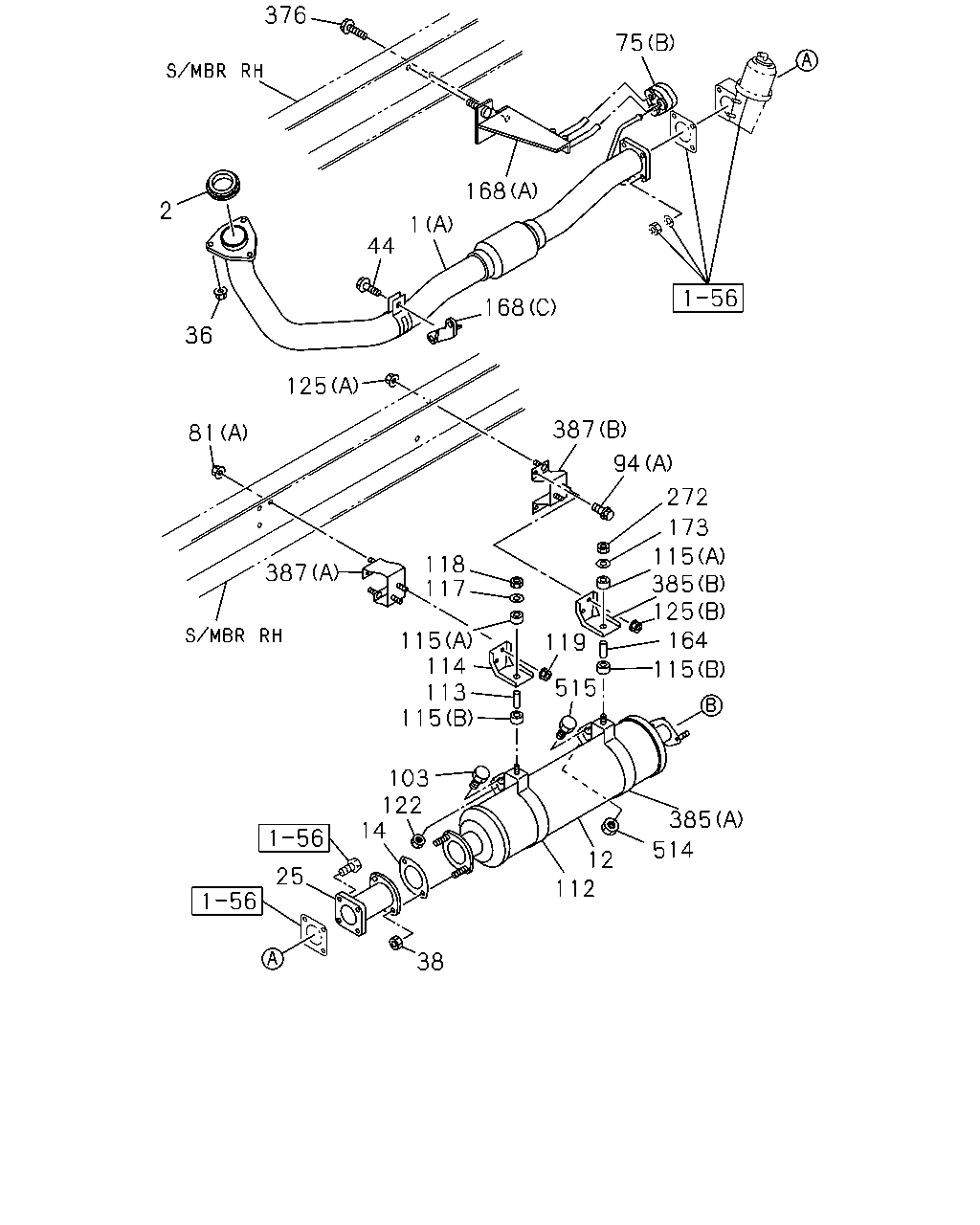

çizim 12815
376 75 168 2 1 44 168 36 125 387 81 94 272 173 115 385 125 118 117 387 164 115 114 113 115 119 115 515 103 122 14 385 514 12 112 25 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) 		8-97210-052-0 01 1 0701- ●
1 PIPE; EXH
(A) THA 		8-97922-926-0 01 1 0701- ● ●
1 PIPE; EXH
(B) THA 		8-97922-683-0 01 1 0701- ●
2 GASKET; PIPE TO MANIF 8-97381-455-0 01 1 0701- ● ●
12 SILENCER ASM; EXH 8-97222-489-1 01 1 0701- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 THA 		8-94328-352-0 01 1 0701- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 THA 		8-94328-352-0 02 1 0701- ● ●
25 PIPE; EXH,BRK VLV TO SILENCER
THA 		8-97922-682-0 01 1 0701- ● ●
36 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 03 1 0701- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0701- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0701- ● ●
44 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 01 1 0701- ● ●
75 RUBBER; SUPPORT,BRKT
(B) 		8-97080-694-0 01 1 0701- ● ●
75 RUBBER; SUPPORT,BRKT
(A) L=115 		8-94156-256-0 01 1 0701- ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0701- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 03 1 0701- ● ●
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 02 1 0701- ● ●
94 BOLT; CLAMP
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0701- ● ●
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0701-0701 ● ●
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0702- ● ●
112 BRACKET; HANGER 8-97207-224-0 01 1 0701- ● ●
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0701- ● ●
114 BRACKET; EXH SILENCER 8-94329-857-0 01 1 0701- ● ●
115 RUBBER; MTG,SILENCER
(B) 		8-97379-882-0 02 1 0701- ● ●
115 RUBBER; MTG,SILENCER
(A) THA 		8-97379-927-0 02 1 0701- ● ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0701- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0701- ● ●
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0701- ● ●
122 NUT; HANGER BRKT
M8 		9-09110-408-0 01 1 0701- ● ●
125 NUT; CLAMP
(B) M8 FLANGE 		0-91180-108-0 02 1 0701- ● ●
125 NUT; CLAMP
(A) M10 FLANGE 		0-91180-110-0 02 1 0701- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0701- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0701- ● ●
168 BRACKET; EXH PIPE,FRT
(B) 		8-97096-651-0 01 1 0701- ● ●
168 BRACKET; EXH PIPE,FRT
(A) 		8-97214-433-0 01 1 0701- ● ●
168 BRACKET; EXH PIPE,FRT
(C) 		8-97365-228-0 01 1 0701- ● ●
173 WASHER; PL
OD=55 		9-09852-169-0 01 1 0701- ● ●
272 NUT; FLANGE
M10 FLANGE 		5-09440-006-0 01 1 0701- ● ●
376 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 01 1 0701- ● ●
385 BRACKET; SILENCER MTG
(B) 		8-94329-857-0 01 1 0701- ● ●
385 BRACKET; SILENCER MTG
(A) 		8-97207-224-0 01 1 0701- ● ●
387 SPACER; BRKT
(B) 		8-97172-493-2 01 1 0701- ● ●
387 SPACER; BRKT
(A) 		8-97218-212-0 01 1 0701- ● ●
514 NUT; BAND
M8 		9-09110-408-0 01 1 0701- ● ●
515 BOLT; BAND
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0701-0701 ● ●
515 BOLT; BAND
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0702- ● ●

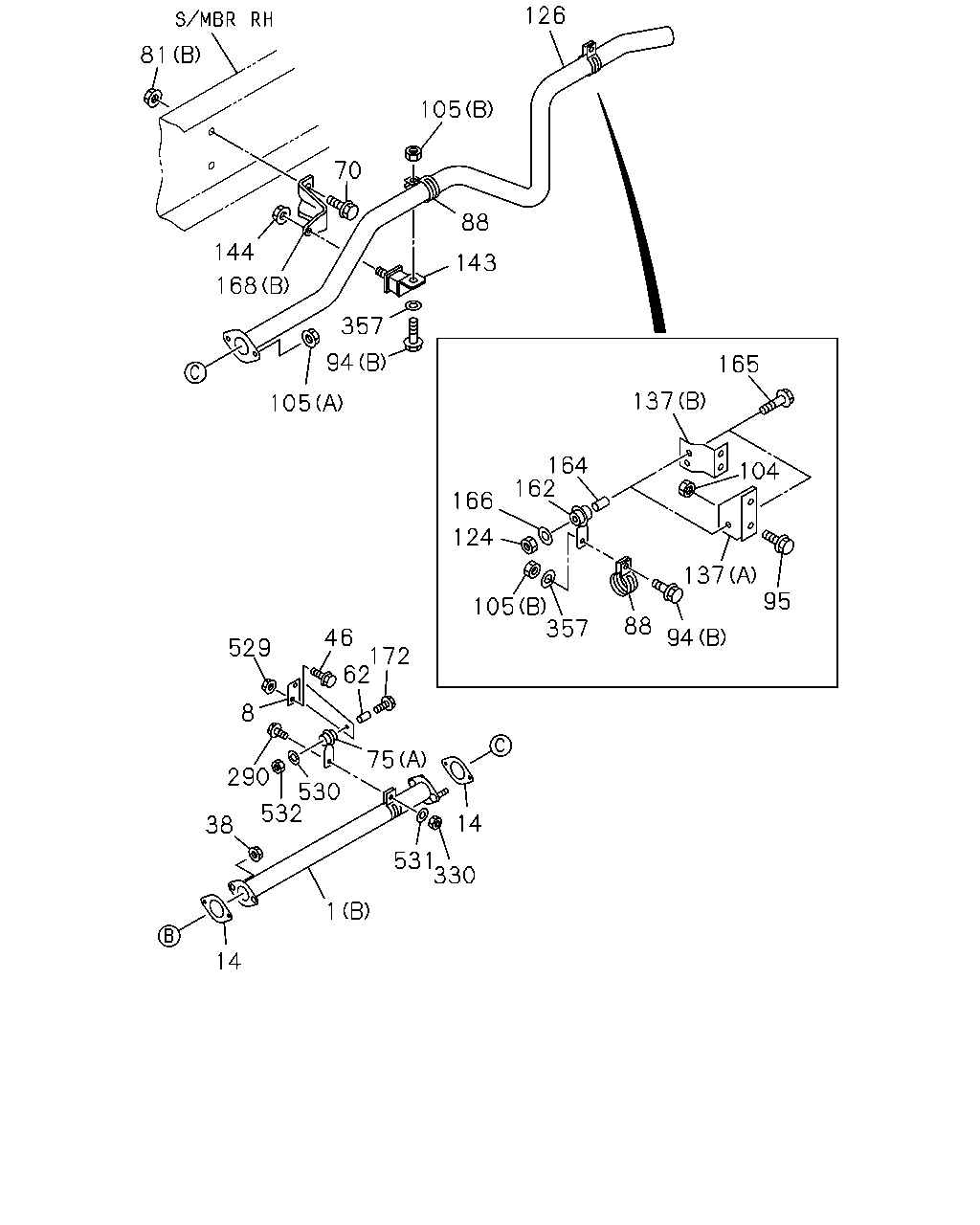

çizim 12959
126 81 105 70 88 144 143 168 357 94 165 137 105 104 164 162 166 124 137 95 105 357 88 46 94 529 172 62 8 75 290 530 532 14 38 531 330 1 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) 		8-97210-052-0 01 1 0701- ●
1 PIPE; EXH
(A) THA 		8-97922-926-0 01 1 0701- ● ●
1 PIPE; EXH
(B) THA 		8-97922-683-0 01 1 0701- ●
8 BRACKET; EXH PIPE 8-97220-154-0 01 1 0701- ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 THA 		8-94328-352-0 01 1 0701- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 THA 		8-94328-352-0 02 1 0701- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0701- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0701- ● ●
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 0701- ●
62 TUBE; DIST,BRKT
L=37.5 		9-22151-217-0 01 1 0701- ●
70 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0701- ● ●
75 RUBBER; SUPPORT,BRKT
(B) 		8-97080-694-0 01 1 0701- ● ●
75 RUBBER; SUPPORT,BRKT
(A) L=115 		8-94156-256-0 01 1 0701- ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0701- ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 03 1 0701- ● ●
88 CLAMP; EXH PIPE
THA 		8-97917-235-0 02 1 0701- ● ●
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 02 1 0701- ● ●
94 BOLT; CLAMP
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0701- ● ●
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0701- ●
95 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0701- ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0701- ●
104 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0701- ●
105 NUT; CLAMP
(B) M8 		0-91110-508-0 02 1 0701- ● ●
105 NUT; CLAMP
(A) M10 FLANGE 		0-91180-110-0 02 1 0701- ● ●
124 NUT; SUPPORT RUBBER
M10 FLANGE 		0-91180-110-0 01 1 0701- ● ●
126 PIPE; EXH,RR
THA 		8-97922-696-0 01 1 0701- ●
126 PIPE; EXH,RR
THA 		8-97920-882-0 01 1 0701-0701 ●
126 PIPE; EXH,RR
THA 		8-97923-639-0 01 1 0701- ●
137 BRACKET; TAIL PIPE
(B) 		8-97116-588-2 01 1 0701- ●
137 BRACKET; TAIL PIPE
(A) 		8-97185-801-0 01 1 0701- ●
143 RUBBER; SUPPORT 8-97371-655-1 01 1 0701- ● ●
144 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0701- ● ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-94156-256-0 01 1 0701- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0701- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0701- ● ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0701- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		0-91614-810-0 01 1 0701- ● ●
168 BRACKET; EXH PIPE,FRT
(B) 		8-97096-651-0 01 1 0701- ● ●
168 BRACKET; EXH PIPE,FRT
(A) 		8-97214-433-0 01 1 0701- ● ●
168 BRACKET; EXH PIPE,FRT
(C) 		8-97365-228-0 01 1 0701- ● ●
172 BOLT
M10X70 FLANGE 		0-28051-070-0 01 1 0701- ●
290 BOLT; CLAMP
M8X45 		0-20800-845-0 01 1 0701- ●
330 NUT; CLAMP
M8 		9-09110-408-0 01 1 0701- ●
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 02 1 0701- ● ●
529 NUT; BRKT,EXH PIPE
M10 FLANGE 		0-91180-110-0 02 1 0701- ●
530 WASHER
ID=10.5 OD=32 		0-91614-810-0 01 1 0701- ●
531 WASHER; CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0701- ●
532 NUT
M10 FLANGE 		0-91180-110-0 01 1 0701- ●
